Multi-layer

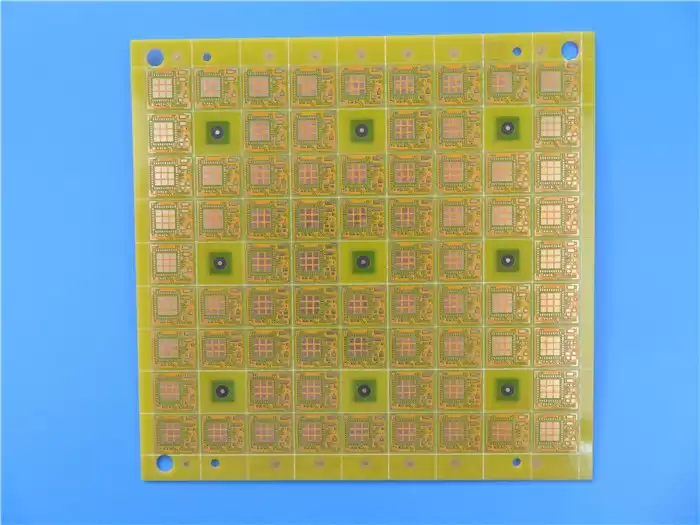

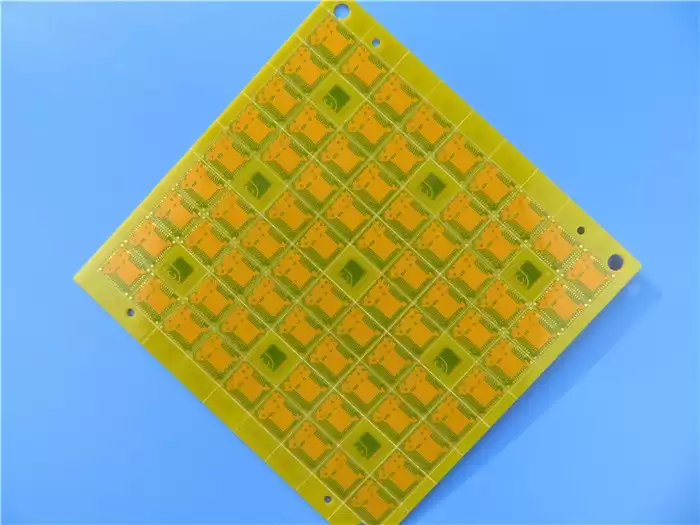

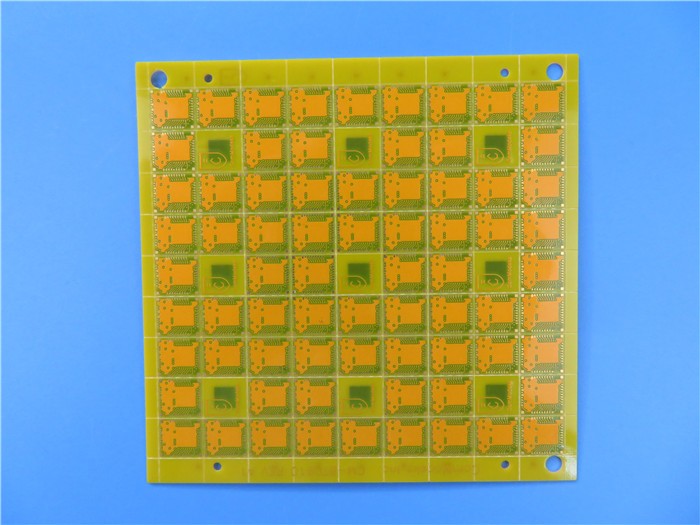

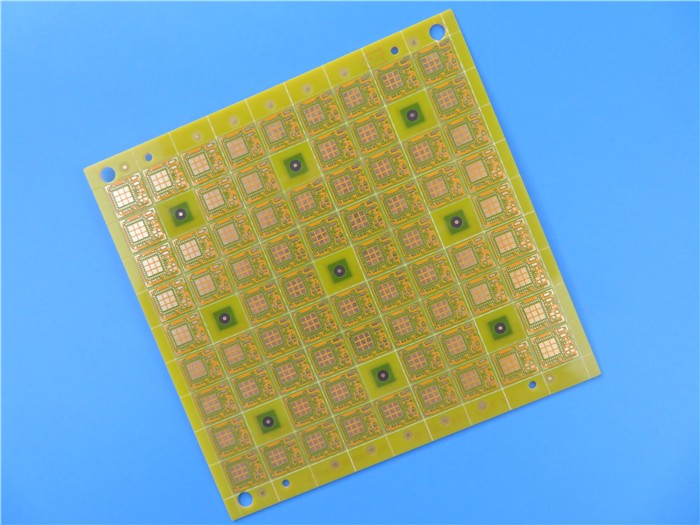

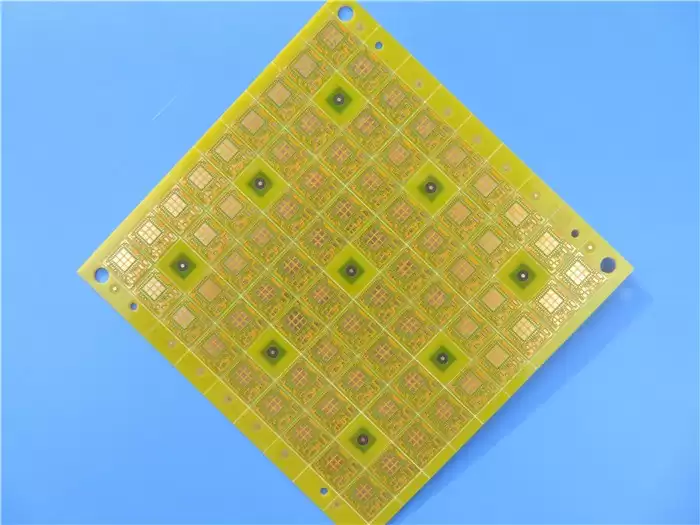

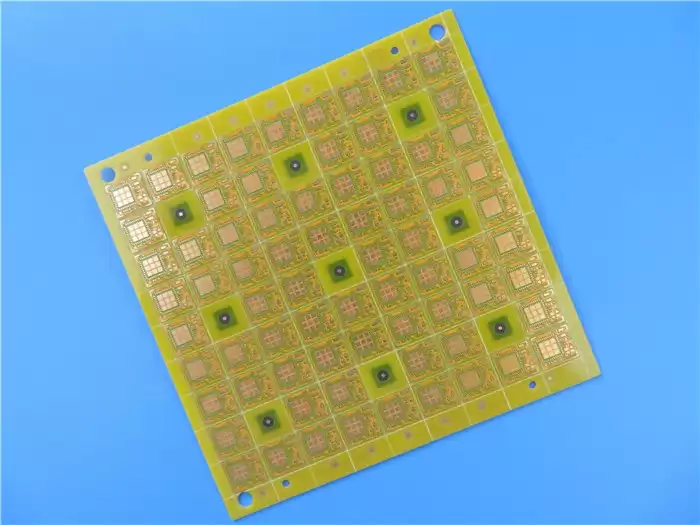

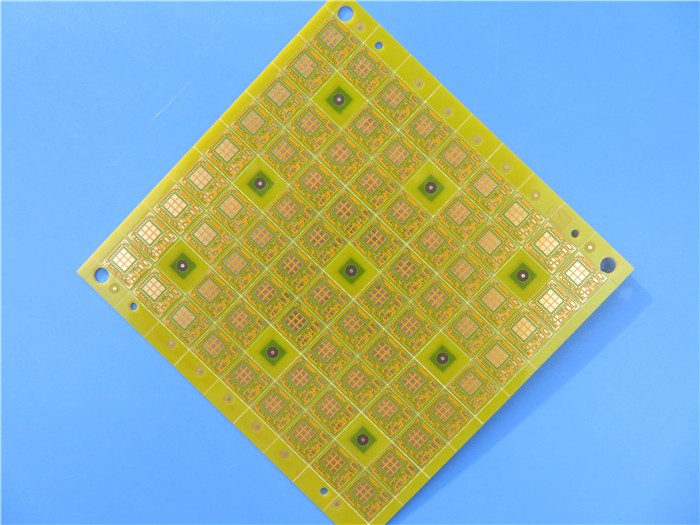

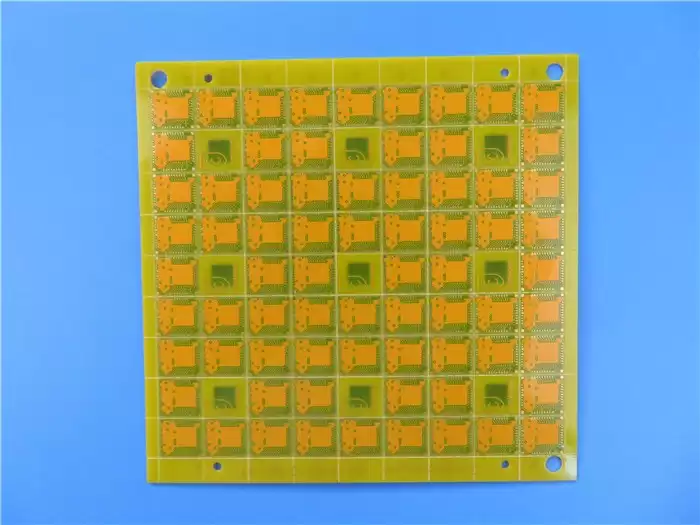

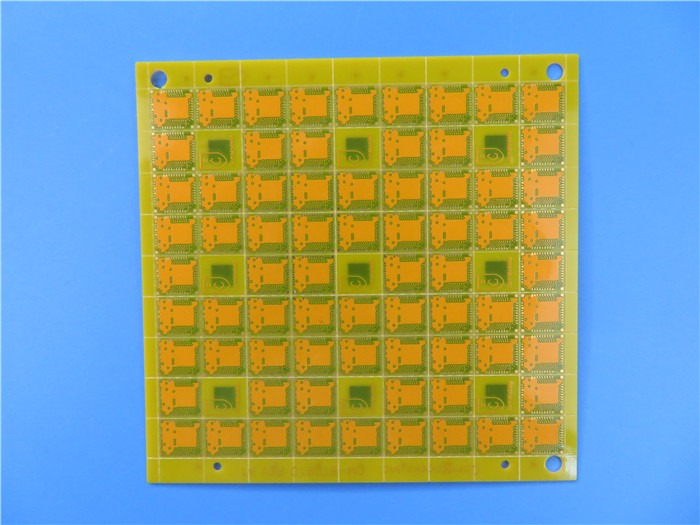

Thin PCB 0.5mm 4-Layer Thin PCB Board With Immersion Gold
(Printed
circuits boards are custom-made products, the picture and parameters shown are
just for reference)
1.1
General description
It's only 0.5 mm thick without silkscreen on yellow solder mask (Taiyo) and immersion gold on pads. The base material is
from ITEQ supplying 72 up PCB per panel. They're fabricated per IPC 6012 Class
2 using supplied Gerber data. Each 50 panels are packed for shipment.
1.2
Features and benefits
1.
FR-4 material is RoHS compliant and suitable for thermal reliability needs;
2.
Immersion gold has long storage time ( It can be stored for more than 1 year in
vacuum bag);
3.
We have Powerful PCB capabilities support your research and development, sales
and marketing;
4. 16000㎡workshop and 8000 types of
PCB's per month;
5. Hassle-free,
one-to-one after-sales service;
6. ISO9001,
ISO14001, IATF16949, ISO13485, UL Certified;
7.
More than 18+ years of PCB experience;
8.
IPC Class 2 / IPC Class 3.
1.3
Applications
Surveillance
Systems
Grid
Tie Inverter
Modem
USB
Mifi
Router
Vehicle
GPS Tracker
User
Access Control
Circuit
Board Parts
Embedded
Systems Applications
Converter
DC To DC
Printers
1.4
PCB Parameter
|
PCB SIZE
|
100 x
105mm=72PCS
|
|
BOARD TYPE
|
Multilayer PCB
|
|
Number
of Layers
|
4 layers
|
|
Surface
Mount Components
|
YES
|
|
Through
Hole Components
|
NO
|
|
LAYER STACKUP
|
copper
------- 18um(0.5oz)+plate TOP CS
|
|
4mil prepreg
|
|
copper ------- 18um(0.5oz) GND Plane
|
|
5mil FR-4
|
|
copper ------- 18um(0.5oz) PWR Plane
|
|
4mil prepreg
|
|
copper ------- 18um(0.5oz) PWR Plane
|
|
TECHNOLOGY
|
|
|
Minimum Trace and Space:
|
4mil/4mil
|
|
Minimum
/ Maximum Holes:
|
0.3/2.50mm
|
|
Number
of Different Holes:
|
31
|
|
Number
of Drill Holes:
|
2315
|
|
Number
of Milled Slots:
|
0
|
|
Number
of Internal Cutouts:
|
0
|
|
Impedance
Control
|
no
|
|
BOARD
MATERIAL
|
|
|
Glass
Epoxy:
|
FR-4,
ITEQ IT140 TG>135, er<5.4
|
|
Final
foil external:
|
1oz
|
|
Final
foil internal:
|
0.5oz
|
|
Final
height of PCB:
|
0.52-0.56mm
|
|
PLATING AND COATING
|
|
|
Surface Finish
|
Immersion gold
0.025µm over 3µm Nickel (14.9% area)
|
|
Solder
Mask Apply To:
|
TOP and Bottom,
12micron Minimum
|
|
Solder
Mask Color:
|
Yellow, Taiyo
PSR-2000GT600D
|
|
Solder
Mask Type:
|
LPSM
|
|
CONTOUR/CUTTING
|
Routing
|
|
MARKING
|
|
|
Side of
Component Legend
|
No
silkscreen requried.
|
|
Colour
of Component Legend
|
No silkscreen
requried.
|
|
Manufacturer
Name or Logo:
|
No silkscreen
requried.
|
|
VIA
|
Plated
through hole(PTH), Via in Pad and via capping on CS and PS, vias should not
be visible.
|
|
FLAMIBILITY RATING
|
UL
94-V0 Approval MIN.
|
|
DIMENSION TOLERANCE
|
|
|
Outline
dimension:
|
0.0059"
(0.15mm)
|
|
Board
plating:
|
0.0030"
(0.076mm)
|
|
Drill
tolerance:
|
0.002"
(0.05mm)
|
|
TEST
|
100%
Electrical Test prior shipment
|
|
TYPE OF ARTWORK TO BE SUPPLIED
|
email
file, Gerber RS-274-X, PCBDOC etc
|
|
SERVICE AREA
|
Worldwide,
Globally.
|
