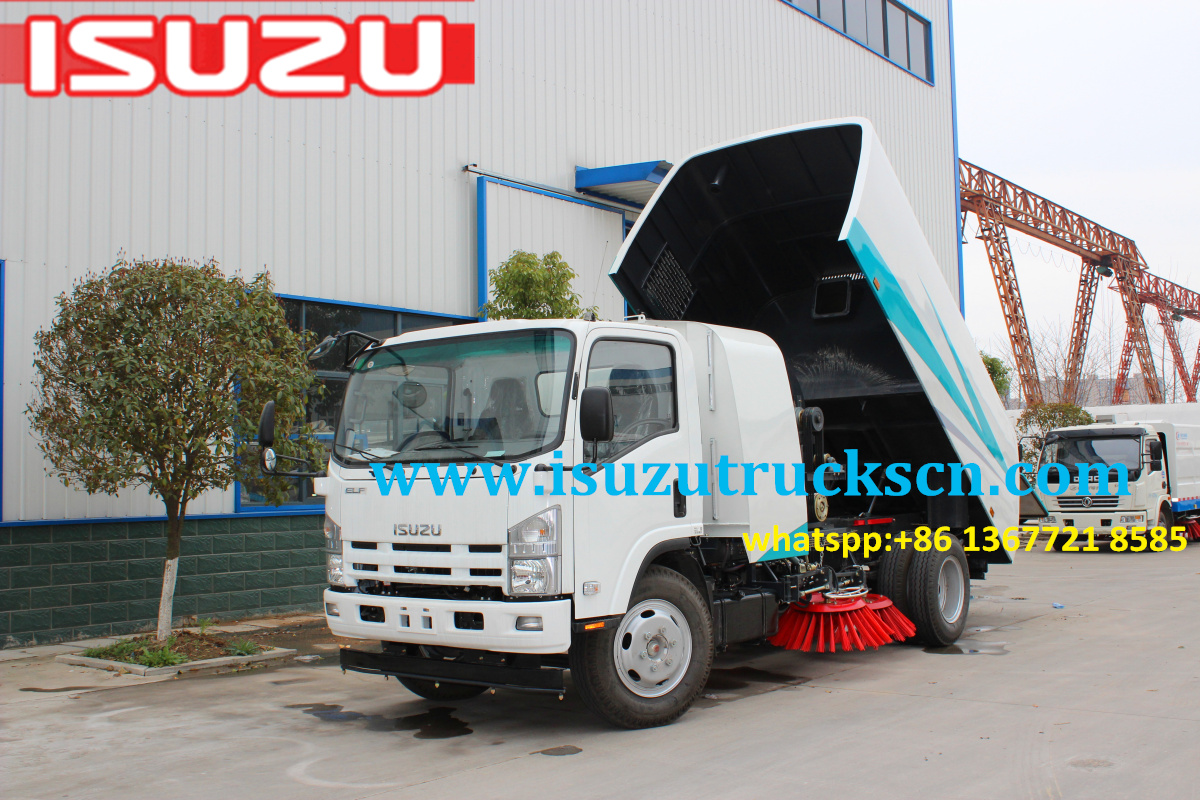

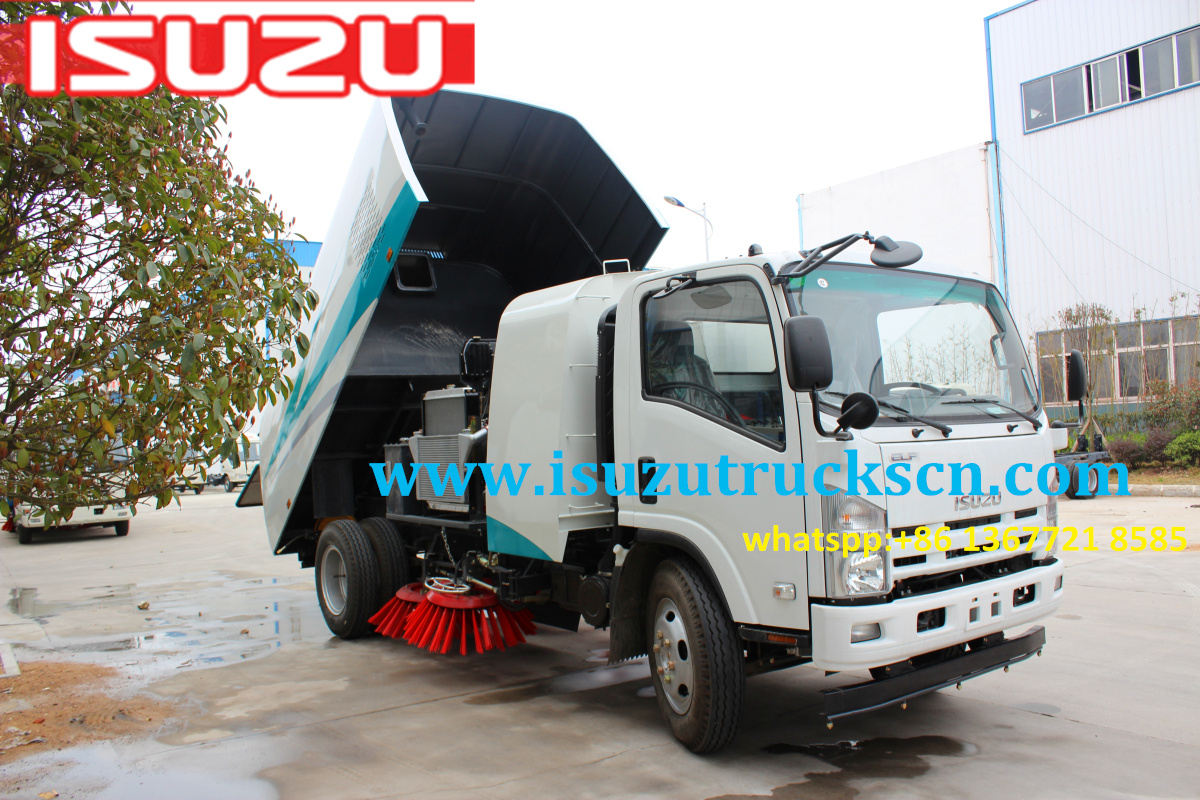

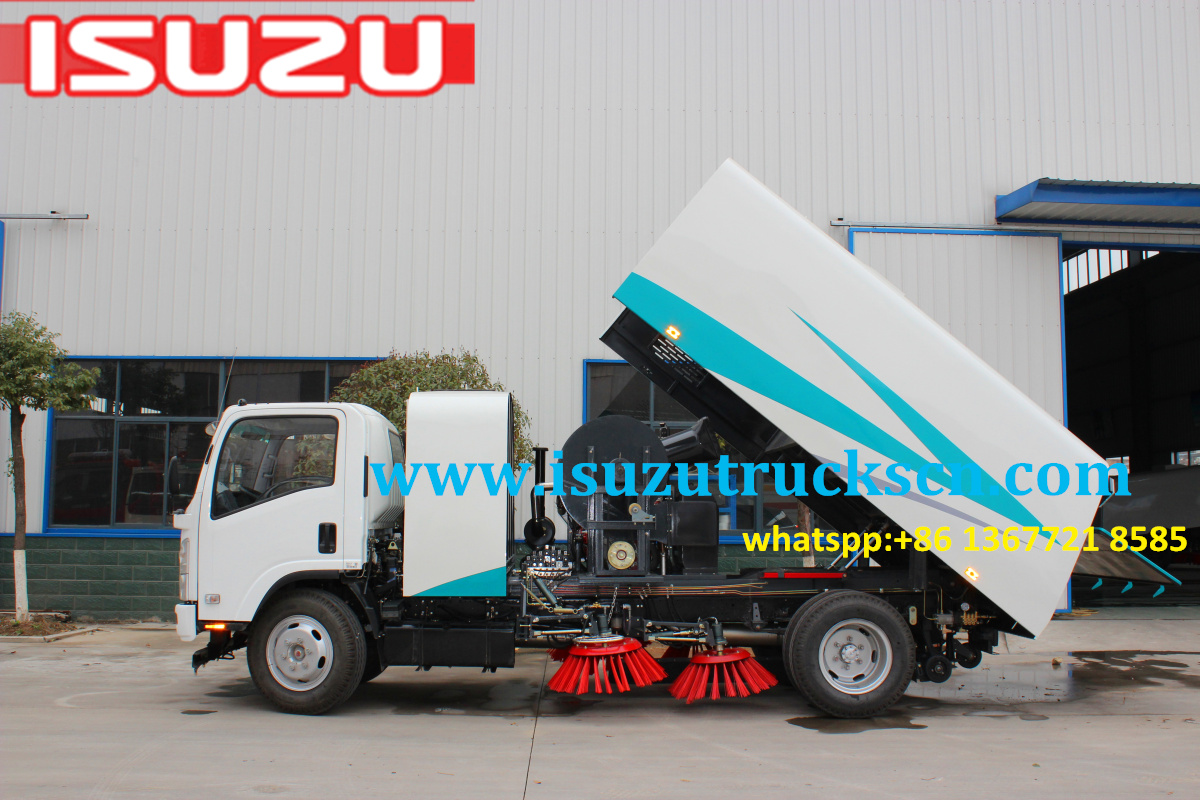

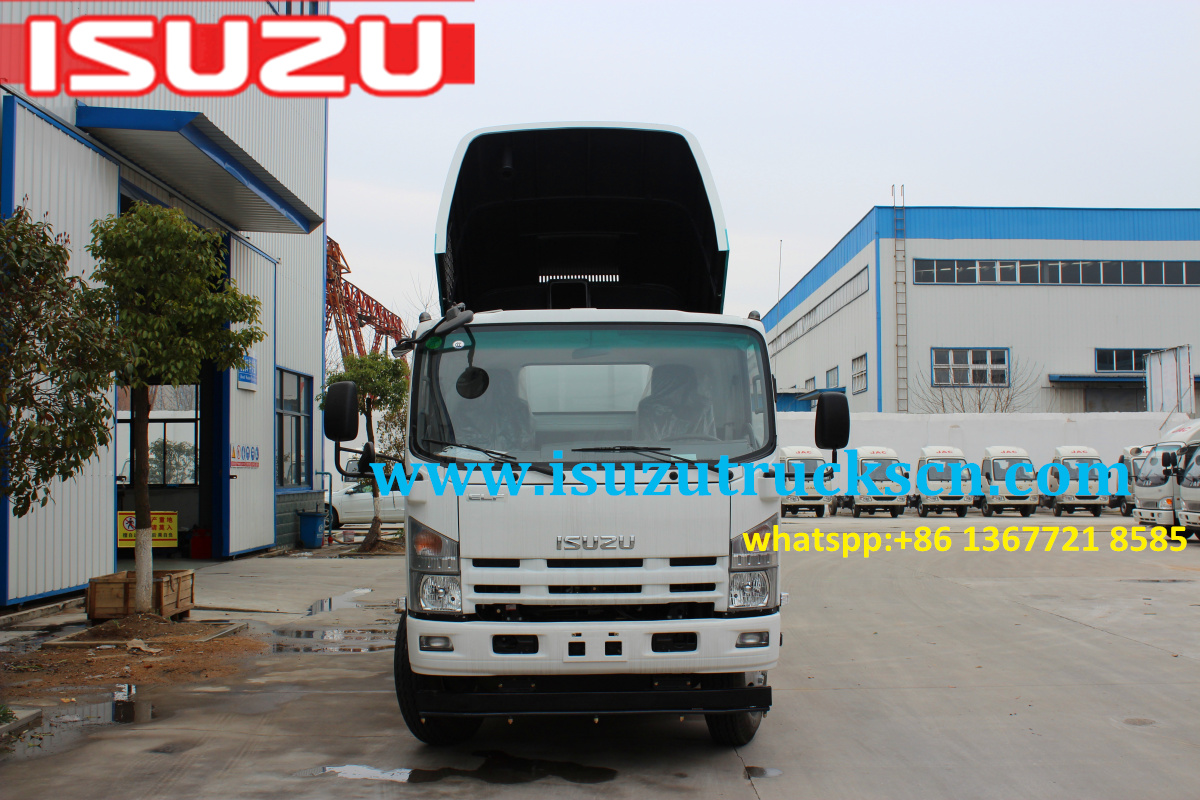

8cbm ISUZU NPR ELF Road Sweeper trucks sweeper master

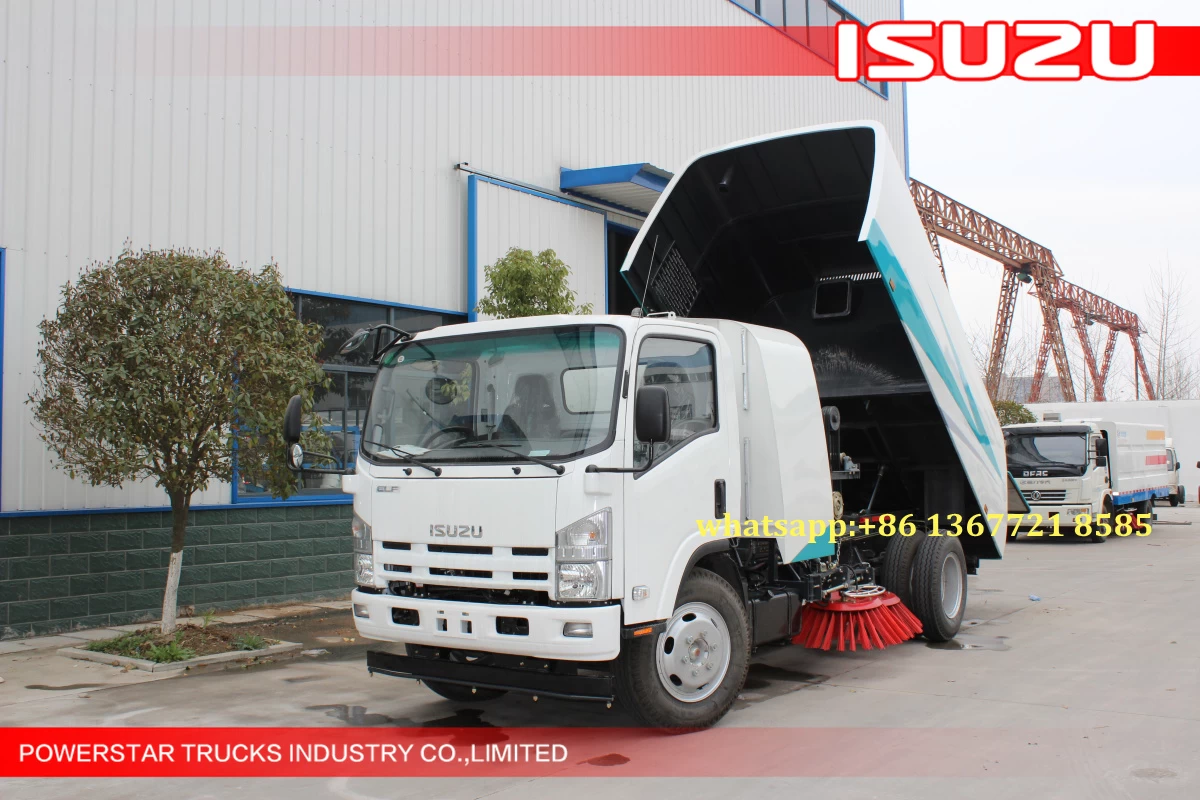

ISUZU Road sweeper truck (also
called Isuzu street sweeper vehicle, road cleaning vehicle, vacuum road sweeper
ISUZU, Isuzu elf truck mounted road sweeper, customer road sweeper truck, street sweeping vehicle, street washers sweeper trucks, highways cleaner road sweeper truck, Environment sweeper truck, waste collection sweeper truck) can be widely used in sweeping city roads, highways,
construction sites, overhead roads, bridges, squares, airports as well as docks
with asphalt concrete and cement concrete road surface.
Features:
â—† Easy operation and easy maintenance!
â—† Combined suction and sweeping, wet methods of
dust elimination, make sure swept clean and also prevent dust from spread

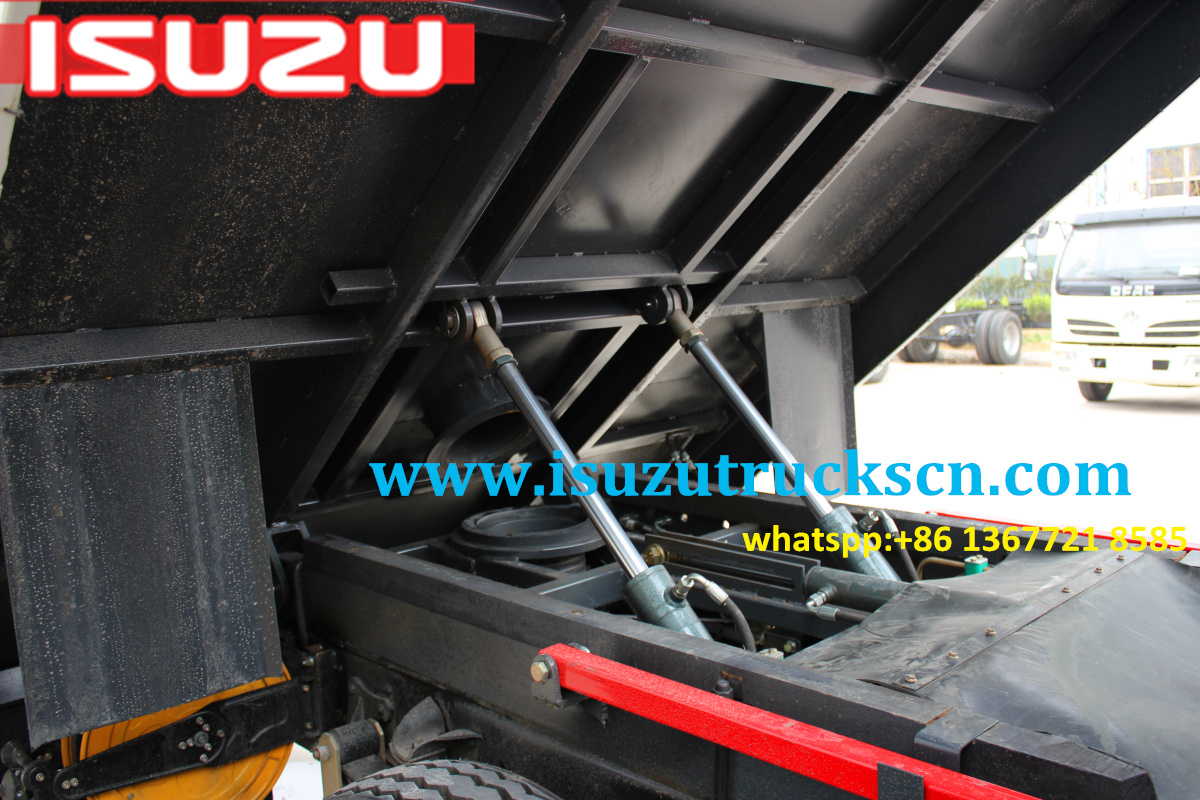

â—† The dustbin is made of stainless steel,
corrosion resistance and large capacity, which can last for a long time without
stop

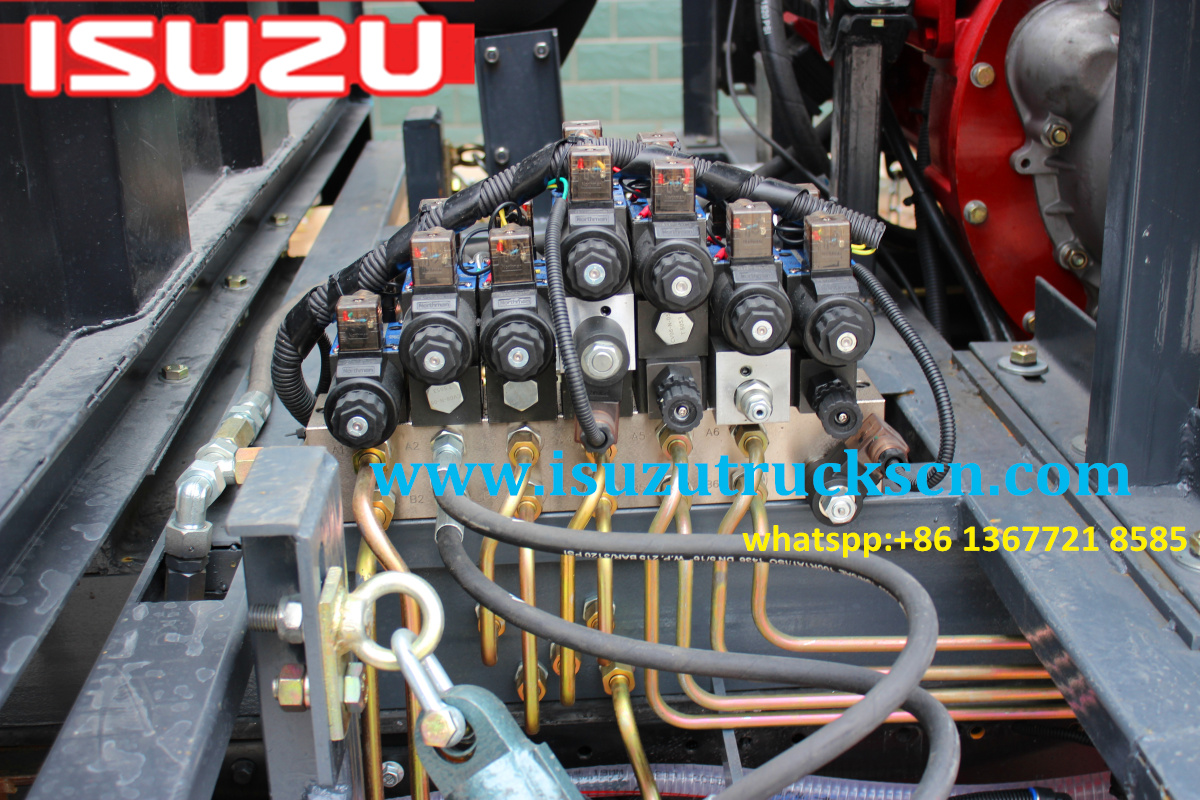

â—† With imported PLC (programmable logic
controller) for integrated control

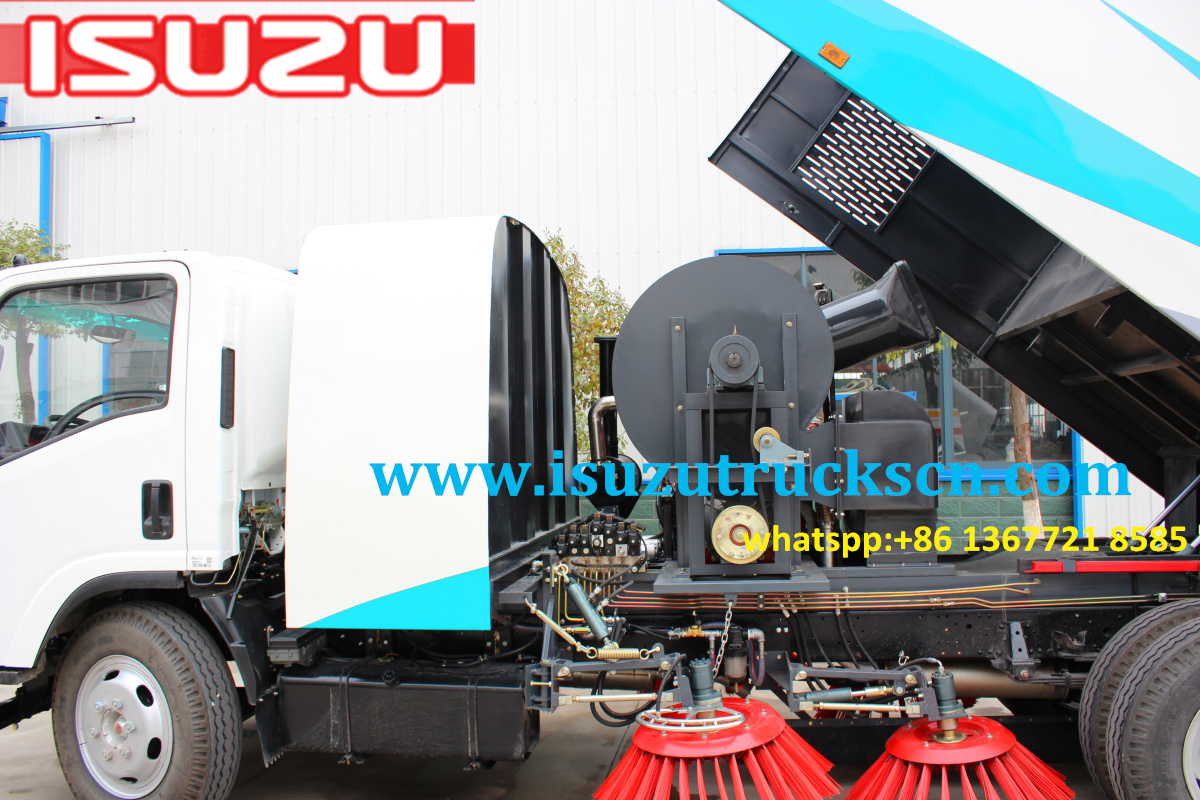

â—† Sub-engine drive blower and working equipment
which ensure that power can meet the work demands in any case
â—† Rotating speed of sweeping tray can be
adjusted according to working condition

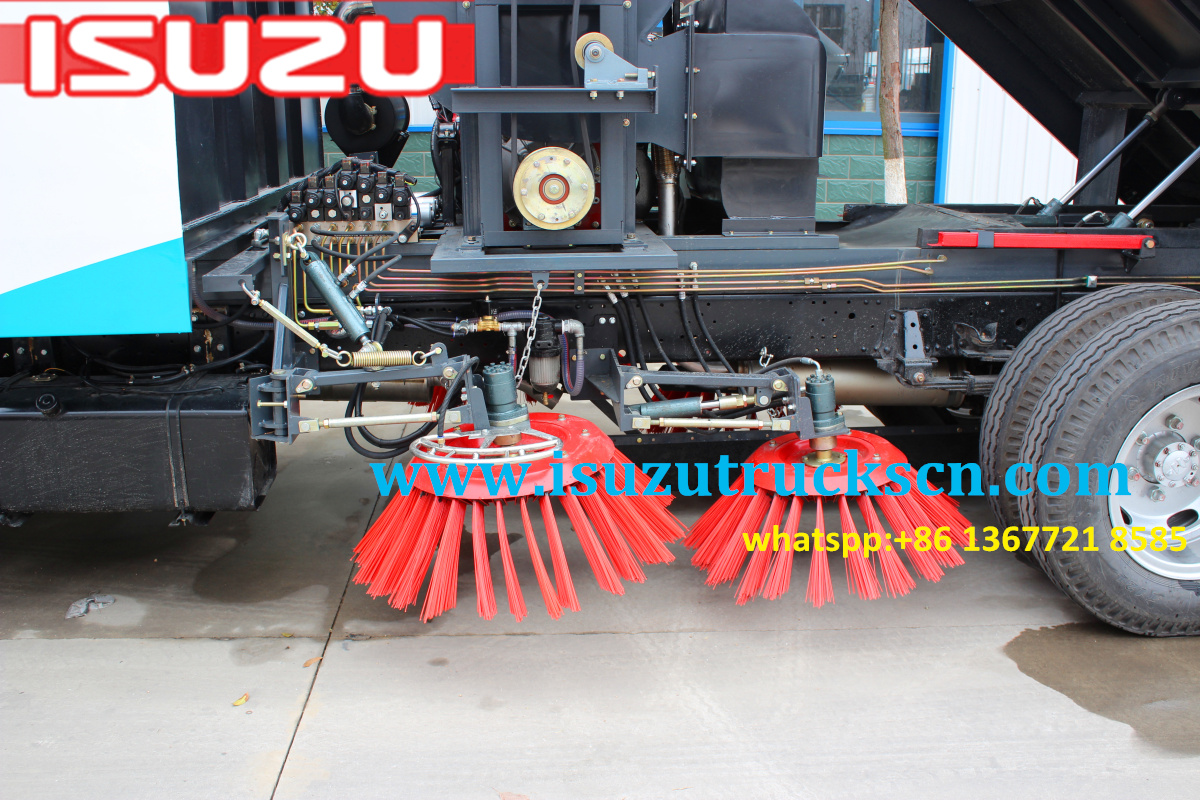

â—† The sweeping broom has the protection
function and automatic reset function, which can avoid obstacles automatically
and return automatically
Main specifications of ISUZU ROAD SWEEPER:
|
Model
|
PT5100TSL
|
|
Driving Type
|
4x2
(Left hand drive)
|
|
Wheelbase
|
4175
mm
|
|
Overall Dimension
|
6925X2200X2550 mm
|
|
Cab
|
Forward control over
engine, all-steel-welded construction
|
|
Sweeping System
|
Auxiliary
engine
|
Isuzu
tech engine
|
|
Stainless
Steel Hopper Effective Volume
|
6 CBM
|
|
Stainless
Steel Water Tank Volume (L)
|
2000
|
|
Sweeping
Width (mm)
|
3200
|
|
Sweeping
speed (km/h)
|
3~25
|
|
Sweeping
Capacity (m2/h)
|
16500~82500
|
|

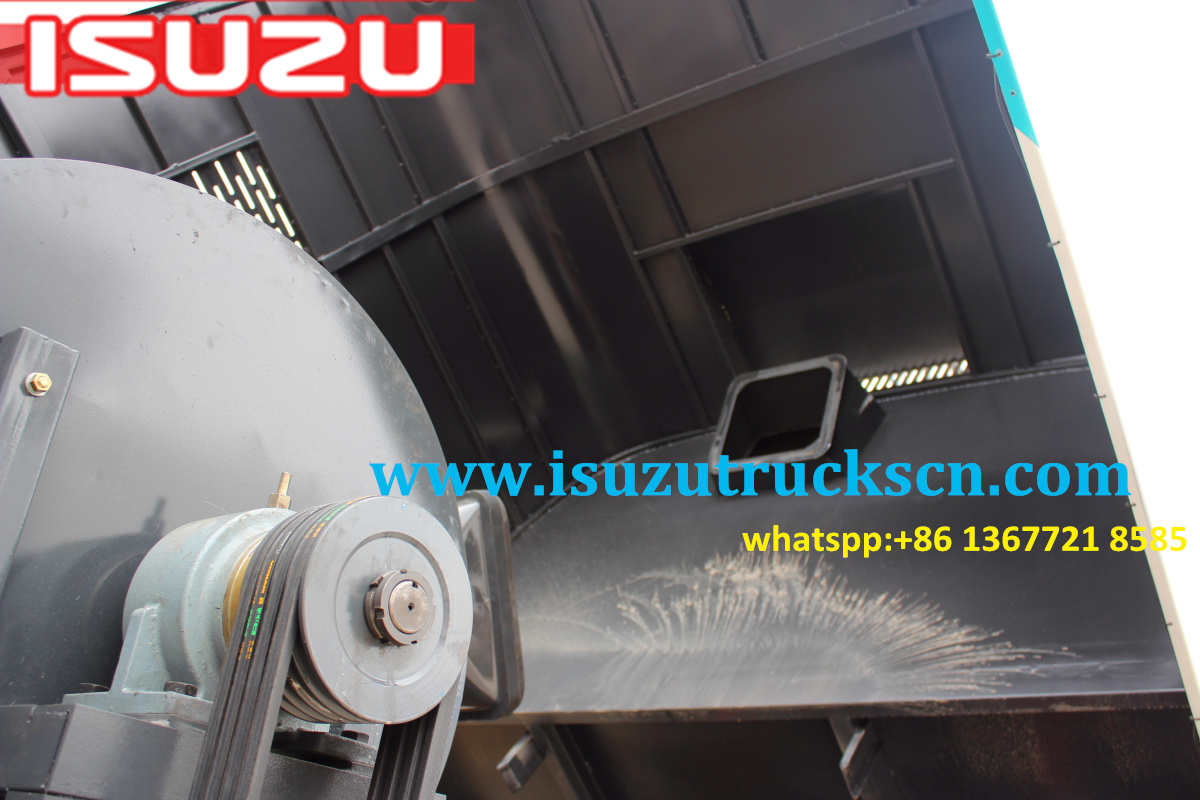

Blower
rated rotation speed (rpm)
|
1800
|
|
Blower
air capacity (m3/h)
|
8000
|
|
Blower
air pressure (Pa)
|
7000
|
|
Side
Brush Sweeping Brush Drive and Control
|
Electric
control lever and switch control, Hydraulic driving
|
|
Engine
|
Model
|
4HK1-TCG40
|
|
Type
|
Diesel,
turbo charged inter-cooled, 4 cylinder
|
|
Max.
Power
|
139
KW (195 HP)
|
|
Gearbox
|
MLD
6-shift, mechanical type, 6 forward and 1 reverse with
|
|
Tire
|
8.25-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
100
km/h
|
Custom made examples
