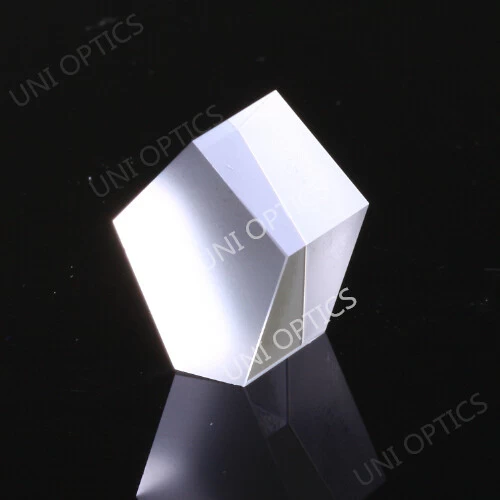

1. What is Penta Prism?
Penta Prisms are used to define right angles in optical systems. Penta Prisms,which provide right handed images,feature a ray deviation of 90°. Penta Prisms are five-sided prisms are unaffected by slight movements
2.What kinds of materials can UNI Optics use to make penta prism?
N-BK7, Grade A optical glass, Fused Silica
3. What is UNI Optics standard manufacturing capability and top limit for penta prism?
|
Specification
|
Standard cpability
|
Top limit
|
|
Dimension Tolerance
|
+/-0.2mm
|
+/-0.1mm
|
|
90° Deviation Tolerance
|
3’
|
5’’
|
|
Flatness
|
λ/2
|
λ/4
|
|
Surface Quality
|
60-40
|
40-20
|
|

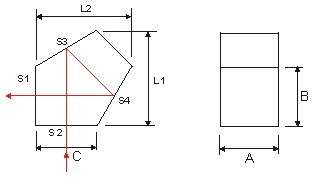

input and output sides (S1 & S2) AR coated
Reflector side (S3 & S4) coated Aluminized and painted black
|
4. What is the typical size?
|
Part No.
|
AxB(mm)
|
L1=L2(mm)
|
|
UPTA001
|
6.0x7.0
|
9.90
|
|
UPTA002
|
10.0x10.0
|
14.14
|
|
UPTA003
|
15.0x15.0
|
21.21
|
|
UPTA004
|
20.0x20.0
|
28.28
|
|
UPTA005
|
30.0x30.0
|
42.42
|
