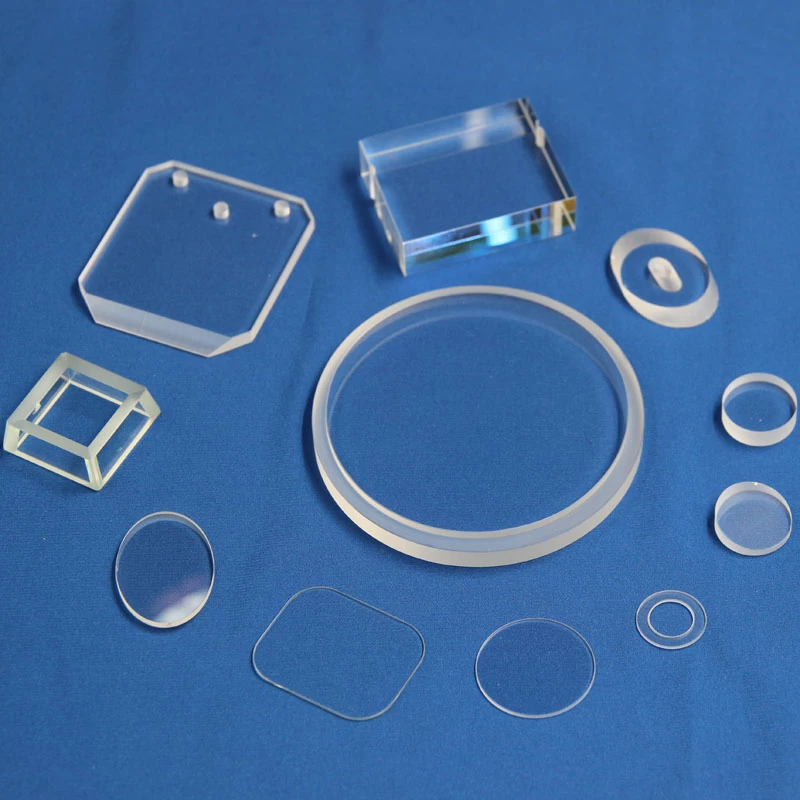

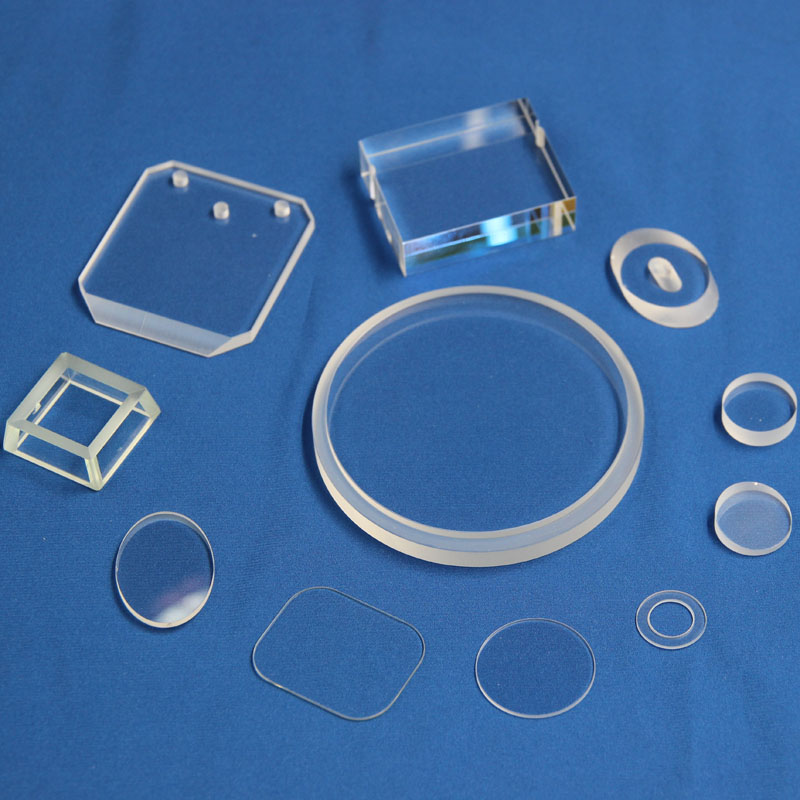

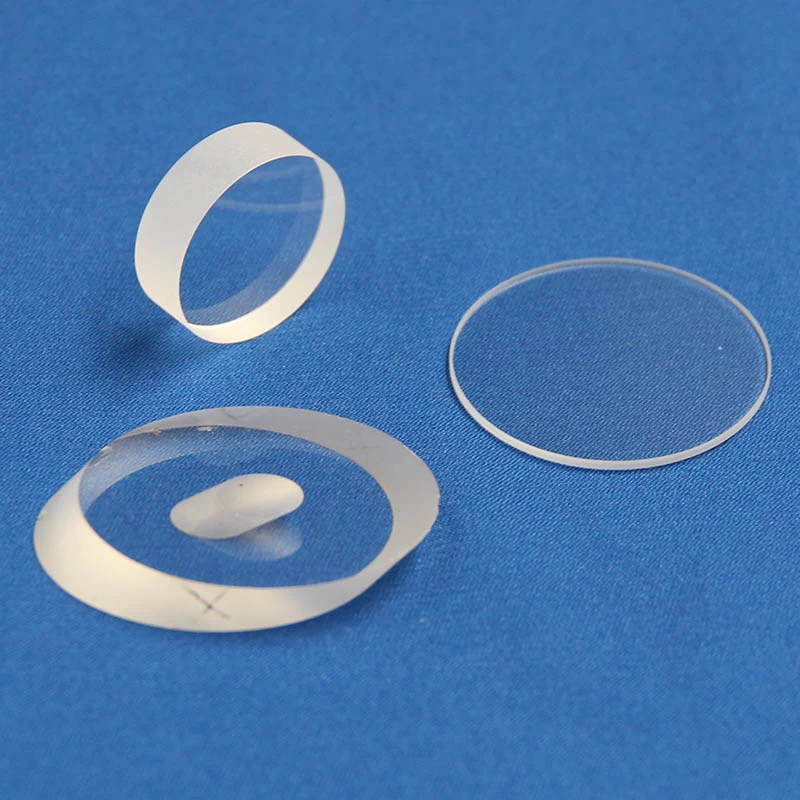

N-BK7 Windows and H-K9L Windows
Made from BK7 material, which has transparent range from 330-2100nm. The refractive index is 1.5168 at 587.6nm. The BK7 window has good performance over visible and near IR spectrum for most application.
H-K9L is the equivalent material to N-BK7. N-BK7 is made of by Schott Germany, H-K9L is made by CDGM China.
H-K9L products price is better than N-BK7.
WTS could make customized N-BK7 or H-K9L windows products
N-BK7 Windows and H-K9L Windows SPECIFICATION:
|
Material:
|
BK7 grade A optical glass or H-K9L
|
|
Dimension Tolerance:
|
+0.0, -0.1mm
|
|
Thickness Tolerance:
|
± 0.1mm
|
|
Surface quality:
|
60/40(Standard), 10/5(High Precision)
|
|
Clear Aperture:
|
>85%
|
|
Flatness:
|
λ(Standard), λ/10(High Precision) per 25mm@633nm
|
|
Parallelism:
|
1' (Standard), 10" (High Precision)
|
|
Bevel:
|
<0.25mm X 45°
|
|
Coating:
|
Upon requirement
|
|
Typical Sizes:
|
|
|
Round Shape
|
Φ5.0; Φ10.0 ; Φ12.7; Φ15.0; Φ20.0;
|
|
Diameter(mm):
|
Φ25.4; Φ30.0; Φ38.1; Φ50.8; Φ76.2
|
|
Square Shape:
|
5.0x5.0 ; 10.0x10.0 ; 15.0x15.0 ;
|
|
WxH(mm)
|
20.0x20.0; 25.0x25.0; 50.0x50.0
|
|
Thickness(mm):
|
0.5; 1.0; 1.5; 2.0; 3.0;
|
|
|
4.0; 5.0; 6.0; 8.0; 10.0
|
