Product Name

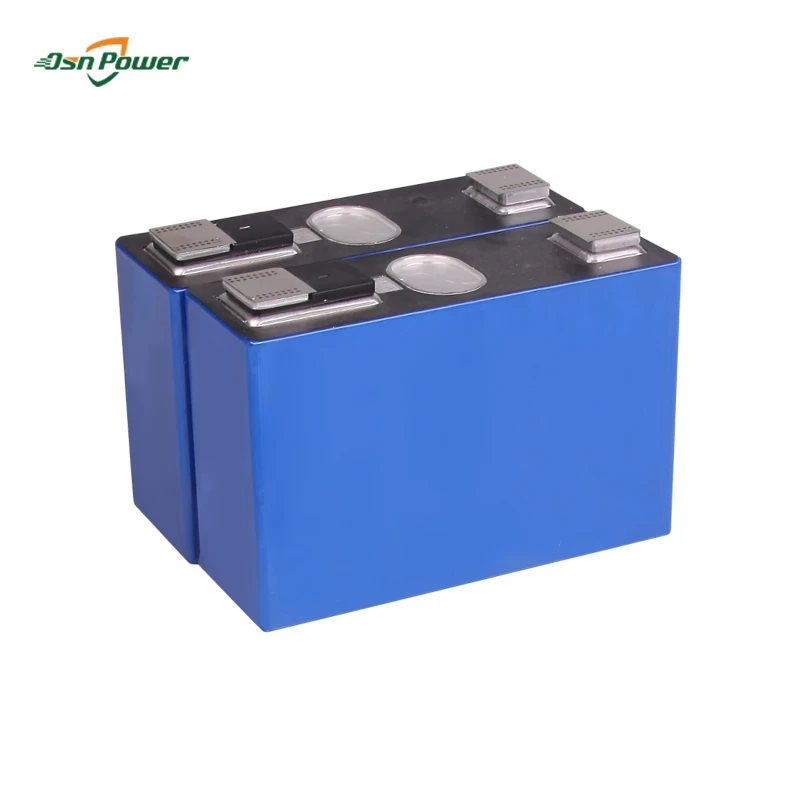

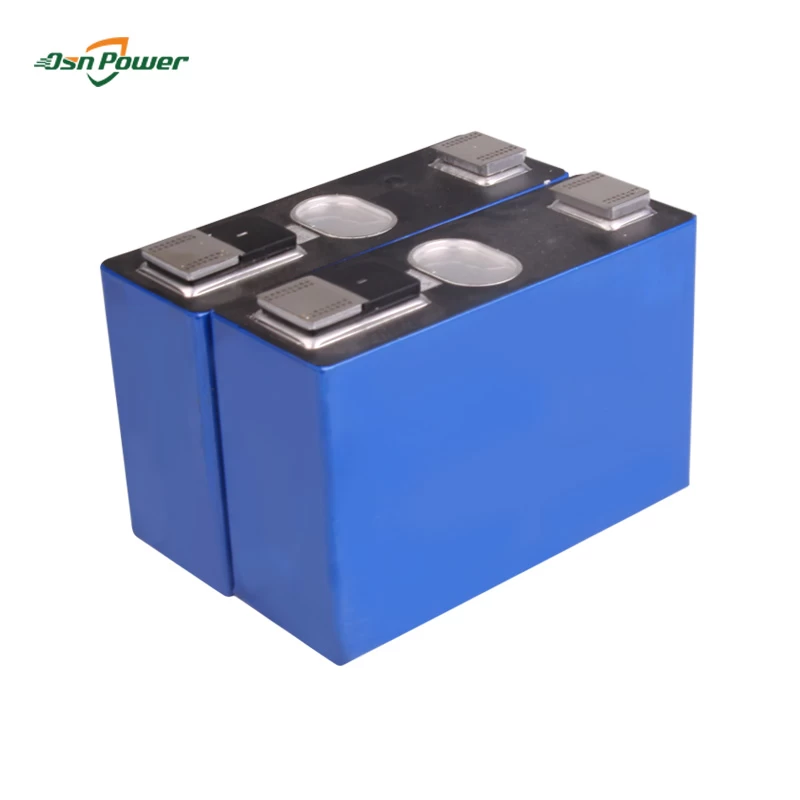

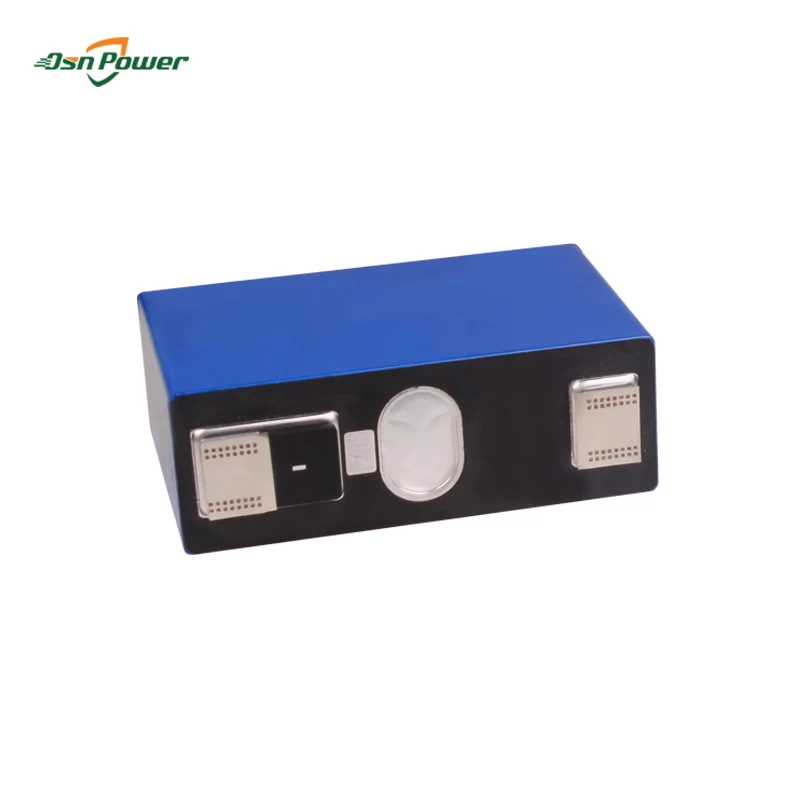

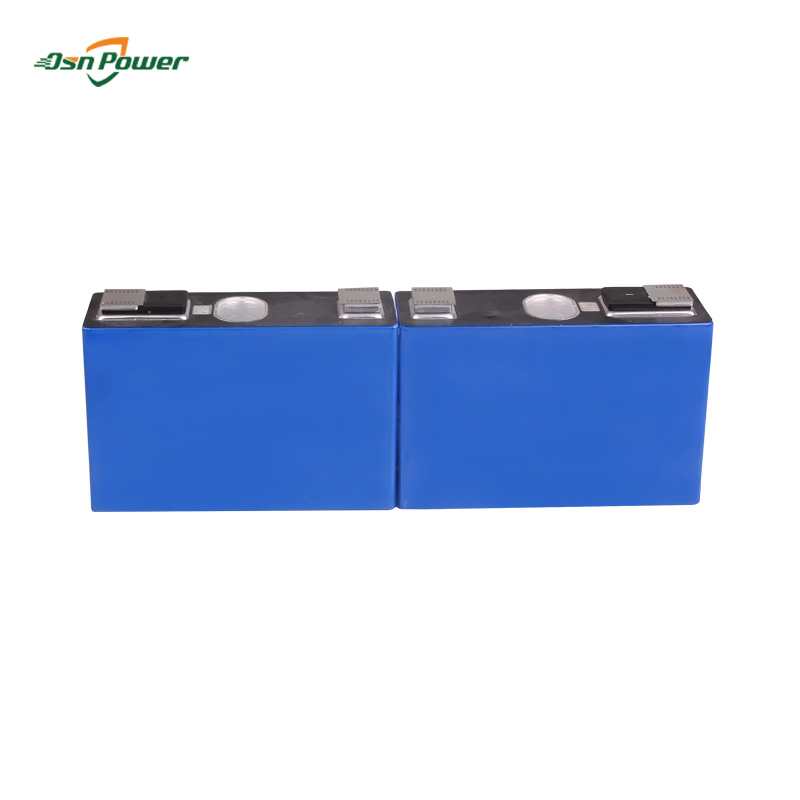

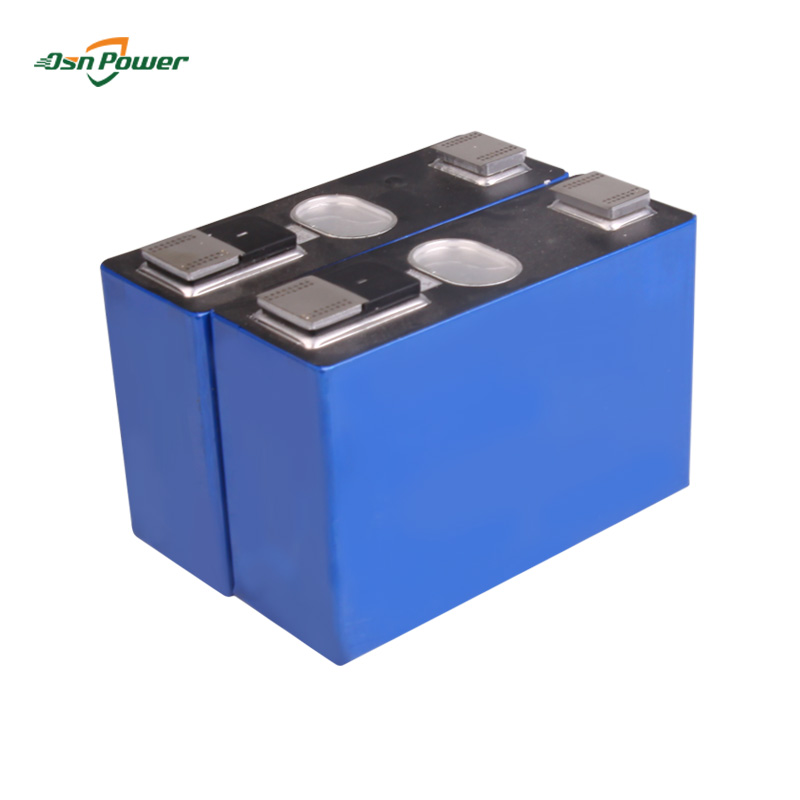

NCM Prismatic Battery Cell 3.7V 100Ah For Electric Golf Cart
Highlights
-
High energy density ,lower self discharge
-
Outstanding cycle life with maximum reliability
-
Possible to form modules that are suitable for various pack structures
-
Wide application :EV,UPS,Electric fork lift,back-up power ,solar storage etc.
-
Easily to assemble battery pack,we provide cells connectors and technical support ,or we can customize battery pack according to your requirements .
Technical Parameters
|
No.
|
Items
|
Specifications
|
|
1
|
Nominal Voltage
|
3.65V
|
|
2
|
Nominal Capacity
|
100Ah
|
|
3
|
Standard Charge Current
|
0.2C-0.5C
|
|
4
|
Max. Charge Current
|
1C
|
|
5
|
Continuous Discharge current
|
2C
|
|
6
|
Peak Discharge Current
|
3C
|
|
7
|
Charge Cut-off Voltage
|
4.2V
|
|
8
|
Discharge Cut-off Voltage
|
2.5V
|
|
9
|
Inner Resistance
(Impedance)
|
≤0.8mΩ
|
|
10
|
Weight
|
2.1kg
|
|
11
|
Dimensions
|
Length: 173mm
Width: 126mm
Thickness: 45mm
|
|
12
|
Operating Temperature
|
Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
(The cell surface temperature cannot exceed 70°C)
|
|
13
|
Storage Temperature/Humidity
|
Temperature: -10°C ~ +35°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)
|
|
14
|
Cycle Life
|
≥1000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard)
|
We offer all kinds of NCM battery cells 3.7v40Ah ,3.7V50Ah ,3.7v60Ah ,3.7v70Ah ,3.7v100Ah etc.
Come us at service@osnpower.com to get catalog and quotations.
