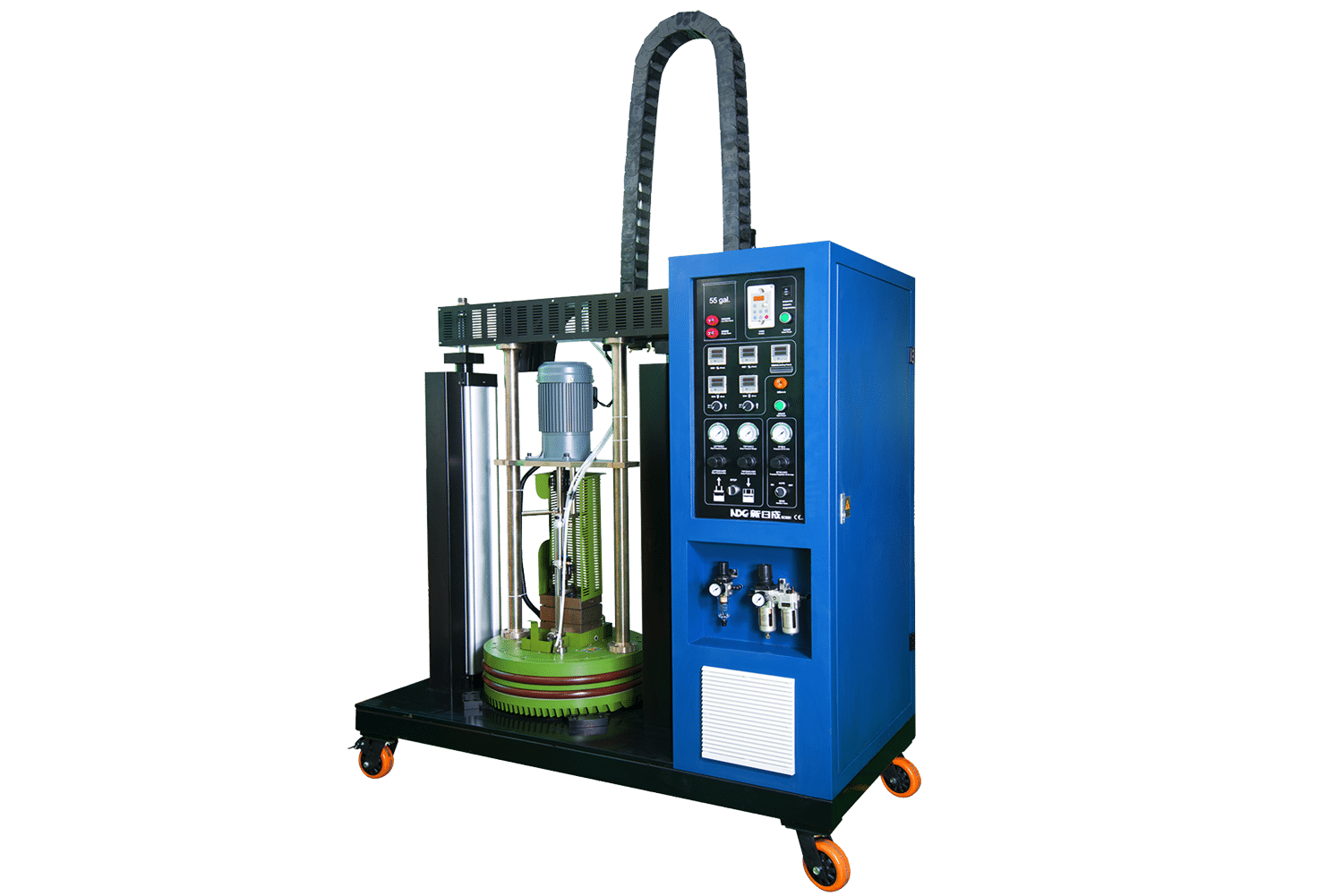

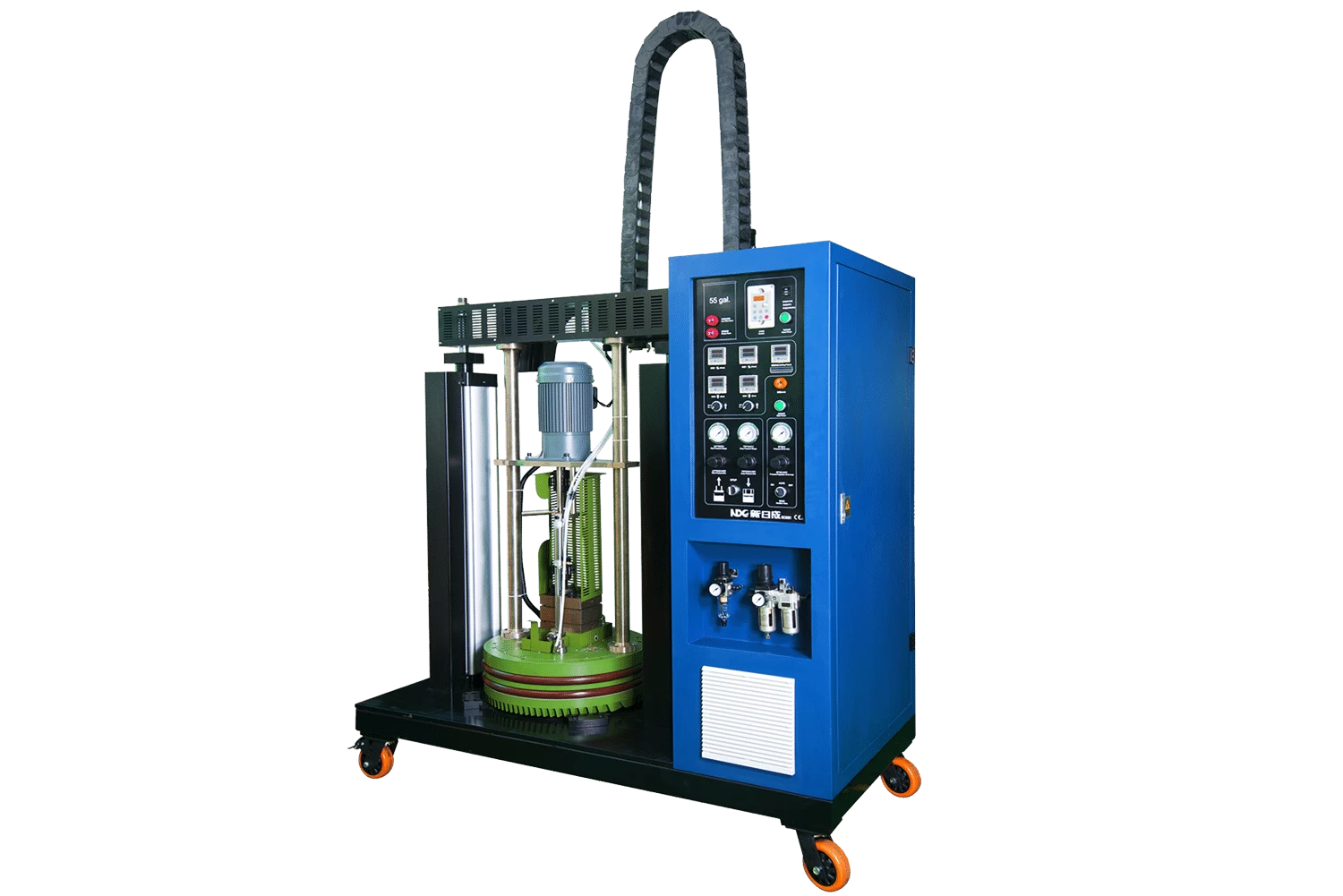

NDC Drum Unloader Hot Melt Machine

Particularly designed for PUR reactive adhesives, features air isolation.

Also available for SIS and SBC adhesive, provides excellent melt rate, melt-on demand and less charring.

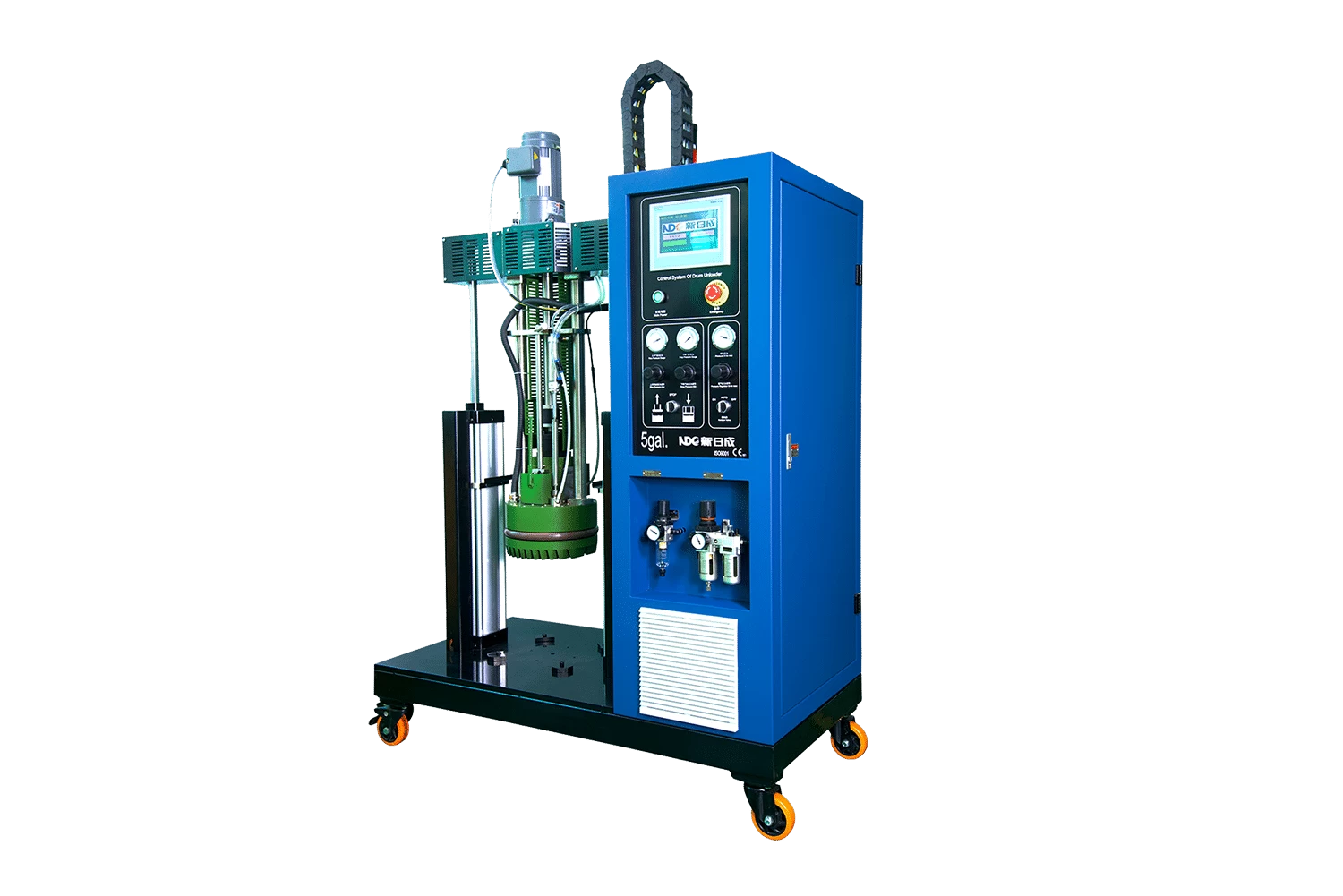

Standard capacity:55 gallon and 5 gallon.

PLC control system & temperature control system are optional.



1,The drum unloader is electrically operated equipment that combines a heated platen, pump and all controls to melt and dispense which melts solid-state hot melt glue and then delivery the liquid through hose and guns to substrates.


2,This equipment has functions of temperature control and pressurized delivery and spray & coating, it can add the function module of automatic tracking control system according to clients’ requirements.


3,NDC hot melt spray & coating system is applicable in extensive range, including the non-woven fabric industry, product assembly and packaging, automobile,book & magazine binding. With compact structure, strong expansibility, high stability and reliability, this machine is suitable for different industries.


4,This equipment features with the function of pressing delivery, it can improve the input pressure of gear pump entrance glue, and guarantee the larger output volume.


5,Due to this equipment requires the interrupt process of replacing glue drum, so this machine is usually used in the primary glue or don’t need to continue work of occasions.


Different type technical parameters and outline dimension as follows

e.g Series: XRC-TS55-Z


Parameter

Property

Parameter

Property

Outline Dimension

Fig.

Control system

PLC automatic control

Net weight

750kg

Temp.Control range

Normal temp.220℃

Power Supply

AC 380V 50/60 Hz

Warm-up time

40min

Warm-up power

13.34kw

Max.preasure

70bar

Heating stick model

58 pieces φ11.9*92(250w)

Warm-up way

Each segment warm-up

Pt 100 platnum  temp.sensor

1

Replace drum time

5 min

Melter standard

55 gal standard

Heat preservation

Yes

Melter inner diameter

571mm

Over temperature alarm

Yes

Max.rotate speed of motor

40 rpm

Low glue level alarm

Yes

Motor

1 1.5km 1:35

Empty drum alarm

Yes

Gear pump

75cc/rev D

Max.glue output

180kg/h

Inverter

1  1.5kw

Expel valve

Manual

Pipe

1-2 pcs

Aeration valve

Manual/auto

Pipe inside diameter

φ16mm

Intake valve

Auto

Reflux valve

1

Platen journey

 1000mm

Air presure

5-6bar
