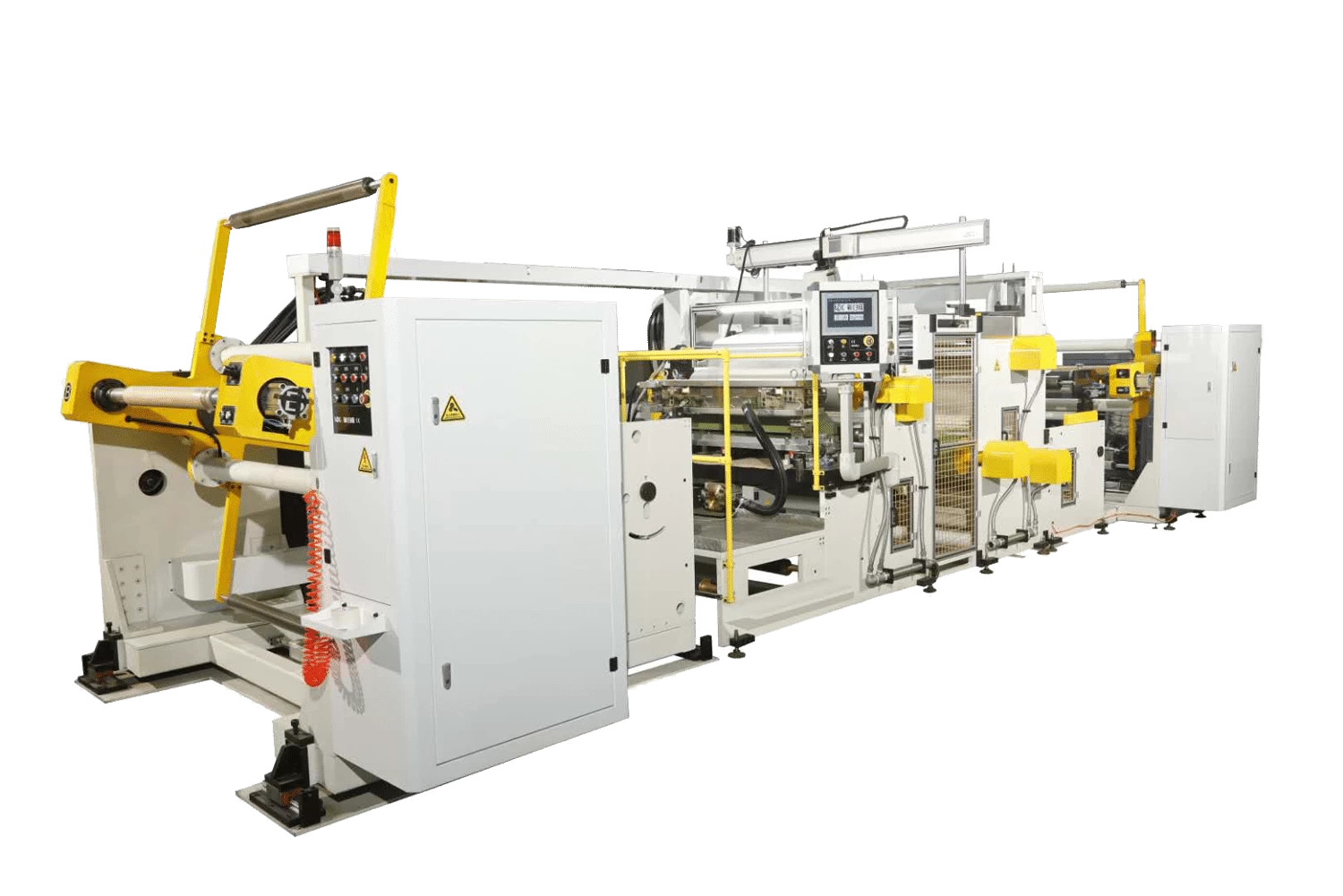

NDC HOT MELT COATING MACHINE ( click here to see the vedio)
Main parameters
|
Device Name
|
NDC NTH1400 hot melt slot die coating machine for BOPP glass fiber tape
|
|
Power
|
AC380V, 3-phase, 4-wire As required
|
|
Max. Web Width:
|
1300mm
|
Coating width:
|
1300mm
|
|
Design Speed
|
120m/min
|
Production Rate
|
100m/min
|
|
Adhesive
|
|
Viscosity
|
80000CPS
|
|
Working temp.of Coating Die
|
120 ºC-180 ºC
|
|
Application in
|
BOPP with Fiberglass tape
|
|
Coating Die
|
Slot die Coating
|
|
Delivery
|
By Sea
|
|
Dimension: 15000mm x 6000mm x 2600mm
|
|
Color of Framework and Unit
|
ivory-white (No.RAL0015)
|
|
Operation
|
Touch Screen
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
35T
|
1,This hot melt coating machine is constructed with 80mm
wall panels & steel links and processed by CNC boring & milling machine
center with fine appearance and high precious strength.
2, PLC Control system with touch screen makes operation
more easier and accurate.

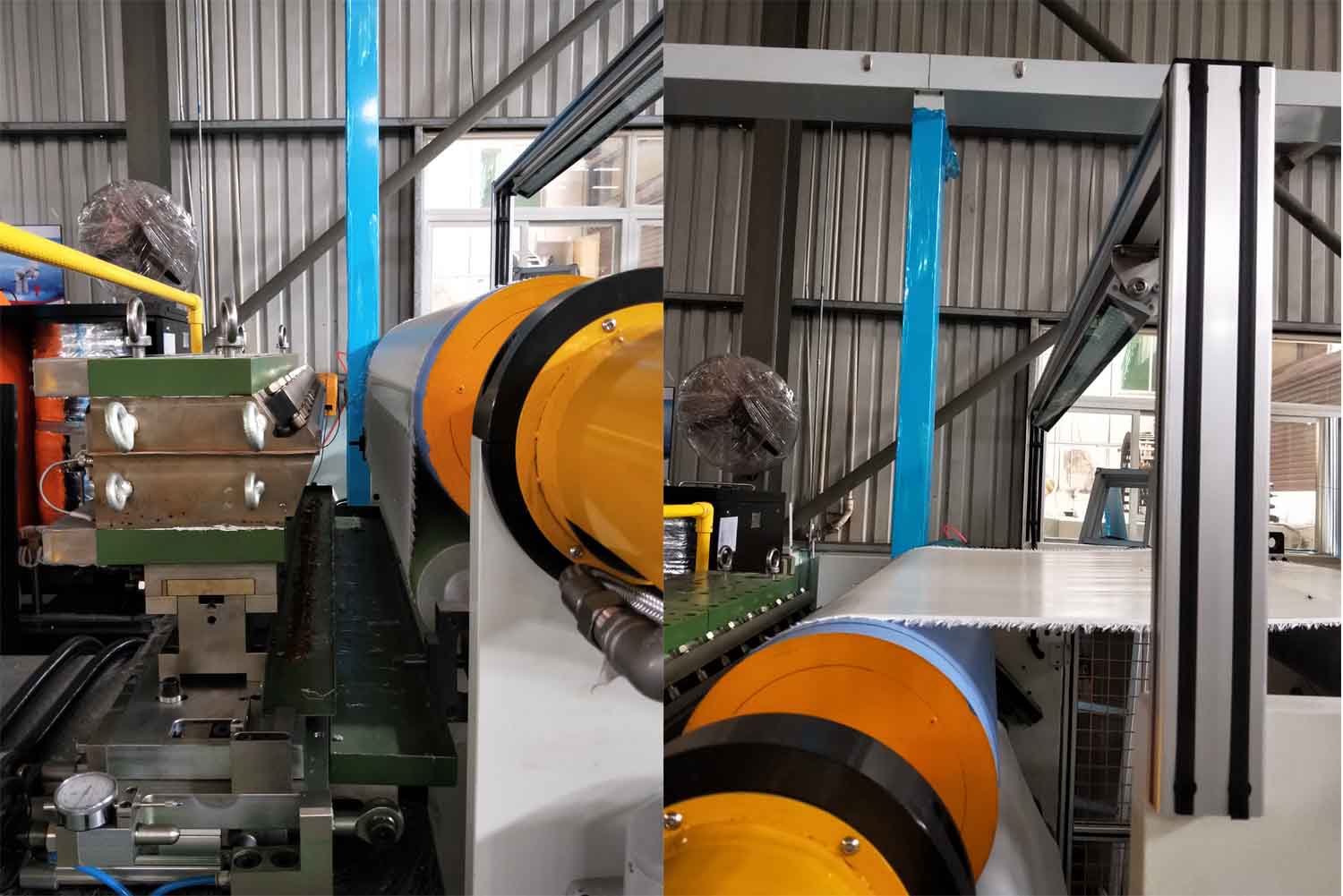

3,High quality advanced hot melt coating/spary coating
applicator. External aluminum alloy heating module design for coating die can
prevent carbonation from local high temperature.
4,Unwinder diameters:1000mm, Rewinder diameters:1000mm.
5,Electrical control system (With CE Standard)
