NDC HOT MELT COATING MACHINE
Hot Melt Coating is an application of fluid coating on a substrate by pre-heating/melting the applied material and then allowing the coated material to cool or doing so by force, this solidifies the coated layer on the substrate bringing out uniform results. Hot melt coating is a widely used as industrial coating mechanism.
Technical parameters

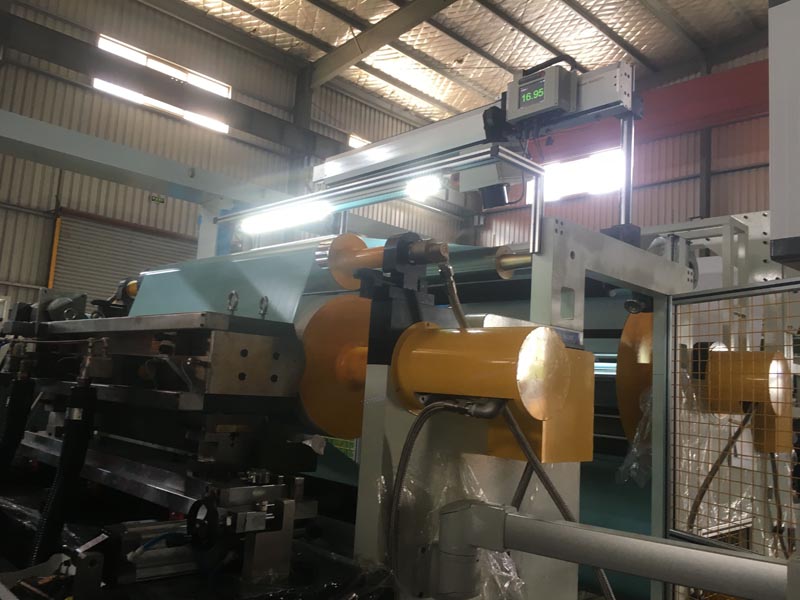

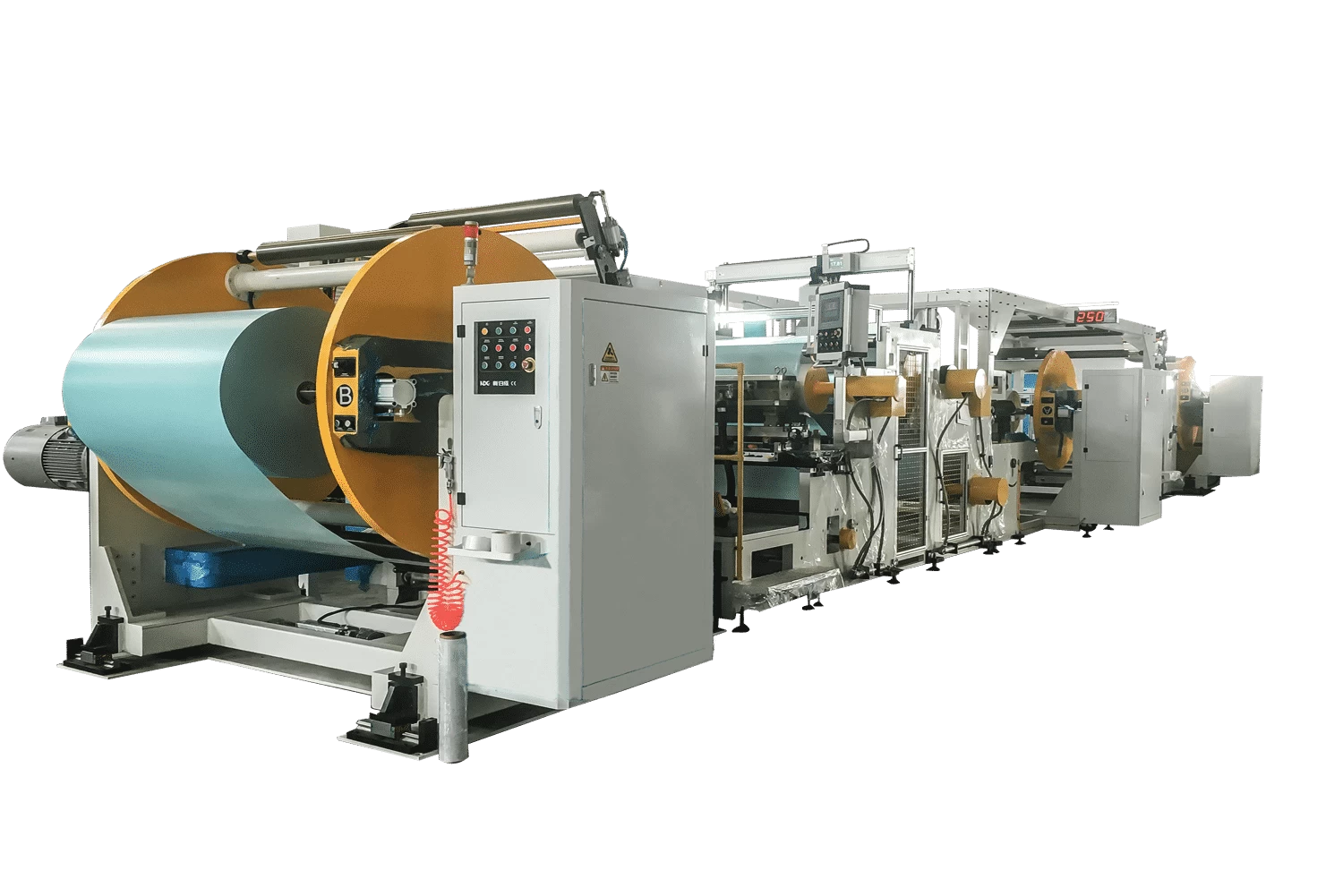

This hot melt coating machine is constructed with turrets
unwinding and rewinding units, laminating unit, coating system ,driving system,
auto-control system, pneumatic system and web guider.
This machine is designed scientifically and logically
for the convenience of maintenance and upgrade with excellent quality
|
Device Name
|
TB
1200 Turrets Unwinder&Rewinder Hot Melt Coater
|
|
Power
|
AC380V,3-phase,
4-wire，300KW
|
|
Max. Machine Width:
|
1200mm
|
Coating
width:
|
1100mm
(Adjustable)
|
|
Design Speed
|
300m/min
|
Production
Rate
|
250m/min
|
|
Adhesive
|
SIS
|
Viscosity
|
10000CPS
|
|
Working
temp.of Coating Die
|
150-180 ºC
|
|
Production
|
Adhesive
Label and Tape
|
|

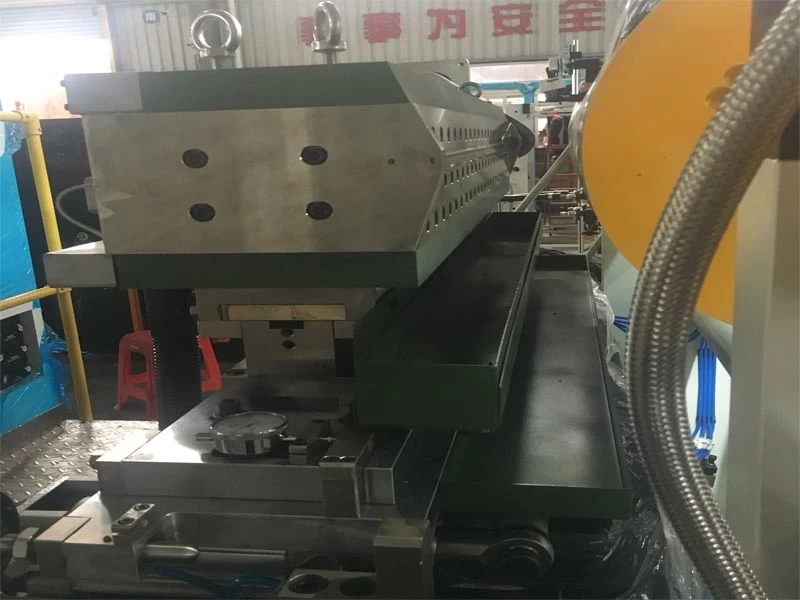

Coating Die
|
Non-streak
Coating(Slot Die With Smooth Bar)
|
|
Delivery
|
By
Sea
|
|
Minimum.
Coating Weight and Speed
|
15g/m²±1g，250m/min
|
|
Dimension
|
14000mm x 6000mm x 2600mm
|
|
Color
of Framework and Unit
|
ivory-white
(No.RAL9010)
|
|
Operation Side
|
Right
Side
|
|
Cable
|
Cable
Bridge frame
|
|
Total Weight
|
35T
|
