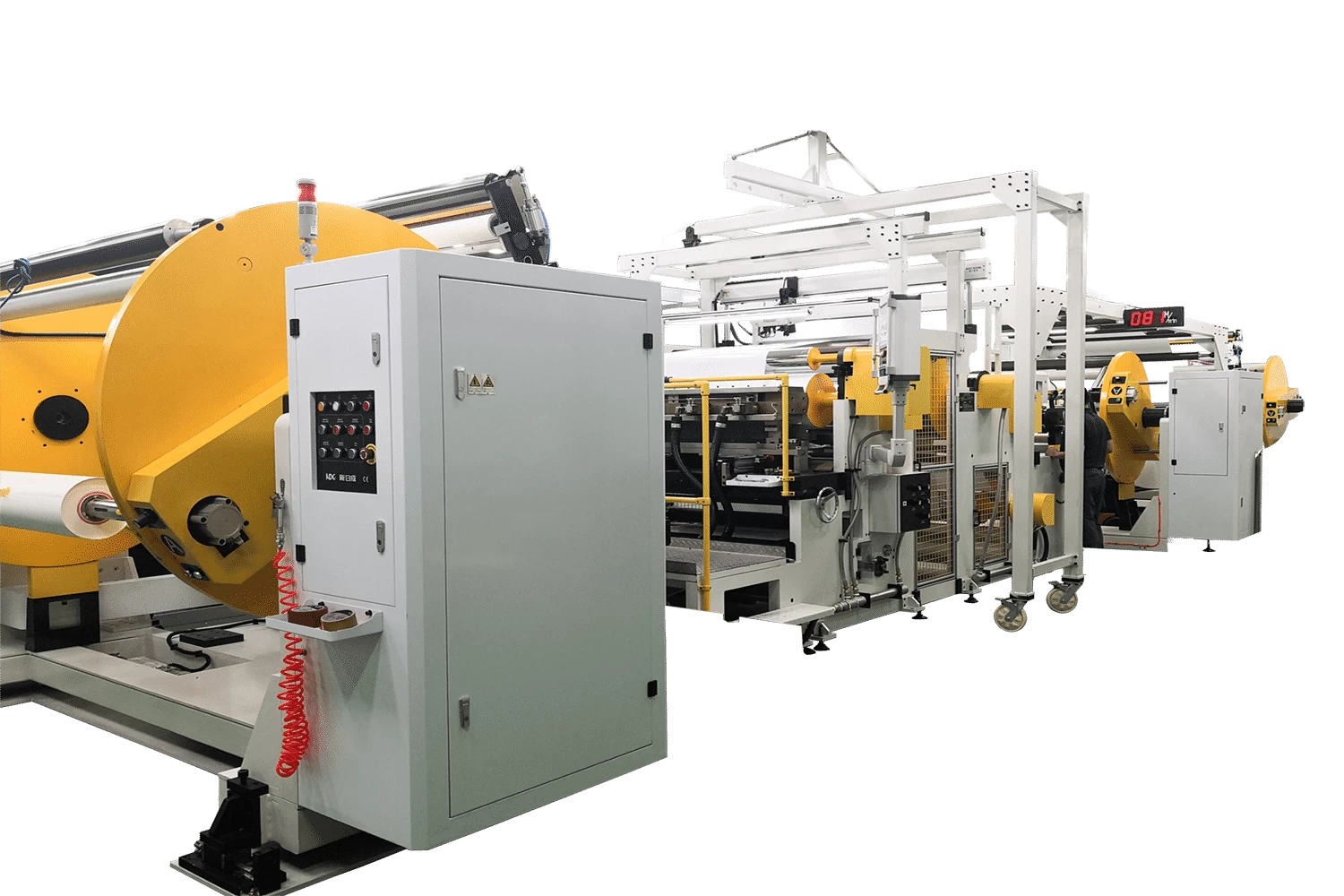

NDC Hot melt coating laminating machine.
This machine is constructed with unwinding and
rewinding units, laminating unit, coating system ,driving system, auto-control
system, pneumatic system and web
guidance. This machine is designed scientifically and logically for the
convenience of maintenance and upgrade with excellent quality.
|
Device Name
|
TB1600 Hot Melt Coating Machine
|
|
Power
|
AC380V, 3-phase, 4-wire
|
|
Max. Web Width:
|
1600mm
|
Coating width:
|
1510mm,1080mm,1280mm
|
|
Design Speed
|
250m/min
|
Line speed
|
200m/min
|
|
Adhesive
|
Hot melt glue
|
Viscosity
|
3000CPS-7500CPS
|
|
Working temp.of Coating Die
|
150 ºC-170 ºC
|
|
Production
|
Self-adhesive Label stock
|
|
Coating Die
|
Non-streak Coating
|
|
Delivery
|
By Sea
|
|
Coating Weight
|
13gsm-62gsm（high coating weight will reduce line speed.）
|
|
Dimension:
|
|
Color of Framework and Unit
|
ivory-white (No.RAL9010)
|
|
Operation Side
|
Right Side
|
|
Cable
|
Cable Bridge frame
|
|
Total Weight
|
40T
|
