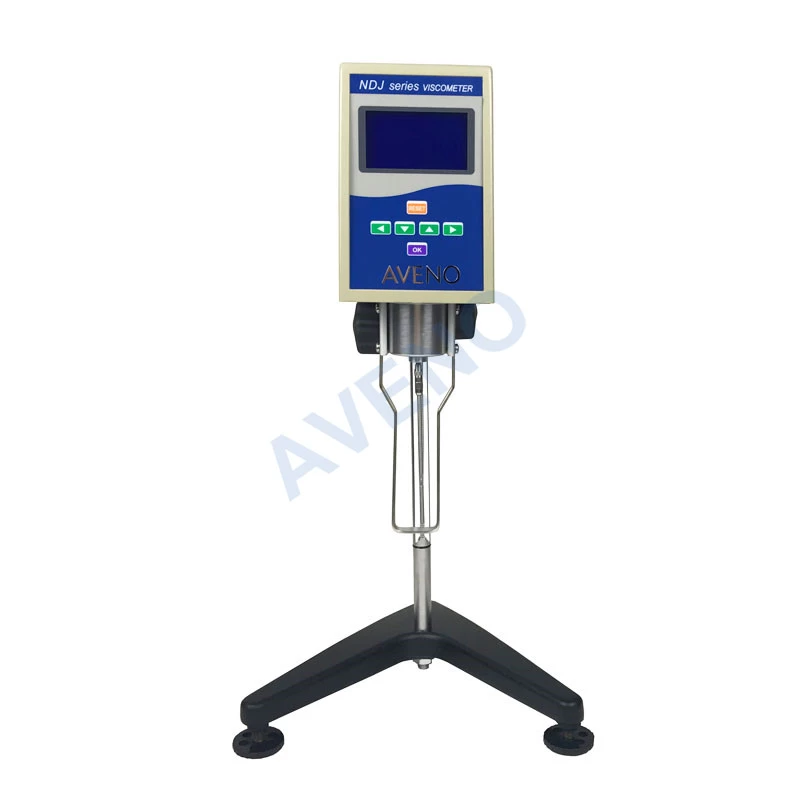

AH07-NDJ Digital Viscometer
Application Of NDJ Digital Viscometer
NDJ Digital Viscometer can be widely used for adhesive, grease, paint, plastics, pharmaceuticals, food, detergent and other fluid viscosity measurement. High measurement sensitivity, reliable test results, easy to use and elegant appearance, makes it an Ideal instrument for measuring the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.
Features Of NDJ Digital Viscometer
-

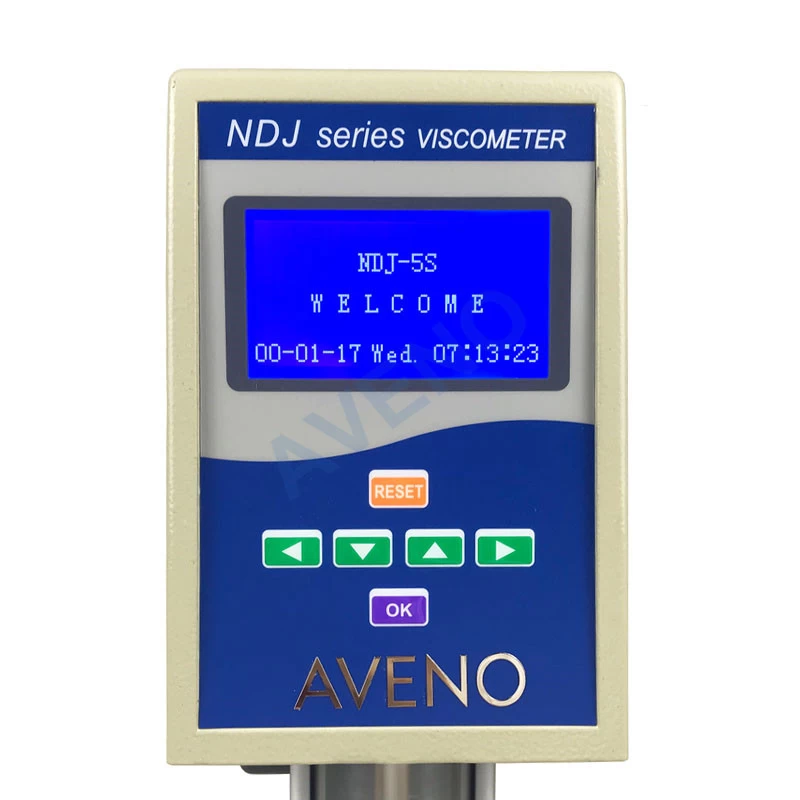

Large-screen, blue backlight and high-brightness LCD display, makes the clear data display.
-
Accurate data acquisition; display directly shows the rotor number, speed, viscosity, torque (angle) percentage.
-
Equipped with RS-232 communication interface can connect PC, temperature sensor interface, printer and other interface functions.
-
Equipped with data acquisition communication software, which can record all test data as required.
Key Specification Of NDJ Digital Viscometer
|
Model
|
AH07-NDJ 5S
|
AH07-NDJ 8S
|
|
Measuring
range
|
10~1×105mPa.s
|
10~2×106mPa.s
|
|
Rotor
speed
|
6, 12, 30, 60(r/min)
|
0.3, 0.6, 1.5, 3, 6, 12,
30, 60(r/min)
|
|
Measurement
accuracy
|
±2%( Newtonian liquid)
|
|
Repeatability
|
±0.5%( Newtonian liquid)
|
|
Resolution
|
0.1/1mpa.s( Newtonian
liquid)
|
|
Rotor
specifications
|
1#, 2#, 3#, 4#
|
|
Power
supply
|
AC220V, 50/60HZ
|
|
Dimension
|
28*32*39cm
|
|
Weight
|
7kg
|
Accessories Of NDJ Digital Viscometer
|
Standard
Accessories
|

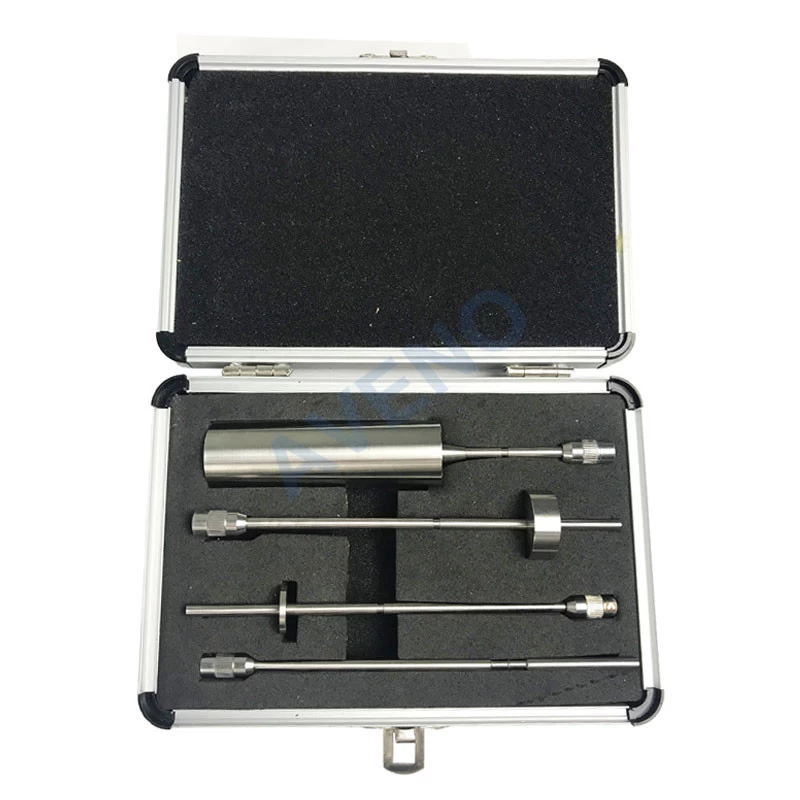

1~4# rotor
|
1pc
|
|

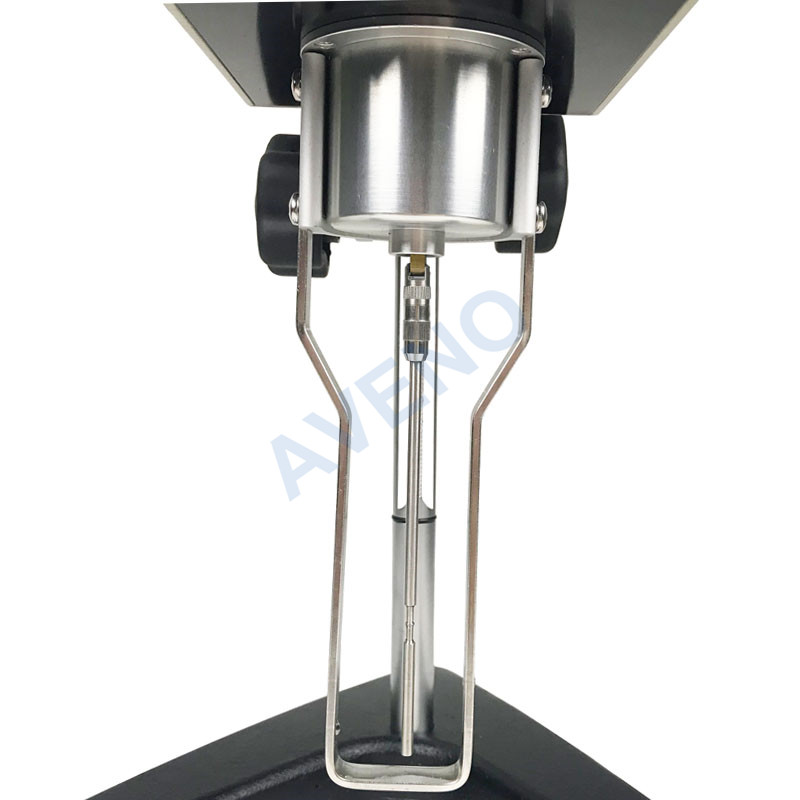

Protection rack
|
1pc
|
|
Base
|
1pc
|
|
Lifting column
|
1pc
|
|
Installation kit
|
1set
|
|
Power Adapter
|
1pc
|
|
Option
Accessories
|
0# rotor
|
1pc
|
|
RS232 cable and CD
|
1set
|
|
Temperature Sensor
|
1pc
|
|
Special thermostatic
bath
|
1set
|
|
Micro printer
|
1set
|
