NSP-1981 Net Security Platform 1U Rackmount 8LAN Industrial PC 8LAN Intel GbE optional 2LAN or 4LAN 10GbE SFP
Product Introduction
An Industrial PC is a computer designed and built to operate reliably in harsh industrial environments, which can include extreme temperatures, humidity, dust, and vibrations. Industrial PCs are used in various industrial applications, such as manufacturing, automation, process control, and data acquisition.
| Specification |
Optional specification |
| Chassis |
Aluminium alloy panel, full steel construction at the back, powder-coated black colour |
OEM other colours available |

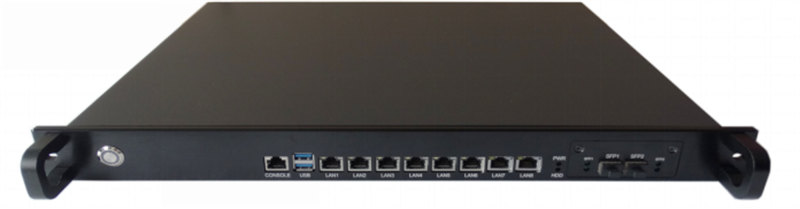

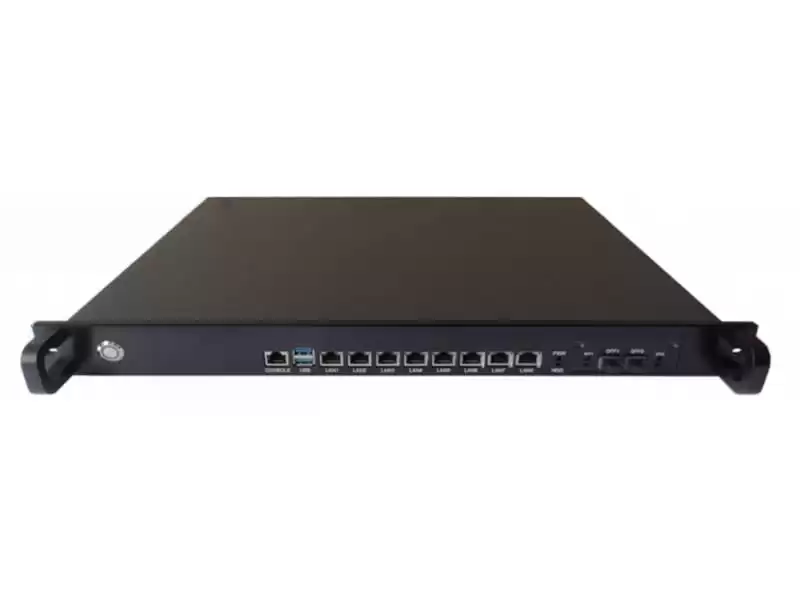

| Front |
Aluminium Panel, Power Switch, 1×COM RJ45, 2×USB, POWER/ HDD Indicator, 6LAN RJ45 GbE, 2LAN 10GbE SFP |
Can be customised with customer's logo or other requirements |

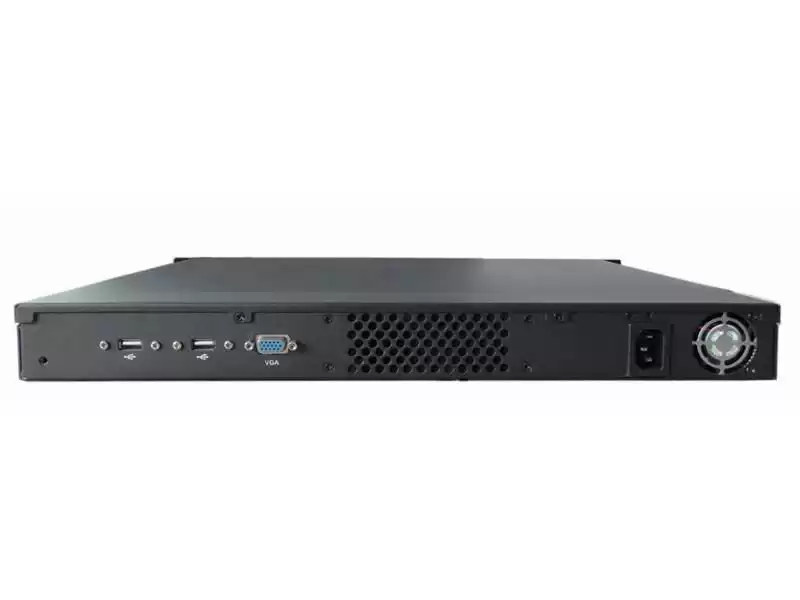

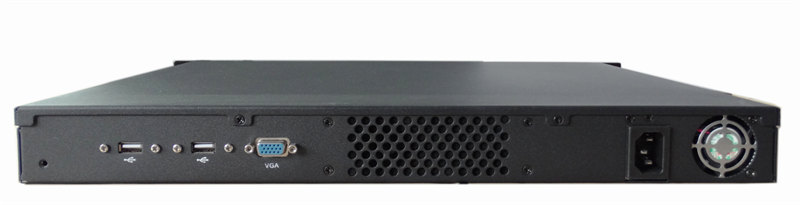

| Back |
2×FAN，2×USB，VGA，1U power supply |
Optional redundant power supply |
| Hard disk rack |
1 anti-shock HDD cage supports 1 x 3.5" or 2 x 2.5" HDD |
|
| Adaptive Motherboard |
B150 Dedicated motherboard for 8LAN |
|
| CPU/GPU |
Intel i5 6500 |
Optional 6th/7th generation i3/i5/i7 CPU |
| Memory |
8G DDR4 |
Optional DDR4 memory in various capacities |
| Hard Disk |
128G SSD(Option to add HDD） |
Optional SSD of various capacities; HDD of various capacities |
| Interfaces |
AC input；6LAN J45；1COM RJ45；1VGA；4USB |
|
| Size |
483mm * 351.5mm * 45.5mm |
N.W/G.W |
3.5/4KG |
| Power Supply |
300W 1U power supply |
Optional 350W 1U redundant power supply |
| Installation mode |
19" Standard Rackmount |
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
| Ordering Information |
| NSP-1981 1U 8LAN Network Security Platform Industrial PC |
| NSP-1981-2F 1U 8LAN Network Security Platform Industrial PC，2LAN 10GbE SFP |
Product Features
■ Thermal, dust and shock resistance
■ 8LAN Intel GbE，optional 2LAN/4LAN 10GbE SFP
■ B150 motherboard,support 6th/7th generation i3/i5/i7 CPU
■ Optional redundant power supply
■ Aluminium panel

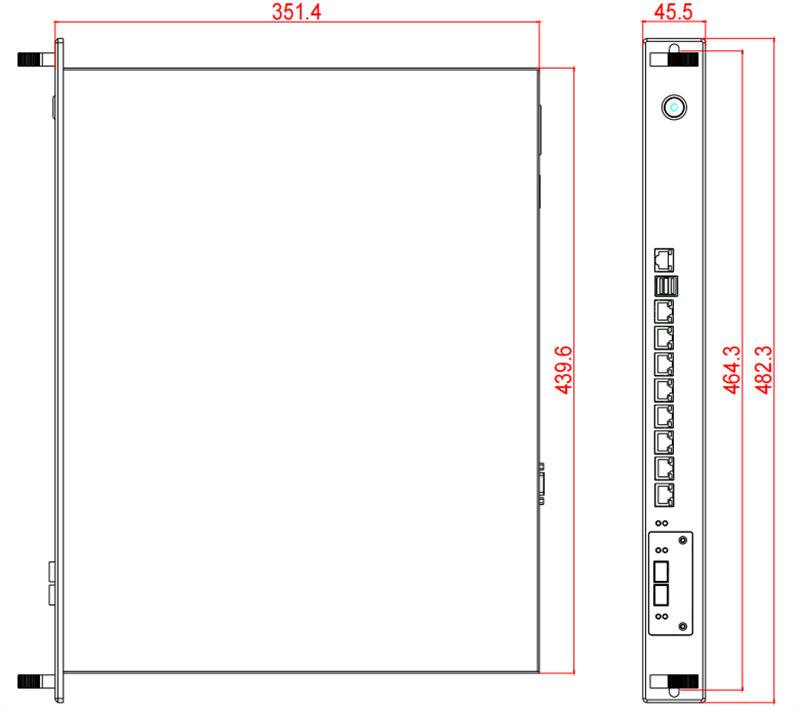

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
