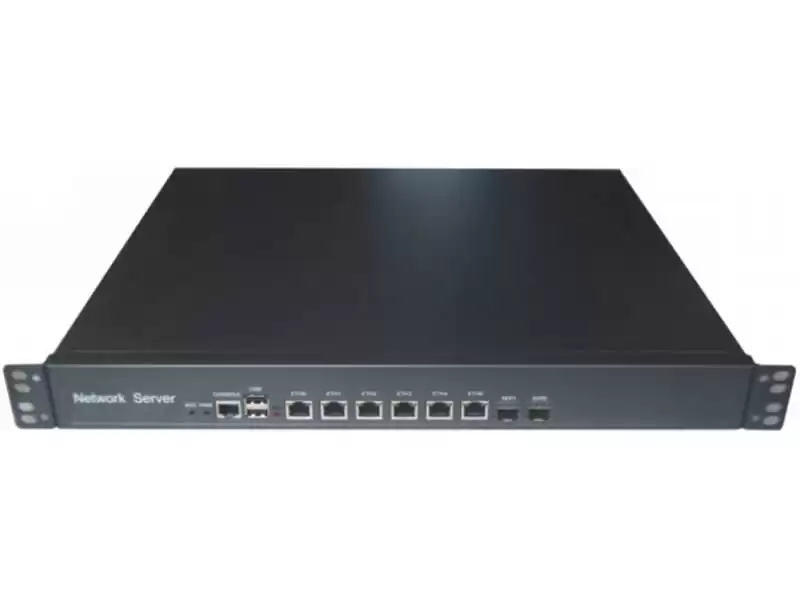

NSP-1961-2F Network Security Platform 1U Rackmount 6LAN Industrial PC 6LAN Intel GbE Optional 2LAN GbE SFP
Product Introduction
The 19" rackmount industrial PCs are available in different performance classes from Intel i3 processors to Intel Xeon processors. The computers are adapted to the respective application by means of PCIe slots. The 19" rackmount industrial PCs are available in different height units 1U, 3U and 4U. Depending on the model, cooling is either active. In addition, a variety of power supplies are also available for special applications. The rack PCs are suitable for use as servers. Windows or Linux are supported as operating systems.
| Specification |
Optional specification |
| Chassis |
All-steel construction, powder-coated black colour |
OEM other colours available |
| Front |

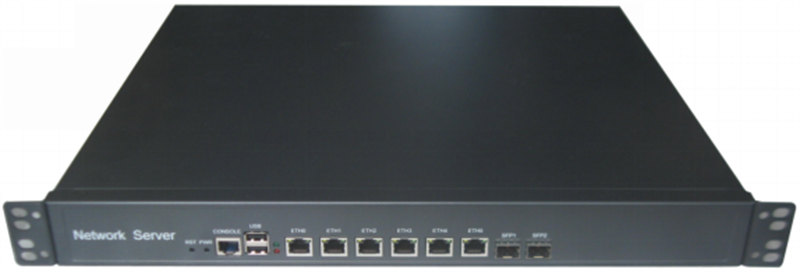

Power/reset pushbutton switch，1×COM RJ45，2×USB，POWER/HDDindicator light， 6×LAN RJ45 GbE，2×LAN GbE SFP（Optional） |
Can be customised with customer's logo or other requirements |
| Back |

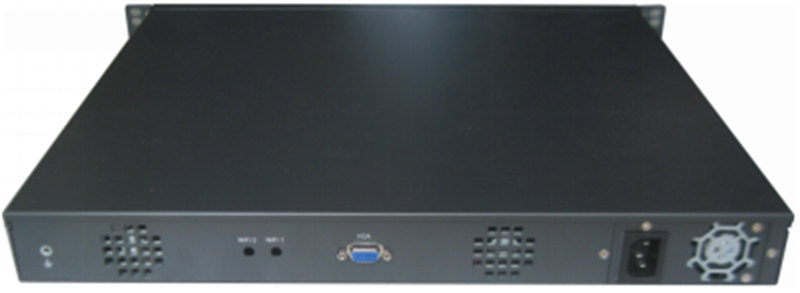

2×FAN，2 Antenna Positions，VGA，1U power supply |
|
| Hard disk rack |
1 anti-shock HDD cage supports 1 x 3.5" or 2 x 2.5" HDD |
|
| Adaptive Motherboard |
B75 motherboard for 6LAN |
Optional Z87 6LAN motherboard, available H110 6LAN motherboard for customisation |
| CPU/GPU |
Intel Xeon E3-1245 V2 |
Support 2th,3th,4th generation i3/i5/i7 CPU |
| Memory |
8G DDR3 |
Optional 2G/4G/16G memory |
| Hard Disk |
64G MSATA(Option to add 1T HDD） |
Optional 32G/64G/256G Msata SSD; Support 2.5" HDD by Capacity |
| Interfaces |
AC ipput；6×LAN RJ45；1×CPM RJ45；1VGA；2USB |
|
| Size |
483mm * 350mm * 45.5mm |
N.W/G.W |
3.5/4KG |
| Power Supply |
200W 1U power support |
|
| Installation mode |
19" Standard Rackmount |
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| |
|
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |
| Ordering Information |
| NSP-1961 1U Internet security platform，6×LAN Intel GbE |
| NSP-1961-2F 1U Internet security platform，6×LAN Intel GbE，2LAN GbE SFP |
Product Features
■ Thermal, dust and shock resistance
■ 6LAN Intel GbE, optional 2LAN GbE SFP
■ Supports B75/Z87 6LAN motherboard
■ Supports 2nd, 3rd and 4th generation i3/i5/i7 CPU
■ Supports Xeon E3-1245V2/V3 CPU

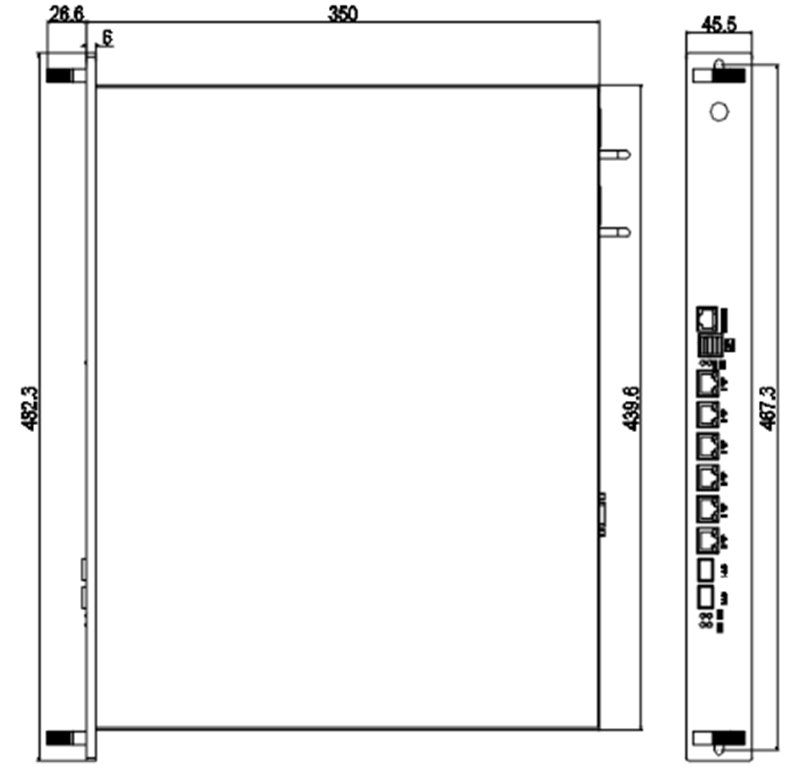

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
