New beiben NG80B 2636 container transport truck head

Beiben 2636 tractor head, Ivory Coast customer choose benz 6*4 prime mover, equipped with WEICHAI 360HP engine, FAST 12-shift manual gearbox, with LHD and RHD for optional, and maximum towing weight can be 40000kg.



Beiben Military 2636 tractor head Hot Sale

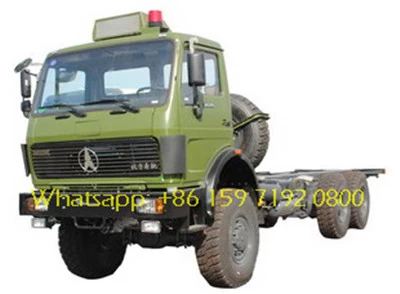

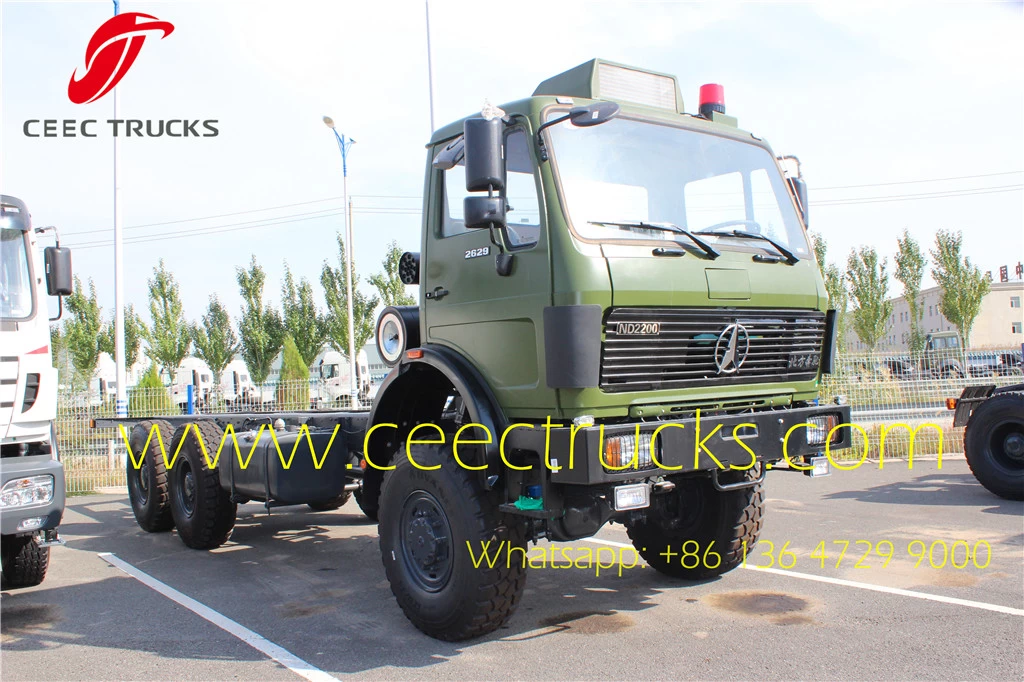

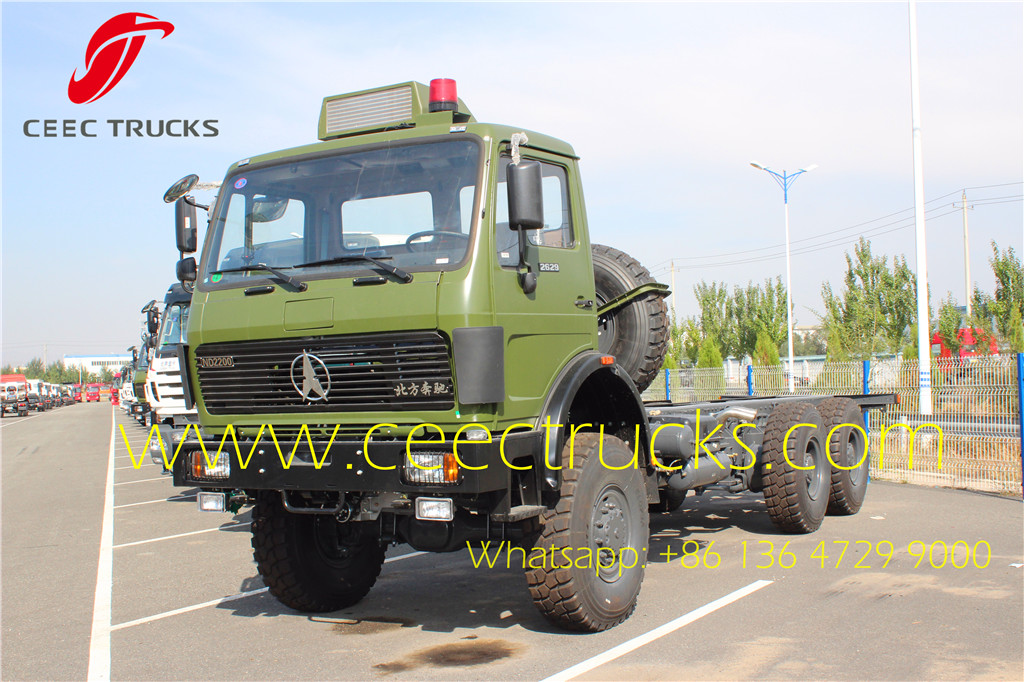

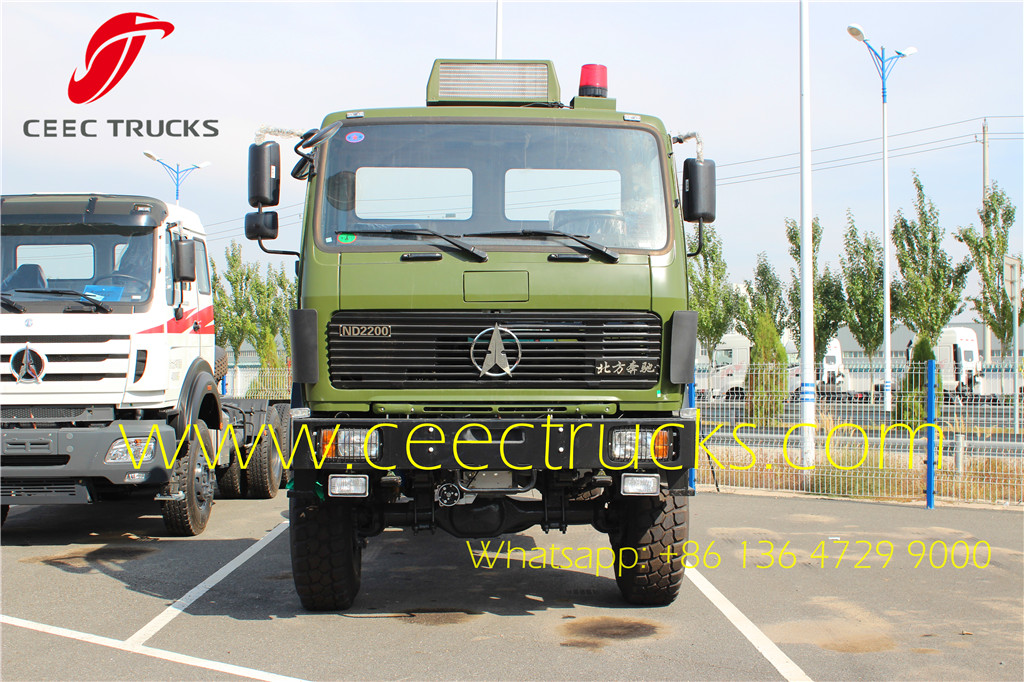

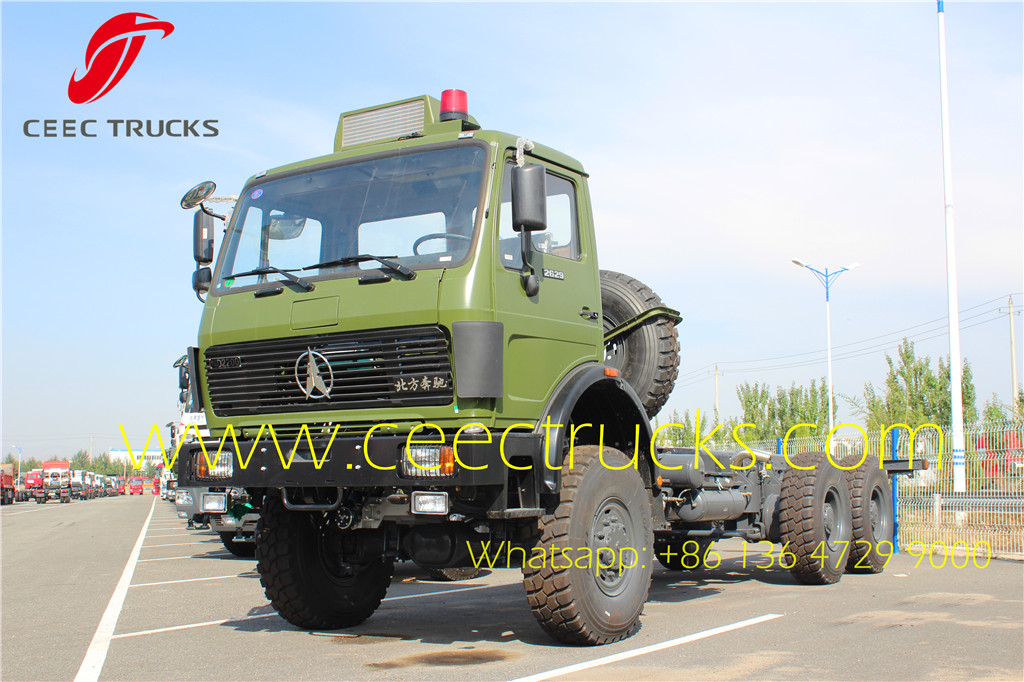

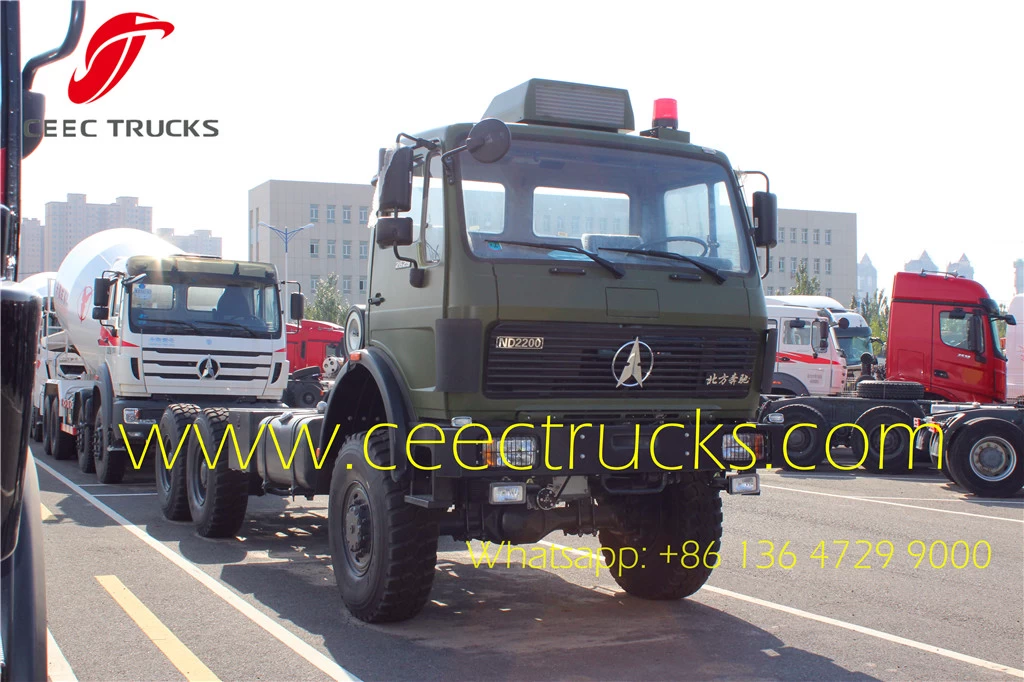

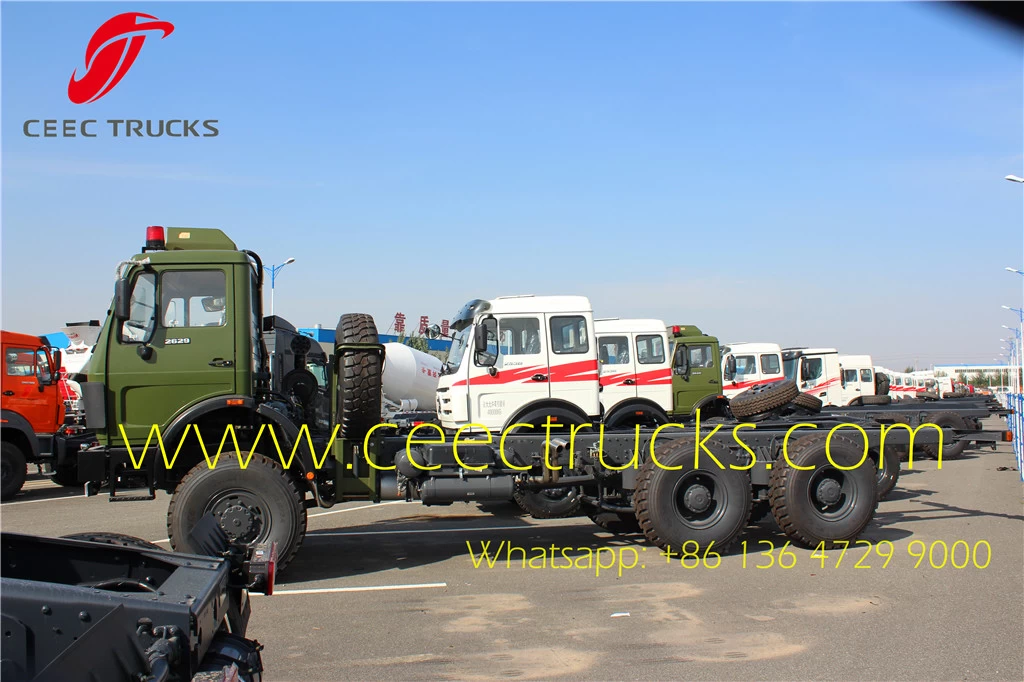

beiben 2636 military towing trucks



Kenya, Tanzania, Algeria, Mozambique Customer choose military beiben 2536, 2636 towing trucks features:

CEEC TRUCKS are authorized Beiben 2636 tractor trucks, north benz 2536, 2538 prime movers supplier in China

Beiben trucks and Mercedes Benz trucks share many features such as HL7, HD7 and VL4 axles used in the Actros and Atego models.

The price for Benz 2634 towing trucks are relatively at least 10% lower than European and Asian competitors

Beiben truck and benz trucks share familiar gearboxes - ZF and Fuller Fast. mainly 9-shift manual gearbox and 12-sfhit manual transmissions

Mercedes Benz and Weichai WD615, WP10 and WP12. They comply with Euro 2, 3 and 4; have displacements of 10 and 12 liters and HP of 270 to 480.

Bosch Common Rail injection, the Euro 2 with linear pump, motor and brake valve MAN Exhaust (Jack-Brake), among other qualities.


RHD beiben 10 units tractor trucks export Kenya Mombasa

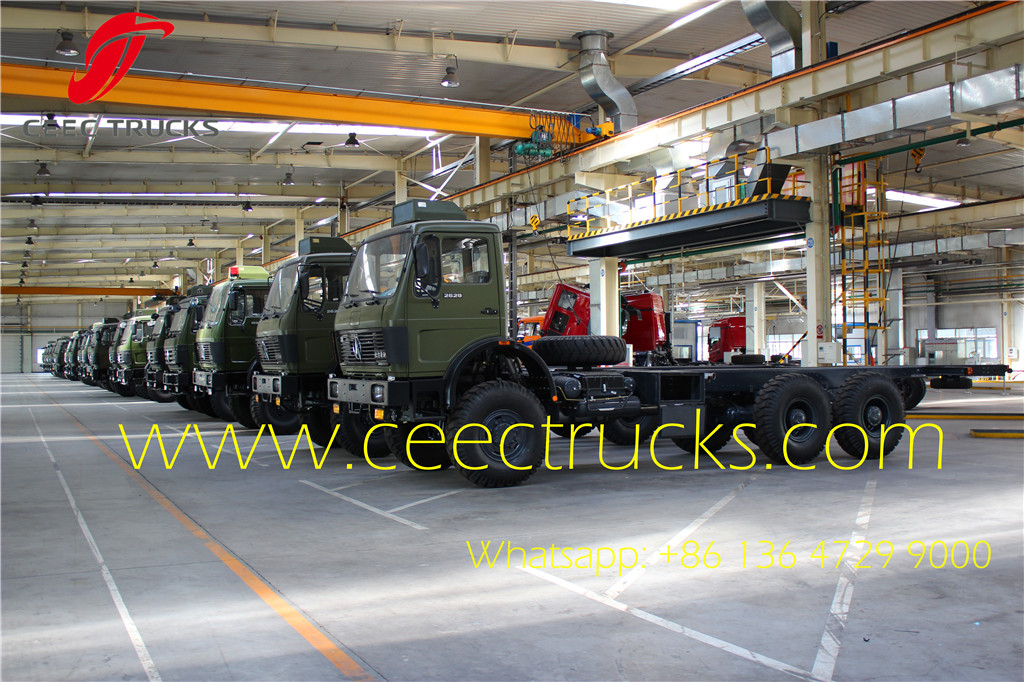

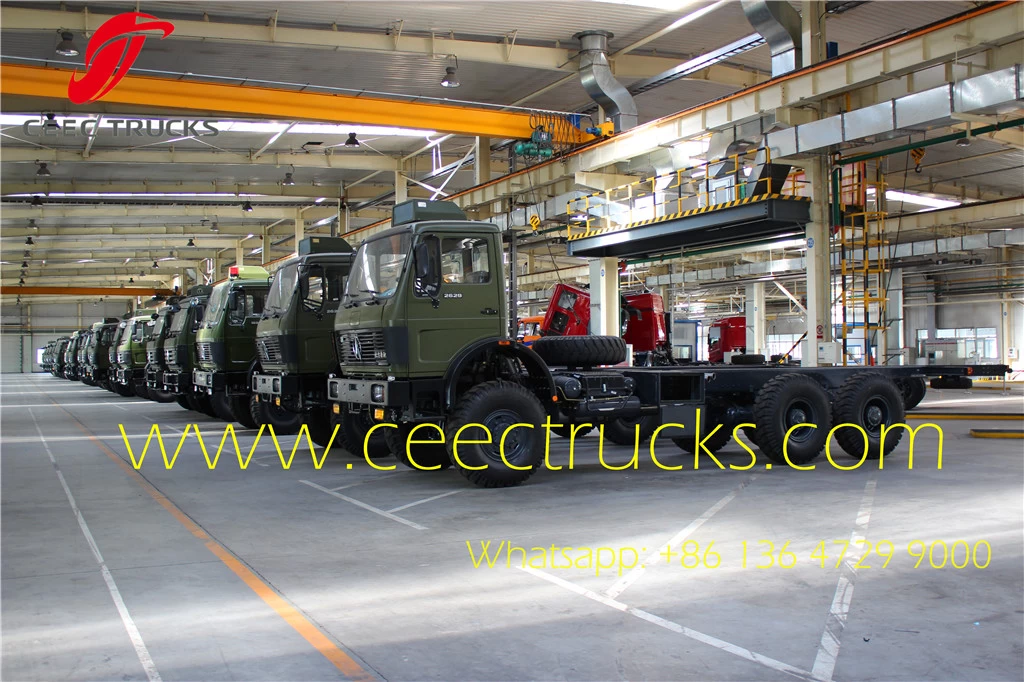

Beiben 2536 trailer tractor truck also can be called Beiben 6*4 tractors, north benz 2536 towing truck and beiben 2536 tractor head trucks, provided by authorized beiben heavy truck company supplier CEEC TRUCKS, which has plant which located in Hubei Suizhou, all beiben tractor trucks use Germany Mecedes Benz technology and heritage are manufactured to the highest international standards and the strictest military quality controls.



Beiben 2628 tractor trucks



Beiben 2636 towing trucks supplier



Beiben 2636 towing trucks supplier



Similar Key Works: Beiben 2636 towing trucks, Benz 6*4 prime mover, Beiben 2636 tractor truck, Benz 1834 tractors, beiben 6*6 all-wheel-drive tractors, beiben 2534 towing trucks, beiben 6*4 trailer tower, offroad beiben 6 wheeler tractor trucks



Beiben 2636 tractor truck/6×4/3450+1450/Long Cab/LHD

Dimension

6935*2495*3340mm

Approaching angle/Departure angle

20/64°

Overhang(front/rear)

1410/625mm

Wheel base

3450+1450mm

Max speed

100km/h

Curb weight

9200kg

Max towing weight

39670kg

Max loading on fifth wheel, Permitted(kg)

15670kg

Slope climbing capability

Max.40%

Engine

Model

WD615.46, water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Displacement

9.726L/Diesel

Stroke

126/130mm

Max. power

265/2200 (kw/rpm)

Max.torque

1750/1300-1400(Nm/rpm)

Emission stantard

Euro

Fuel tanker capacity

400L

Clutch

430, Single dry frictional disc,Hydraulic boosting

Gearbox

12JS200T, mechanism,12 forward gears,2 reverse gear, manual operated, with synchronizer

Gear ratio of gear box

15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.10/1.64/1.28/1.00 R:14.86/3.33

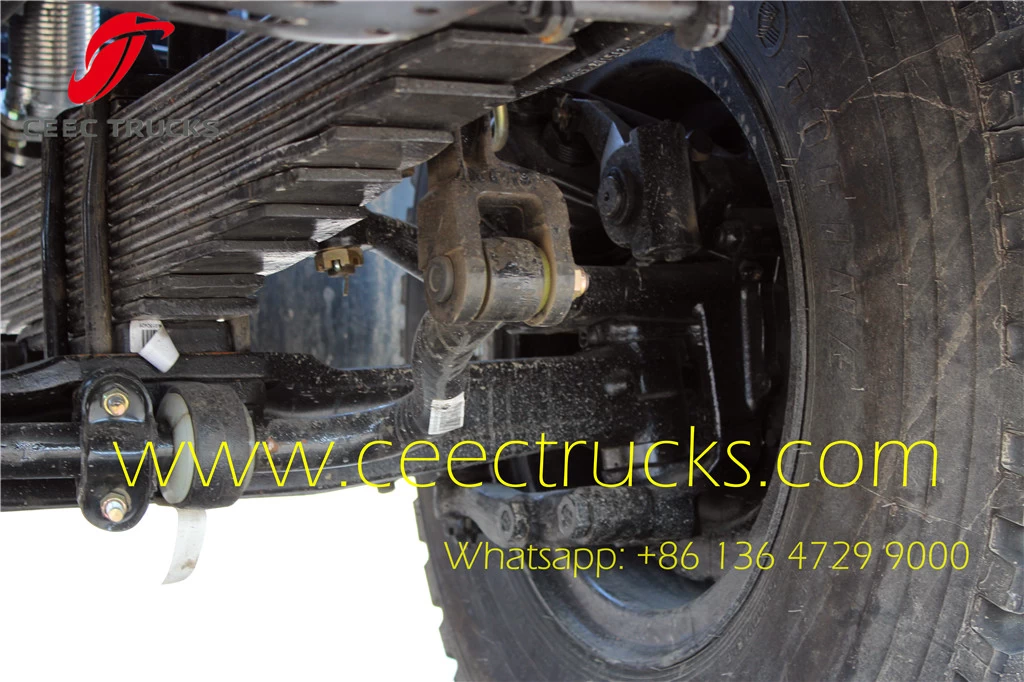

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 13pcs

Rear

Non-free standing stablization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

TAS85,whole circulation in ball, hydraulic booster

Frame

Fish belly shape, variable width, variable sections

Model

JOST 90 single direction

Height of fifth wheel(mm) (unload)

1410

Radius of front gap (mm)

2300

Radius of rear slew (mm)

2600

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

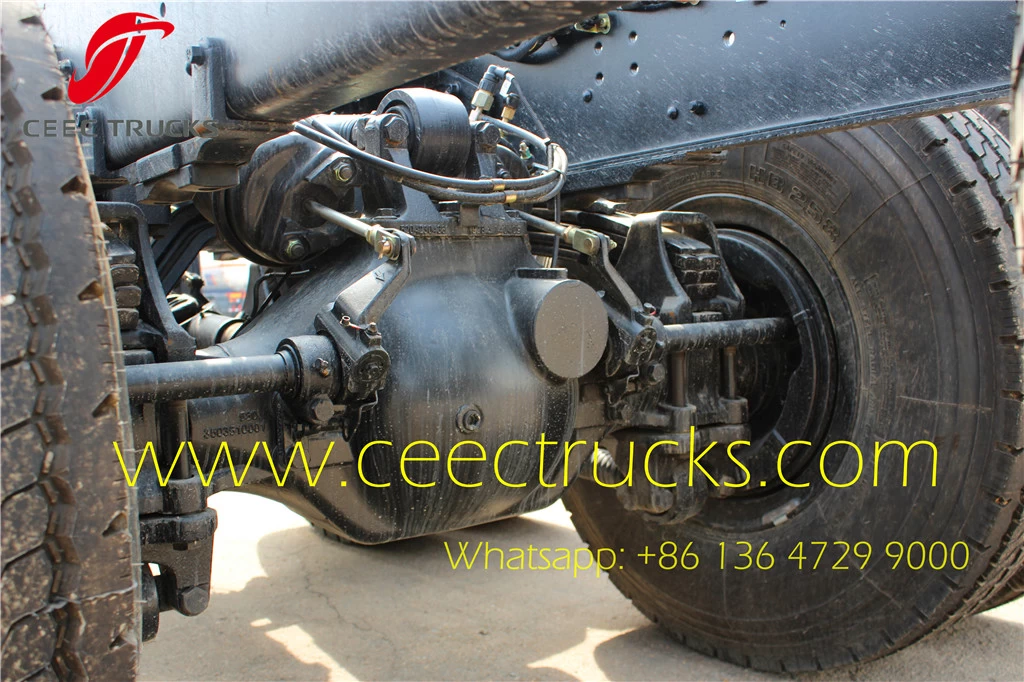

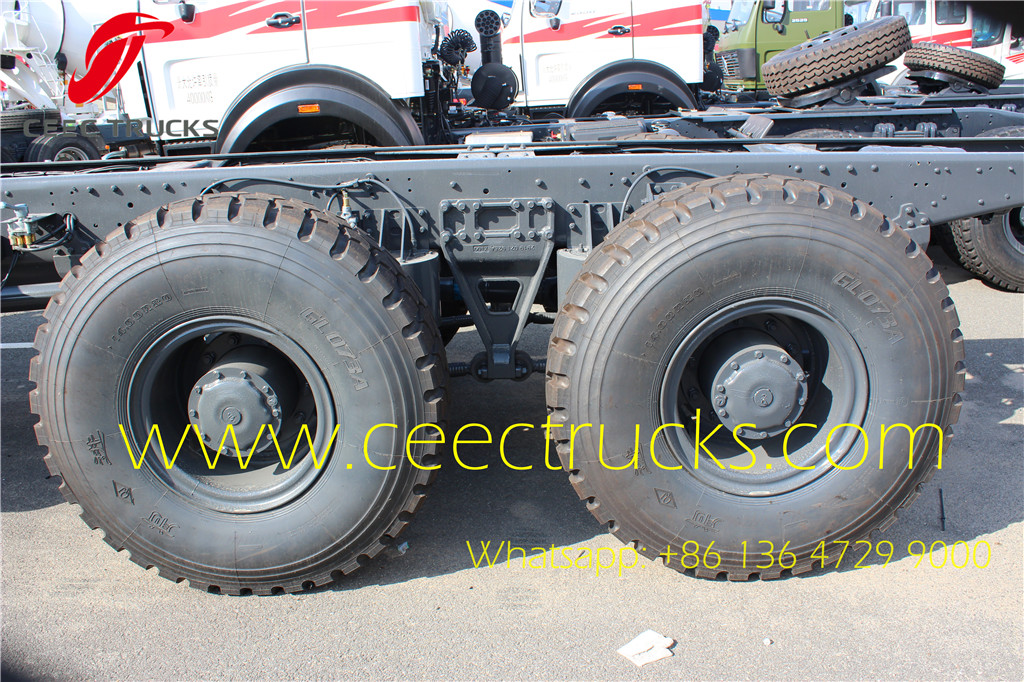

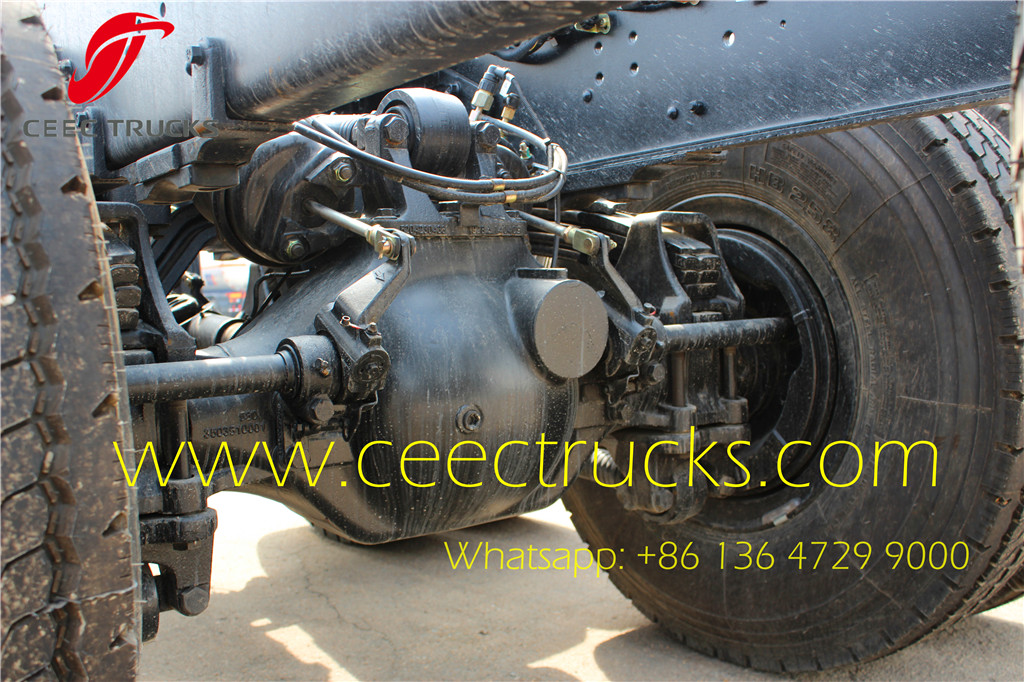

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

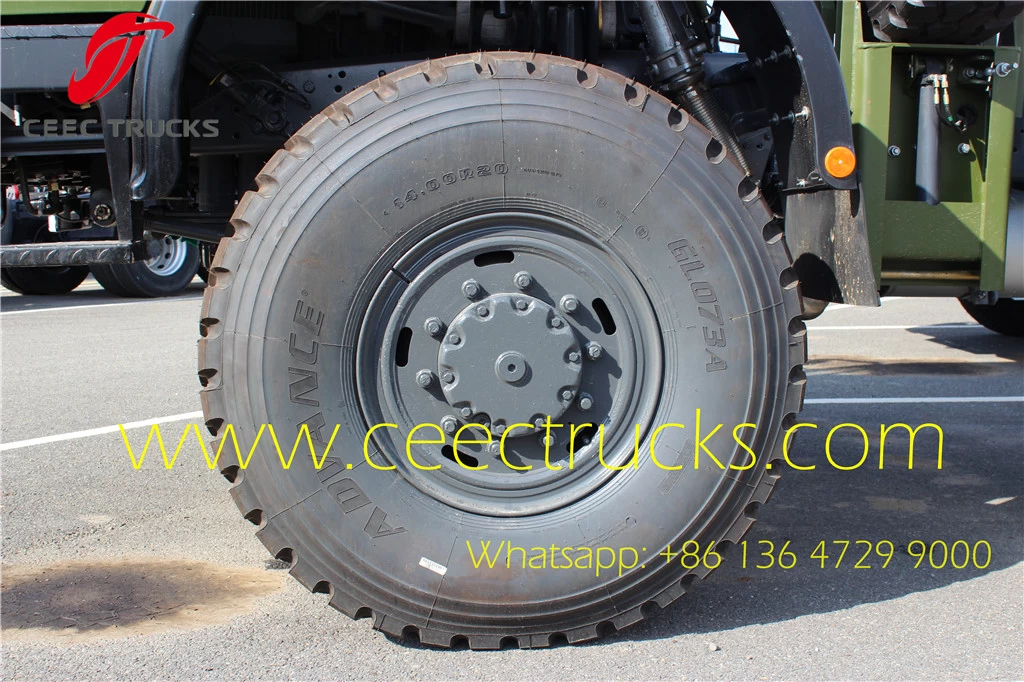

Tyre

12.00-R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cabin

NG80B Long-Flat roof cabin with single sleeper
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back seat for driver;Electric lifting window ;
With inner A/C
