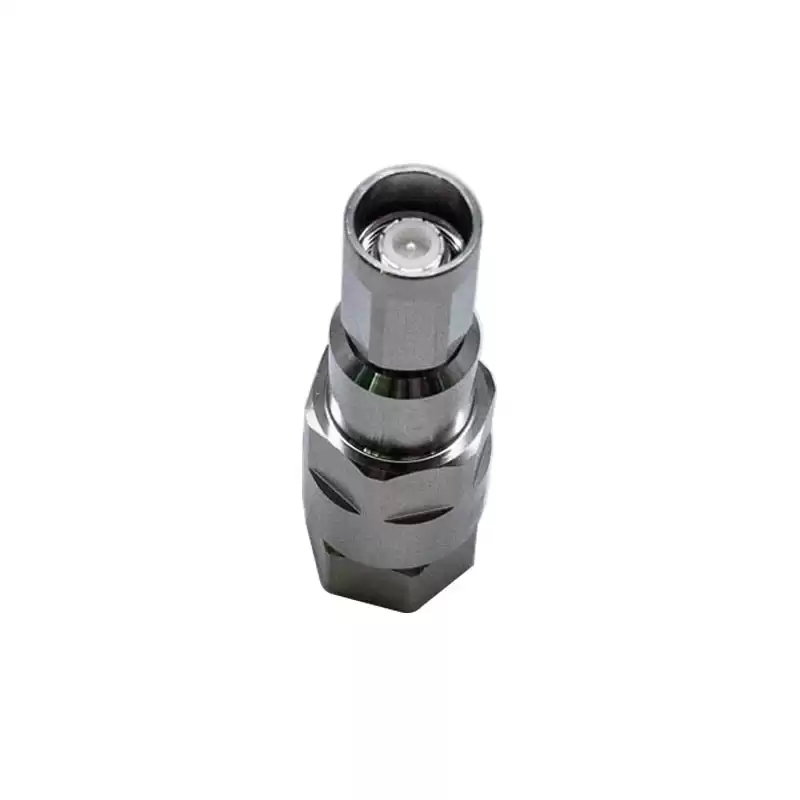

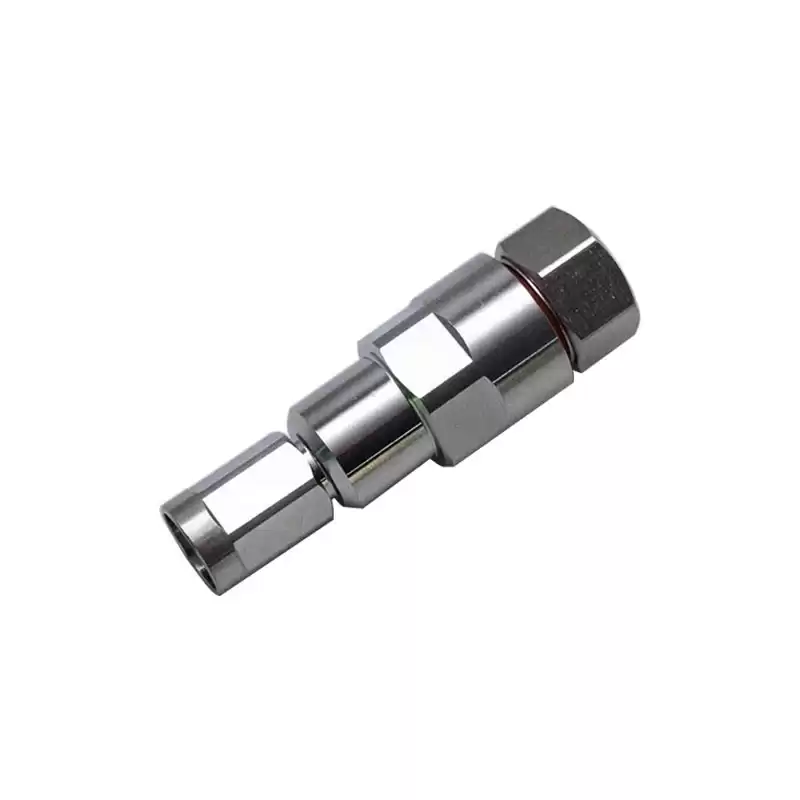

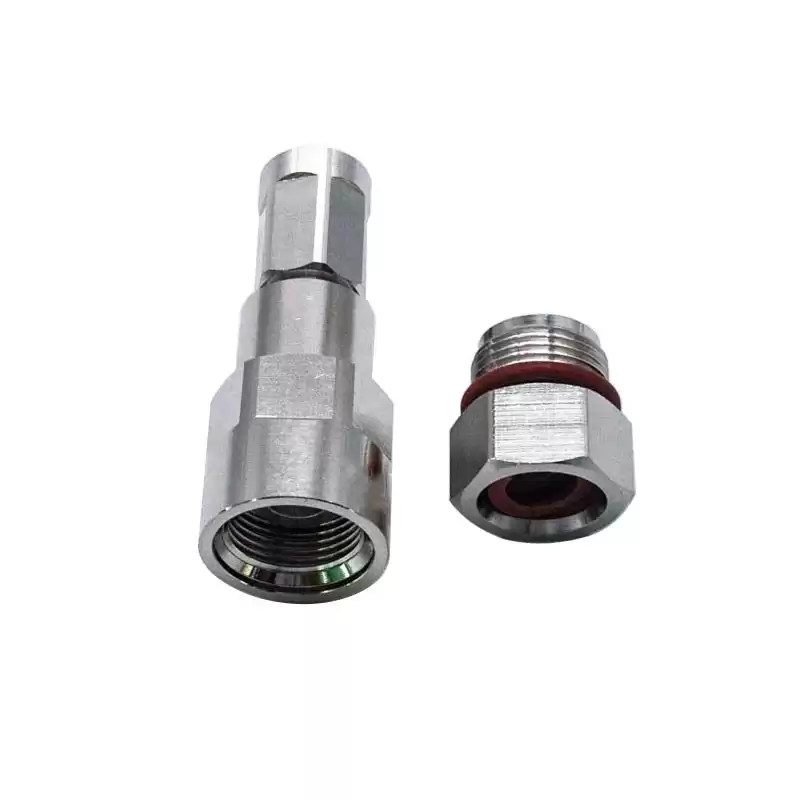

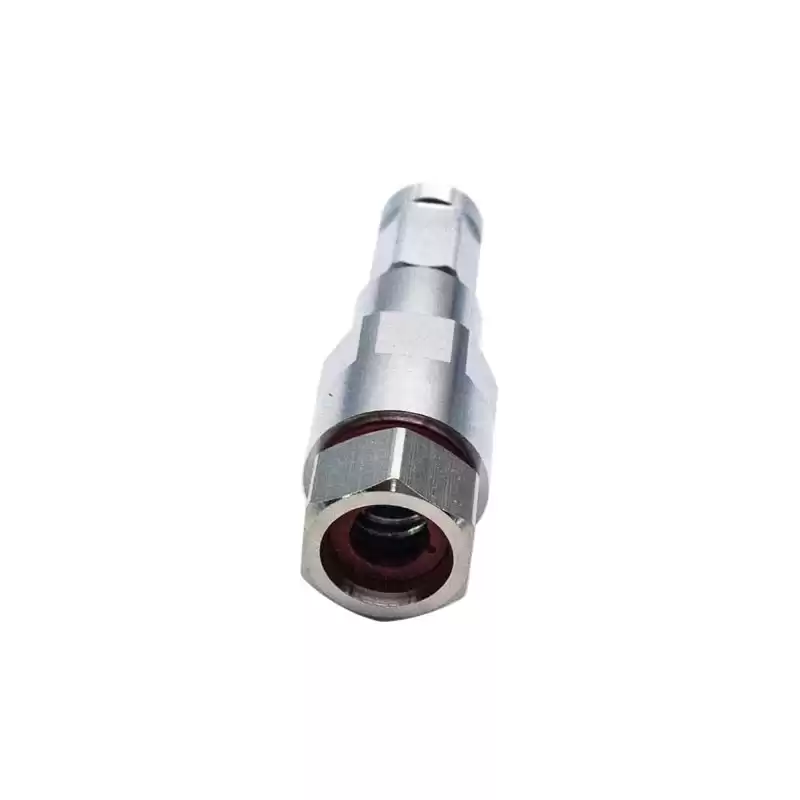

NEX10 Male Low PIM Connector Clamp Attachment for 3/8'' Superflex Cable
The NEX10 connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20GHz, the new robust and highly compact NEX10 interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation); and frequency max up to 6GHz; this NEX10 male connector has an interface type of 3/8'' Superflex Cable and a 50ohm impedance, attachment method uses shield/contact clamp/solder, its straight body is brass with nickel plating.
Specifications
| ELECTRICAL DATA |
|
| Impedance |
50 Ohm |
| Frequency Range |
6GHZ |
| Voltage Rating |
335 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage |
500 VRMS Min |
| VSWR (Return Loss) |
|
| DC to 6 GHz |
DC ≥ 36 dB |
| 6 GHz to 10 GHz |
≥ 30 dB |
| 10 GHz to 20 GHz |
≥ 20 dB |
| PIM |
≥ 166 dBc @ 2x43dBm |
| Degree of Protection |
IP 68 (@1 m, 24 hours) |
| Environmental |
|
| Temperature Range |
−65°C to +165°C |
Applications
- Low-power base stations
- Small cell applications
- Designed to meet the demands of upcoming 5G networks
- In multi-operator/multiband DAS
- Blind mate for panel as well as test & measurement
