NEX10 Male Low PIM Connector Solder Attachment for for RG402 Cable

NEX10 features

  • Can terminate to coaxial;
  • Can be male or female gender in standard polarity, with 50ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead or mount-less;
  • Attachment methods include clamp/solder, crimp/solder or solder/solder.

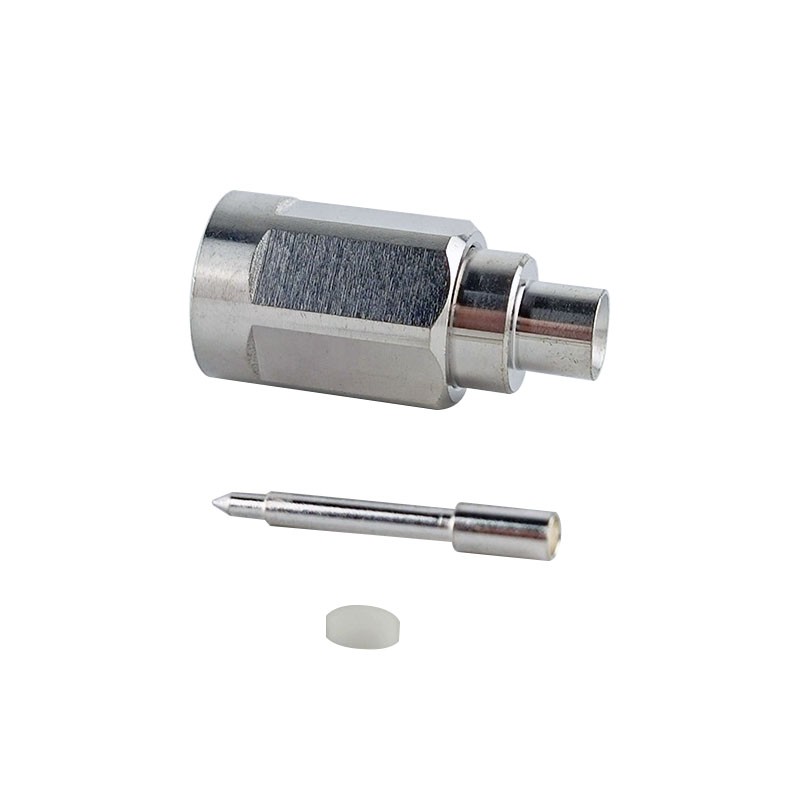

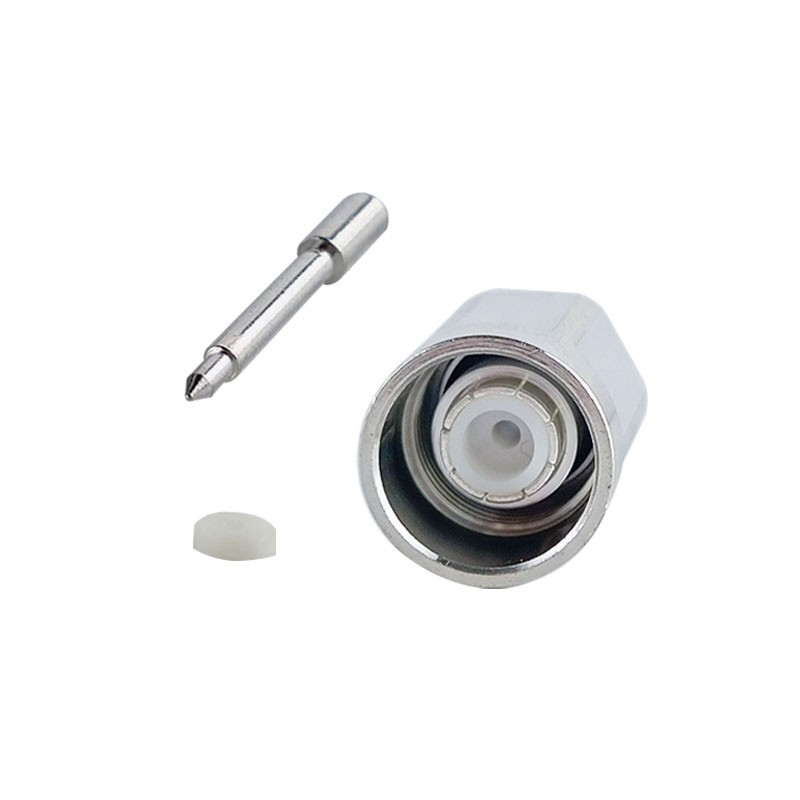

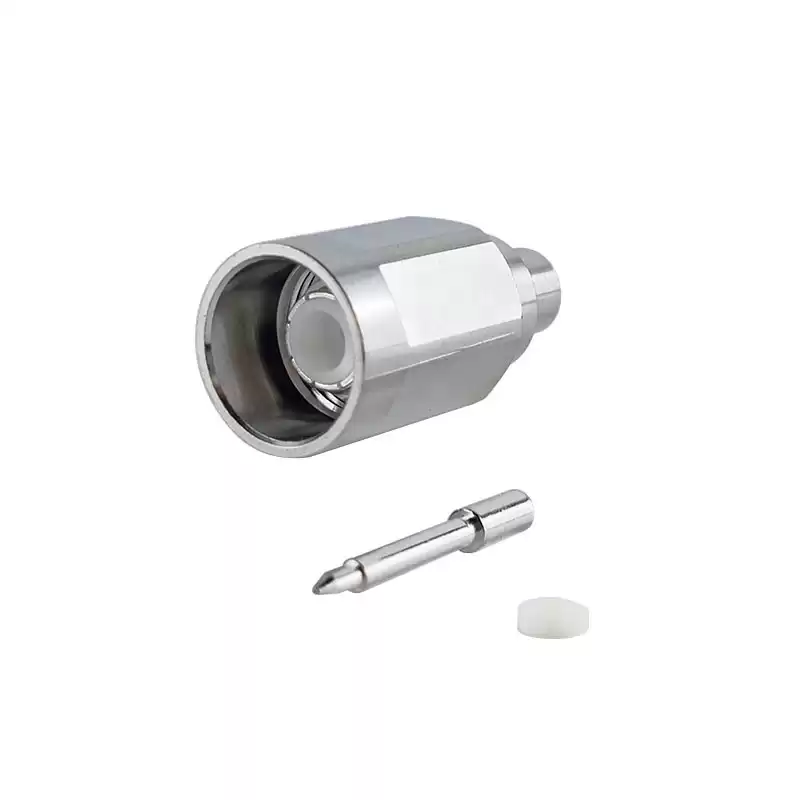

NEX10 Male Low PIM Connector Solder Attachment for for RG402 Cable



The NEX10 connector system meets the existing and future infrastructure efficiency demands of small cell applications and 5G mobile networks. For frequencies up to 20GHz, the new robust and highly compact NEX10 interface standard provides safe, easy and damage-free connection while minimizing interference from PIM (Passive Intermodulation);  and frequency max up to 6GHz; this NEX10 male connector has an interface type of RG402 Cable and a 50ohm impedance, attachment method uses shield/contact solder/solder, its straight body is brass with nickel plating.



Specifications

ELECTRICAL DATA
Impedance 50 Ohm
Frequency Range 6GHZ
Voltage Rating 335 Volts RMS Max Continuous
Dielectric Withstanding Voltage 500 VRMS Min
VSWR  (Return Loss)
 DC to 6 GHz DC ≥ 36 dB
6 GHz to 10 GHz ≥ 30 dB
10 GHz to 20 GHz ≥ 20 dB
PIM  ≥ 166 dBc @ 2x43dBm
Degree of Protection  IP 68 (@1 m, 24 hours)
Environmental
Temperature Range −65°C to +165°C



Applications

  • Low-power base stations
  • Small cell applications
  • Designed to meet the demands of upcoming 5G networks
  • In multi-operator/multiband DAS
  • Blind mate for panel as well as test & measurement
