Physical Characteristics
|
|
Dimensions
|
163.8*79.2*13.8mm/6.45*3.12*0.54in
|
|
Weight
|
<242g/8.5oz
|
|
Display
|
5.2'' IPS FHD 1920x1080P
|
|
Touch Panel
|
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
|
|
Power
|
Main battery: Li-ion, rechargeable, 4000mAh
|
|
Standby
|
over 300 hours
|
|
Continuous use
|
over 12 hours (depending on user environment)
|
|
Charging time
|
2-3 hours (with standard adaptor and USB cable)
|
|
Expansion Slot
|
1 slot for SIM card, 1 slot for SIM or TF card
|
|
Interfaces
|
USB2.0 Type-C, OTG
|
|
Audio
|
speaker, 2 microphones
|
|
Keypad
|
4 front buttons, 1 side button, 2 scan keys, 1 multifunctional key
|
|
Sensors
|
Gravity sensor, Light Sensor, Proximity Sensor, Vibration Motor
|
|

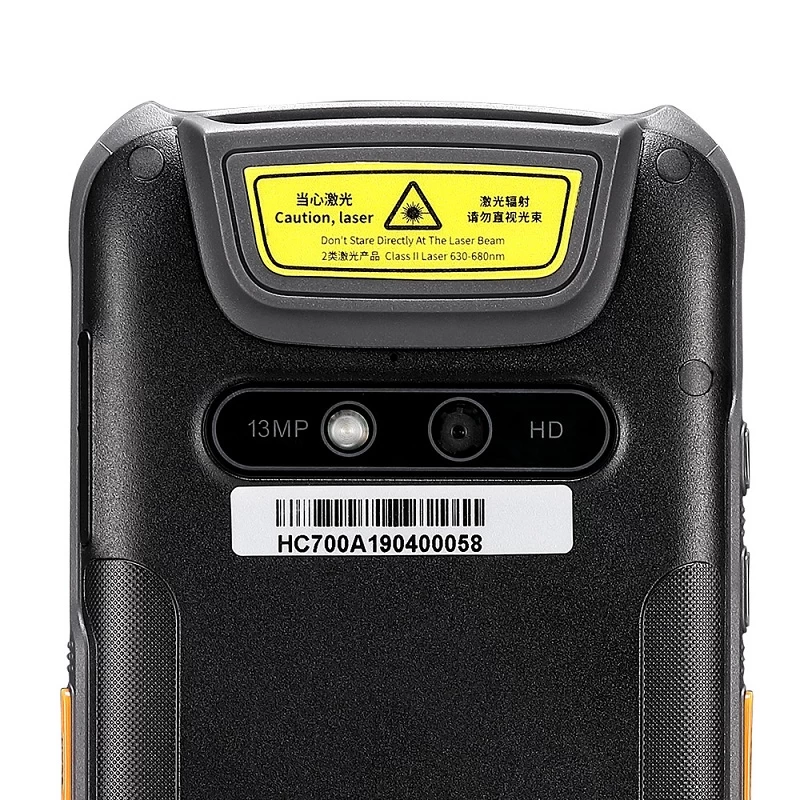

Camera
|
13MP autofocus rear camera with flash, optional 5MP front camera
|
|
User Environment
|
|
Operating Temp.
|
-4°F to 122°F / -20°C to 50°C
|
|
Storage Temp.
|
-40°F to 158°F / -40°C to 70°C
|
|
Humidity
|
5%RH - 95%RH non condensing
|
|
Drop Specification
|
Multiple 1.8m/5.9ft drops (at least 20 times) to the
|
|
concrete across the operating temperature range
|
|
Tumble Specification
|
1000 x 0.5m/1.64ft falls at room temperature
|
|
Sealing
|
IP65/IP67 per IEC sealing specifications
|
|
ESD
|
±15KV air discharge, ±6KV conductive discharge
|
|
Performance
|
|
CPU
|
MT6737T Cortex-A53 Quad-core 1.5GHz
|
|
RAM+ROM
|
2GB+16GB
|
|
Expansion
|
Supports up to 128 GB Micro SD card
|
|
Developing Environment
|
|
Operating System
|
Android 6.0
|
|
SDK
|
Software Development Kit
|
|
Language
|
Java
|
|
Tool
|
Eclipse / Android Studio
|
|
Communication
|
|
WLAN
|
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
|
|
WWAN (Europe)
|
2G: 850/900/1800/1900MHz
|
|
3G: 850/900/1900/2100MHz
|
|
4G: B1, B3, B5, B7, B8, B20, B40
|
|
WWAN (America)
|
2G: 850/900/1800/1900MHz
|
|
3G: 850/900/1700/1900MHz
|
|
4G: B2, B4, B7, B12, B17
|
|
WWAN (China)
|
2G: 900/1800MHz
|
|
3G: 900/1900/2000/2100MHz
|
|
4G: TDD-LTE: B38, B39, B40, B41
|
|
FDD-LTE: B1, B3, B5
|
|
WWAN (Others)
|
Depending on the country's ISP
|
|
Bluetooth
|
Bluetooth 4.0, BLE
|
|
GNSS
|
GPS/AGPS, GLONASS, BeiDou; internal antenna
|
|
NFC
|
|
Frequency
|
13.56MHz
|
|
Protocol
|
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
|
|
Chips
|
M1 card (S50, S70), CPU card, NFC tags, etc.
|
|
Range
|
2-4cm
|
|
Barcode Scanning(Optional)
|
|
2D Imager Scanner
|
Zebra SE4710 / Honeywell N6603
|
|
1D Symbologies
|
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
|
|
Iris Recognition(Optional)
|
|
Rate
|
<150ms
|
|
Range
|
20-40cm
|
|
FAR
|
1/10000000
|
|
Note
|
Protocol：ISO/IEC 19794-6，GB/T 20979-2007
|
|
Note2
|
*This function is optional
|
|
*Iris is alternative to front camera
|
