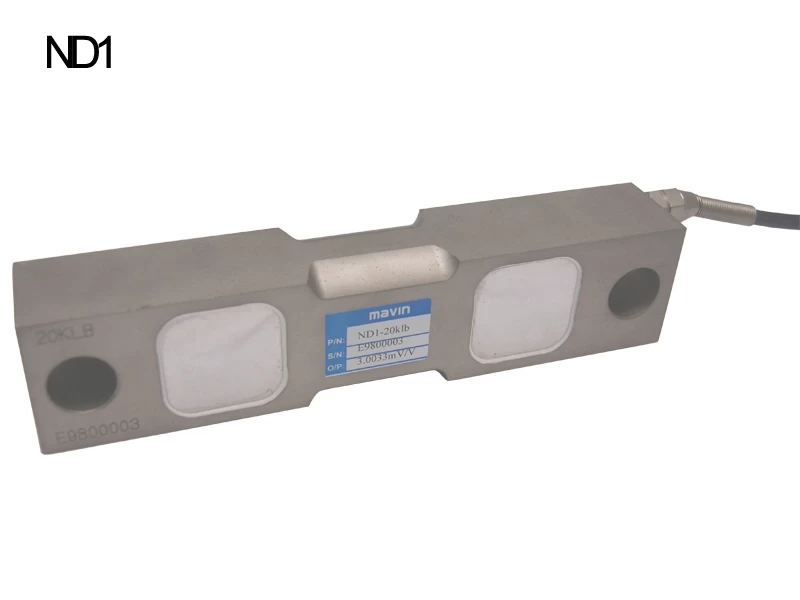

Double shear beam Load Cell ND1 (3-75KLB)
The ND1 is a double ended shear beam load cell, Painted Alloy Steel mounting assembly load cell for a wide capacity range for Truck Scale, Industrial weighing systems, Rail scale, Hopper scale, Road scale, Potting Compound with waterproof connector sealed to guarantee stable quality of performance.
Key Features：
Double
shear beam shaped
Steel
Alloy material with potting Compound
Capacity:
3~75klb
Precision:
0.03%R.O.
Protection
class: IP67/PI68
Rated Output : 3.0 mV/V±0.25%
Usage & Applications：
Hopper scales
Truck scales
Rail scales

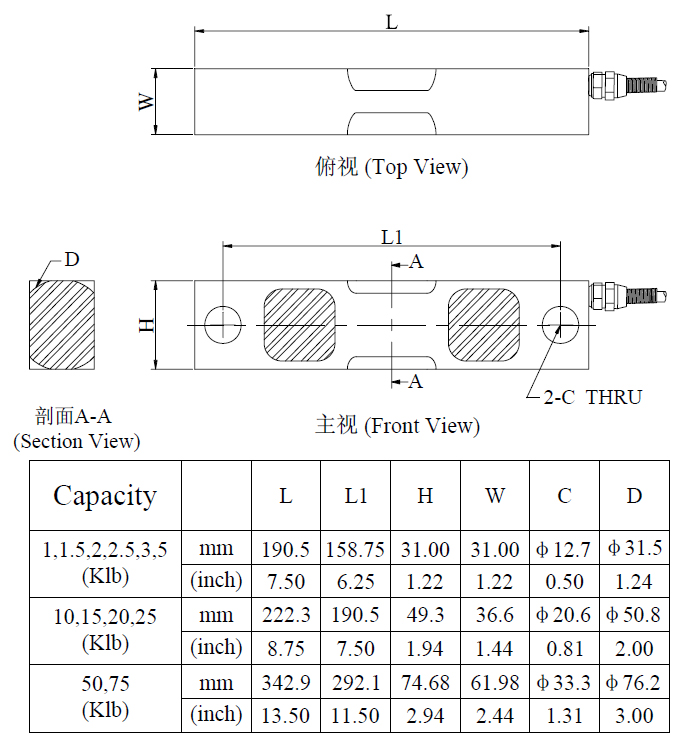

Dimension：
ND1 Specification：
|
Rated
Capacities
|
3，5，10，15，20，25，50，75（Klb）
|
|
Rated
Output
|
3.0
mV/V±0.25%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.03
%R.O.
|
|
Hysteresis
|
0.03
%R.O.
|
|
Repeatability
|
0.03
%R.O.
|
|
30mins
Creep
|
0.03
%R.O.
|
|
30mins
Return
|
0.03
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
740±15
Ω
|
|
Output
Impedance
|
700±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel
Alloy
|
|
Protection
Class
|
IP67
/ IP68
|
|
Cable
|
φ6×6m (3-5 klb); φ6×10m (10-75 klb)
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
