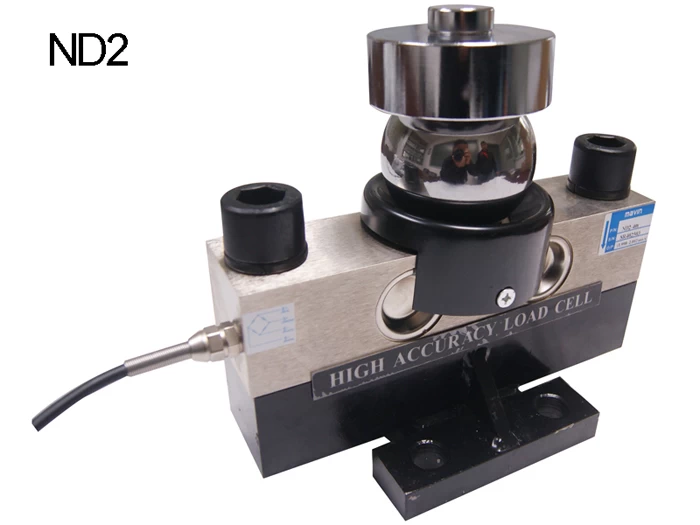

Double shear beam Load Cell ND2 (20-50T)
The ND2 is a weighingbridge load cell for a wide capacity range for Truck Scale, Industrial weighing systems, Rail scale, Hopper scale, Road scale. Dual shear beam load cell is made with nickel plated of stable quality.
Key Features：
Double
shear beam shaped
Steel
Alloy material with nickel plated
Capacity:
20-50T
Precision:
0.03%R.O.
Protection
class: IP67/PI68
Rated Output : 2.0 mV/V±0.25%
Usage & Applications：
Truck scales
Rail scales

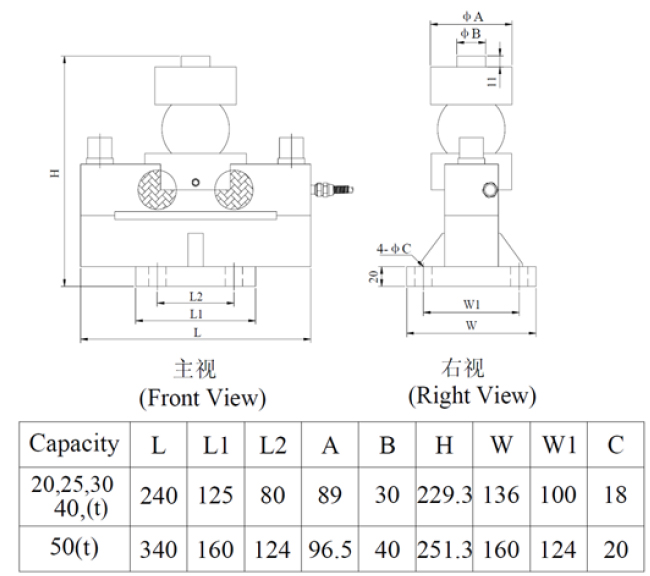

Dimension：
ND2 Specification：
|
Rated
Capacities
|
20，25，30，40，50（t）
|
|
Rated
Output
|
2.0
mV/V±0.25%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.03
%R.O.
|
|
Hysteresis
|
0.03
%R.O.
|
|
Repeatability
|
0.03
%R.O.
|
|
30mins
Creep
|
0.03
%R.O.
|
|
30mins
Return
|
0.03
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
740±15
Ω
|
|
Output
Impedance
|
700±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel
Alloy
|
|
Protection
Class
|
IP67
/ IP68
|
|
Cable
|
φ6×13m
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
