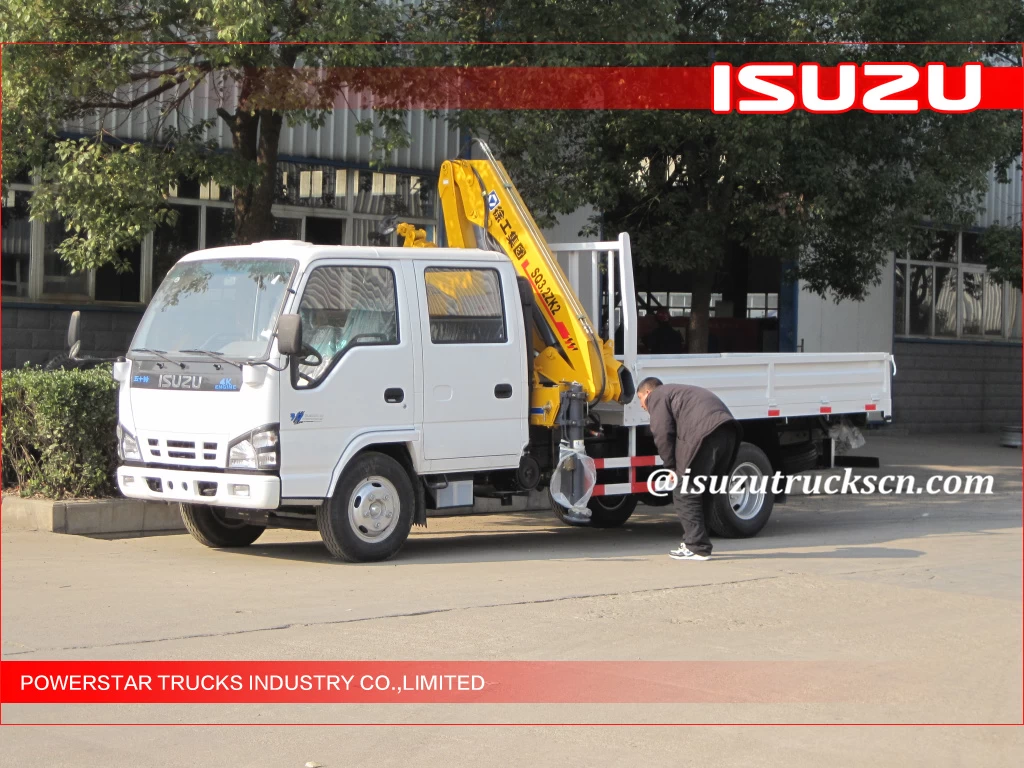

NKR55 NKR77 ISUZU Telescopic Boom Truck Mounted Crane

NKR55 NKR77 ISUZU Telescopic Boom Truck Mounted Crane



Telescopic Boom Truck Mounted Crane, Transportation Lorry Mounted Crane



  1. Name: Telescopic boom crane, Telescoping boom crane, Hydraulic truck crane
  2. Max Lifting Capacity: 2.1 ton
  3. Max Lifting Moment: 4.2 T.M
  4. Max Oil Flow of Hydraulic System: 20 L/min
  5. Max.Lifting height: 7.8meters
  6. Brand: XCMG
  7. Crane Weight: 875 kg
  8. Oil Tank Capacity: 25 L
  9. Feature: Safety transportion, driven by hydraulic, move fast. The raise and down are driven by wire rope, telescopic boom coupling technology
  10. Application: used in Commercial, transportation, oil, balance check, telecommunications, electricity, municipal services and other occasions.





Description:



Telescopic crane is a easy to operate and more economical facility. The raise and down are driven by wire rope, easy to accurately control. The barycentre of the crane are far to the mounting point, beneficial for average the loading, the arm are more longer, with wide operating range.


Telescopic boom crane SQ2SK1Q is lifting capacity is 2.1tons, moment is 4.2T.M.





Applications:



It can be applied on most common Commercial Truck-mounted Cranes. Range covers light to medium crane. With small mounting size and weight to save your payload, minimizing loading and unloading time, is the best choice of truck mounted crane facilities.





Specifications:



Model

SQ2SK1Q

Unit

Max Lifting Capacity

2100

kg

Max Lifting Moment

4.2

T.M

Recommend Power

9

kw

Max Oil Flow of Hydraulic System

20

L/min

Max Pressure of Hydraulic System

16

MPa

Oil Tank Capacity

25

L

Rotation Angle

All Rotation

Crane Weight

875

kg

Installation Space

850

mm

Choice of Chassis

ISUZU





SQ2SK1Q Lifting capability diagram



Working radius (m)

2.1

2.5

3

Lifting capacity (kg)

2100

1800

1000



Optional parts:



1, Moment limited device

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

2, Remote control equipment

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

3, Anti-overwind magnet valve

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

4, High seat on column

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

5, Work light

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

6, Assistant stabilizer leg

 Isuzu Truck Mounted Crane, ISUZU Telescopic boom crane, Isuzu Crago truck with crane, Isuzu lorry body crane

Stabilizer leg

Spread

Fixed

2179mm

Single extension

2256-3556mm

Double extension

2212-4752mm
