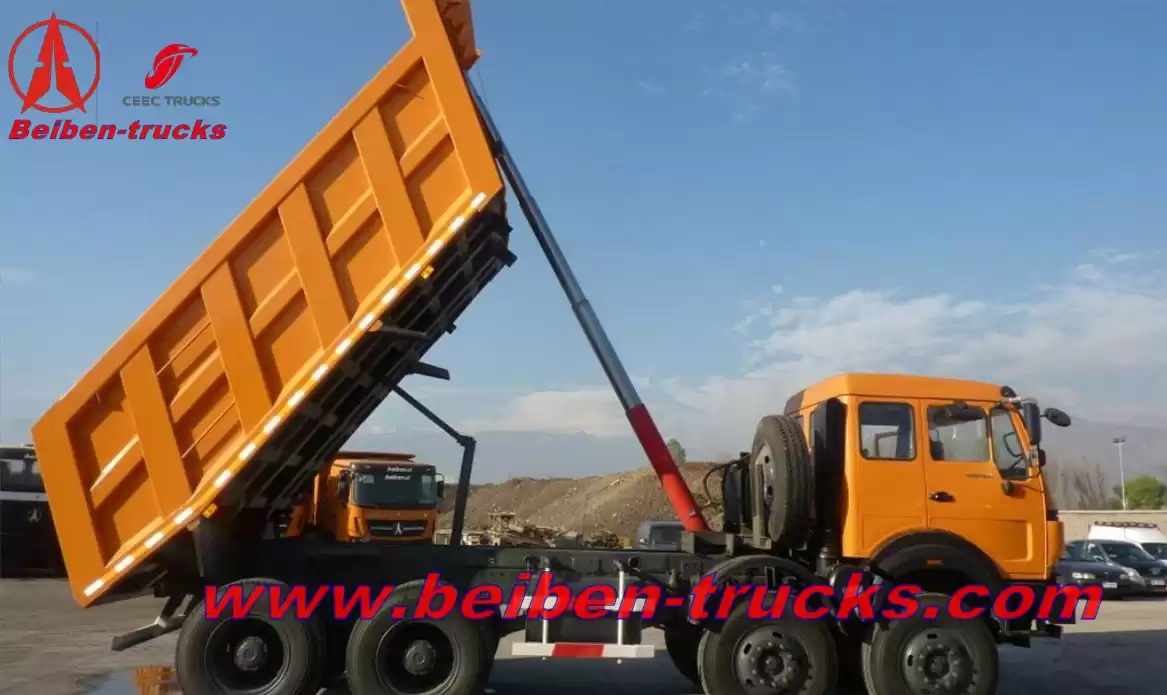

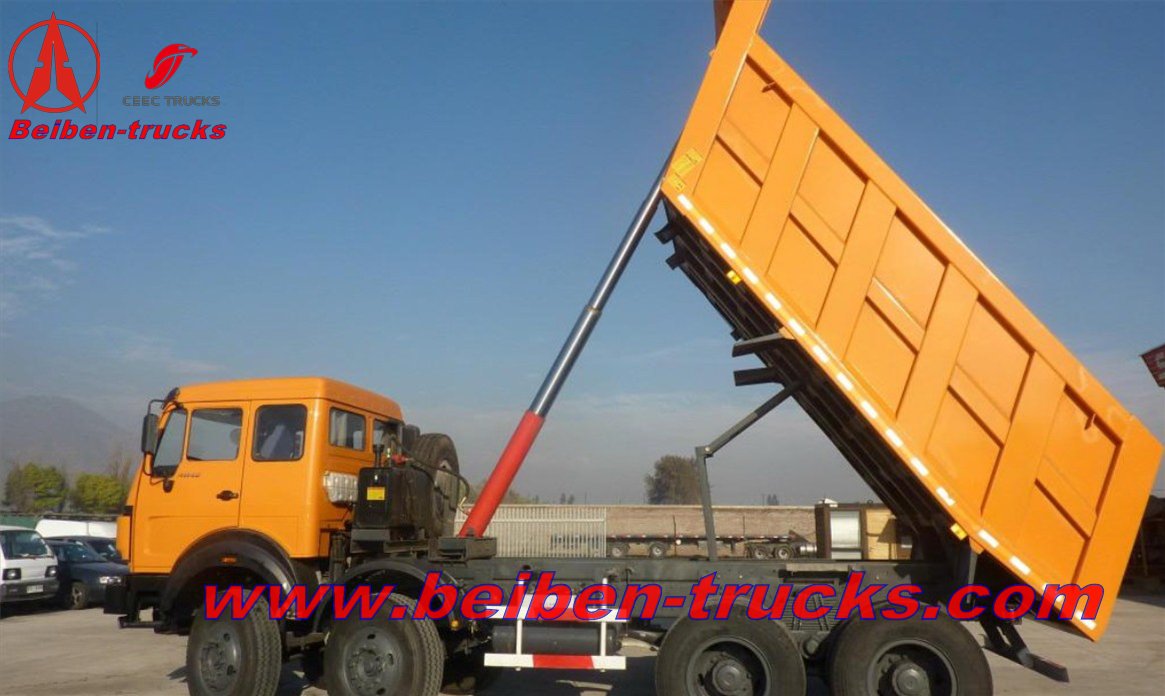

North benz 12 wheeler 420 Hp dumpers is applied for very tough mine area, and mountain area. Our beiben 42o hp dump trucks are the best quality . we are the most professional beiben 3142 dump trucks manufacturer in china.
Sales No.
|

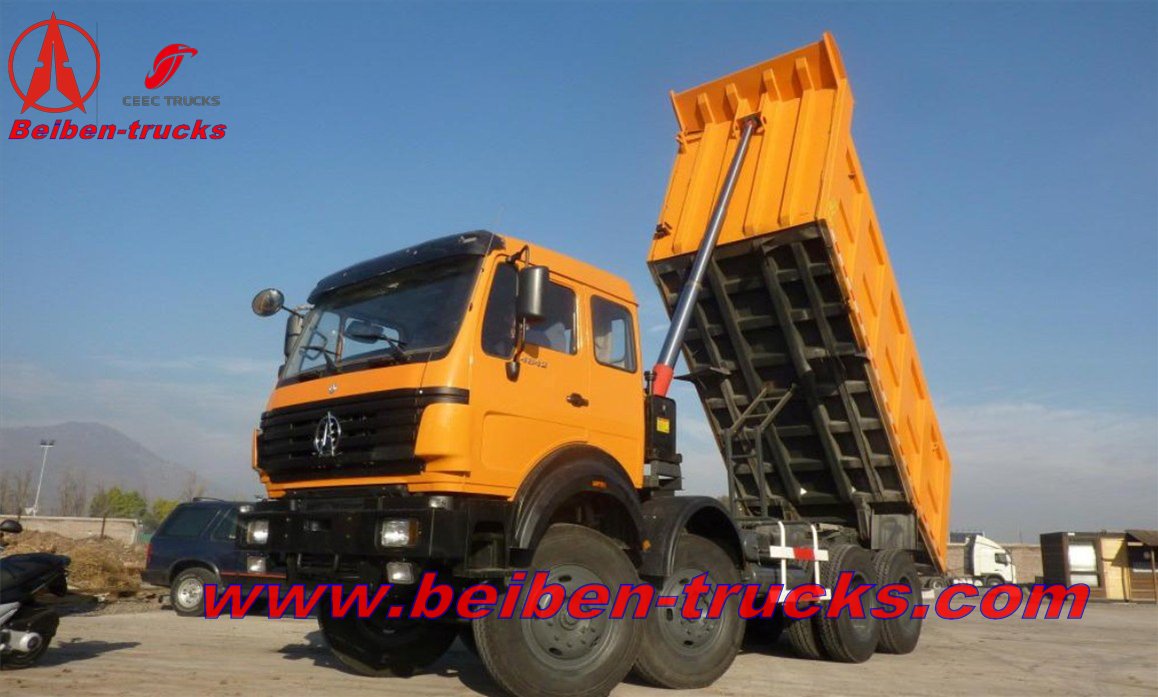

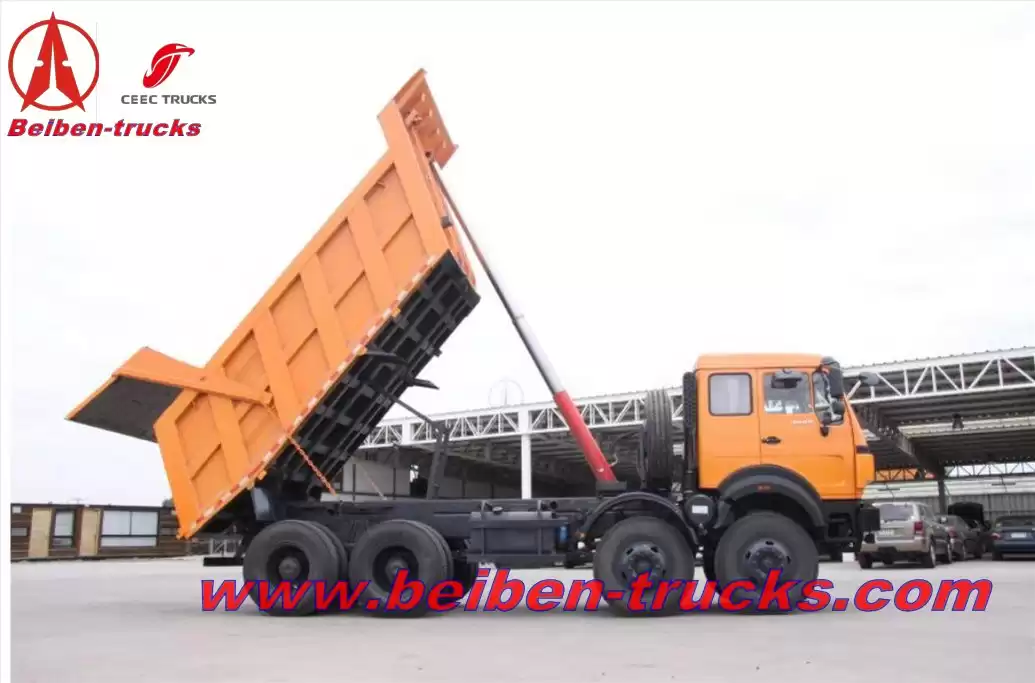

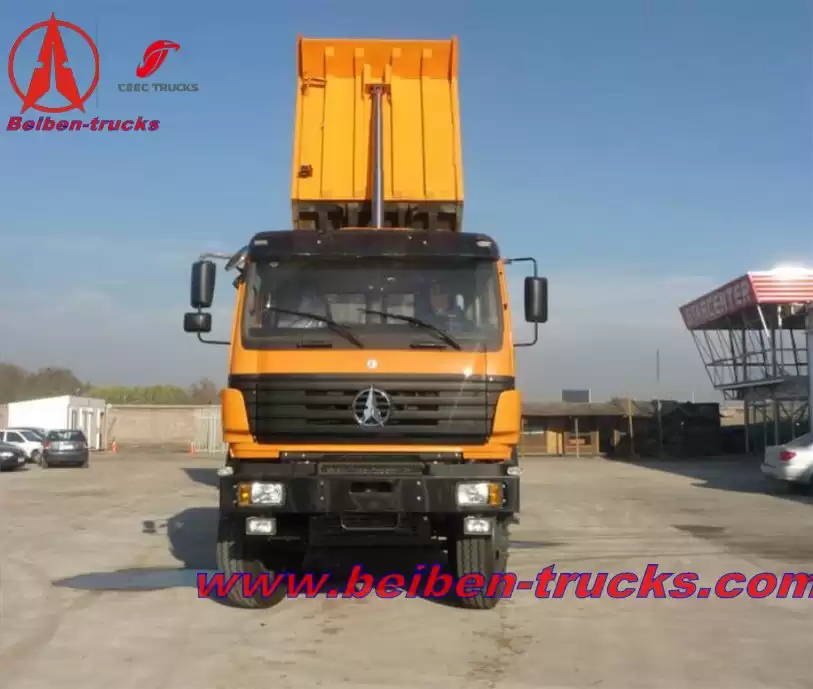

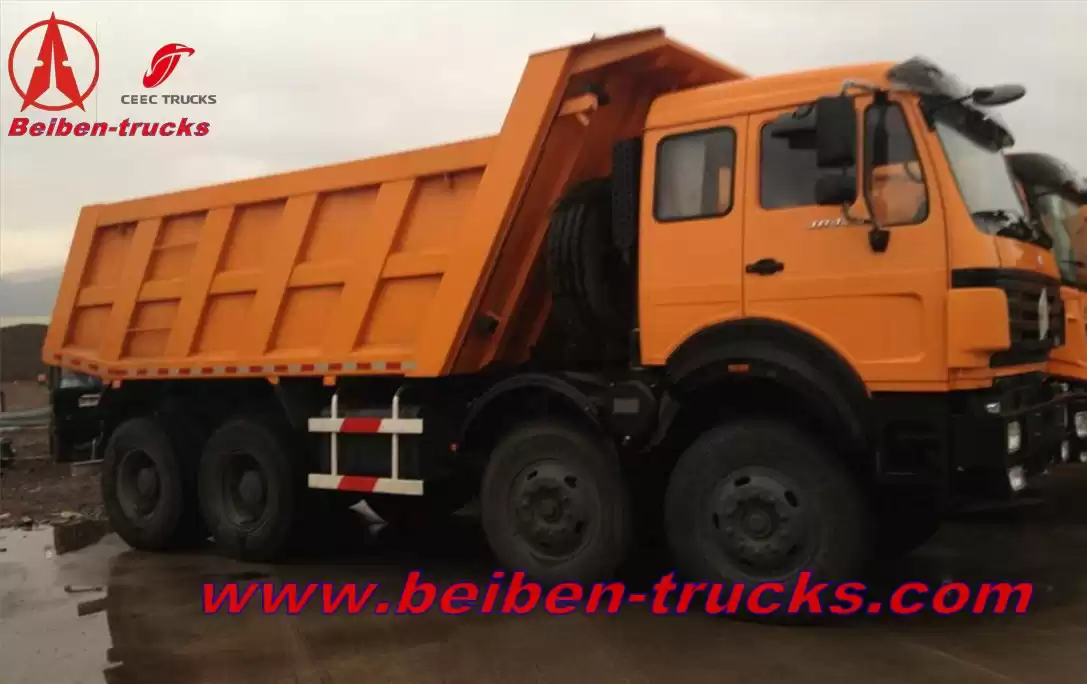

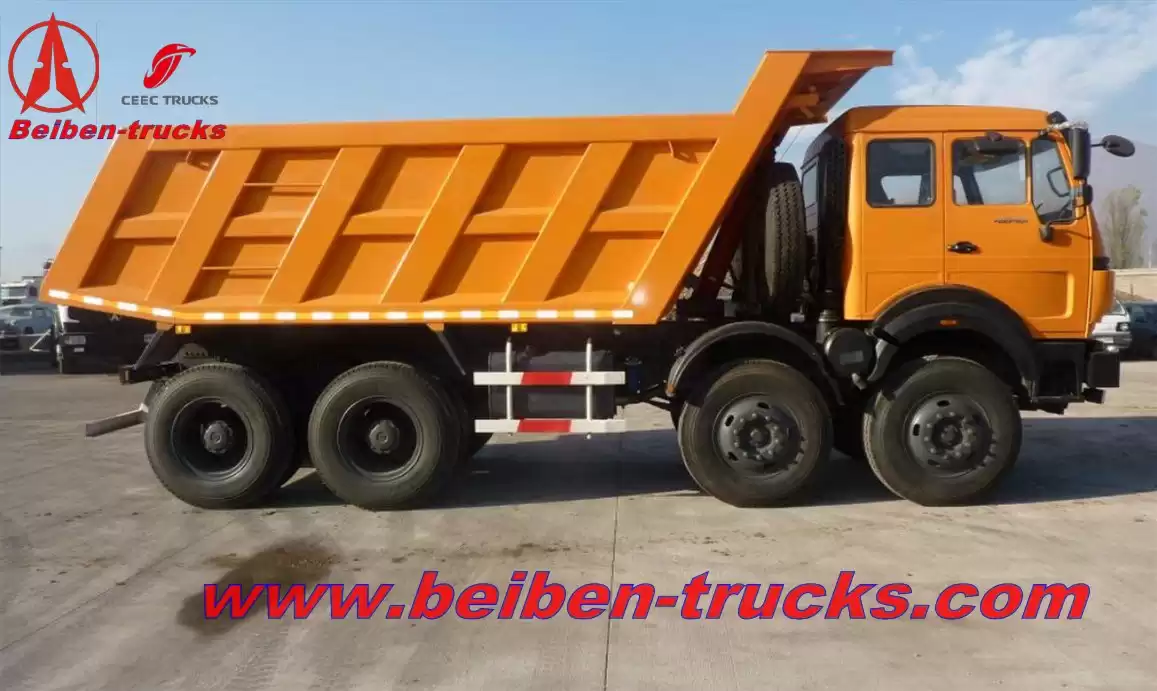

Beiben 3138 dump truck
|

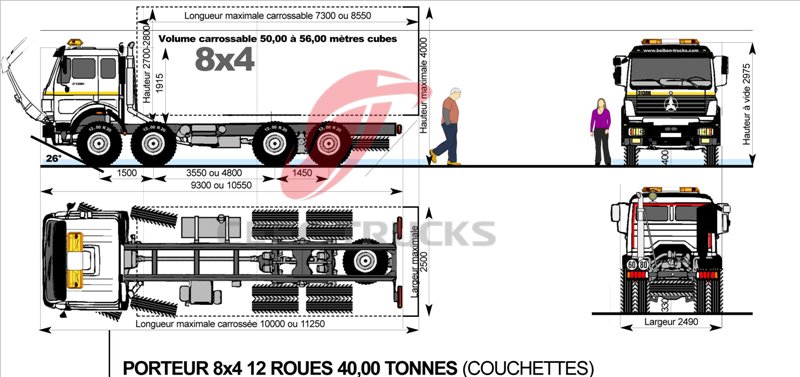

Dimension（mm)
|
Long
|
7690
|
|
Wide
|
2495
|
|
High
|
2975
|
Wheel base（mm）
|
1500+3550+1450
|
Drive
|
8×4
|

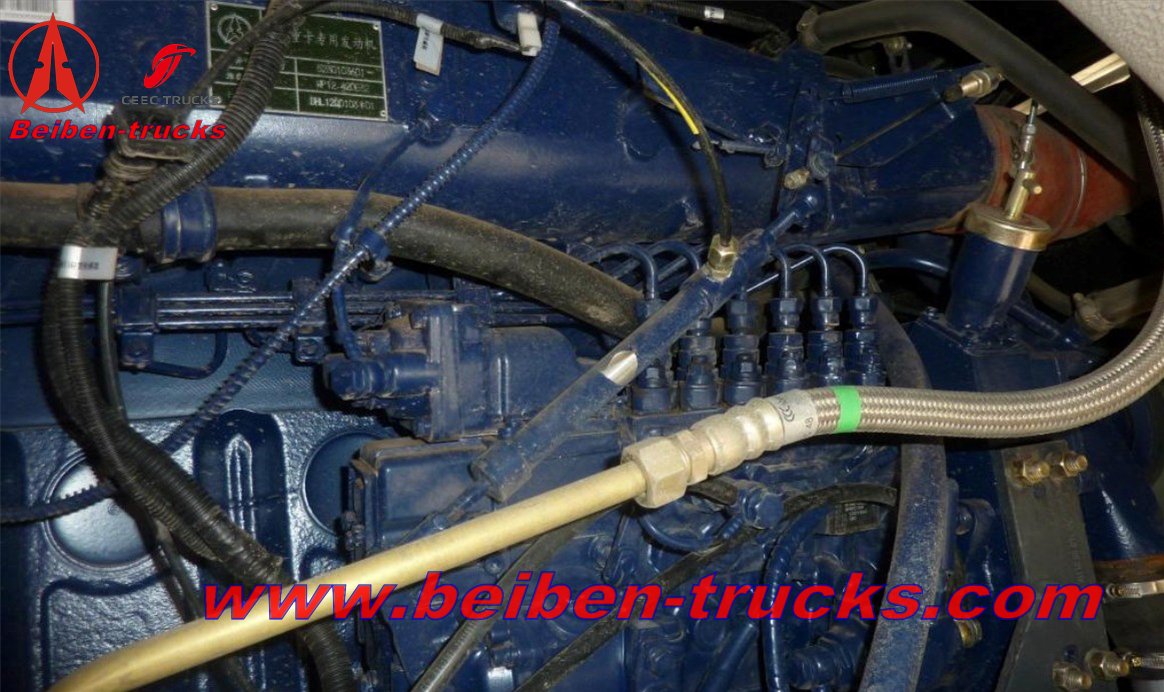

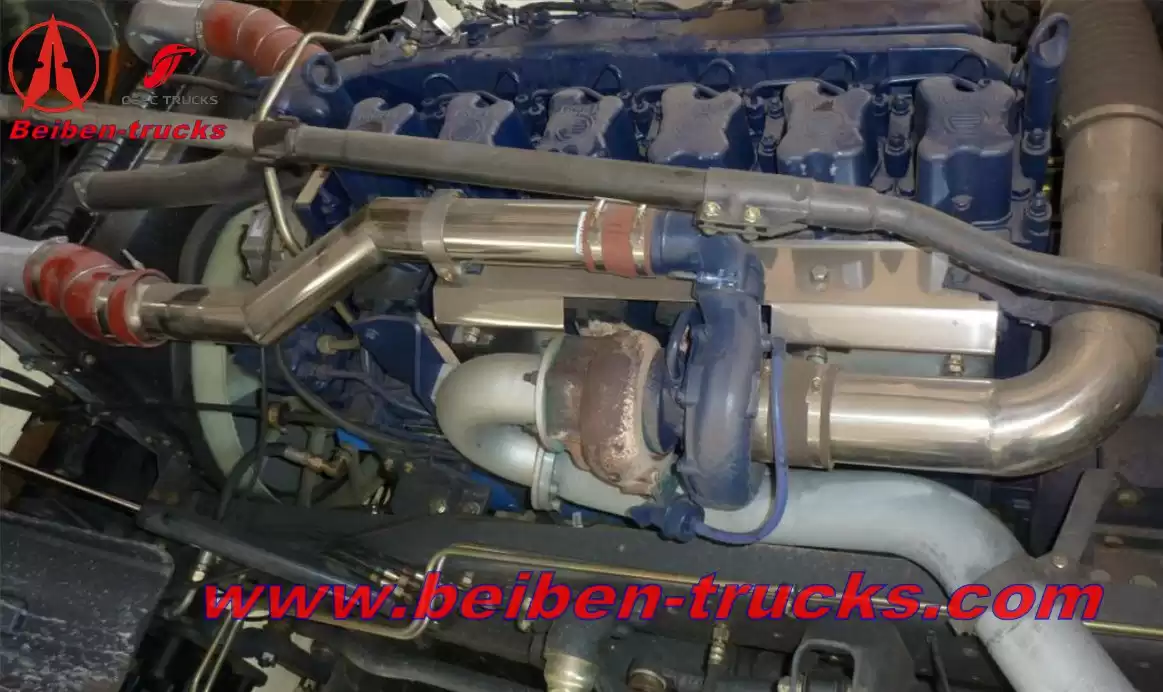

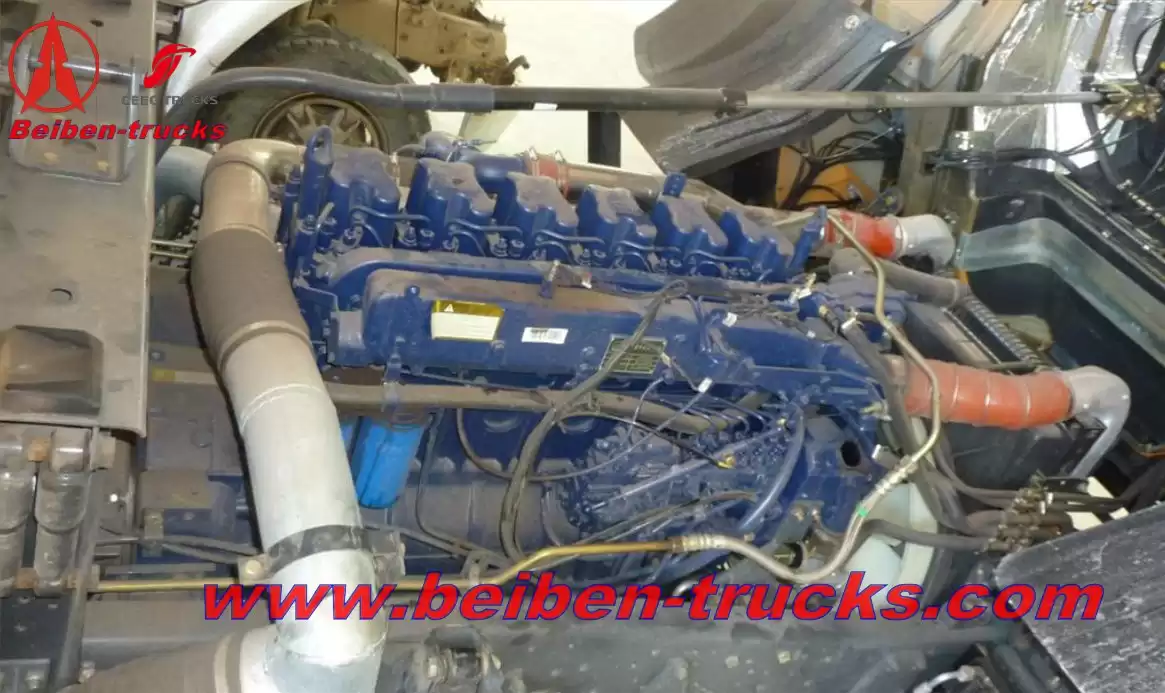

Engine
|
Model
|
WP10.380E32
|

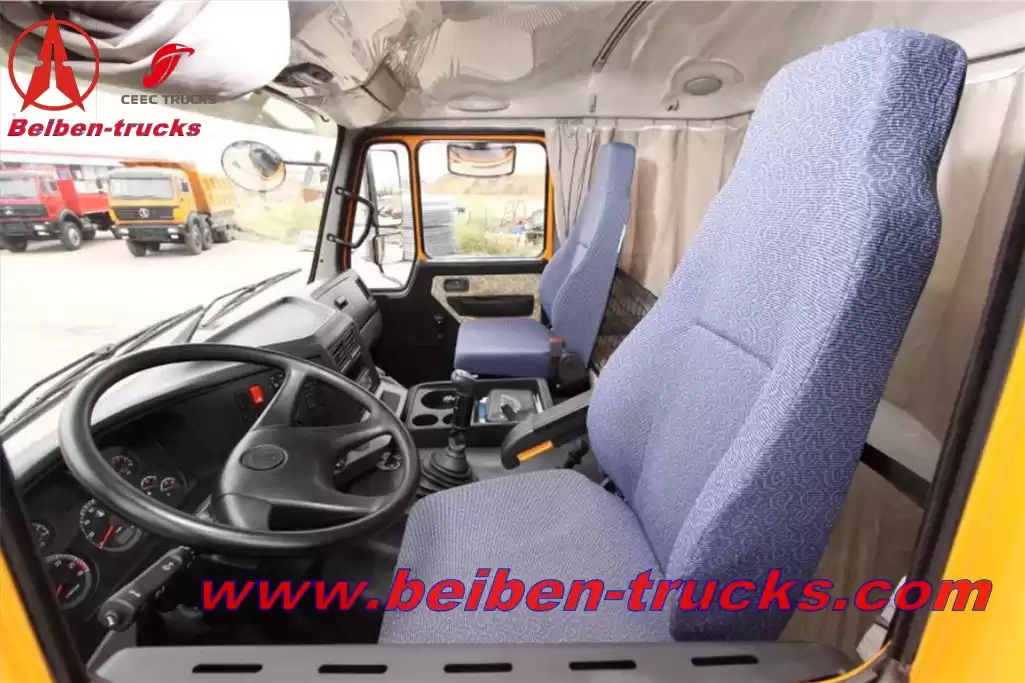

Cabin
|
NG80B/Long cab
|
Clutch（mm）
|
Φ430
|
Front Axle
|
7.5T
|
Rear/Mid Axle
|
Model/speed radio
|

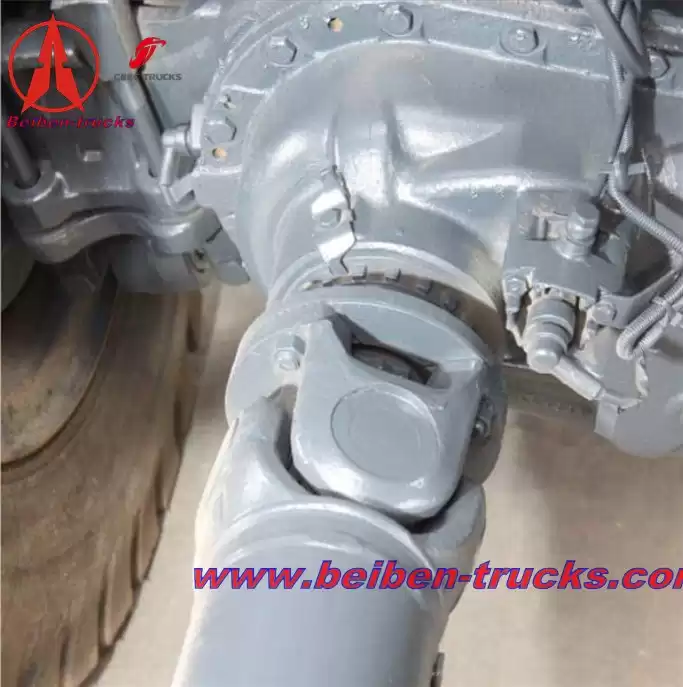

Double Reduction Driving Axle /5.263
|
Steering System
|
ZF8098
|
Braking System
|
Dual Circulation Air Brake System
|
Fuel Tank（L）
|
400L
|

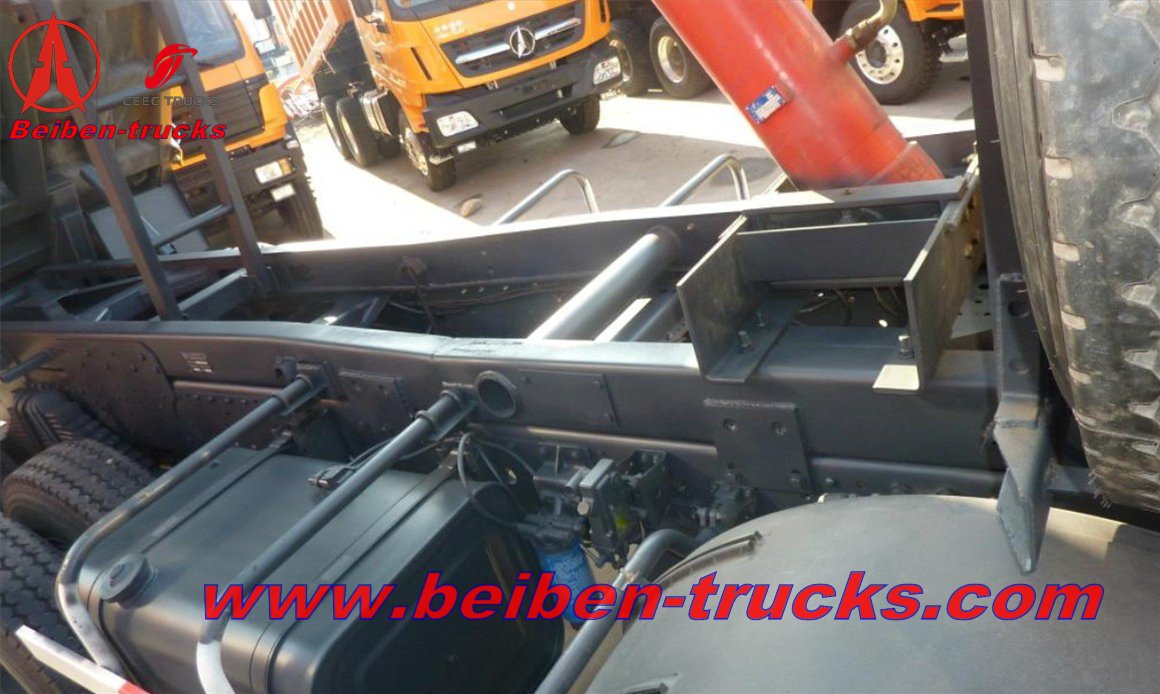

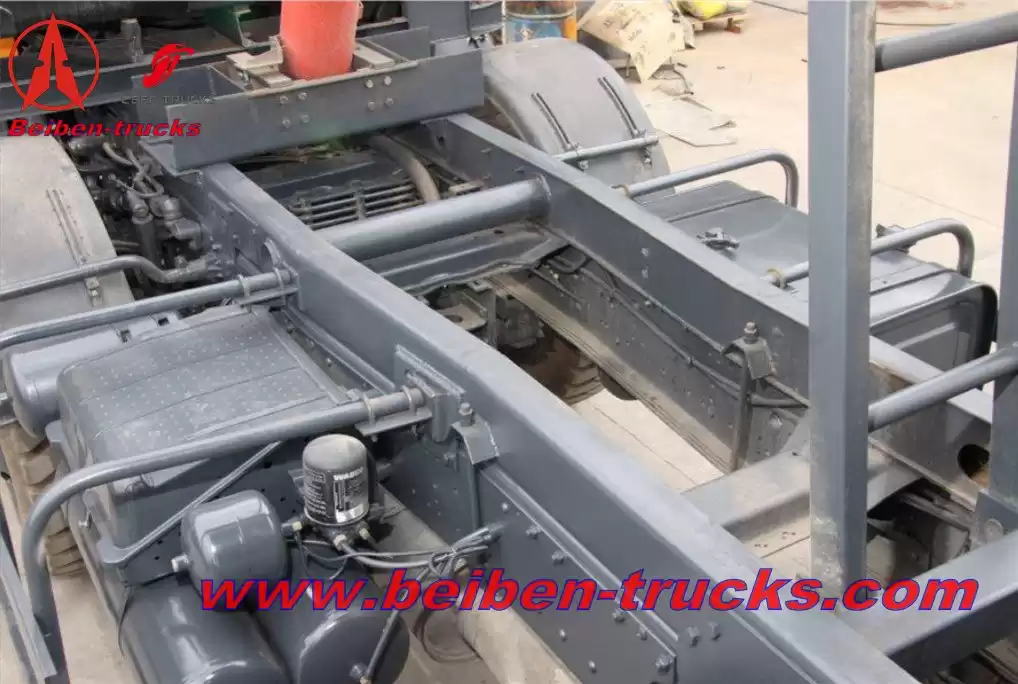

Frame/mm
|
317×70×8.5+7+8mm
|

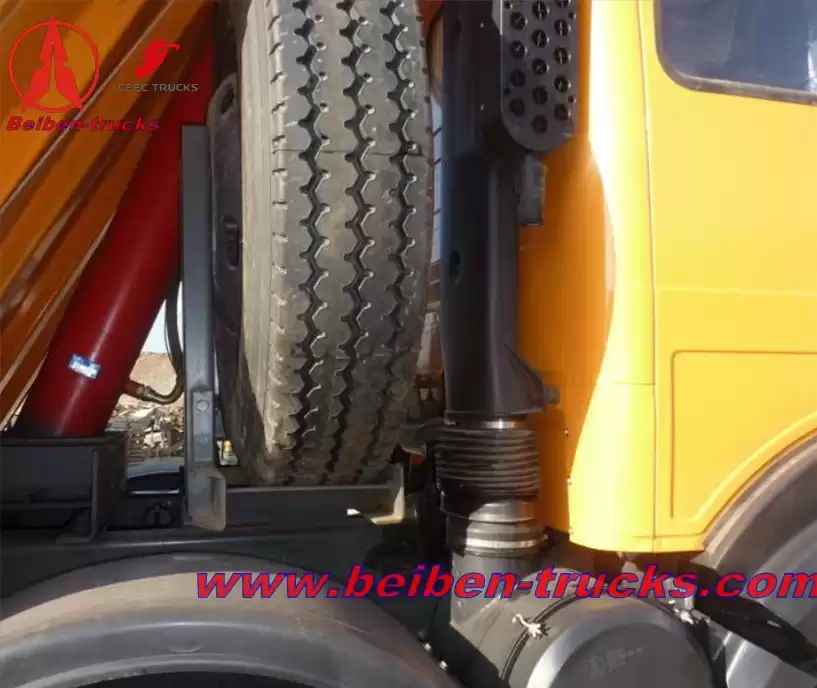

Tire
|
315/80R22.5
|
Front/Rear Overhang
|
1410/875
|
Transmission
|
Fuller 12JS160T
|
Curb Weight（kg)
|
14900
|
Up Body Volume(m³)
|
6.8mx2.3mx1.5m
|
Max Speed（km/h)
|
90
|
