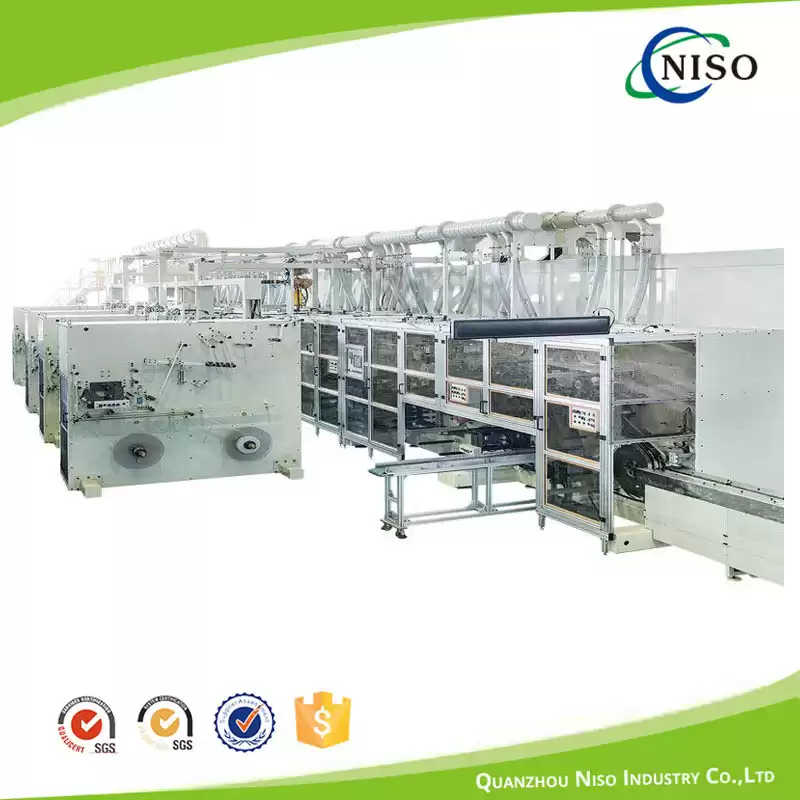

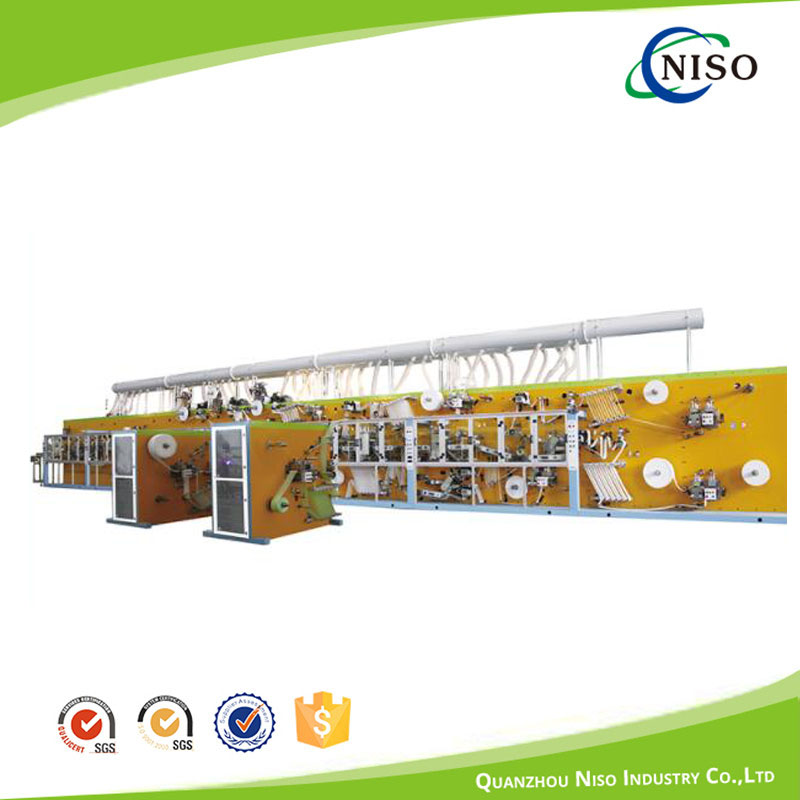

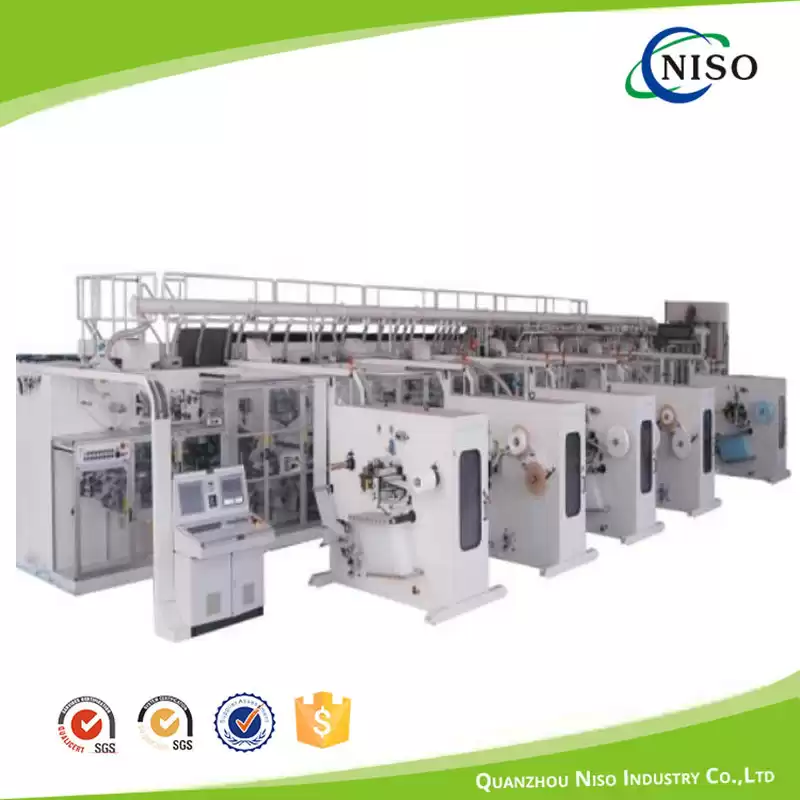

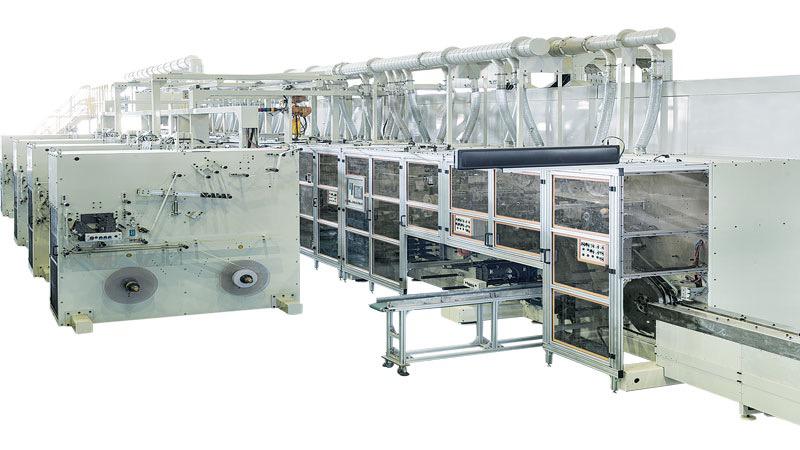

NS-HY800 Full Servo Type Sanitary Napkin Machine

NS-HY800 full servo type sanitary napkin machine is a full auto machine.It can do 4 sizes.



NS-HY800  Full Servo Type Sanitary Napkin Machine

sanitary napkin machine






Machine parameter


Model  NS-HY800
Name  Full servo  type
Design speed 800 pcs/min
Working speed 600 pcs/min
Qualified rate

98%(calculate based on 7.5 hours, the rate between qualified products and total

 production quantity, except substandard products caused by glue applicator error)

Production efficiency

90( calculate based on 7.5 hours, the rate between real production quantity and

 theory production quantity)

Capacity 180KW
Power Three phases four wires 380V±5%/50Hz  (ground wire)
Air pressure 0.6mpa, 1.8m3/min
Total weight About 30 tons
Machine size 25×5×3M (L×W×H)
Working space 25-30×7×5M  (L×W×H)
Machine color Customized

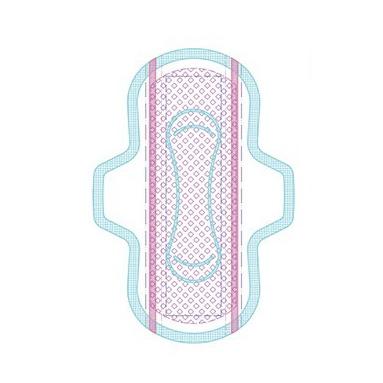

Product size Customized  ( 4 sizes)
Machine direction Customized
Container 40HQ
Finished product 2 sizes


Machine description


Machine total system

Pulp crusher system

SAP feeding system

Drum forming system

Lower tissue paper feeding system

SAP paper feeding system

Core wrapping system

Compacting roller system

ADL feeding & cut system

Perfume feeding system

Mat cutting system

Hydrophobic non woven feeding system

Hydrophilic non woven feeding system

Flow cannel embossing system

Side sealing system

PE film feeding system

Back release paper feedig & cutting system

Outer cutting system

Edge scrap collecting system

180 degree transfer system

Wing release paper feeding & cutting system

90 degree transfer system

Packing film feeding system

Product seal cutting system

Easy tape feeding & cutting unit

Out put rejection system



Main Spare parts


Low-voltage apparatus Schneider France
Sensors Banner USA
Web guider KSC China
FIFE USA
BST USA
Touch screen Banner USA
PLC control system Mitsubishi Japan
Siemens Germany
AB      USA
Cutter material D2 USA
M7 USA
T15 USA
Temperature control system Omron    Japan
HB China
Bearing HRB China
NSK Japan
SKF Sweden
Timing belt OPTIBELT Germany
Gates USA
Conveying belt HABSIT Swaziland
Nitta Japan
Pneumatic system SMC Japan
AIRTAC Taiwan



About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.

NISO covers an area of 5000 square meters, gets CE, ISO, SGS.

NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.

NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.

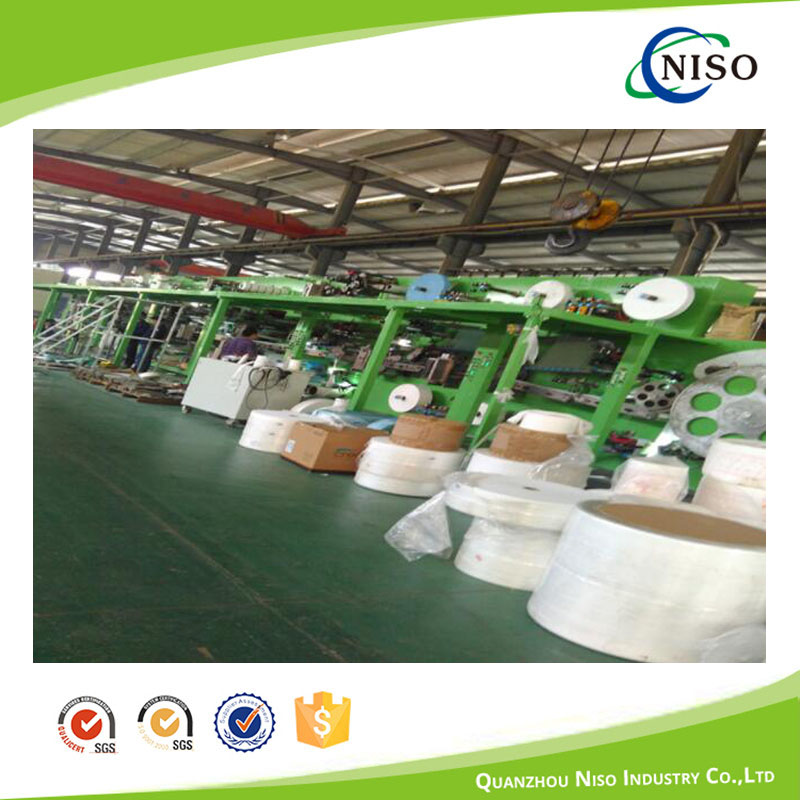

Factory processing map
