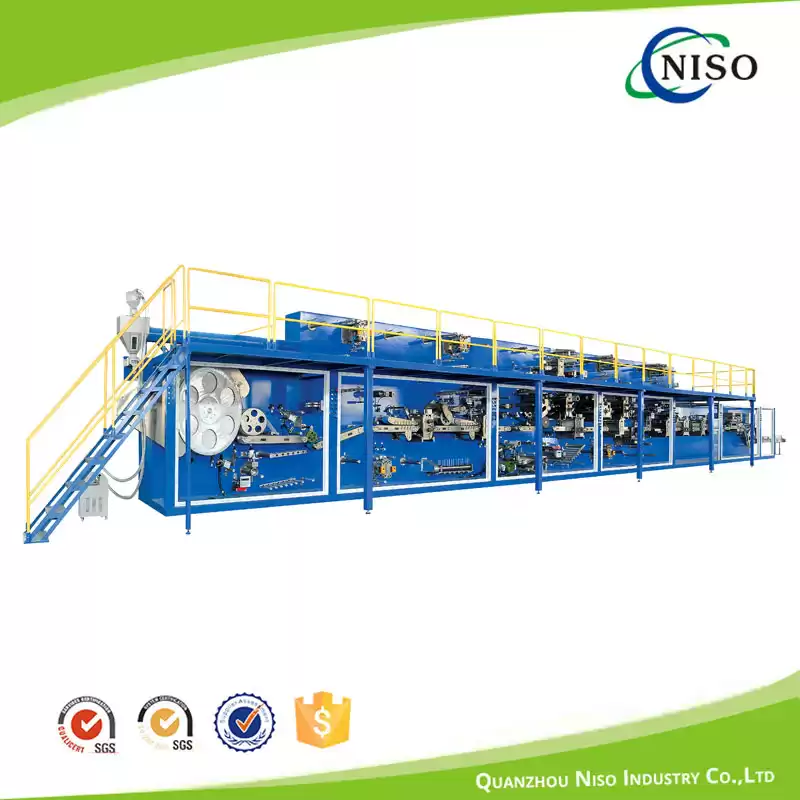

NS-INK450 Full Servo Type Baby Diaper Machine

NS-INK500  full servo type baby diaper machine is Professional production of baby diaper machines.It can do 4 sizes.



NS-INK450  Full Servo Type Baby Diaper Machine

baby diaper machine






Main functions and features


1. The motors can convert frequency automatically

2. It can produce four types of products (XL, L, M, S)

3. A few parts being easily changed

4. The machine total weight about 50 tons

5. Container 5×40HQ



Machine description


Machine details Qty
NS-INK500 Full servo baby diaper machine 1 set
Servo motor driving 1 set
High speed crusher 1 set
SAP feeding unit 1 set
Web guider 9 sets
Servo motor Mitsubishi 1 set
Waste raw materials collect unit 1 set

Raw materials with auto unwinding, auto splicing, auto tension control,

 auto detective and auto rejection

6 sets
Safety door 1 set
Simple push machine 2 sets
Simple sealing machine 2 sets
Glue applicators  (Chinese brand) 4 sets
Free spare parts (attachment list) 1 set



Machine parameter


Model  NS-INK450
Name   Full Servo Type Baby Diaper Machine
Design speed 600 pcs/min
Working speed 450-500 pcs/min
Qualified rate

98%(calculate based on 7.5 hours, the rate between qualified products and total

production quantity, except substandard products caused by glue applicator error)

Production efficiency

90( calculate based on 7.5 hours, the rate between real production quantity

 and theory production quantity)

Capacity 220KW
Power Three phases four wires 380V±5%/50Hz  (ground wire)
Air pressure 0.6mpa, 1.8m3/min
Total weight About 50 tons
Machine size 30×5×3M (L×W×H)
Working space 30-40×7×5M  (L×W×H)
Machine color Customized
Product size Customized  ( 4 sizes)
Machine direction Customized
Container 40HQ



About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.

NISO covers an area of 5000 square meters, gets CE, ISO, SGS.

NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.

NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.


Factory processing map



Packing and packaging diagram

Our customers

After-sales service
