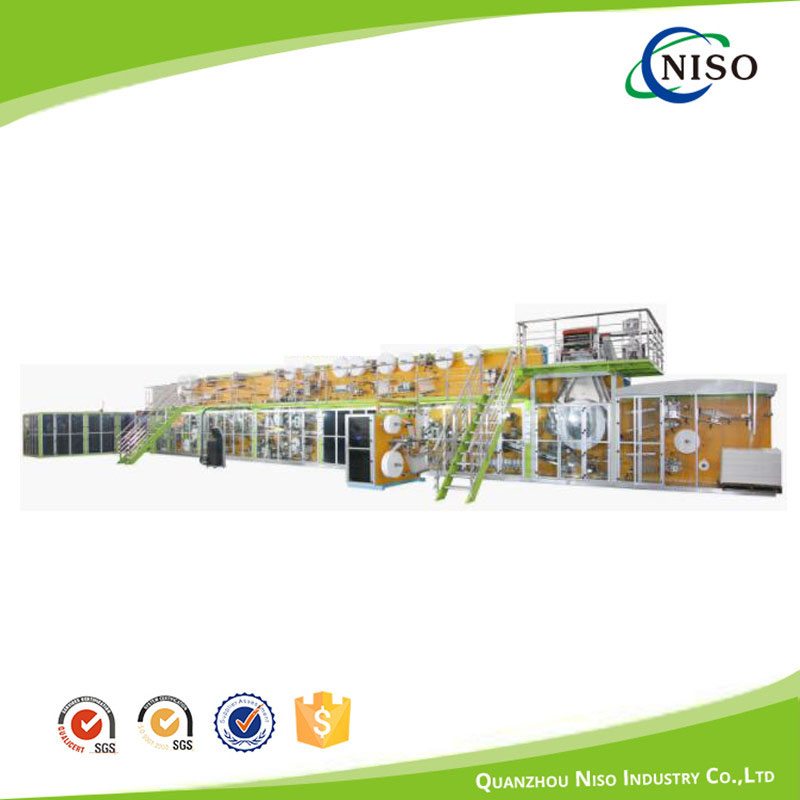

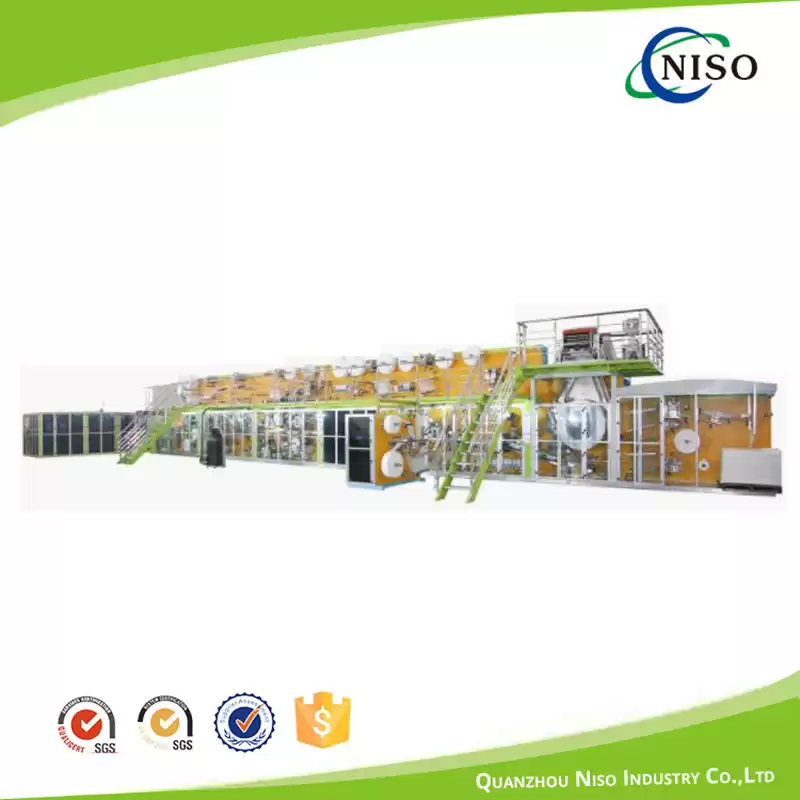

NS-INK450 Semi Servo Type Baby Diaper Machine

The semi servo baby diaper machine is economic type machine, can make 4 sizes diapers




NS-INK450  Semi Servo Type Baby Diaper Machine

Semi Servo Baby Diaper Machine





Main functions and features


1. The machine is economic type machine, can make 4 sizes diapers

2. Machine direction customized

3. The machine total weight about 50 tons

4. Working space about 30-40×7×5M  (L×W×H)

5. Container 5×40HQ



Machine description


High speed crusher: 1 set

SAP feeding unit: 1 set

Web guider: 9 sets

Servo and Inverter motor Mitsubishi: 1 set

Waste raw materials collect unit: 1 set

Raw materials with auto unwinding, auto splicing,auto tension control, auto detective and auto rejection:6 sets

Safety door: 1 set

Simple push machine :2 sets

Simple sealing machine: 2 sets

Glue applicators  (Chinese brand): 4 sets

Free spare parts (attachment list) :1 set



Machine parameter


Model NS-INK450

Name Semi Servo Type Baby Diaper Machine

Design speed 550 pcs/min

Working speed 450 pcs/min

Qualified rate 98(calculate based on 7.5 hours, the rate between qualified products and total

                           production quantity,except substandard products caused by glue applicator error)

Production efficiency ≥90( calculate based on 7.5 hours, the rate between real production quantity and

                                          theory production quantity)

Capacity 200KW

Power Three phases four wires 380V±5%/50Hz  (ground wire)

Air pressure ≥0.6mpa, 1.8m3/min

Total weight About 50 tons

Machine size 30×5×3M (L×W×H)

Working space 30-40×7×5M  (L×W×H)

Machine color Customized

Product size Customized  ( 4 sizes)

Machine direction Customized

Container 5×40HQ



About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.


Factory processing map



Packing and packaging diagram

Our customers

After-sales service
