A Complete Guide To Quicklock Scaffolding
What Is Quicklock Scaffolding?

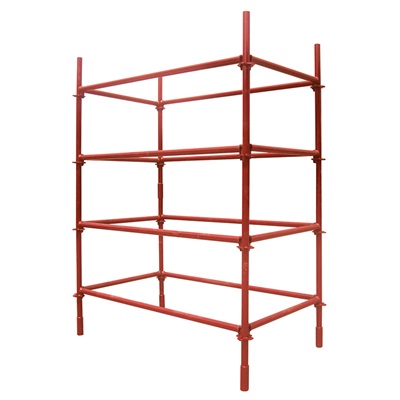

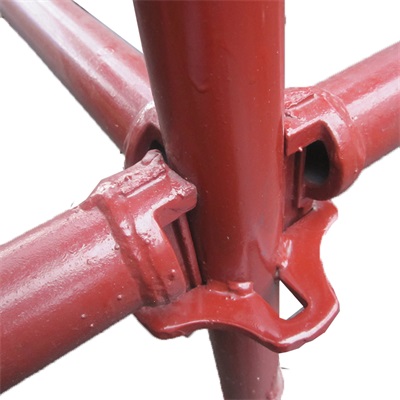

Quicklock scaffolding is a modular and innovative scaffolding system that is engineered for easy assembly and disassembly, with a simple and effective locking system ensuring that all the components are easily connected and separated. This construction scaffolding system is characterized by fast construction, which improves work efficiency, while at the same time avoiding the labor intensity and duration when assembling and disassembling the door.

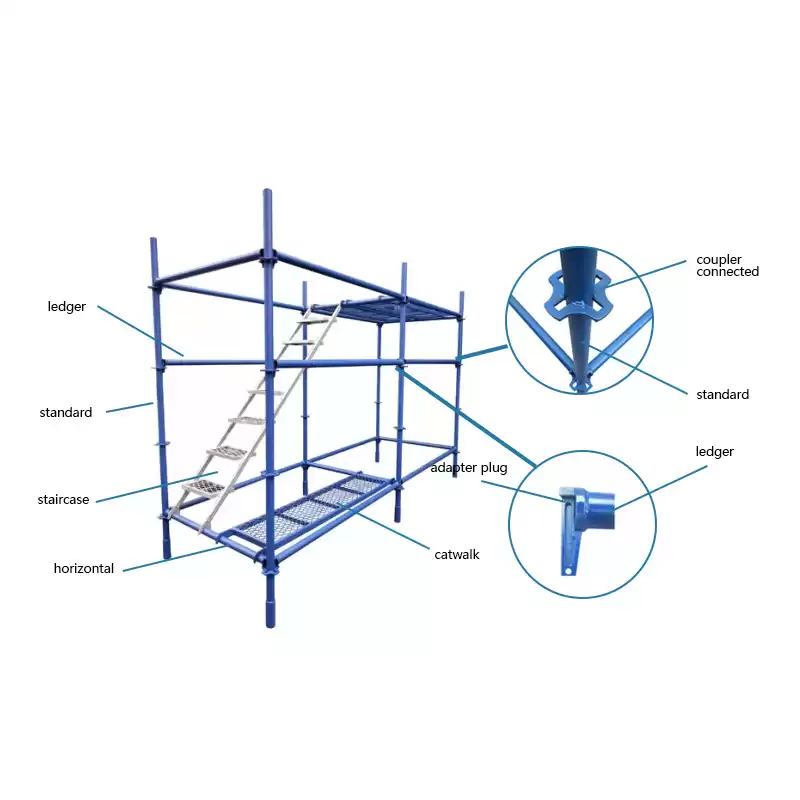

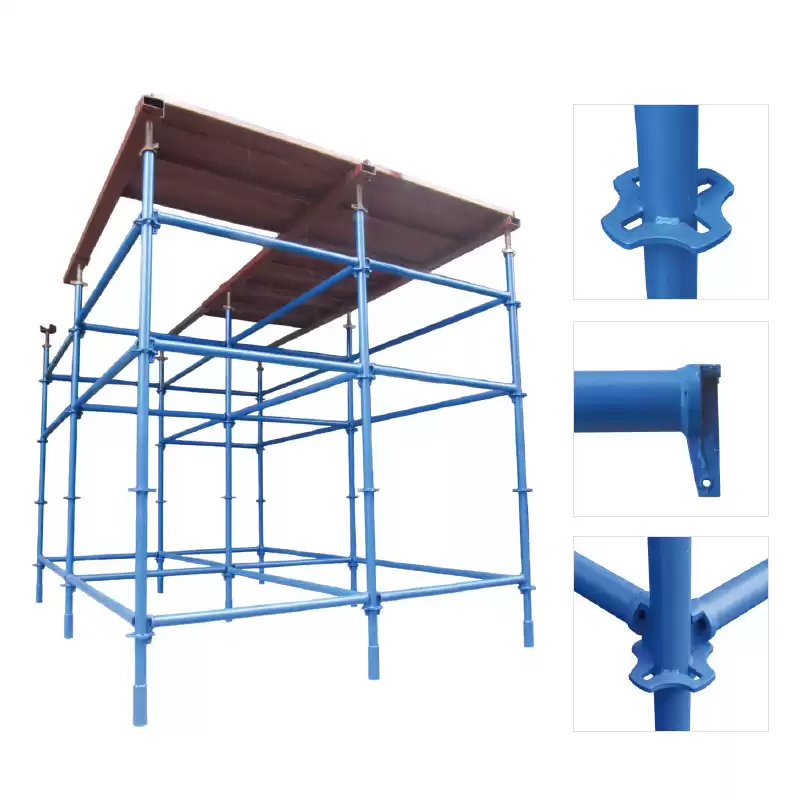

Composition Of Quicklock Scaffolding

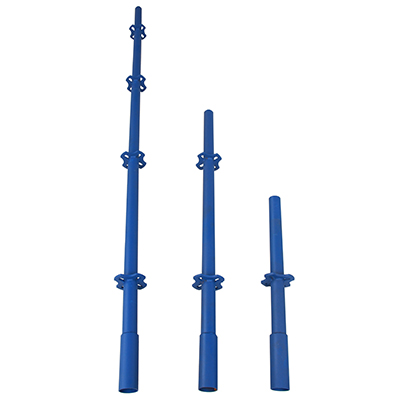

Standard: vertical support to form the main skeleton of the scaffold

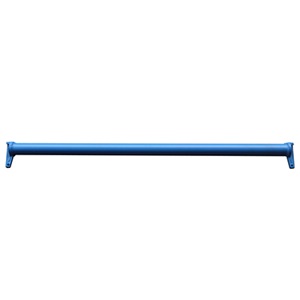

Ledger: horizontal strip that connects the vertical support, adding stability to the entire construction
Diagonal pole: cross support piece, adding side support to the scaffold
Fasteners: a type of connecting hardware widely used in construction scaffolding to fix the vertical and horizontal bars

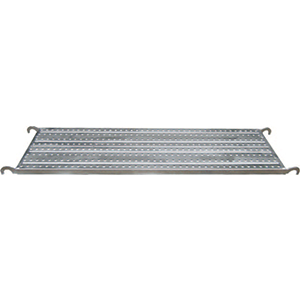

Working platform: Can be understood as a stage for construction workers to stand on
Safety accessories: Including safety net, handrail, etc. to ensure the safety of construction workers

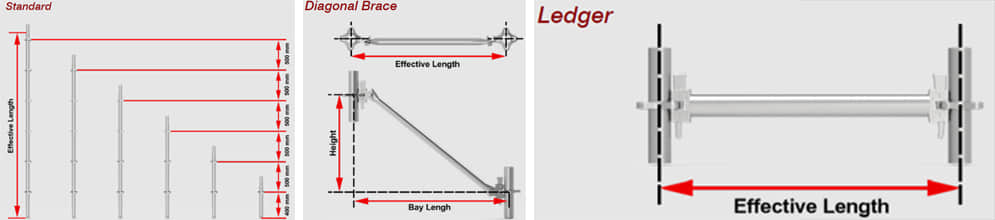

Standard Size Of Quicklock Scaffolding

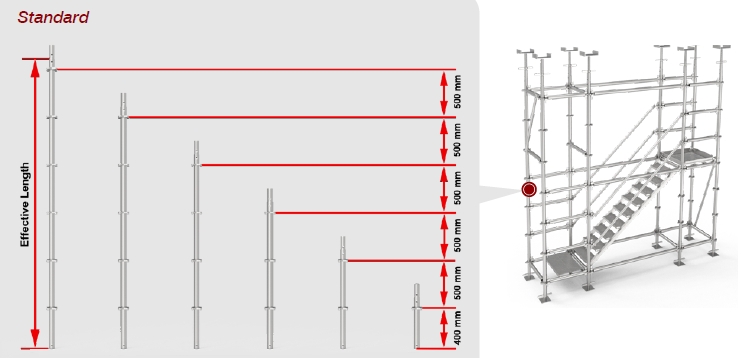

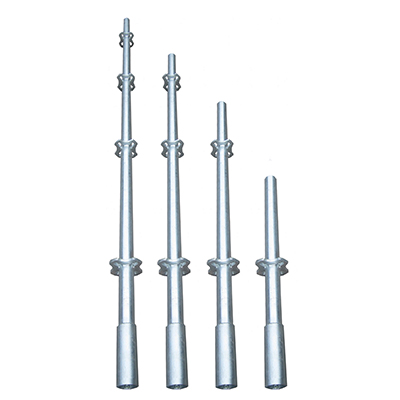

Standard:
2500*2.75/3.0/3.25*48mm
1900*2.75/3.0/3.25*48mm
1300*2.75/3.0/3.25*48mm
700*2.75/3.0/3.25*48mm

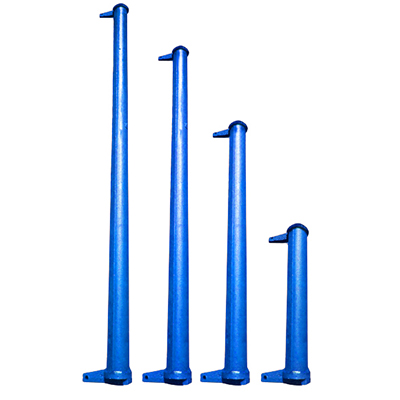

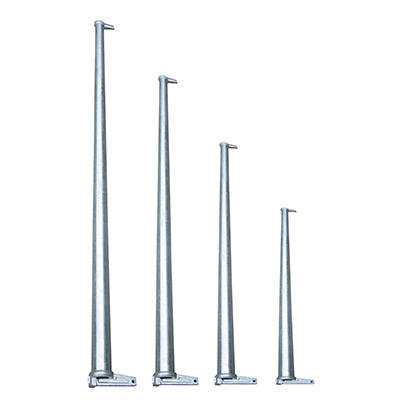

Ledger:
1770*2.75/3.0/3.25*48mm
1150*2.75/3.0/3.25*48mm
850*2.75/3.0/3.25*48mm
550*2.75/3.0/3.25*48mm
Diagonal Brace:
2.0m
2.5 m
3.0m
The Installation Steps Of The Quicklock Scaffold
Step 1: Installing the basics
You place the base plates on the ground and then install and adjust the adjusting feet to the correct height so that our scaffolding can be kept level.
Step 2: Installing the standard
It only needs a little labor force to be able to install the standard part to the appropriate position with the vertical adjustment foot. In addition, the verticality of the column verifies according to the level gauge.
Step 3: Installing the horizontal and diagonal Bearing bar
We can fix the cross bar to the locking device of the vertical pole, then set the diagonal bearing bar so that it can provide the lateral support of the structure to make our entire frame still stable.
Step 4: Installing the platform
Place the platform on the crossbar, and then use the locking devices again to lock the platform to the crossbar and the pole to no longer allow the scaffold to sway.
Step 5: Inspect and reinforce
Finally, we need to inspect and reinforce all the connection points and locking devices in the final scaffold.
Disassembly Steps Of Quicklock Scaffolding
Step 1. Preparation for disassembly
All tools and articles on the platform shall be removed and safety protection equipment shall be worn to ensure the safety of personnel when dismantling.
Step 2. Platform dismantling
One by one to release the lock clip of the platform, and the platform should be carefully removed to avoid collision with the other parts.
Step 3. Removal of horizontal and diagonal braces
One by one, the lock clip of the horizontal brace is released, then the screw jack or adjustable support is taken to ensure the horizontal support is not inclined. Carefully remove the oblique brace in order, and be careful to avoid impact with the body.
Step 4. Remove the standard
Loosen the connection between the column and the adjusting foot and remove the column from the adjusting foot to avoid collision and falling.
Step 5. Disassembly of the foundation
The foundation plate and leveling foot should be removed, and the ground construction should be handled to ensure that there is no residue.

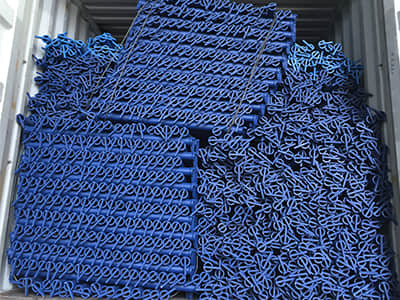

How To Store Quicklock Scaffolding
1. Cleaning and Inspection
After the use, remove the dirt, dust, and oil and other foreign matter on the quicklock scaffolding, check each of the components is severely damaged, if damaged should not be used or should be replaced in time.
2. Separate and organize parts
Separate and organize the sections of the scaffolding, and mark each with its own separate parts for easy identification. This makes finding parts easier and reduces assembly time.
3. Choose the right storage location
It needs good storage, with a good dry place, away from the humidity. And do not direct sunlight. It is important to store these parts in a flat place so that the scaffolding does not fall and is damaged.
4. Storage method
Vertical Storage: The frames or other long components of the quicklock scaffolding can be stored vertically to save space.
The order of stacking: Place the heavier parts at the bottom of the stack and the lighter parts at the top so that the parts can be pressed and the metal parts are likely to be avoided.
Stacking height restrictions: Do not exceed the specified stacking height. When the stack is heavier, the weight of the stack is easy to fall.
5. Safety
Locking devices: A locking device is needed to prevent unauthorized use of the quicklock scaffolding when stored in a safe place.
Safety sign: A safety sign also needs to be placed in the storage area warning about the danger during storage of the quicklock scaffolding.
Why Choose AJ Building As Your Scaffolding Supplier
Our factory has more than 25 years of construction engineering experience, we can provide customers with the best products and services, based on its accumulated long-term experience, combined with the latest technology from the composite, designed to best meet the needs of the user.
Here are some of the advantages of our factory:
1. Ten thousand projects, rich experience and brilliant achievements: In the past 25 years, there have been tens of thousands of engineering projects, and this experience will benefit you all the time. We have always adhered to the policy of "quality and customer first".
2. By technological means, we can visually show you what your project looks like: We use 3D design technology to present your project before construction. Visualization eliminates the possibility of error in the product, so you can always have one in your mind.
3. Customized: All projects are unique. We can quickly provide customized solutions for quick lock scaffolding according to specific needs on request and provide expert guidance.
4. One-stop purchasing service: We are well aware that for customers who purchase many products, finding different suppliers is very time-consuming and energy-consuming. To meet customer needs, we can provide you with one-stop procurement services.
FAQ
Q：What is Quicklock Scaffolding?
A：Quicklock Scaffolding is a versatile and efficient scaffolding system used in construction and maintenance projects. It is known for its rapid assembly and disassembly.
Q：Is Quicklock Scaffolding safe to use?
A：Yes, when properly assembled and used according to safety guidelines and regulations, Quicklock Scaffolding is safe. It provides a stable and secure platform for workers and materials at different heights.
Q：Can Quicklock Scaffolding be used for both small and large-scale projects?
A：Yes, Quicklock Scaffolding is suitable for a wide range of projects, from small residential renovations to large industrial constructions.
