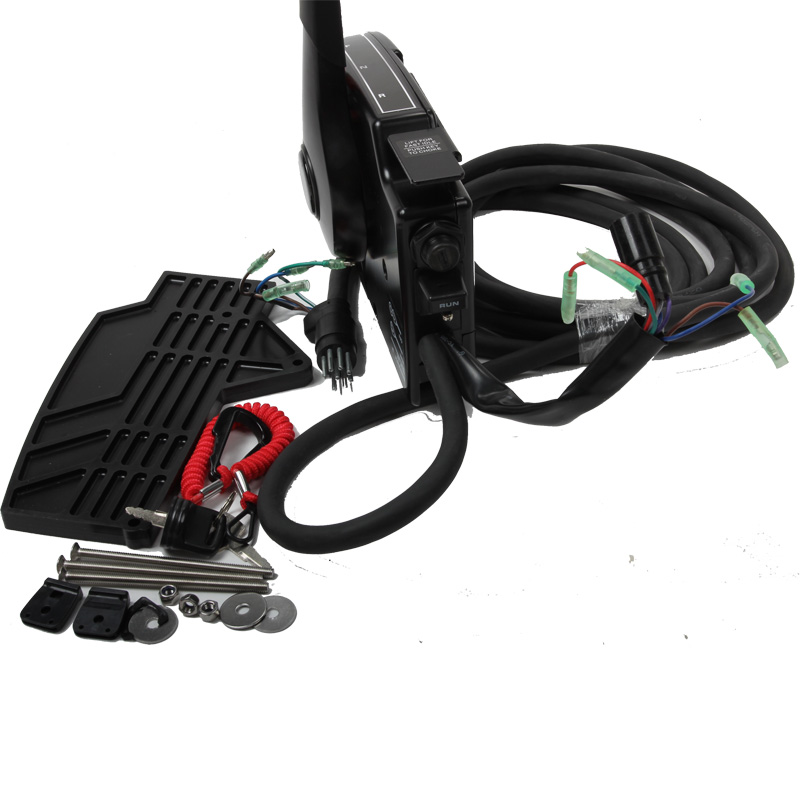

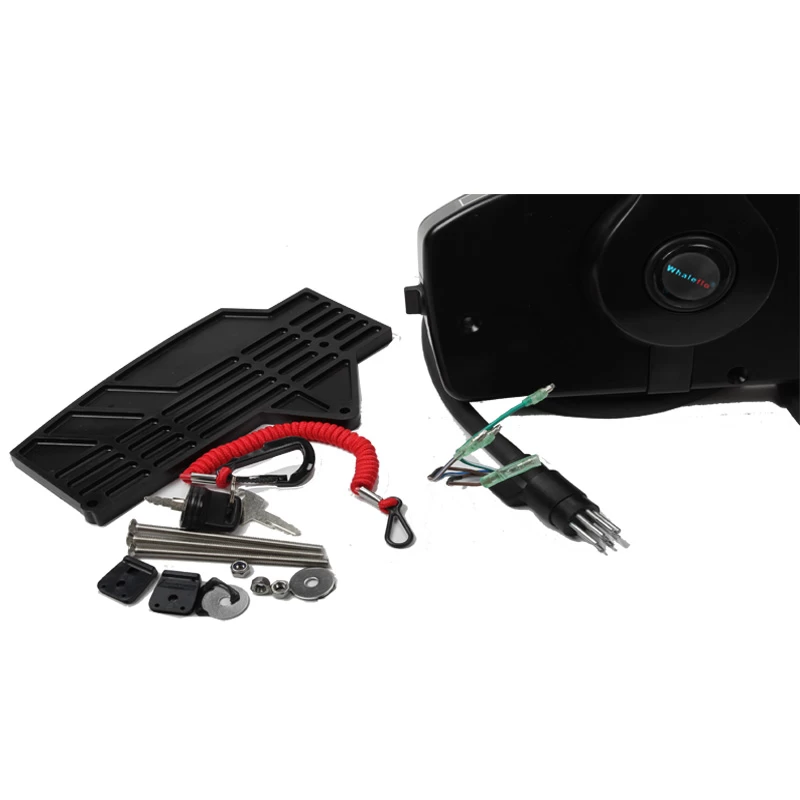

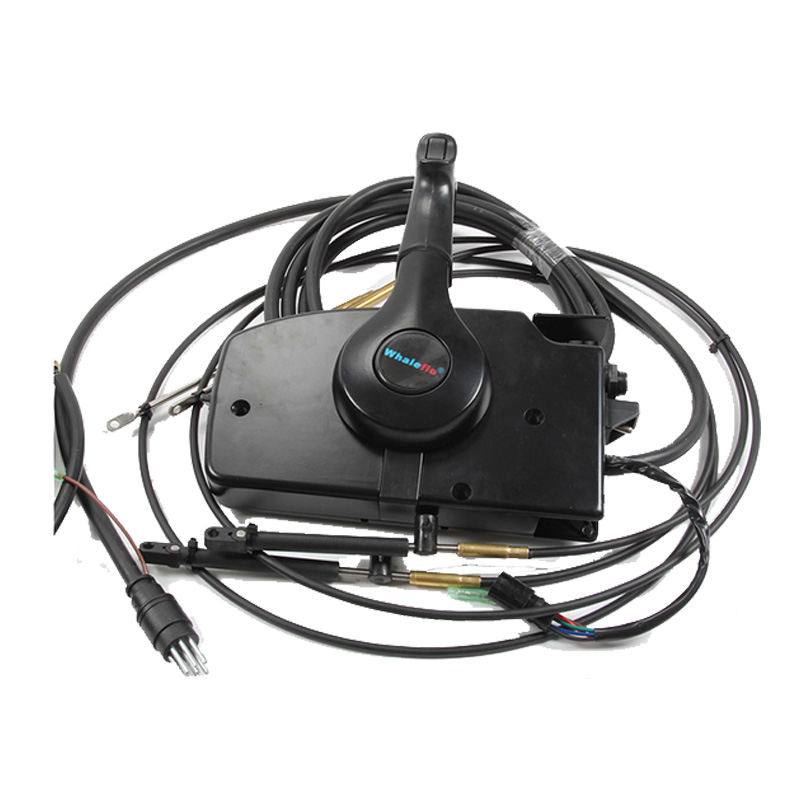

OEM Mercury Engine Side Mount Control Box replacing 881170 series
OEM Mercury side remote control box
Products Details:
OEM 881170 series
Detents for forwarder/neutral/reverse
Dual action ( Throttle ans shift)
Safety switch for emergency stop
Item Description:
Side Mount control boxes can be tailored according to your needs
A fast idle lever for easy warm-ups
A Key-type ignitiion swith
An emergency stop switch
Mercury/ Mariner outboards( with integral power trim)1993 & Newer Force outbards 40Hp utilizing
MY2005 & Newer8/9.9/15/20 4-stroke outboards need Adaptoer harness 84-892473A01
Technical data
|
Model
|
Standard wire
|
Description
|
|
881170A15
|
15Ft
|
Side Mount Remote Control 8 Pins
|
|
881170A20
|
20Ft
|
|
881170A3
|
15Ft
|
Quicksilver side mount contorl box 8-pin
|
|
881170A12
|
15Ft
|
Side Mount Remote Control NEW
|
|
881170A7
|
15Ft
|
Side Surface Mount Remote Control 7-pin ACT
|
|
16907A15
|
15Ft
|
Side Surface Mount Remote Control 7-pin SS
|
|
881170A10
|
15Ft
|
10-Pin pull to open with power trim &tilt
|
|
|
|
|
881170A11
|
15Ft
|
10-Pin pull to open with power trim &tilt
|
|
|
|
|
881170A12
|
15Ft
|
10-Pin pull to open without power trim &tilt
|
|
|
|
|
881170A5
|
15Ft
|
8-Pin push to open
|
|
881170A20
|
20Ft
|
8-Pin push to open
|
|
881170A20
|
25Ft
|
8-Pin push to open
|
|
881170A8
|
Non
|
Side Mount Control pull to open
|
|
88117A13-New
|
15Ft
|
14-pin Side mount remote control with PPT
|
|
88117A14-New
|
20Ft
|
14-pin Side mount remote control with PPT
|
|
88117A16-New
|
15Ft
|
14-pin Side mount remote control Non PPT
|
|
Model
|
Fits
|
Description
|
|
8M0059686
|
All Current Mercury/Mariner Outboards( with intergrated trim) & 1993 and newer Force outboards 40hp & higher Utilizing
|
Single Binnacle Control Box Kit
|
|
883711A12
|
Single Binnacle Control Box Kit
|
|
8M0041431
|
Single Binnacle Control Box Kit
|
Mercury Precision control

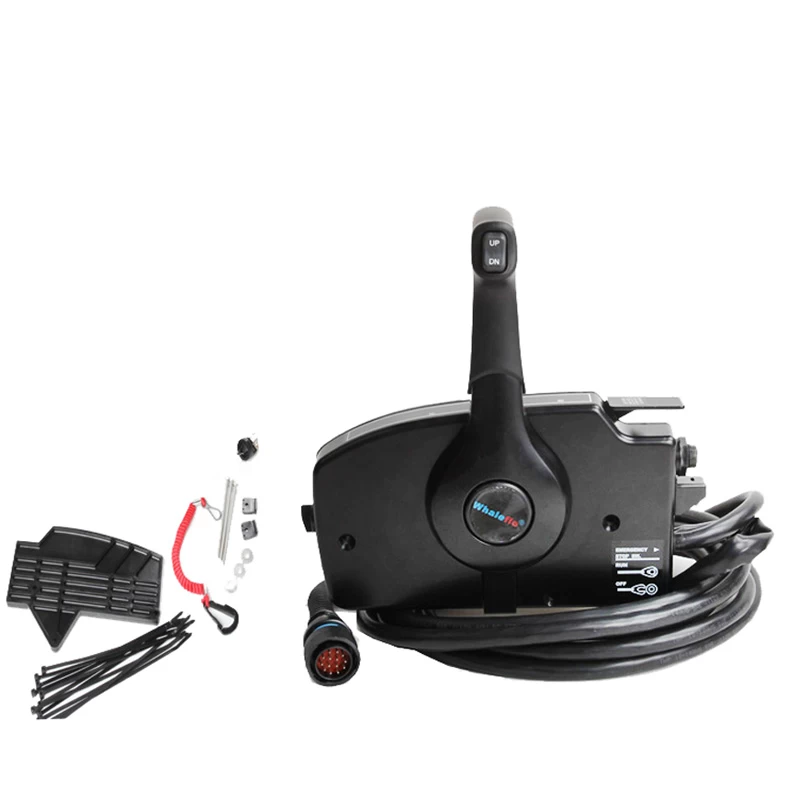

Side Mount C ontrol Boxes can be tailored toyour needs.Standard features include a fastidle lever for easy warm-ups,a key-type igni-tion switch,and an emergency stop switch.Main wiring harness extension can chooselength your needs,Brand new,Built in warninghorn,14 pin connector use with 2006-2014Mercury Optimax and 4-Stroke Outboard En-gines.
*Main Wiring Harness can choose any length your needs ,ordered separately,see below
881170A13 Side Mount Remote Control 14Pin,With PPT 15Ft
8811 70A16 Side Surface Mount Remote 14Pin,No PPT 15Ft
881170A14 Side Mount Remote Control 14Pin,With PPT 20Ft
Side Mount ControlControl Box
Side Mount Control Boxes can be tailored to yourneeds, .Standard features include a fast idle lever foreasy warm-ups,a key-type ignition switch,and anemergency stop switch.
Mercury/Mariner outboards(with integral power trim)and 1993 and newer Force outboards 40hp andhigher utilizing Mercury style cables(with powertrim).When used with MY2005 and newer
8/9.9/15/20 FourStroke outboards an adapter har-ness 84-892473A01 is required. Remote ControlCables need Gen I style to connect to control box.
Main Wiring Harness can choose any length your needs ,ordered separately,see below
881170A15 Side Mount Remote Control 8Pins 15FT
881170A20 Side Mount Remote Control 8Pins 20FT
