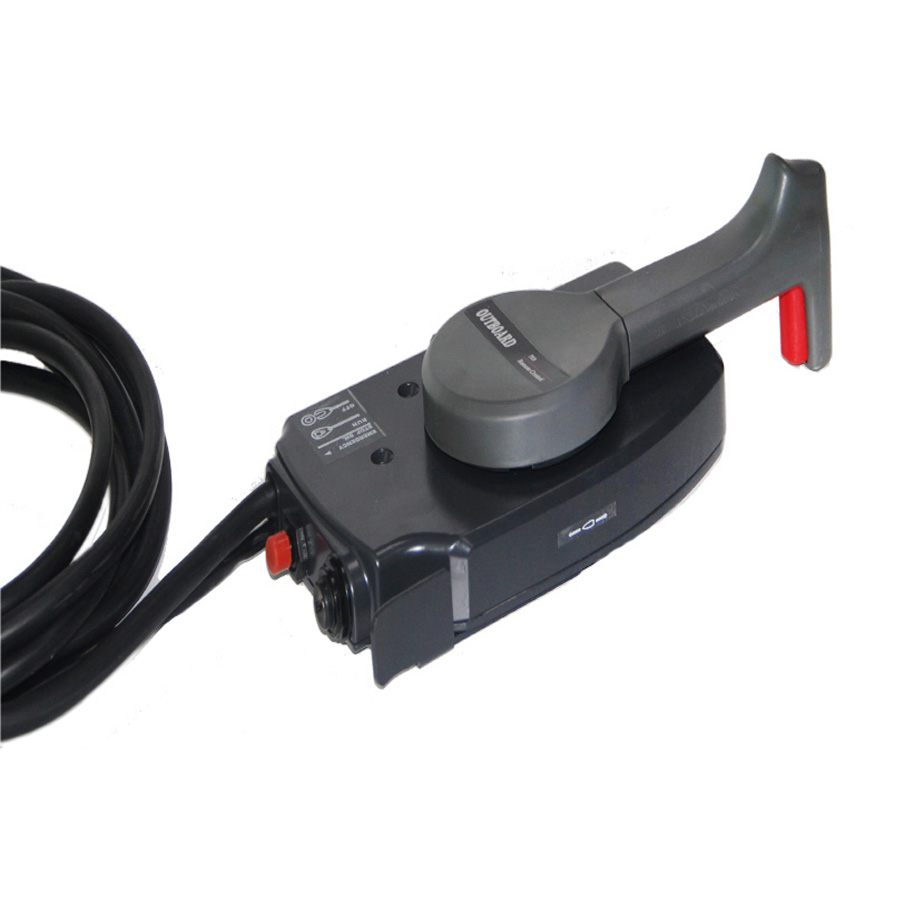

Outboard Engine 703 Yamaha Remote control box 703-48230 7pin push pull
OEM Yamaha 703 remote control box
EM YAMAHA REMOTE CONTROL BOX 703-4823 series
Item Description:
-Power trim/tilt switch
-Lockable neutral position
-Safety lanyard
-Easy to use fast idle lever for quick warm-up
-Key switch for security
-Forward/reverse lever
-Oil and overheat warning (selected models)
-Two keys,safety lanyard and mounting fittings are all included
-Push to open throttle action
-7 Pin wire harness (16.4ft)
|
Model
|
Standard wiring:
|
Description
|
|
|
|
Engine Suit
|
|
703-48205-16-P
|
16Ft
|
10 Pins push to open
|
All electric start 30-200hp 4 stroke, 40hp and above 2 strokes.
|
|
703-48272-12-00
|
16Ft
|
10 Pins pull to open
|
|
688-8258A-10-00
|
6.5-10Ft
|
Main Wiring harness extension mbly:
|
|
|
703-48230-14-P
|
16Ft
|
7 Pins push to open
|
All electric start 30-200hp 4 stroke, 40hp and above 2 strokes.
|
|
703-48230-12-00
|
16Ft
|
7 Pins pull to open
|
|
703-48207-21
|
16Ft
|
10 Pins push to open new style
|
All electric start 30-200hp 4 stroke, 40hp and above 2 strokes.
|
|
703-48207-11
|
16Ft
|
10 Pins pull to open new style
|
|
703-48230-14-20
|
No
|
Push to open
|
|
|
703-48230-12-20
|
No
|
Pull to open
|
Replace
This 7 pin remote control box replaces Yamaha 703-48230-14-00 703-48203-15 703-48203-17 703-48203-15
Application
This 7 pin remote control box fits these Honda outboard motors:
2001 25MSHZ3 REMOTE CONTROL ASSY 1
2001 25MSHZ3 REMOTE CONTROL BOX
2001 30ELHZ REMOTE CONTROL ASSY 1
2001 30ELHZ REMOTE CONTROL BOX
2001 30ELRZ REMOTE CONTROL ASSY 1
2001 30ELRZ REMOTE CONTROL BOX
2001 30MLHZ REMOTE CONTROL ASSY 1
2001 30MLHZ REMOTE CONTROL BOX
2001 30MSHZ REMOTE CONTROL ASSY 1
2001 30MSHZ REMOTE CONTROL BOX
