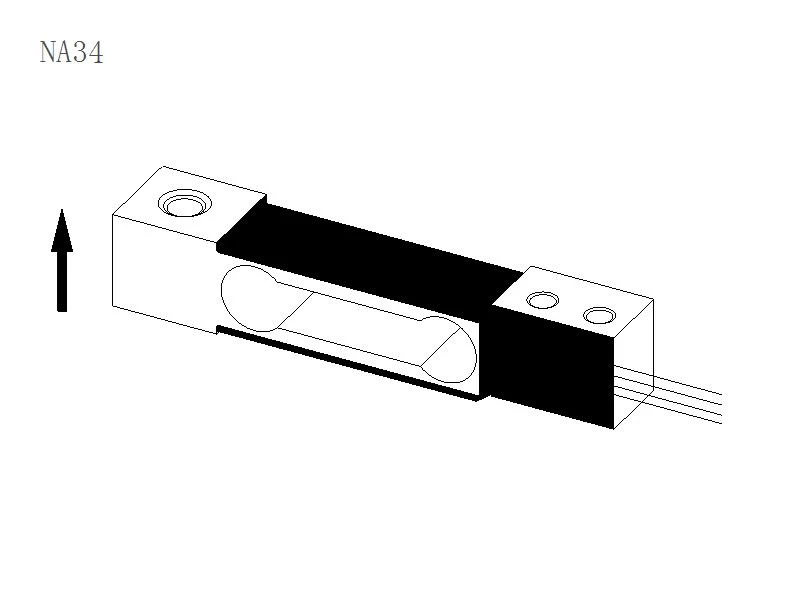

Portable scale Load Cell NA34
The NA34 is a low capacity load cell and can be used individually in kitchen scales and portable scales. The moment insensitive design allows for simple installations.
Key Features：
Low
profile and capacity
Aluminum
construction
Capacity: 1, 5kg
Accuracy:0.03%R.O.
Usage & Applications：
Kitchen
scales
Portable
scales
Balance
Jewelry
scales
Electronic
scales

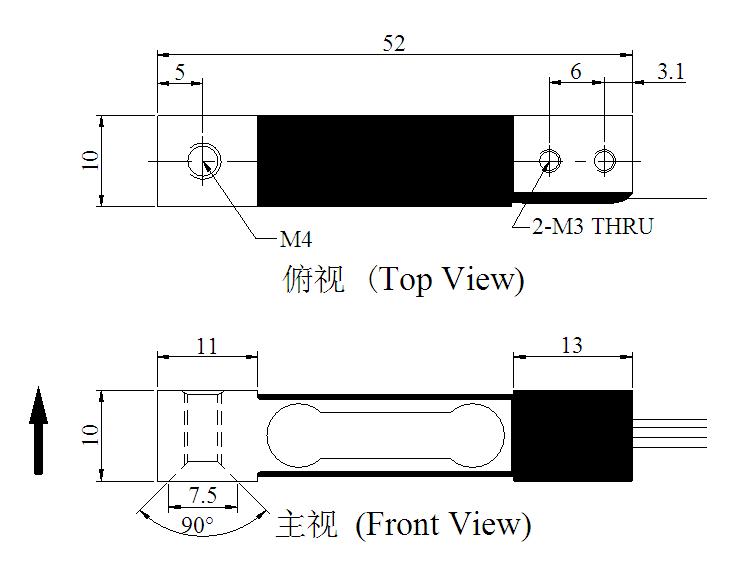

Dimension：
NA34 Specification：
|
Rated Capacities
|
1 , 5（kg）
|
|
Rated Output
|
(0.85~1.15)mV/V
|
|
Zero Balance
|
±0.0500 mV/V
|
|
Non-linearity
|
0.03 %R.O.
|
|
Hysteresis
|
0.03 %R.O.
|
|
Repeatability
|
0.03 %R.O.
|
|
30mins Creep
|
0.03 %R.O.
|
|
30mins Return
|
0.03 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.01 %R.O./℃
|
|
Temperature Effect On Zero
|
0.05 %R.O./℃
|
|
Input Impedance
|
1115±10%Ω
|
|
Output Impedance
|
1000±10% Ω
|
|
Insulation Impedance
|
≥2000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP65
|
|
Cable
|
φ0.8×0.08m
|
|
Recommended Platform Size
|
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
