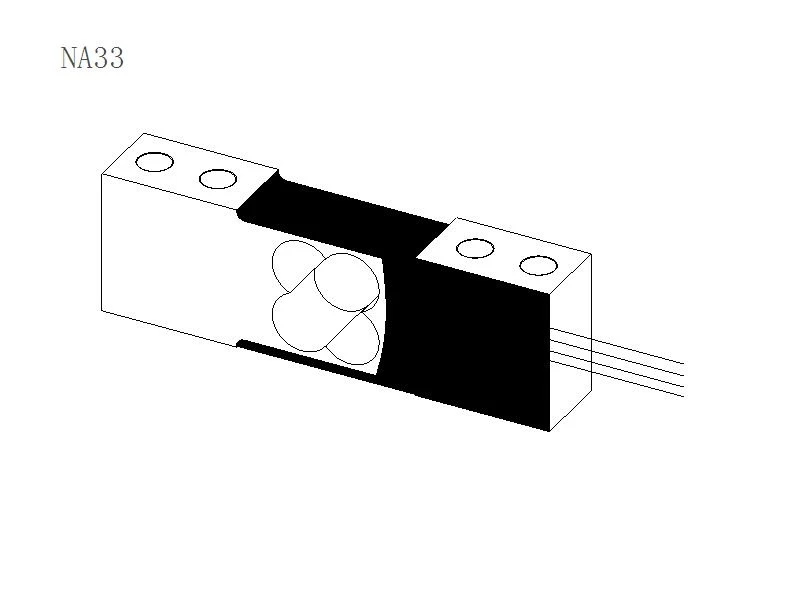

Postage scale Load Cell NA33
The NA33 is a low profile load cell and can be used individually in postage scales. The moment insensitive design allows for simple installations.
Key Features：
Low
profile and capacity
Aluminum
construction
Capacity: 6-80kg
Accuracy:0.02%R.O.
Usage & Applications：
Kitchen
scales
Portable
scales
Electronic
scales

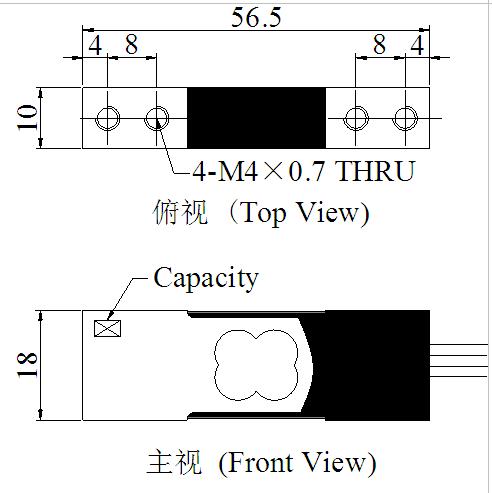

Dimension：
NA33 Specification：
|
Rated Capacities
|
6，15，20，30，40，60，80（kg）
|
|
Rated Output
|
1.5 mV/V±10%
|
|
Zero Balance
|
±0.0200 mV/V
|
|
Non-linearity
|
0.02 %R.O.
|
|
Hysteresis
|
0.02 %R.O.
|
|
Repeatability
|
0.02 %R.O.
|
|
30mins Creep
|
0.02 %R.O.
|
|
30mins Return
|
0.02 %R.O.
|
|
Safe Overload
|
150 %R.O.
|
|
Ultimate Overload
|
200 %R.O.
|
|
Temperature Effect On Output
|
0.01 %R.O./℃
|
|
Temperature Effect On Zero
|
0.05 %R.O./℃
|
|
Input Impedance
|
1115±10%Ω
|
|
Output Impedance
|
1000±10% Ω
|
|
Insulation Impedance
|
≥2000 MΩ/(50VDC)
|
|
Recommended Excitation
|
5~12 VDC
|
|
Maximum Excitation
|
15 VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Aluminum Alloy
|
|
Protection Class
|
IP65
|
|
Cable
|
φ0.8×0.6m
|
|
Recommended Platform Size
|
300×300 mm（4PCS/Set）
|
|
Mode of Connection
|
Red（EXC+）,Black（EXC-）,
Green（SIG+）,White（SIG-）
|
