Off-center Single point load cell high profile sensor NA164

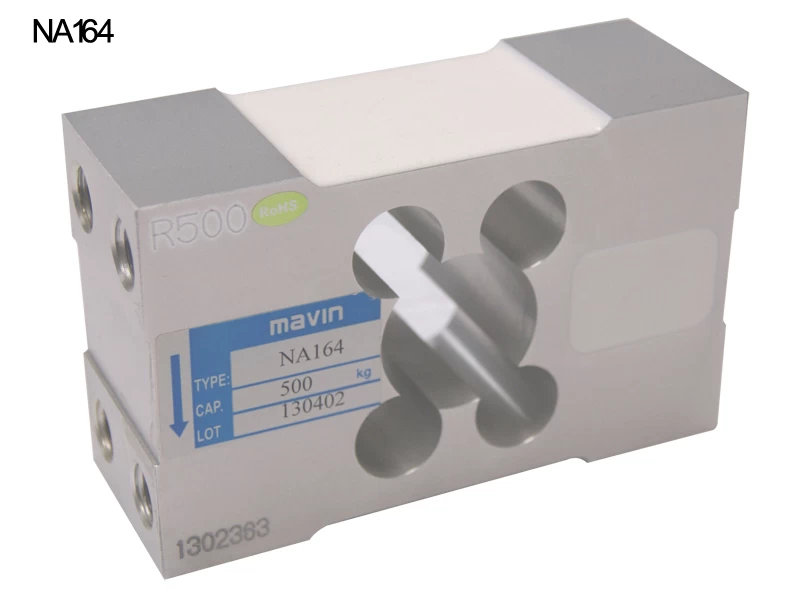

NA164 is a high profile, off-center load cell designed for direct mounting to weighing platforms, hanging scale or other loading applications. The weight scale load cell sensor is one of the most compact designs available for these capacities which make it well suited to scales.


  • Protection ClassPI66/PI67
  • Rated Output2.0mV/V
  • Dimension120*75*50mm
  • MaterialAluminum Alloy
  • Capacities100-800kg

Off-center Single point load cell high profile sensor NA164

NA164 is a high profile, off-center load cell designed for direct mounting to weighing platforms, hanging scale or other loading applications. The weight scale load cell sensor is one of the most compact designs available for these capacities which make it well suited to scales.


Key Features

Aluminum alloy construction

High profile design
Calibrated to national standards

Environmentally sealed by potting

Simple installation


Usage & Applications

Platform scales

Bench scales

Retail scales
Hanging scale

Other loading applications

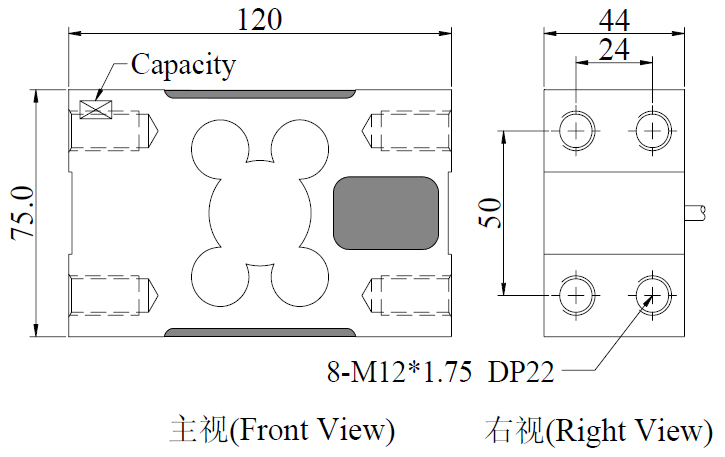

Dimensionoff center load cell NA164

NA164 Specification

Rated Capacities

100300500750800(kg)

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ5×3 m

Recommended Platform Size

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
