Three-stage high shear emulsifying and homogenizing mixers

For applications that require greater homogenizing and emulsifying, three-stage (FHM3) high shear emulsifying and homogenizing mixers are used. They can be used in the cyclic processing of medium and large-scale production




homogenizing mixers

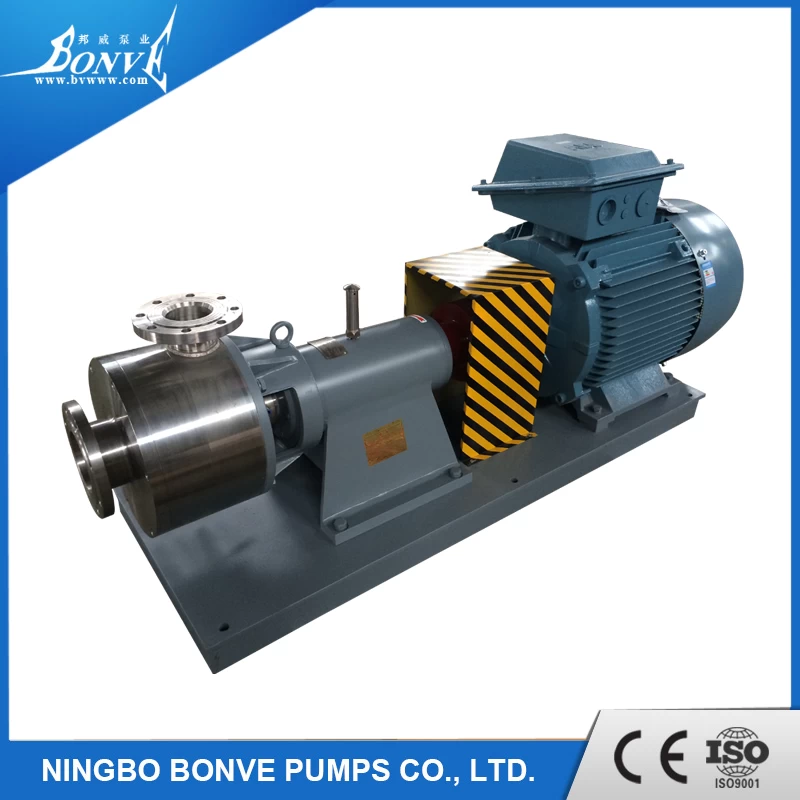

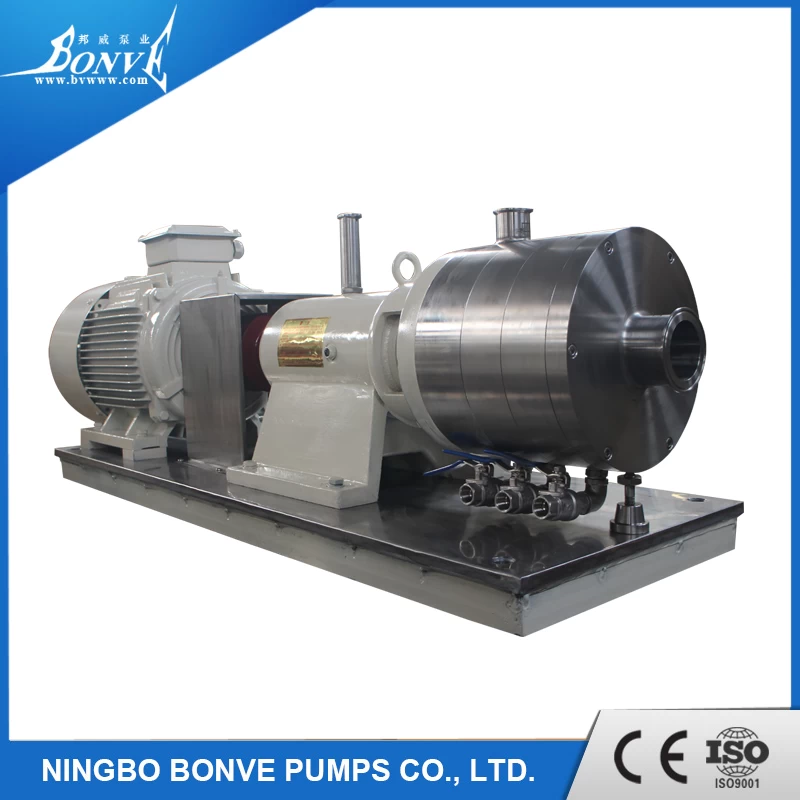

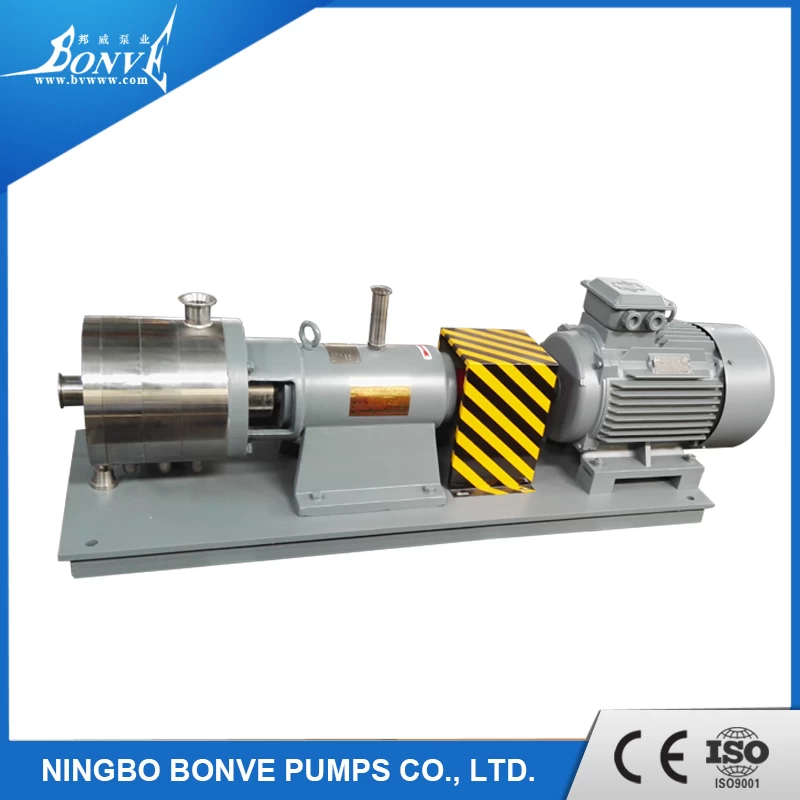

Bonve Three-stage (FHM3) high shear emulsifying and homogenizing mixers are an efficient type machine with mixing, dispersion, breaking, dissolution, refinery, homogenization and emulsifying. It is an ideal machine to be instead of colloid mill, ball mill and high pressure homogenizer.The machine can greatly simplify the traditional productions and upgrade the production efficiency and product quality.


WORKING PRINCIPLE



homogenizing mixers

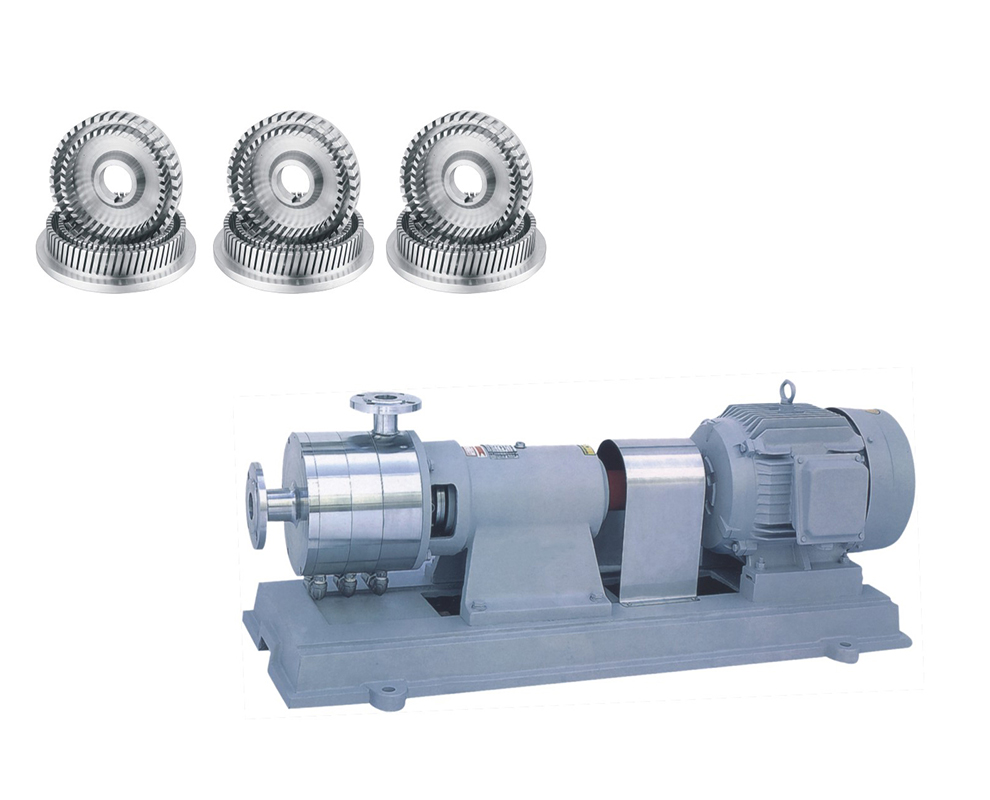

The main parts are stators and rotors. At centrifugal and fluid forces created by rapid turning of the rotors, the stators exercise on the materials with strong power shearing, centrifugal pressing, breaking, fluid friction, turbulent. The processed materials (solid, fluid and gas phase) are quickly refined, homogenized, dis-aggregated and emulsified. The repeat of this process can result in stable and high-quality products.


APPLICATIONS



Refined chemistry: Pigment, dyestuff, plastic auxiliaries, textile auxiliaries, adhesives, resin emulsion, hot melt adhesive, sealing compound, glue, pulp, finishing agent, surface active agent, carbon black disperse, adhesive-proof agent, mold release agent, defoaming agent, fluorine cleaning agent, polishing agent, leather auxiliaries, pigment paste, wax emulsion, bactericide, coagulant, etc.
Petrochemistry: Lubricant, heavy oil emulsion, diesel oil emulsion, modified asphalt, catalyzer, wax emulsion etc.
Biology & Pharmaceuticals: Injection, antibiotic, medical emulsion, medical paste, health products, mini-capsule emulsion, cell breaker, etc.
Paint & ink: Printing ink, paint, emulsion paint, building coating, nanometer coating, photocureable coating, coating auxiliaries, carbon black disperse, print ink, glaze, bentonite, etc.
Farm chemicals: Pesticide, herbicide, medicinal butter, fertilizer, pesticide adjuvant, etc.
Nanometer materials: Disperse and dis-aggregation for nanometer medium, etc.
Food stuff industry: Juice, jam, ice-cream, milk products, food addictive, tea drink, chocolate, bean milk, essence, milk, etc.
Consumer chemistry:Fluid detergent, skim cream, lip paste, face foam, silicon lio emulsion, household essence, skin care, cosmetics, etc.

Paper making: Pulp, filling, fry strength agent, wet strength agent, sizing agent, filtering agent, anti-foaming agent spreading, water treatment chemicals, etc.


TECHNICAL PARAMETERS



Model

Electrical

Power

(Kw)

Rotation

Speed

(r/min)

Handling

Capacity

(m3/h)

Discharge

pressure

(Mpa)

Dia. of inlet/outlet

mm

FHM3/140

11

2900

5

0.2

DN40/32

FHM3/165

18.5

2900

10

0.3

DN50/40

FHM3/185

30

2900

20

0.4

DN65/50

FHM3/200

45

2900

30

0.5

DN80/65

FHM3/220

55

2900

40

0.5

DN80/65

FHM3/240

90

2900

60

0.6

DN100/80

FHM3/260

132

2900

100

0.6

DN125/100


Notes:
1. Above dates are tested by water. Electrical power will be varified according to different liquid properties.

2. Port size can be changed as needed. Flange connection as starndard, clamp and thread as optional.

3. Standard contact material is SS316. Others pls inform.

4. Motor equipped with pumps are ABB brand, with standard power supply of 3Ph/380V/50Hz.

5. Bonve reserves the right to change specifications without prior notification.


APPLICATION PROCESSING DIAGRAM







① High shear mixer working with power liquid homogenizing mixer

② Bottom type high shear mixer working with FHM1 homogenizing mixer

③ Low speed agitator working with FHM3 homogenizing mixer

④ Multi-pipe FHM3 homogenizing mixer continuous production process


SELECTION GUIDELINE



 Your industry/application



 Processed medium’s name



 Medium’s feature

 Sanitary  (   )  Corrosive  (   ) Poisonous (   )

 Medium’s proportion

 Liquid % ____    Density____   Viscosity____ PH value____

 Solid % ____     Solid size ___

 Processing requirement

 Mixing dissolving   (   )      Dispersed suspension     (   )

 Emulsification         (   )      Homogeneity                  (   )

 Reaction                  (   )     Powder liquid mixing      (   )

 Working type

 Continuous circulation work  (   )

 Batch type                               (   )

 Working temperature



 Particle size

 Before processing ____

 After processing   _____

 Handling capacity required



 Delivery head/pressure required



 Vessel's dimension



 Existing pipe size and connection type



 The existing process equipment  and the existing problems



For a quick quotation, please email cathy@bonvepumps.com to ask about selection guideline. Your inquiry will be welcome and get our prompt reply. Thanks for your interest and love for Bonve One-stage inline high shear emulsifying mixers.
