Product Name:ONVIF HD 1080P P2P Waterproof Night Vision Security WiFi IP Camera
Feature
●HD 1080P, high definition megapixels, the highest resolution up to 1920*1080, 15 fps image transmission can watch HD smooth image.

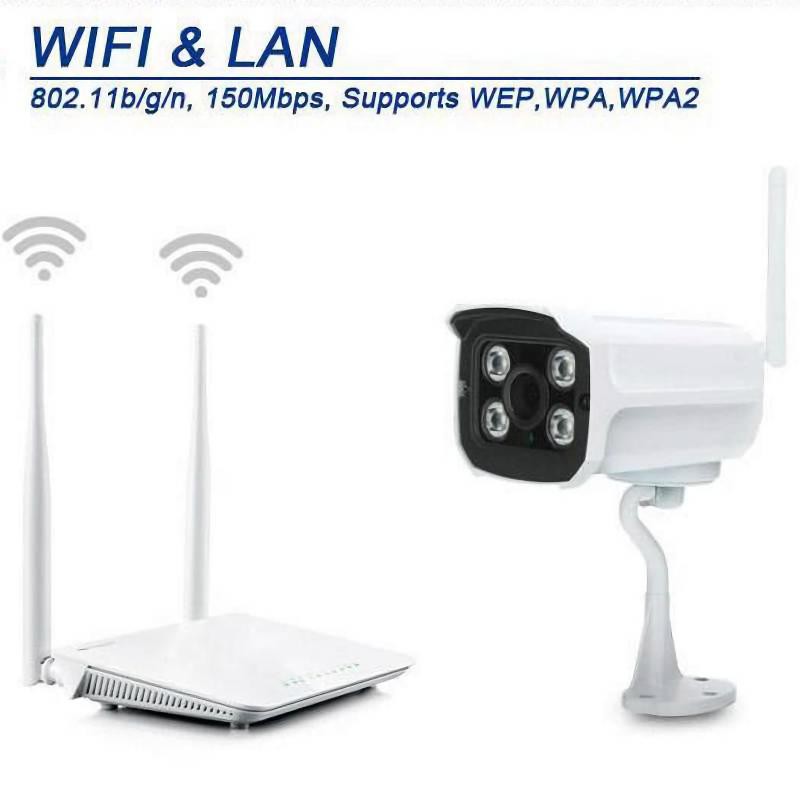

●IP66 waterproof, 3.6,mm fixed lens, WiFi & LAN, 802.11b/g/n, 150Mbps, supports WEP, WPA, WPA2.
●Support day/night, 42miu 4pcs array leds, IR range 15m.
●Motion detection, email alarm, when motion detected, system will trigger alarm email, the user could get the email alert on PC or Mobile.
●Privacy mask supports 4pcs privacy mask areas.

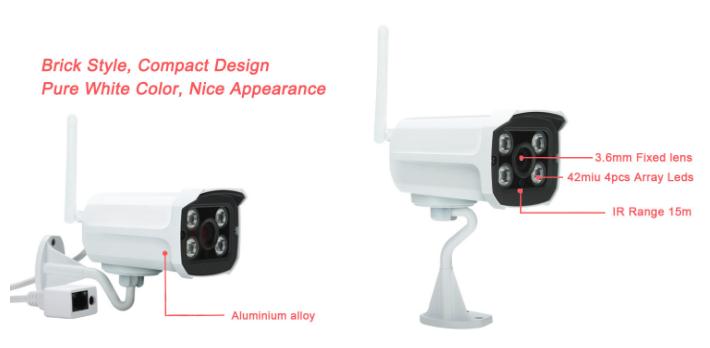

●Products exhibition
Aluminium alloy, Brick style, Compact design pure, White color, Nice appearance.
●Product features
1/25" CMOS progressive scan, megapixels.
Dual stream encoding, H.264 compression mode, high definition image, lower bit rate, HD definition.
Other video format H.264 video image.
Sub stream for remote transmission, overcome bandwidth limitation.
Parameters separated setup, meet different needs.
●Cloud IP camera, 15 frames per second, coherent action.
●Digital WDR (Wide Dynamic Range), function intends to provide better image even when IP Camera under black lighting, namely when there are very bright and very dark areas simultaneously in the camera's field of view.
●QR code scan support, the camera unique ID number and password could be converted to one QR code. When you running the P2P mobile APP software, it is quite convenient to input the IP camera or NVR ID number.
●ONVIF compliant, support various brands ONVIF NVR.
●IE preview, default IP address:192.168.1.128; password:admin.
●CMS preview, support 64GH IP camera preview.

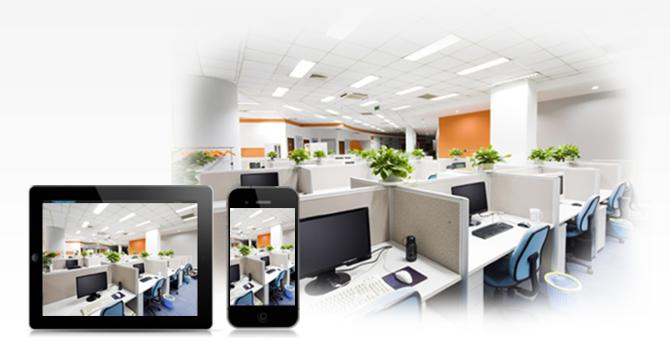

●Smart phone preview
iPhone/Android Smart Phone APP Name: P2PWIFICAM
Login in by IP camera P2P ID number.
●Family monitor, Pet care, Child and aged care, Small office monitor, Small shops monitoring.
Specification
|
Model
|
ANSDEN YAC-QD900
|
|
Camera Parameter
|
|
Camera
|
|
Image Sensor
|
1/2.5” Megapixel progressive scan MT9P006 CMOS
|
|
Effective Pixels
|
1920(H)*1080(V)
|
|
Scanning System
|
Progressive
|
|
Electronic Shutter Speed
|
Auto/Manual, 1/3~1/10000s
|
|
Min. Illumination
|
Color: 0. 1Lux, B/W: 0.003Lux ; 0Lux(IR on)
|
|
S/N Ratio
|
>50dB
|
|
Camera Features
|
|
Max. IR LEDs Length
|
4 pcs Array Led , IR Range 15m
|
|
Day/Night
|
Auto(ICR) / Color / B/W
|
|
Backlight Compensation
|
BLC
|
|
White Balance
|
Auto
|
|
DWDR
|
Manual
|
|
Gain Control
|
Auto/Manual
|
|
Noise Reduction
|
2D
|
|
Privacy Masking
|
yes
|
|
Lens
|
|
Focal Length
|
3.6mm
|
|
Max Aperture
|
F1.6
|
|
Angle of View
|
75.7°
|
|
Mount Type
|
MTV mount (Interchangeable Lens)
|
|
Video
|
|
Compression
|
H.264 Main Profile
|
|
Frame Rate
|
Main Stream 1080P(1920*1080) 15fps
|
|
Sub Stream VGA 640*360 25FPS
|
|
Bit Rate
|
128-8192Kbps,Supports CBR/VBR
|
|
Audio
|
|
Compression
|
N/A
|
|
Interface
|
N/A
|
|
Network
|
|
Ethernet
|
RJ-45 (10/100Base-T)
|
|
Protocol
|
TCP/IP , UDP , RTP , RTSP , RTCP , HTTP , DNS , DDNS , DHCP , FTP , NTP , PPPOE , SMTP , UPNP
|
|
ONVIF
|
ONVIF Ver. 2.2
|
|
Max. User Access
|
10 users
|
|
Smart Phone
|
iPhone, iPad, Android
|
|
Wireless protocols(-W)
|
802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2
|
|
Auxiliary Interface
|
|
Memory Slot
|
N/A
|
|
General
|
|
Power Supply
|
DC12V
|
|
Power Consumption
|
<6W
|
|
Working Environment
|
-10°C~+60°C, 10%~90%
|
|
Ingress Protection
|
IP66
|
|
Dimension
|
107 mm (L) * 68 mm (W) * 60mm (H)
|
|
Weight
|
0.25KG
|
|
Package Dimension
|
150mm*90mm*85mm
|
|
Package Weight
|
0.36KG
|
|
Approvals
|
CE FCC RoHS
|
Dimension
1/25" CMOS progressive scan, high definition megapixels, dual stream encoding, H.264 compression mode.
Application
Cloud IP camera, 15 frames per second, coherent action.
Digital wide dynamic range, function intends to provide better image even when IP camera under black lighting, namely when there are very bright and very dark areas simultaneously in the camera's field of view.
