Dual output 60W 12V 24V PCB Switching Power Supply
Description:
KPD60 Series dual 12V 24V power supplies can fulfill the requirements of general medical or industrial applications.
Features:
1, 60W DUAL Switching power supply 12V 24V with unversial AC input;
2, 60W SMPS with Short circuit, overload, overvoltage and over temperature protection;
|
SPECIFICATIONS
|
|
Item NO.
|
KPD60-0512
|
KPD60-0524
|
KPD60-1224
|
KPD60-12
|
|
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
CH1
|
CH2
|
|
OUTPUT
|
DC OUTPUT VOLTAGE
|
+5V
|
+12V
|
+5V
|
+24V
|
+12V
|
+24V
|
+12V
|
-12V
|
|
OUTPUT RATED CURRENT
|
6A
|
2.5
|
5A
|
1.5A
|
2A
|
1.5A
|
2.5A
|
2.5A
|
|
OUTPUT CURRENT RANGE
|
0.1-6A
|
0.1-3A
|
0.1-6A
|
0.1-2A
|
0.1-2A
|
0.1-2A
|
0.1-3A
|
0.1-3A
|
|
OUTPUT POWER
|
50W
|
61W
|
60W
|
60W
|
|
RIPPLE & NOISE(p-p)
|
50mV
|
100mV
|
50mV
|
200mV
|
100mV
|
200mV
|
100mV
|
100mV
|
|
VOLTAGE ADJ.
|
CH1:±10% (5V:4.75~5.5V)
|
|
OUTPUT V. TOLERANCE
|
±1%
|
±5%
|
±1%
|
±5%
|
±1%
|
±5%
|
±1%
|
±5%
|
|
LINE REGULATION
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
±0.5%
|
±1%
|
|
LOAD REGULATION
|
±0.5%
|
±4%
|
±0.5%
|
±4%
|
±0.5%
|
±4%
|
±0.5%
|
±4%
|
|
SETUP,RISE,HOLD UP TIME
|
500ms,50ms,20ms
|
|
INPUT
|
INPUT VOLTAGE RANGE
|
90-264V AC
|
|
INPUT CURRENT
|
0.3A @ 220V AC
|
|
INPUT FREQUENCY
|
47-63 Hz
|
|
EFFICIENCY
|
80%
|
86%
|
88%
|
89%
|
89%
|
|
INRUSH CURRENT
|
Cold start15A/115V，30A/230V
|
|
LEAKAGE CURRENT
|
<0.3mA@240V AC
|
|
PRODECTION
|
OVERLOAD PROTECTION
|
110~200%,HICCUP RESET:AUTO RECOVER
|
|
OVER VOLTAGE PROTECTION
|
130~150%
|
|
FUNCTION
|
|
|
|
ENVIROMENT
|
WORKING TEMP., HUMIDITY
|
-10~45℃ 100% LOAD,45~60℃ 60% LOAD，10~90% RH，No condensation
|
|
STORAGE TEMP., HUMIDITY
|
-20~85℃，10~95% RH
|
|
TEMP. COEFFICIENT
|
±0.03%/℃(0~50℃)
|
|
SAFETY&EMC
|
SAFETY STANDARDS
|
EN60950; GB4943; UL60950
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC STANDARDS
|
Meet FCC.PART15.CLASS B; EN55022 CLASS B
|
|
OTHER
|
DIMENSION
|
101.6*50.8*27mm
|
|
WEIGHT
|
0.3Kg
|
|
NOTE
|
1. ALL PARAMETERS ARE SPECIFIED AT 220VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT.
2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.
3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.
4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD.
5.LOAD REGULATION IS MEASURED FROM 0% TO 100% RATED LOAD, AND OTHER OUTPUT AT 60% RATED LOAD.
|

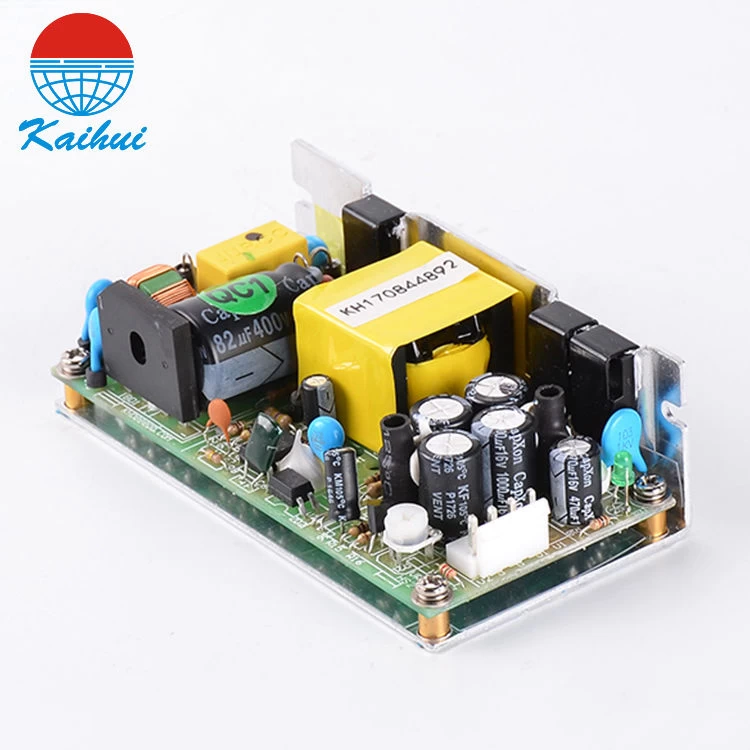

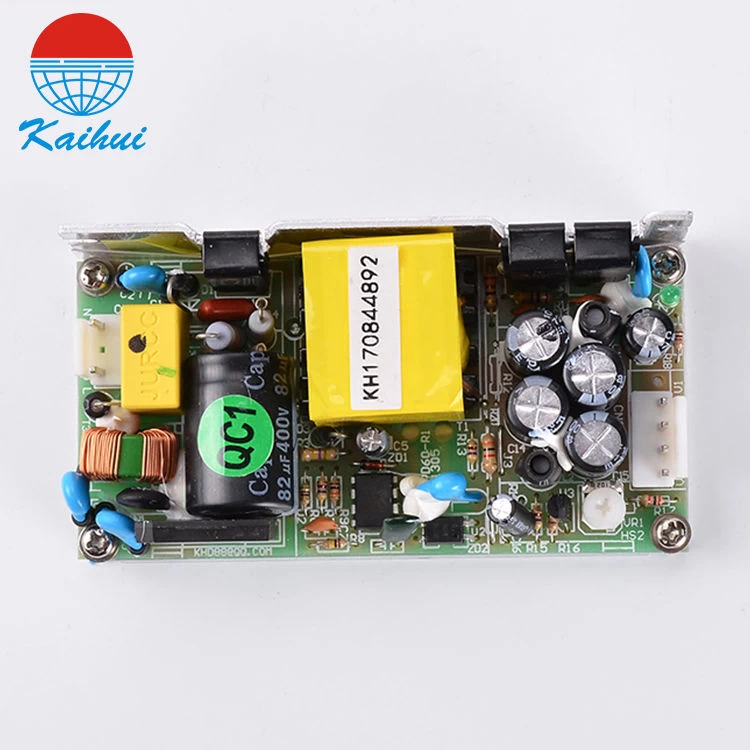

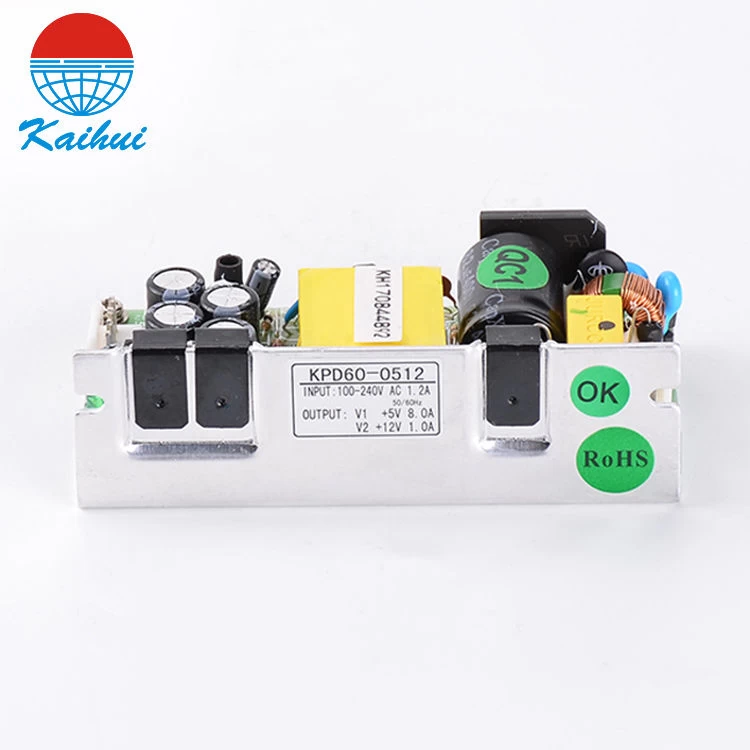

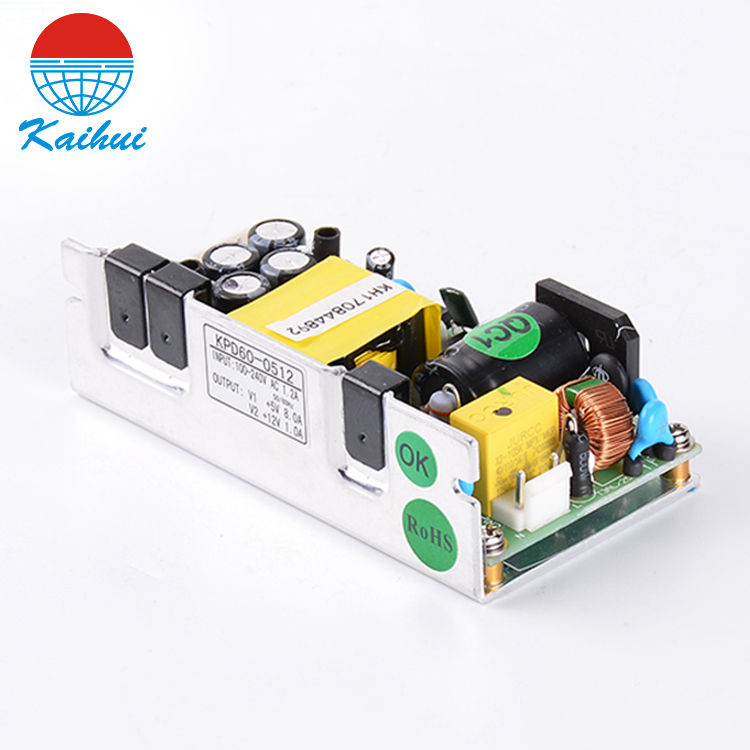

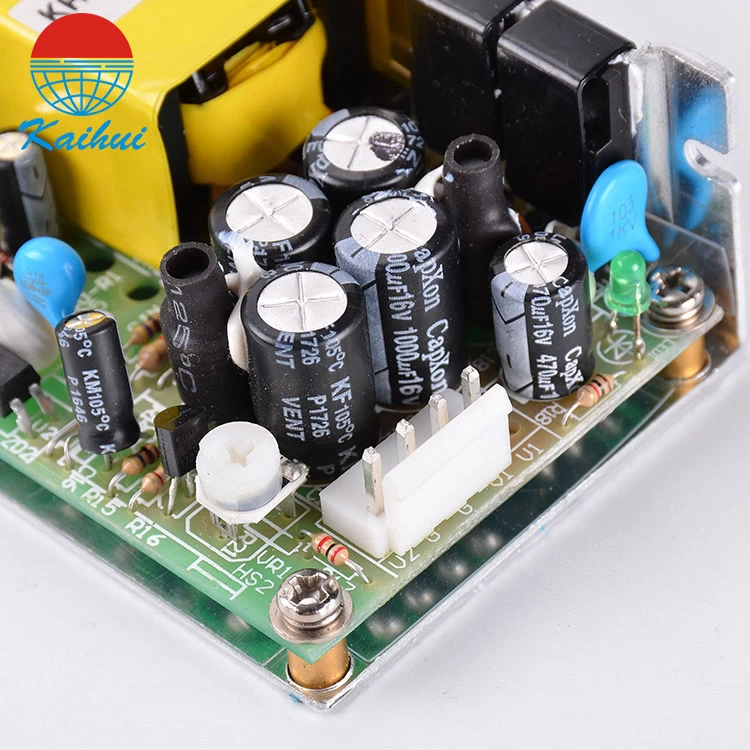

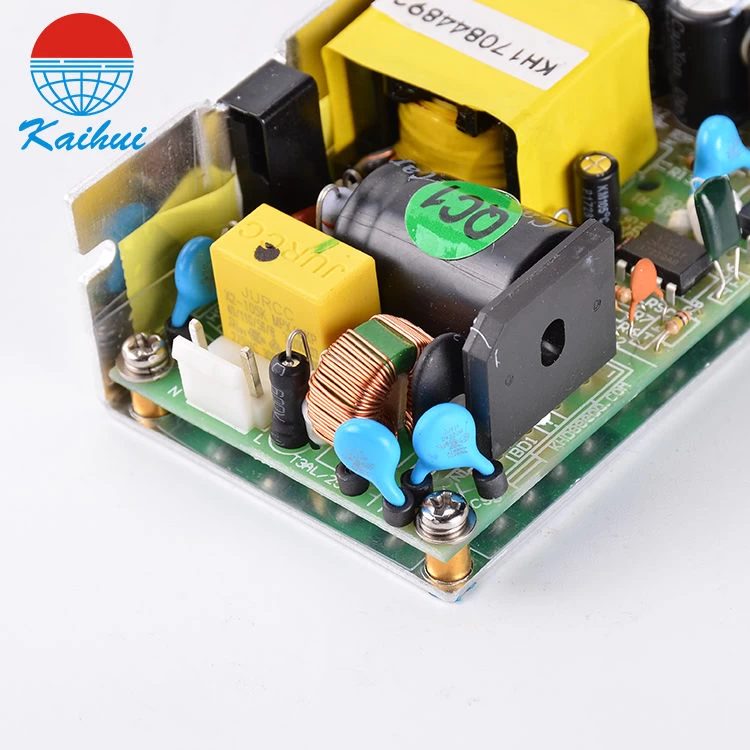

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
