Feature:

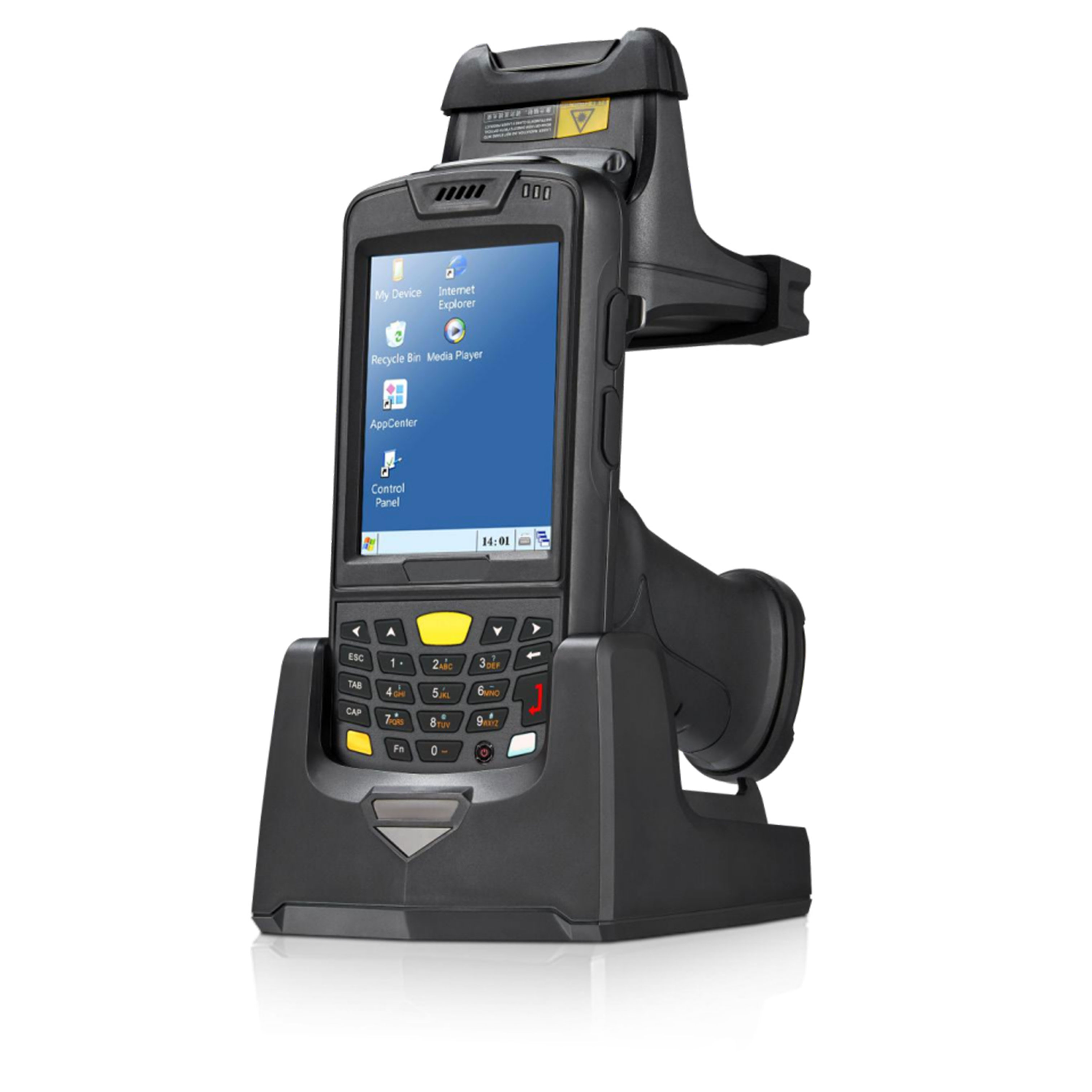

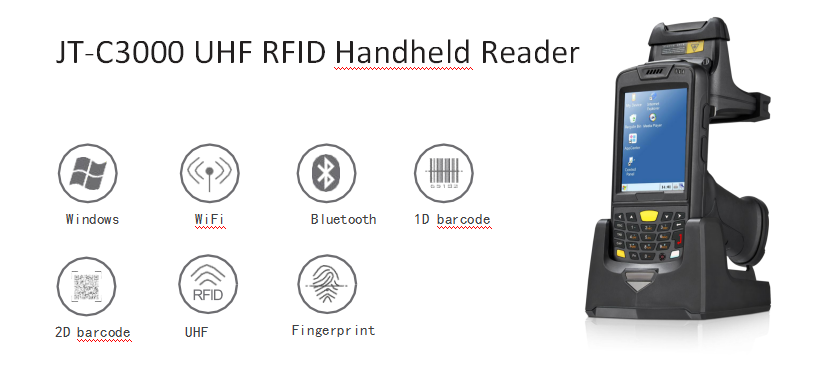

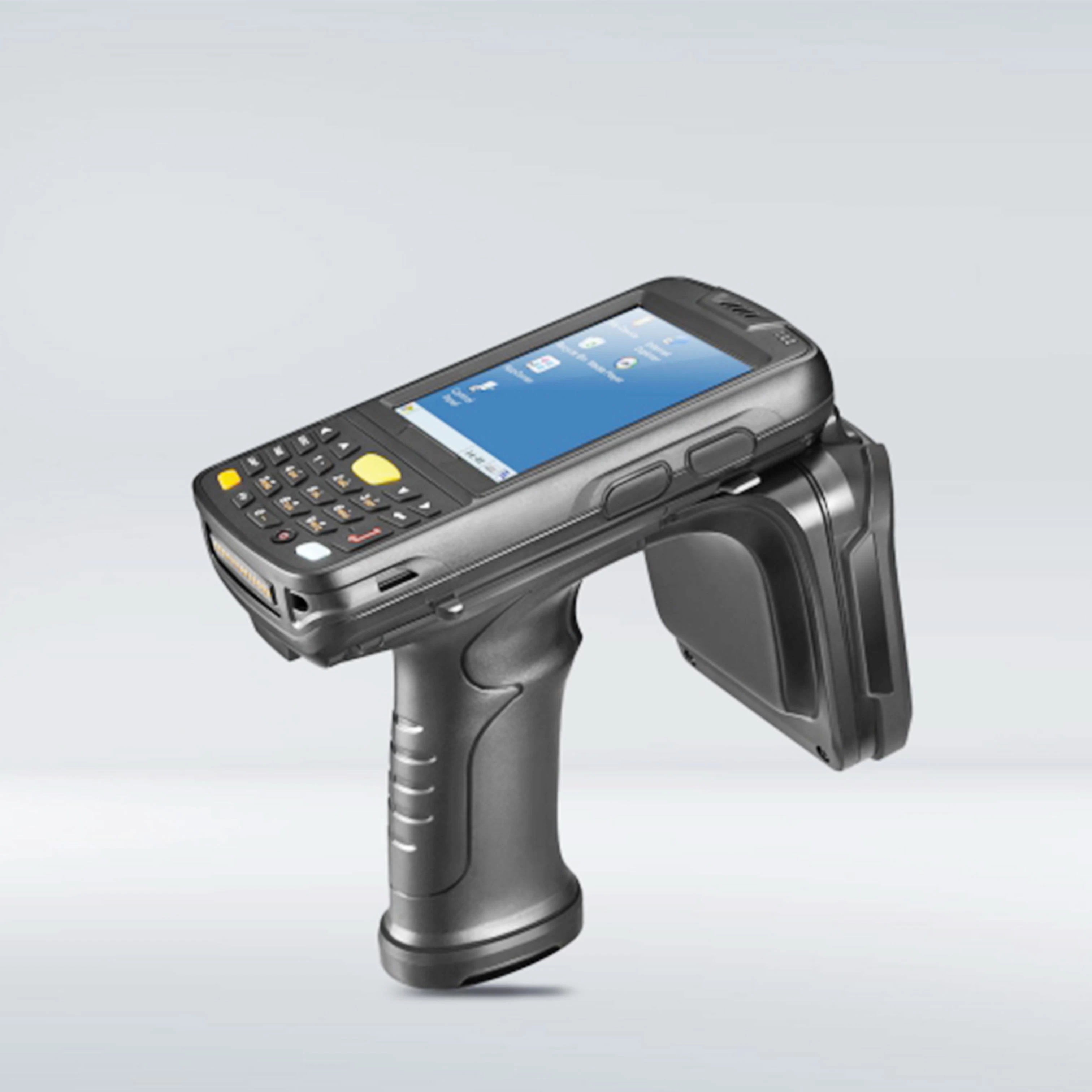

JT-C3000 is an industrial grade intelligent
handheld terminal developed and upgraded by our company.
Its UHF read/write function has better sensitivity and more accurate
and fast reading and writing information. With its unique modular design,
users can customize the functions according to their needs.
They are widely used in asset management, clothing inventory,
vehicle management, high-speed toll collection, warehouse management
and other fields.
Specification:
|
Performance
|
|
Size
|
192mm x 87mm x 151mm
|
|
weight
|
743g
|
|
Display
|
3.5”，IPS FHD 240*320
|
|
Touch Panel
|
Industrial resistance touch screen
|
|
Power
|
Li-ion, rechargeable, 8000mA
|
|
|
Standby: over 500 hours Accessories
|
|
Expansion Slot
|
One MicroSD(TF)card
|
|
Interface
|
MicroUSB（SupportOTG）
|
|
Audio
|
0.5Wspeaker
|
|
keyboard
|
3 side buttons + QWERTY physical keyboard / numeric keypad
|
|
Developing Environment
|
|
Operation system
|
Windows Embedded CE 6.0
|
|
SDK
|
Chainway Software Development Kit
|
|
Language
|
C++、C#、VB.NET
|
|
Develop tools
|
Visual Studio 2005/2008
|
|
User environment
|
|
Operating Temp.
|
-20 C -50 C
|
|
Storage Temp.
|
-40 C -70 C
|
|
Humidity
|
5%RH - 95%RH non condensing
|
|
Drop Specification
|
Multiple 1.5m/4.9ft drops (at least 20 times) to the
concrete across the operating temperature range
|
|
IP degree
|
Host IP65, up to IEC seal standard
|
|
Tumble Specification
|
1000 x 0.5m/1.6ft falls at room temperature
|
|
1D barcode
|
Honeywell N4313/ Zebra SE965
|
|
1D Symbologies
|
UPC/EAN, Code128, Code39, Code93, Code11,
|
|
|
Interleaved 2 of 5, Discrete 2 of 5, Chinese
|
|
|
5, Codabar, MSI, RSS etc
|
|
2D Imager Scanner
|
Zebra SE4500
|
|
Support 2D barcode type
|
PDF417, MicroPDF417, Composite, RSS, TLC-39,
|
|
|
Datamatrix, QR code, Micro QR code, Aztec,
|
|
|
MaxiCode; Postal Codes: US PostNet, US
|
|
|
UK Postal, Australian Postal, Japan Postal,
|
|
|
Postal (KIX)etc
|
|
UHF
|
|
US frequency
|
902-928Mhz
|
|
EU frequency
|
865-868Mhz
|
|
Protocol
|
EPC C1 GEN2 / ISO18000-6C
|
|
Antenna
|
Linear polarization(1.8dBi); circular polarization (4dBi)
|
|
IP degree
|
Host IP65, up to IEC seal standard
|
|
R/W range
|
＞22M（circular polarization, indoors）；＞8M（circular polarization, open outdoors）；＞4.5（linear,outdoors)
|
|
Reading rate
|
＞200pcs Tags
|
|
Power
|
1W（30dBm，Support +5dBm ~ +30dBm adjustable）
|
|
Fingerprint Identification (optional)
|
|
|
|
|
Module function
|
Fingerprint collection, fingerprint comparison, fingerprint storage, etc.
|
|
Sensor
|
Capacitive sensor TCS1/TCS2SS
|
|
Effective image size
|
TLCS1：12.8×18mm；TCS2SS：10.4×14.4mm
|
|
Image Resolution
|
508DPI
|
|
Standard
|
TCS1：FIPS、STQC；TCS2SS：ISO
|
