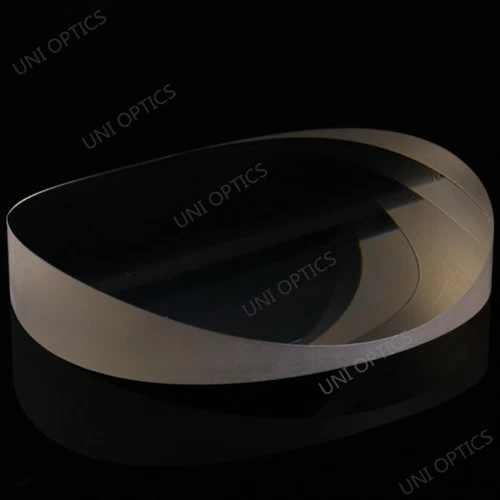

Uni Optics’s Plano Convex Circular Cylindrical Lens has a convex curvature in the vertical direction and has no curvature in the horizontal direction. They are edged as circular shapes so they can easily be combined with other elements in an optical system.
1、How to control the radius correctly?
Uni Optics use the precision templet for processing to make sure the final R value matched your drawings.
2、Can you provide the testing report?
Yes. We can offer the actual testing data including Radius, centration, dimensions, surface quality, coating curve, etc..
Common specification
Material: Schott, CDGM, Ohya, Ohara, Corning, etc.
Diameter tolerance: +0/-0.05mm
Effective Focal Length Tolerance:±2%
Centering Tolerance:≤3 arc min
Surface Quality: 40-20 S/D
Surface flatness: N=5△N=0.5
Clear aperture: > 90 % of surface dimensions
Coating: Optional ( Uncoated / Single layer MgF2 / Broadband AR )
Cylindrical glass lenses
can be used in a wide range of industries. Common applications for
cylindrical glass lens include detector illumination, barcode
scanning, spectroscopy, holographic illumination, optical information
processing, and computer technology.
|
Part NO.
|
Material
|
F(mm)
|
Φ(mm)
|
R(mm)
|
Tc(mm)
|
Te(mm)
|
Fb(mm)
|
|
ULYRPX008005
|
BK7
|
8
|
5
|
4.13
|
2.84
|
2
|
6.14
|
|
ULYRPX092008
|
BK7
|
9.2
|
8
|
4.74
|
4.2
|
2
|
6.44
|
|
ULYRPX010008
|
BK7
|
10
|
8
|
5.17
|
3.9
|
2
|
7.43
|
|
ULYRPX125127
|
BK7
|
12.5
|
12.7
|
6.43
|
7.44
|
2
|
7.57
|
|
ULYRPX025127
|
BK
|
25
|
12.7
|
12.88
|
3.67
|
2
|
22.58
|
|
ULYRPX050127
|
BK7
|
50
|
12.7
|
25.75
|
2.8
|
2
|
48.17
|
|
ULYRPX075254
|
BK7
|
75
|
25.4
|
38.64
|
4.15
|
2
|
72.28
|
|
ULYRPX100254
|
BK7
|
100
|
25.4
|
51.52
|
4.59
|
2
|
96.99
|
|
ULYRPX150254
|
BK7
|
150
|
25.4
|
77.27
|
4.05
|
2
|
147.34
|
