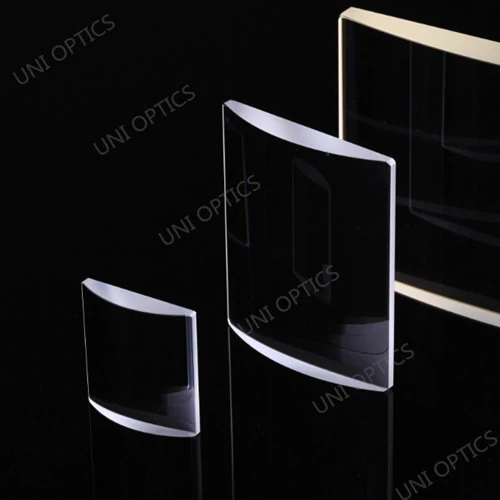

Plano-Convex Rectangular Cylindrical Lenses

Plano-convex rectangular cylindrical lenses are useful for line imaging or uni-axial magnification in a wide range of applications. These lenses may be combined with other lenses to form complex imaging systems.



Why are Plano-conves Retangular Cylindrical lenses used?


Plano-convex rectangular cylindrical lenses are available with positive or negative focal lengths, ideal for laser line generation or anamorphic beam shaping uni-axial magnification in a wide range of applications to circularize laser outputs.These lenses may be combined with other lenses to form complex imaging systems.


Plano-convex rectangular Cylindrical Lenses  Plano-convex rectangular Cylindrical Lenses


Cylindrical lenses are used to focus or expand light in a variety of laser and light-based devices. Our customized cylindrical lens also have a wide range of applications, such as laser scanning optical metrology systems, laser alignment and inspection tools, and laser additive manufacturing and laser processing equipment.The optical cylinder lens is usually rectangular, square or circular and has a plano-convex or plano-concave design. Every optical cylinder lens we manufacture uses state-of-the-art polishing techniques and rigorous lens evaluation.


Specifications:


Material: Optical glass, Fused silica
Design wavelength: 546.1nm
Diameter tolerance: +0/-0.05mm
Focal tolerance: +/-2%
surface quality : 40-20 S/D
Centration: 3 arcmin
Surface flatness: N=5 △N=0.5
Clear aperture: 90%
Bevel: Protective
Coating Optional



497.9
Part NO. Material W x H F(mm) R(mm) Tc(mm) Te(mm) Fb(mm)
ULYPX1010127 BK7 10.0x10.0 12.7 6.54 4.3 2 9.8
ULYPX1010020 BK7 10.0x10.0 20.0 10.29 3.3 2 17.8
ULYPX1010025 BK7 10.0x10.0 25.0 12.87 3.0 2 23
ULYPX1210010 BK7 12.0x10.0 10.0 5.2 5.9 2 6.17
ULYPX1210015 BK7 12.0x10.0 15.0 7.8 3.8 2 12.6
ULYPX1210020 BK7 12.0x10.0 20.0 10.34 3.3 2 17.8
ULYPX2010127 BK7 20.0x10.0 12.7 6.54 , 4.3 2 9.8
ULYPX2010020 BK7 20.0x10.0 20.0 10.29 3.3 2 17.8
ULYPX2010025 BK7 20.0x10.0 25.0 12.87 3.0 2 23
ULYPX2020050 BK7 20.0x20.0 50.0 25.73 4.0 2 47.3
ULYPX2020075 BK7 20.0x20.0 75.0 38.6 3.3 2 72.8
ULYPX2020100 BK7 20.0x20.0 100.0 51.47 4.0 2 97.3
ULYPX2020150 BK7 20.0x20.0 150.0 77.2 3.7 3 147.5
ULYPX2020200 BK7 20.0x20.0 200.0 102.93 3.5 3 197.7
ULYPX2020250 BK7 20.0x20.0 250.0 128.67 3.3 3 247.7
ULYPX2020300 BK7 20.0x20.0 300.0 154.4 3.2 3 297.8
ULYPX2020500 BK7 20.0x20.0 500.0 257.33 4.0 3 497.9
ULYPX4020050 BK7 40.0x20.0 50.0 25.73 3.3 3 47.3
ULYPX4020075 BK7 40.0x20.0 75.0 38.6 3.3 2 72.8
ULYPX4020100 BK7 40.0x20.0 100.0 51.47 4.0 2 97.3
ULYPX4020150 BK7 40.0x20.0 150.0 77.2 3.7 3 147.5
ULYPX4020200 BK7 40.0x20.0 200.0 102.93 3.5 3 197.7
ULYPX4020250 BK7 40.0x20.0 250.0 128.67 3.4 3 247.7
ULYPX4020300 BK7 40.0x20.0 300.0 154.4 3.3 3 297.8
ULYPX4020500 BK7 40.0x20.0 500.0 257.33 3.2 3
