Mirror is an object with a surface that has good specular reflection. that is, it is smooth enough to form an image. The most familiar type of mirror is the plane mirror, which has a flat surface. Curved mirror are also used, to produce magnified or demagnified images or focus light or simply distort the reflected image. WTS make Silver Coated Mirrors, Gold Coated Mirrors, Aluminum Coated Mirrors, Dielectric Coated Mirrors.

Specifications:

Material: N-BK7 ; UV Fused Silica ;other optical glass

Dimension Tolerance: +0/-0.1mm

Thickness Tolerance: '+/-0.1mm

Surface quality: 60/40

Clear Aperture: >85%

Flatness: λ/4 per 25mm@633nm

Parallelism: <3'

Bevel: <0.25mmx45°

Coating:

One surface(S1) :Polished and Metallic coating(Al,Ag,Au)

The other surface: Fine ground

Protected Aluminum: Ravg> 85%@400nm-800nm

VIS Enhanced Aluminum: Ravg> 90% @450nm-750nm

UV Enhanced Aluminum: Ravg > 80%@250nm-400nm

Protected Silver: Ravg > 90% @400nm-20um

Protected Gold: Ravg > 94% @650nm-16um

Typical Sizes:

Size(mm)

Φ5.0x1.0 Φ10.0x2.0

Φ12.7x2.0

Φ15.0x3.0

Size(mm)

10.0x10.0x3

20.0x20.0x3

25.4x25.4x3

30.0x30.0x5

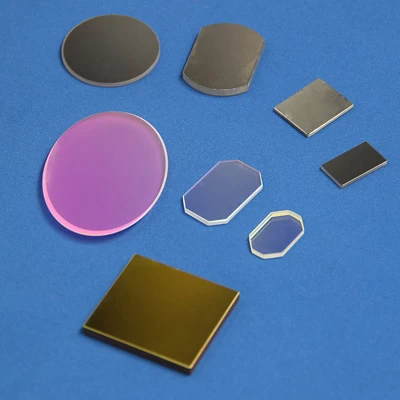

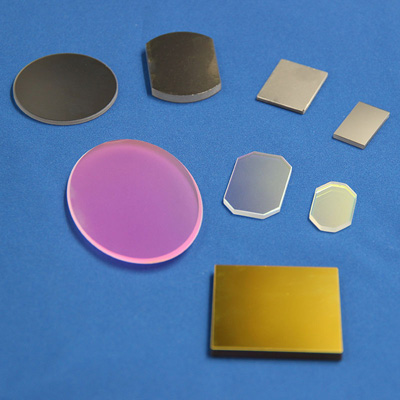

The shape could be circle, square, elliptical or right angle prisms or glued together.

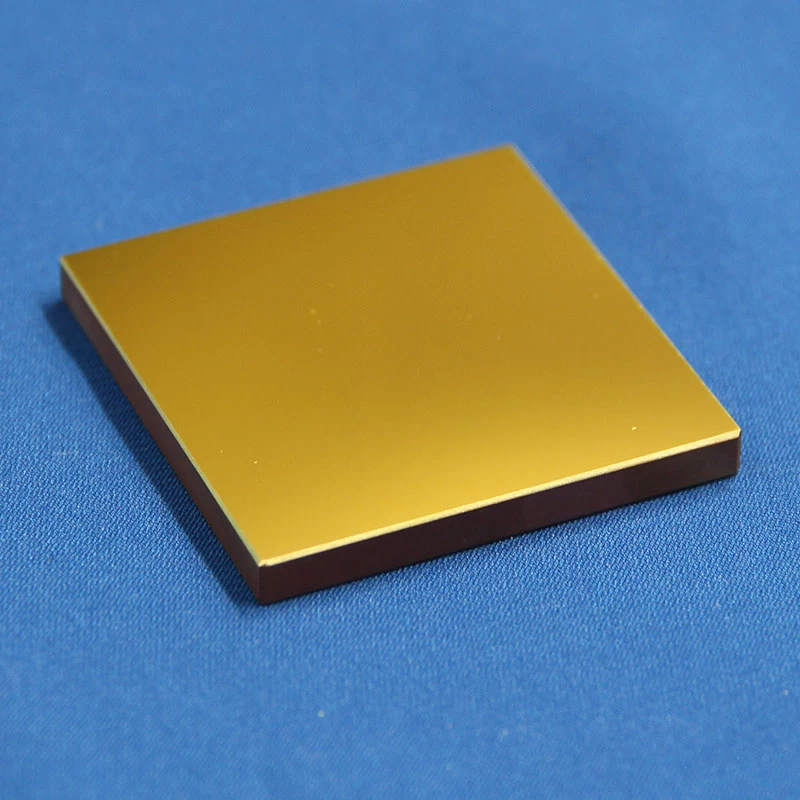

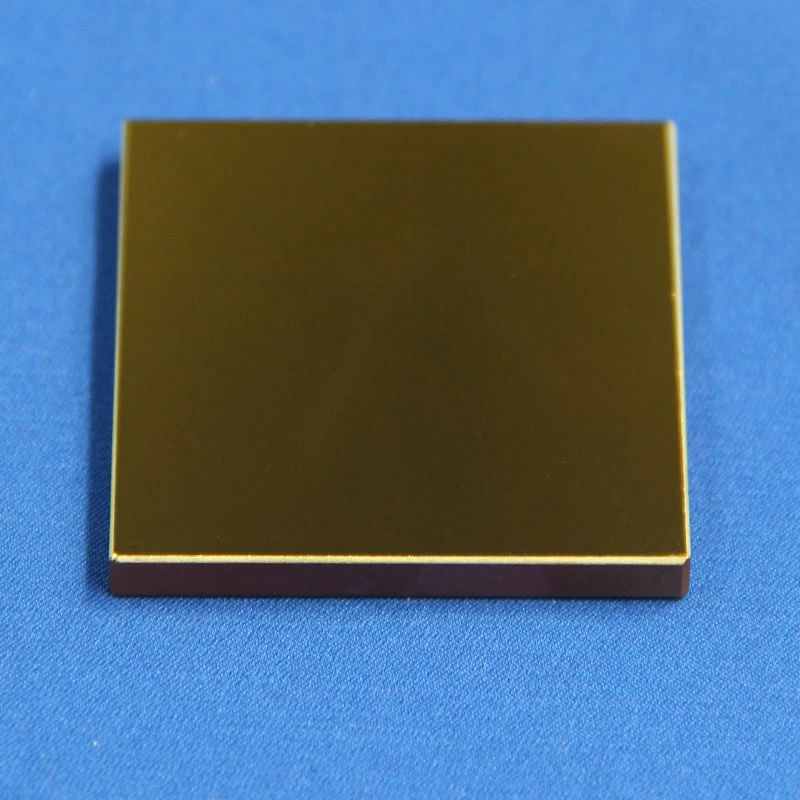

Best Optical Gold Coated Mirrors Supplier,WTS Photonics Technology Co., Ltd,your wonderful optical mirrors manufacturer! You can learn more about Glass Gold Coated Mirrors,Au Coated Mirrors,First Surface Mirrors,Unprotected Coated Mirrors etc.

Contact now, you may get competition price!
