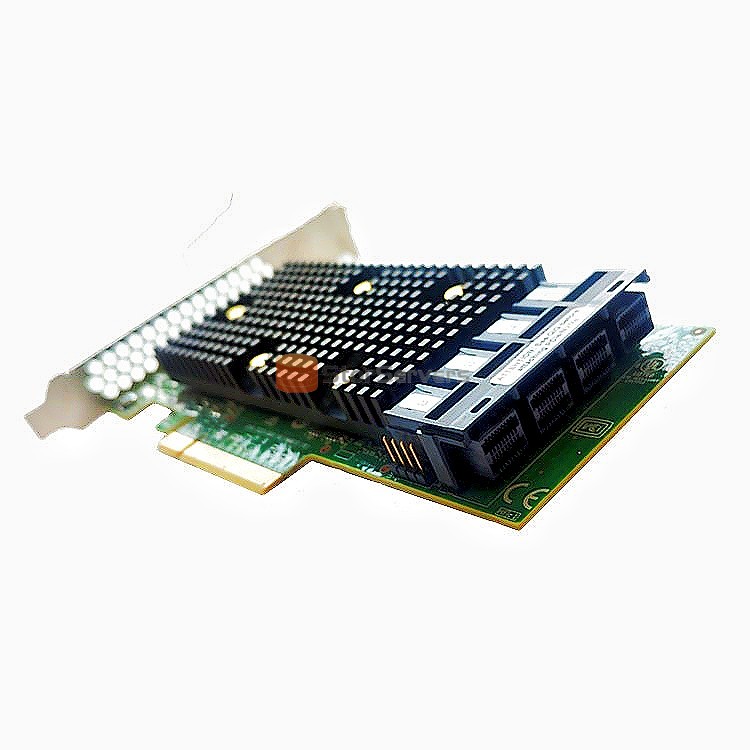

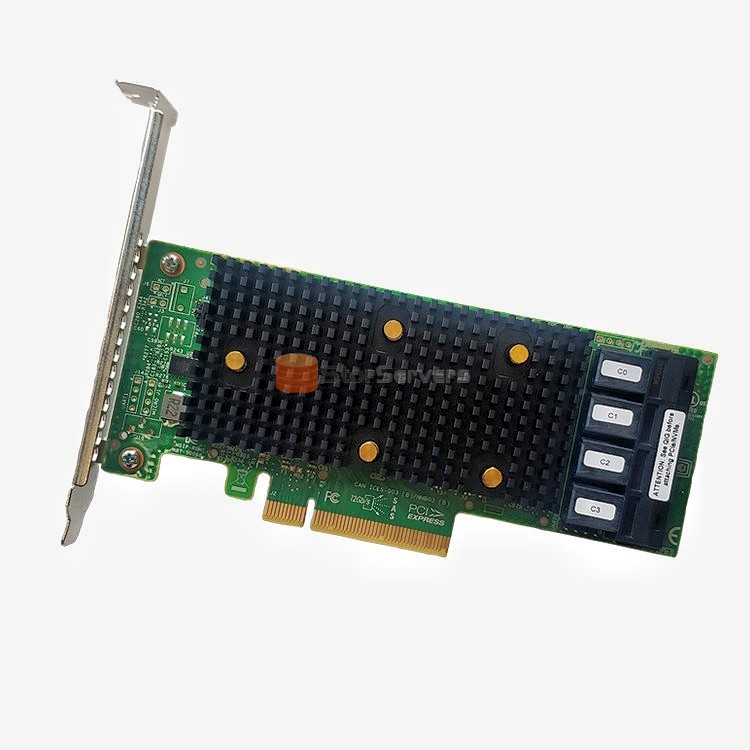

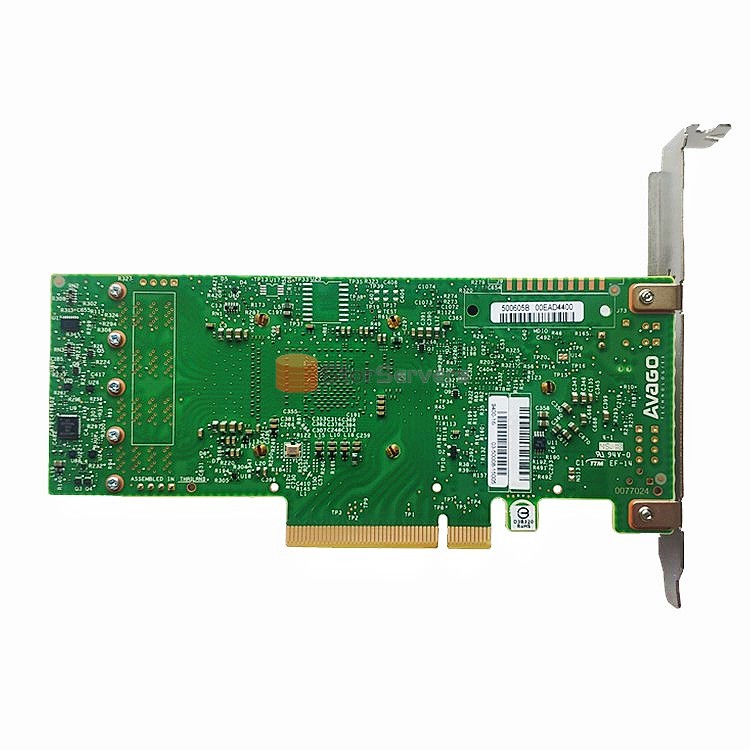

RAID 530-16i 4Y37A09727 PCIe 3.0 x8
Specifications
- PCIe 3.0 x8 host interface
- 12 Gbps SAS/SATA RAID controllers, based on the Broadcom MegaRAID 9440 adapter family
- Cacheless (not upgradeable)
- Connectivity for up to 4 or 8 or 16 internal SAS or SATA drives, depending on the adapter selected
- Support for intermixing SAS and SATA HDDs and SSDs. Mixing SAS and SATA drives in the same array is not supported. Mixing of HDDs and SSDs in the same array is not supported.
- Support for intermixing of 24 Gb/s, 12 Gb/s, and 6 Gb/s drives; 24 Gb/s drives operate at 12 Gb/s
- Support for RAID 0, 1, 10, 5, and 50 standard, with these exceptions:
- The RAID 530-16i adapter only supports RAID 0, 1 and 10
- The RAID 530-4i supports only RAID 0, 1 in the SN550 and RAID 0, 1, 10, 5 in the SN850 because those blade servers only support two and four drives respectively
- Support for JBOD (non-RAID) drive state
- Support for up to 63 physical drives with SAS expander (where supported)
- Support for up to 32 virtual drives
- Support for logical drive sizes greater than 2 TB.
- Fixed 64 KB stripe size
- Supports 512e, 512n and 4K sector formatted drives
- Supports UNMAP command for SAS SSDs (JBOD and RAID volumes)
- Supports TRIM command for SATA SSDs (JBOD)
- Compliant with Disk Data Format (DDF) configuration on disk (CoD).
Key Features
- MegaRAID FastPath SSD performance acceleration
MegaRAID FastPath software provides high-performance I/O acceleration for SSD-based virtual drives by using a low latency I/O path to increase the maximum I/O per second (IOPS) capability of the controller. This feature boosts the performance of applications with a highly random data storage access pattern, such as transactional databases.
- Auto-resume on array rebuild or array reconstruction after the loss of system power
Auto-resume uses non-volatile RAM (NVRAM) to save the rebuild progress during a host reboot or power failure to automatically resume from the last checkpoint. Auto-resume ensures that data integrity is maintained throughout the process. The card supports a number of features that can be implemented without rebooting the server. Applications, such as email and web server, benefit from avoiding downtime during the transition.
Specification
| Model |
530-16i |
| Ports |
16 internal |
| PN |
4Y37A09727 |
| Connectors |
4x Mini-SAS HD x4(SFF-8643) |
| Storage Interface Support |
SAS,SATA,NVMe(PCle) |
| Max NVMe Direct Attach Devices |
4 ×4,8×2 |
| Max Devices Per Controller |
SAS/SATA:1024 NVMe:24 |
| I/O Processor/ SAS Controller |
SAS3416 |
| Host Bus Type |
PCle 3.0 x8 |
| Typical Power |
11.95W |
| Physical Dimensions |
6.127 in.x 2.712 in(155.65 mm x68.90 mm) |
| Cable Support |
Passive Copper |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
