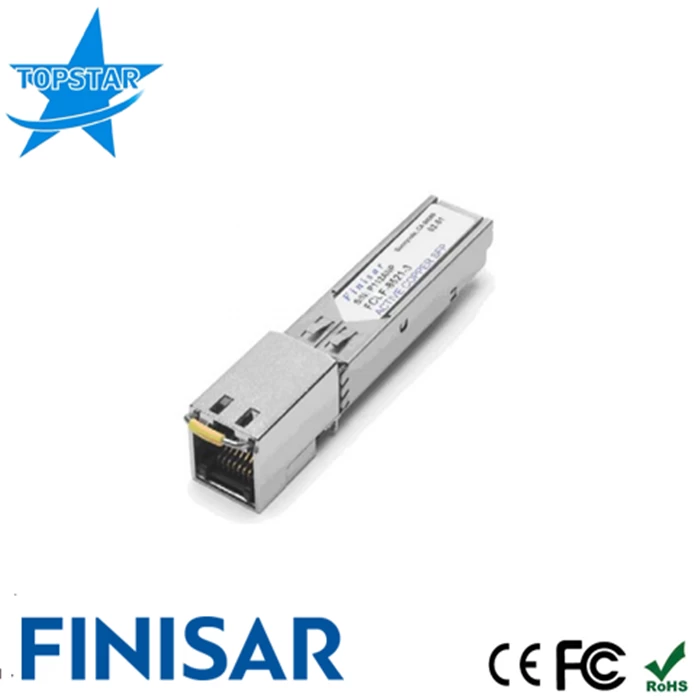

Original Finisar FCLF-8520-3 1.25Gb/s Copper SFP RJ 45 Connector Optical Modules

Finisar’s FCLF-8520/8521-3 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA)1 . They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.32 . The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. The FCLF-8520-3 uses the SFP’s RX_LOS pin for link indication, and 1000BASE-X autonegotiation should be disabled on the host system. The FCLF-8521-3 is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature (RX_LOS is internally grounded). See AN-2036 (“Frequently Asked Questions Regarding Finisar’s 1000BASE-T SFPs”) for a more complete explanation on the differences between the two models and details on applications issues for the products. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details5,6.


  • Distance100m
  • Data Rate1000BASE-T
  • Temperature0°C to 85°C
  • ConditionNew
  • Warranty1 Year
  • WavelengthN/A
  • ConnectorRJ 45

Original Finisar FCLF-8520-3 1.25Gb/s Copper SFP RJ 45 Connector Optical Modules


PRODUCT FEATURES


 Up to 1.25Gb/s bi-directional data links

 Hot-pluggable SFP footprint

 Extended case temperature range -0°C to +85°C

 Fully metallic enclosure for low EMI

 Low power dissipation (1.05W typical)

Compact RJ-45 connector assembly

 RoHS-6 compliant (lead-free)

 Access to physical layer IC via 2-wire serial bus

 10/100/1000 BASE-T operation in host systems with SGMII interface

APPLICATIONS

 1.25 Gigabit Ethernet over Cat 5 cable

1.25Gb/s Copper SFP
