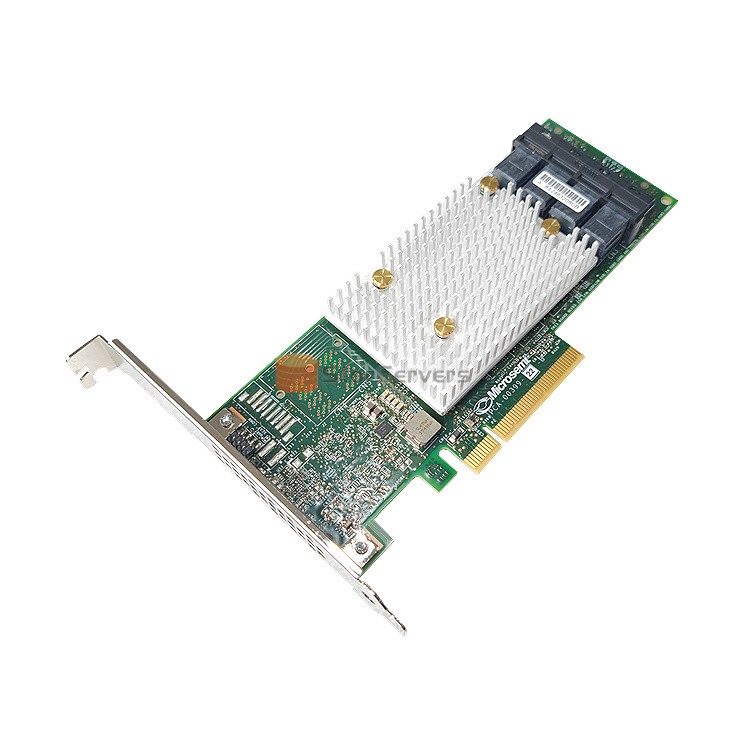

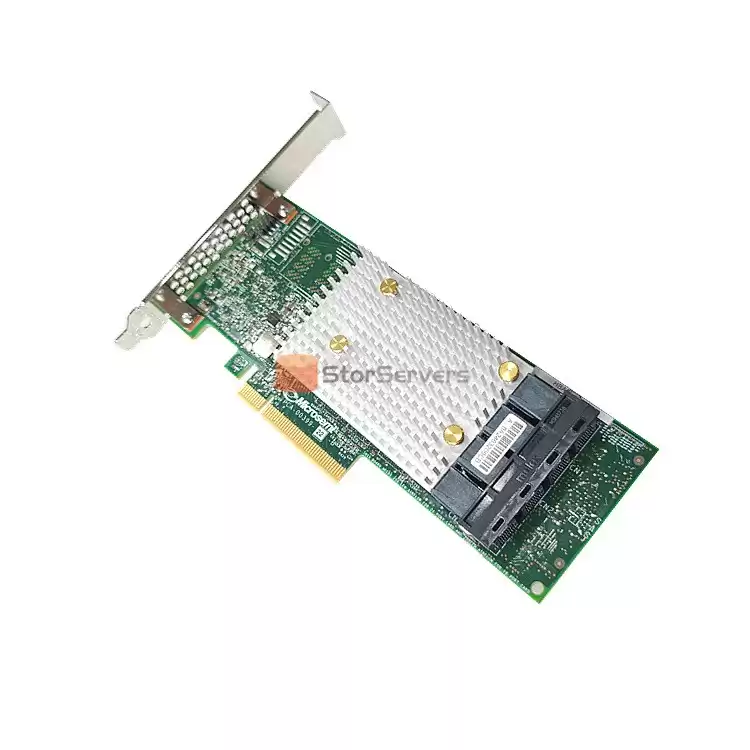

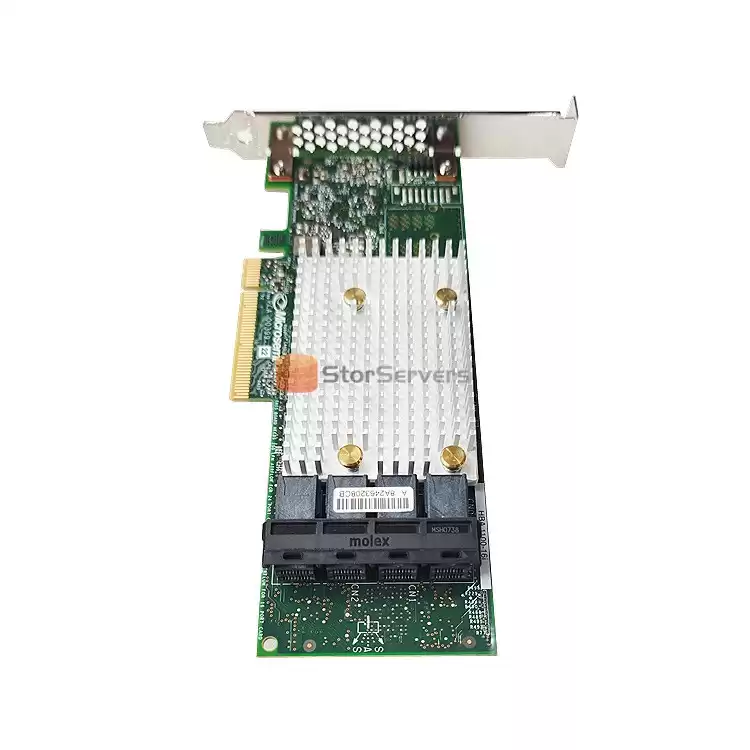

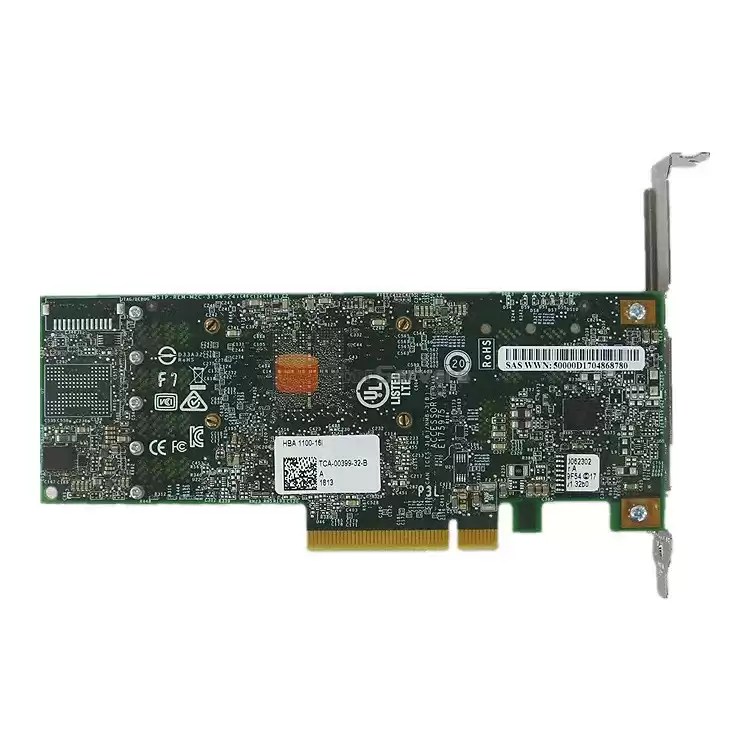

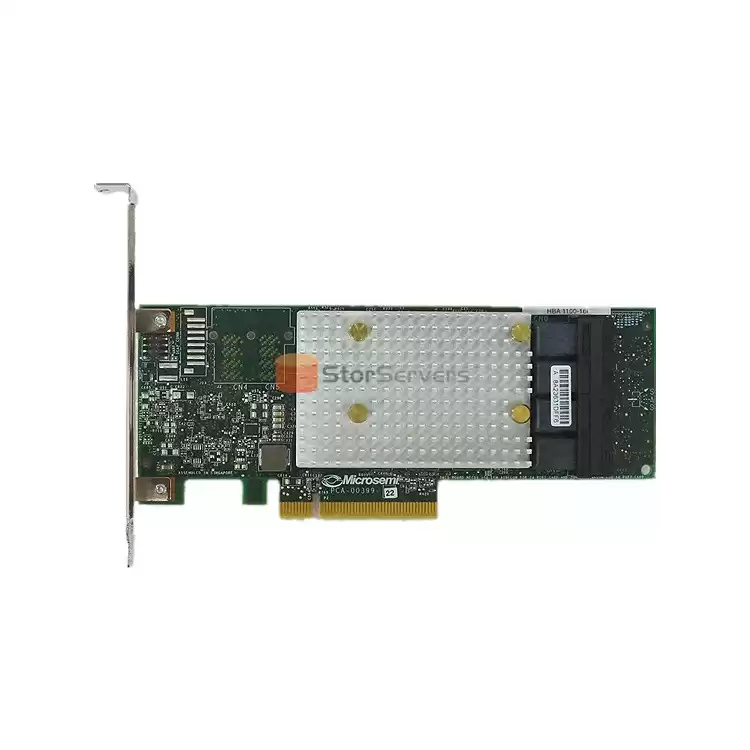

HBA 1100-16i 2293500-R Host Bus Adapter
Benefits
• A 4- to 24-port HBA family, ideal for server solutions supporting SAS/SATA HDDs, tape devices, and SSDs that require maximum connectivity, bandwidth, and I/O performance
• Performance of up to 1.7M IOPS, low latency, and low CPU utilization fully saturating the x8 PCIe Gen3 host bus
• Inbox drivers and broad operating system support and device and platform capability provides a single solution for servers, and all device connectivity needs
Highlights
• Up to 24 native SAS/SATA ports; low-profile/ MD2 form factor
• 12 Gbps SAS data rates using mini-SAS HD connectors
• Quality and reliability through the unified, hardened Smart Storage stack, which is deployed in over 30M servers
• Proven compatibility and seamless integration with existing Microsemi Adaptec solutions that leverage the unified maxView management tool suite for remote and local setup and maintenance
• Uses the latest 28nm SmartIOC 2100 SAS/SATA protocol controller to drive efficiency and performance while also having the industry's lowest power consumption
Specification
|
Model
|
HBA 1100-16i
|
|
PN
|
2293500-R
|
|
Internal Connectors
|
4 (×4) SFF-8643
|
|
Device Support
|
Support for up to 256 SAS/SATA target devices
|
|
Data Transfer Rates
|
Up to 12 Gb/s per port
|
|
Host Bus Type
|
8-Lane PCIe Gen 3
|
|
Physical Dimensions
|
Low-profile, MD2
|
|
Availability
|
In Stock
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
