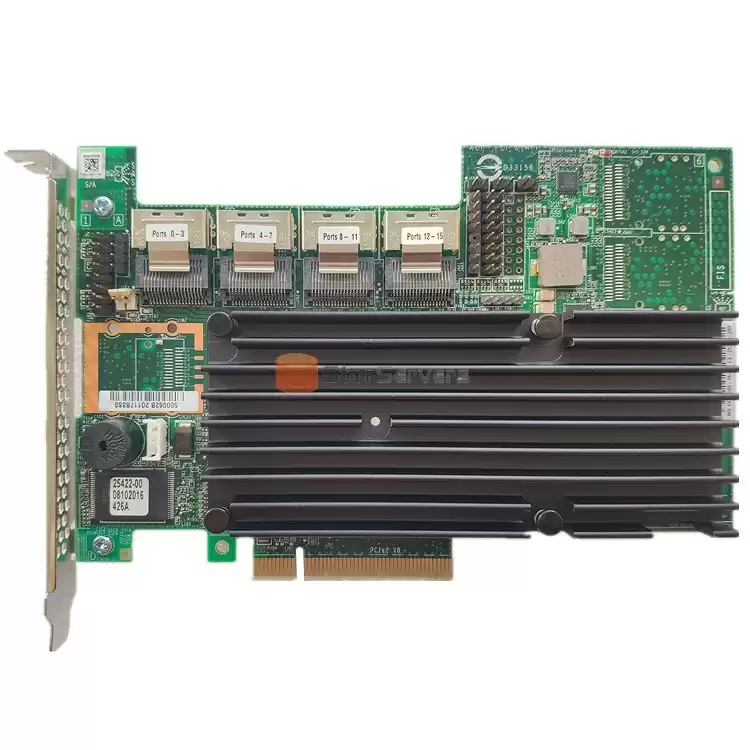

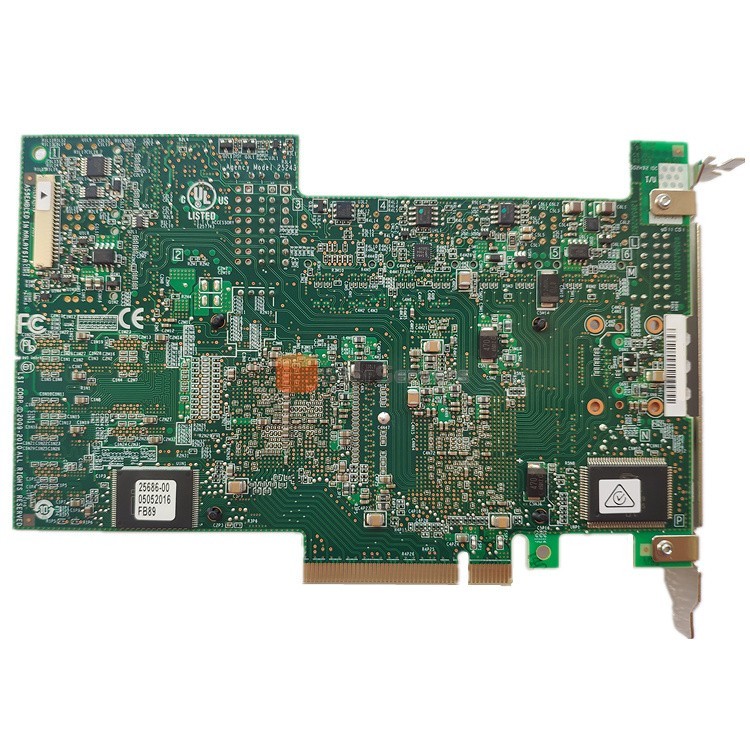

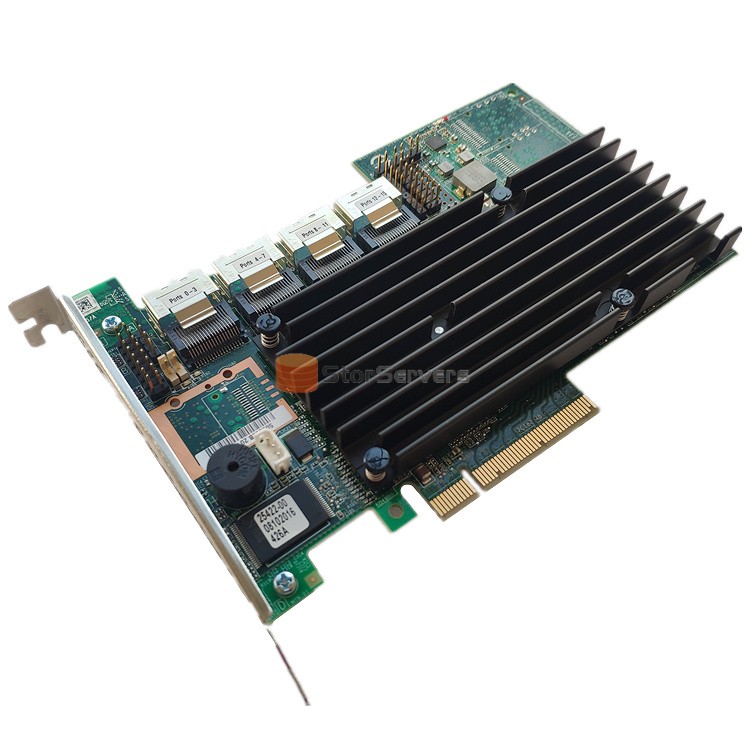

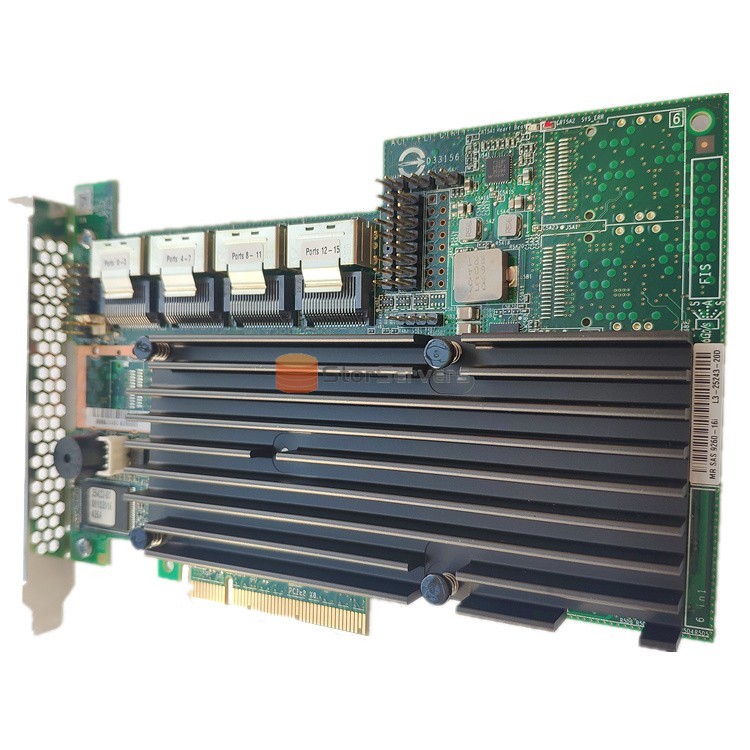

LSI SAS 9260-16i L5-25243-06 LSI00208 6GB/s RAID CARD
Key Features
■ Sixteen-port internal 6Gb/s SATA+SAS ports
■ Four Mini-SAS internal connector (SFF-8087)
■ LSI SAS 2108 6Gb/s RAID-on-Chip
–800MHz PowerPC®
■ 512MB 800MHz DDRII cache memory
■ Optional battery backup module
■ RAID Levels 0, 1, 5, and 6
■ RAID Spans 10, 50, and 60
Key Advantages
■ Superior Performance
–Maximum Reads: 2,875MB/s
–Maximum Writes: 1,800MB/s
■ PCI Express® 2.0 provides faster signaling for highbandwidth applications
■ SafeStore™ Encryption Services for more secure data protection
Typical Applications
■ Video-On-Demand
■ Video-Surveillance
■ Video Creation + Editing
■ Medical Imaging
■ High-Performance Computing
■ Digital Content Archive and VTL
■ Storage Appliance
■ File, Web, Database, and Email Servers
Specification
| Model |
LSl 9260-16i |
| MPN |
L5-25243-06 |
OPN
|
LSI00208
|
| Connectors |
Four Mini-SAS SFF-8087 internal connector |
| Device Support |
Up to 128 SATA and/or SAS hard drives and SSDs |
| Data Transfer Rates |
Up to 6 Gb/s per port |
Cache Memory
|
512MB 800MHz DDR II SDRAM
|
| Host Bus Type |
x8 lane PCI Express 2.0 Compliant |
| l/0 Processor/SAS Controller |
LSI SAS 2108 RAID on Chip (ROC) and LSI SAS 2x36 Expander |
| RAID levels |
0，1，5，6，10，50，60 |
Physical Dimensions
|
MD2 Low profile (6.6” X 2.536”)
|
| Availability |
In Stock |
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
About Us
STOR TECHNOLOGY LIMITED founded in 2007, focusing on providing hardware solutions for cloud computing ,cloud storage,data centre, security monitor, customized server and other fields. Our main products are Raid Card, HBA Card,Fiber Card,Network Card,Hard Drives,CPU. We can provide long-term good after sales service for customers. ODM orders Welcome!
Our Advantages
FAQ
Q1: What payment method do you accept?
A1: Trade assurance, T/T, Western Union
Q2: What is the mininum order Quantity(MOQ）?
A2: We can sell one piece for testing.
Q3: When is the lead time of your products?
A3: we have stock, we can provide fast delivery within 2~3 days for 10pcs.
Q4: How about the warranty service?
A4: 3 year for wanrranty free.
