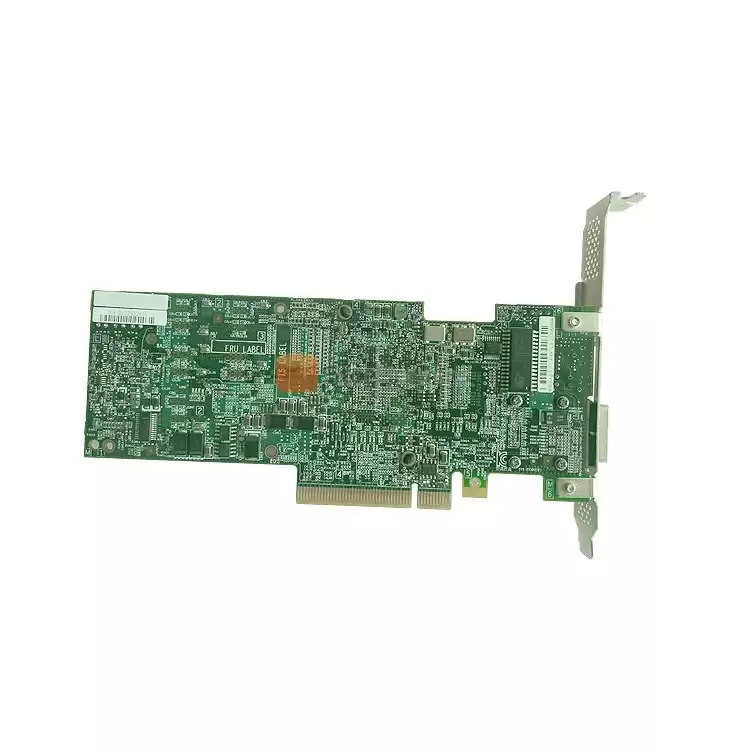

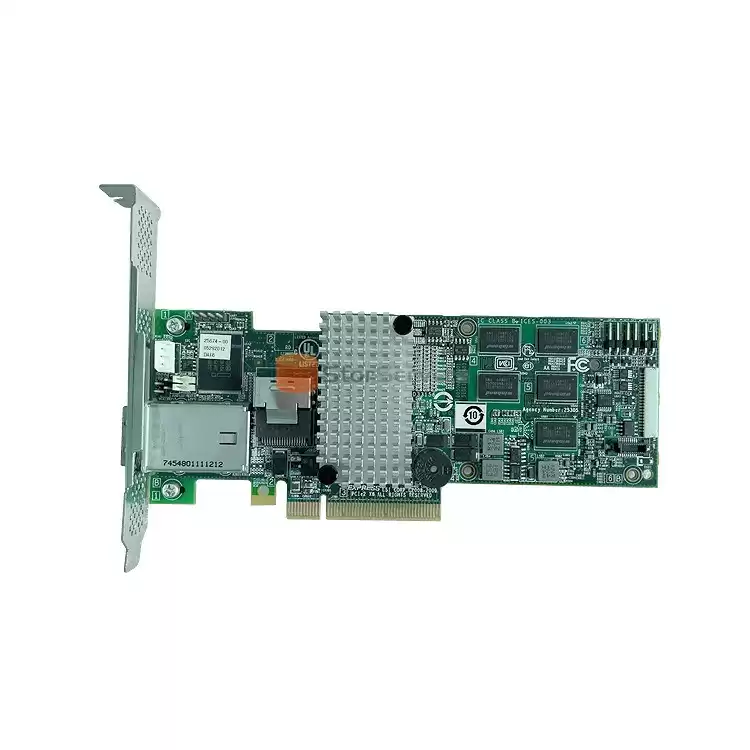

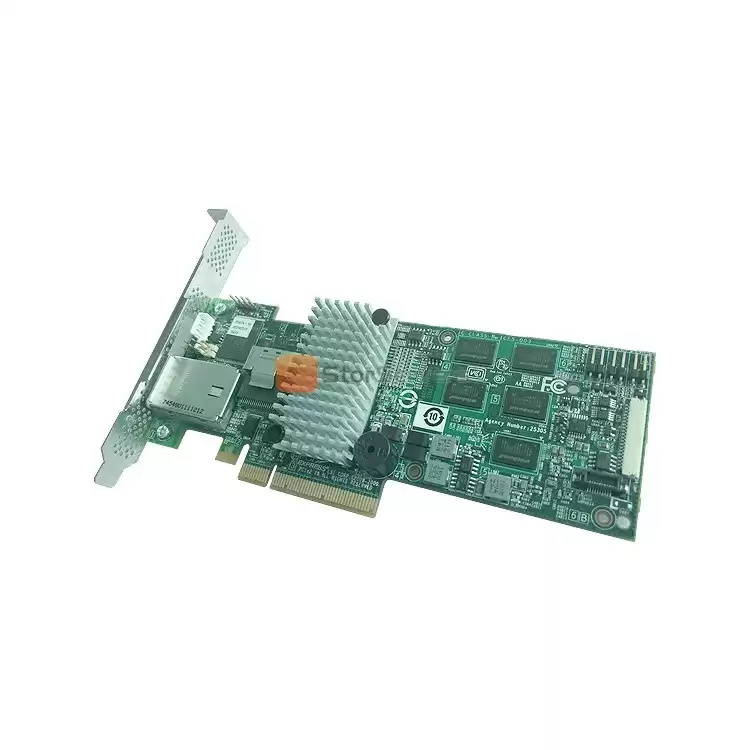

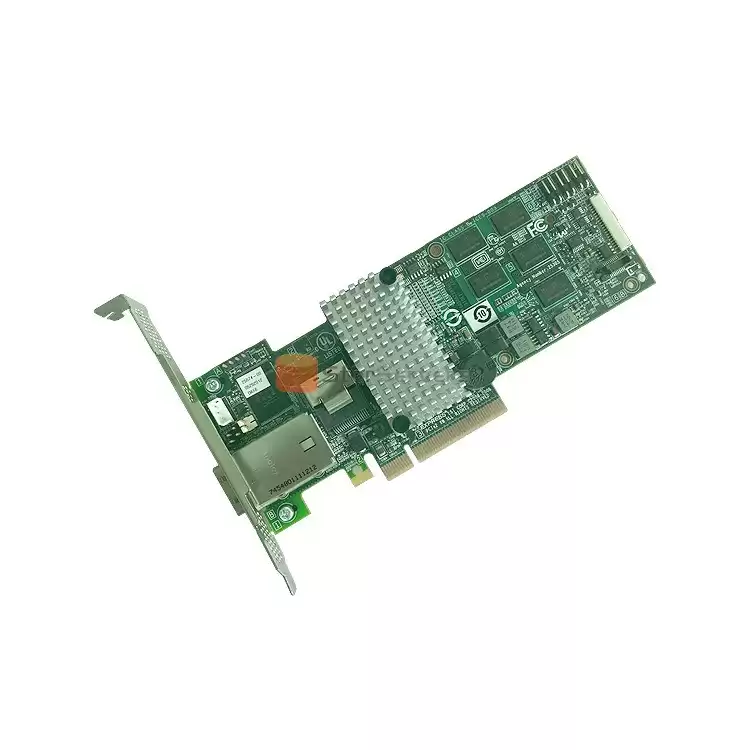

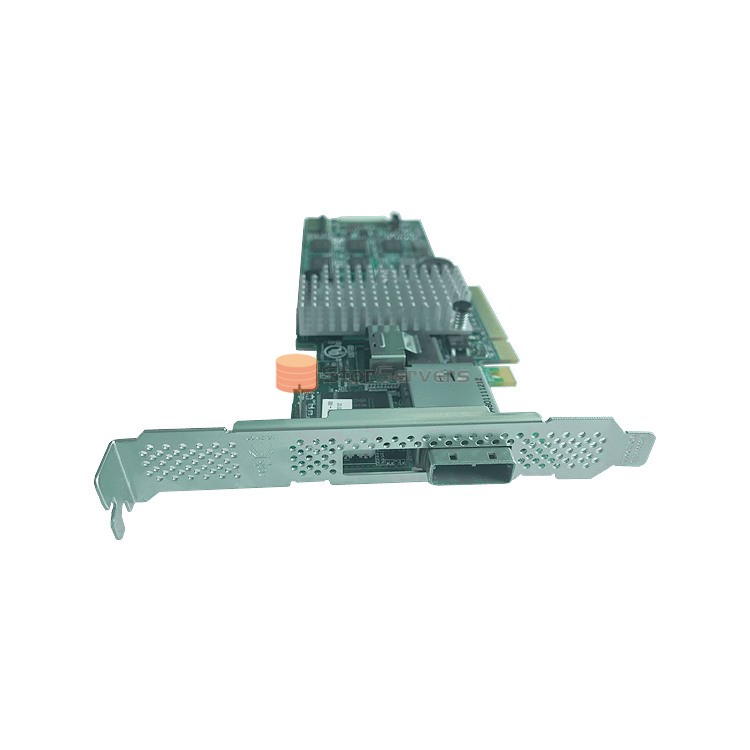

LSI 9280 4i4e 6gb/s raid card L5-25305-05
-
Key Features
■ Four internal + Four external 6Gb/s SATA+SAS ports
■ One Mini-SAS internal connector (SFF-8087)
■ One Mini-SAS external connector (SFF-8088)
■ LSI SAS 2108 6Gb/s RAID-on-Chip –800MHz PowerPC®
■ 512MB 800MHz DDRII cache memory
■ Optional battery backup module
■ RAID Levels 0, 1, 5 and 6
■ RAID Spans 10, 50 and 60
Key Advantages
■ Superior Performance
–Maximum Reads: 2,875MB/s
–Maximum Writes: 1,800MB/s
■ PCI Express® 2.0 provides faster signaling for high bandwidth applications
■ Support for 3Gb/s and 6Gb/s SATA and SAS hard drives
■ SafeStore™ Encryption Services for more secure data protection
Specification
|
Model
|
LSl 9280-4i4e
|
|
MPN
|
L5-25305-05
|
|
OPN
|
LSI00209
|
|
Internal Connectors
|
One Mini-SAS SFF8087 4i internal connector
|
|
External Connectors
|
One Mini-SAS SFF8088 x4 external connector
|
|
Device Support
|
Up to 240 SAS and/or SATA hard drives
|
|
Data Transfer Rates
|
Up to 6 Gb/s per port
|
|
Cache Memory
|
512MB 800MHz DDR II SDRAM
|
|
Host Bus Type
|
x8 lane PCI Express 2.0 Compliant
|
|
l/0 Processor/SAS Controller
|
LSI SAS 2108 RAID-on-Chip (ROC)
|
|
RAID levels
|
0，1，5，6，10，50，60
|
|
Physical Dimensions
|
MD2 Low profile (6.6” X 2.536”)
|
|
Availability
|
In Stock
|
Lead time
| Quantity (pieces) |
1-10 |
10-60 |
>60 |
| Lead time (days) |
3 |
3-5 |
To be negotiated |
