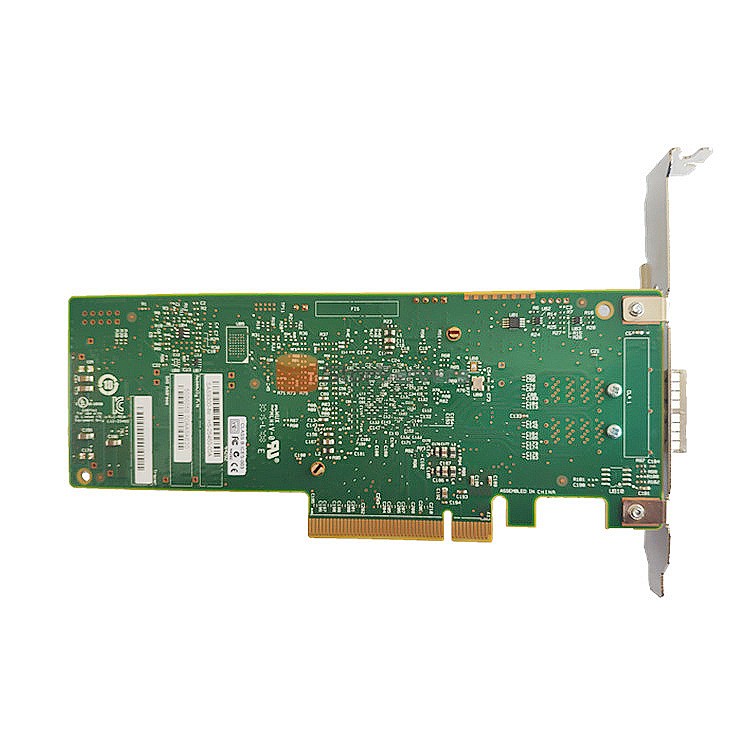

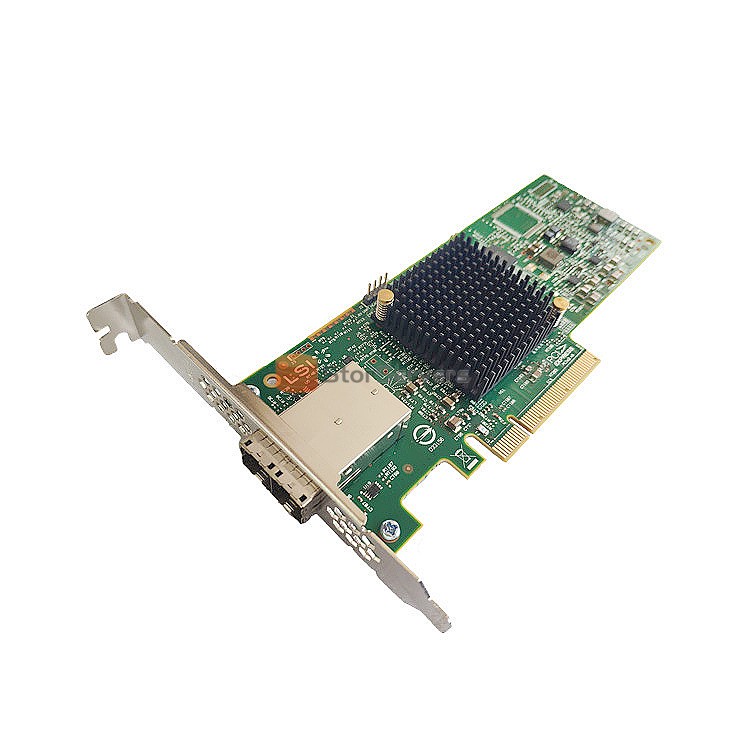

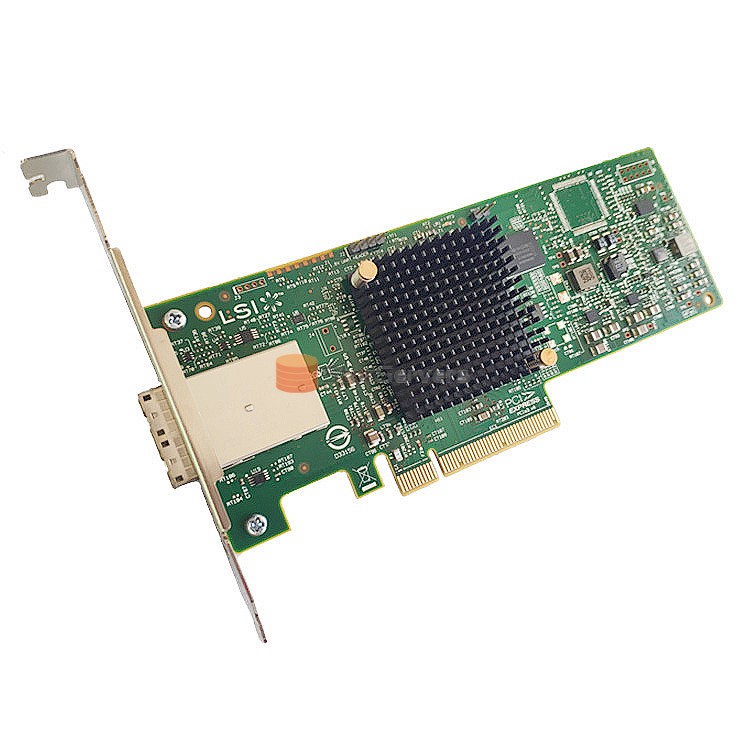

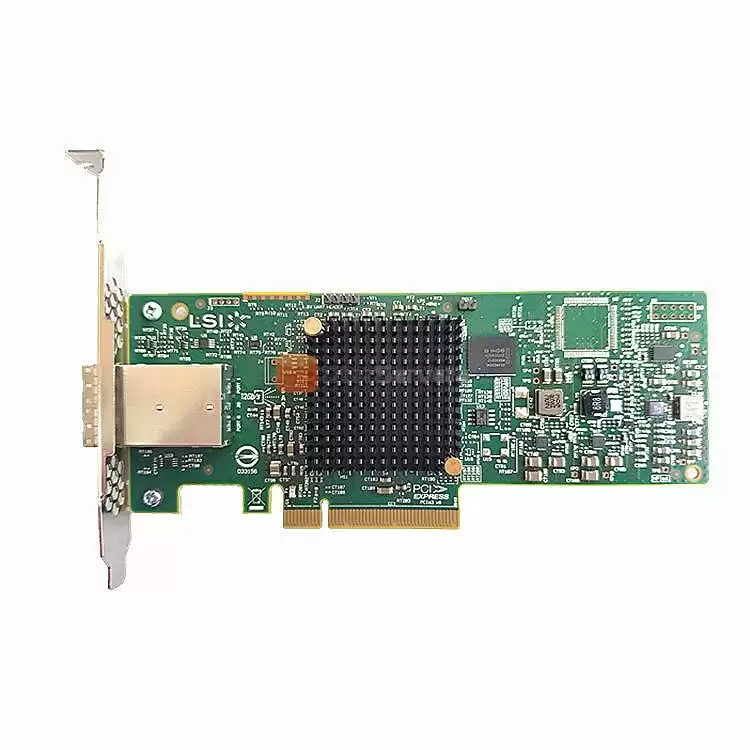

N2225 00AE912 12Gb SAS External HBA card
Key Features
■ LSI SAS3008 12 Gbps I/O controller
■ PCIe low profile , half-length form factor
■ PCI Express 3.0 x8 host interface
- ■ Eight external 12 Gbps SAS/SATA ports
- ■ Supports 12, 6, and 3 Gbps SAS and 6 and 3 Gbps SATA data transfer rates
- ■ Up to 12 Gbps throughput per port

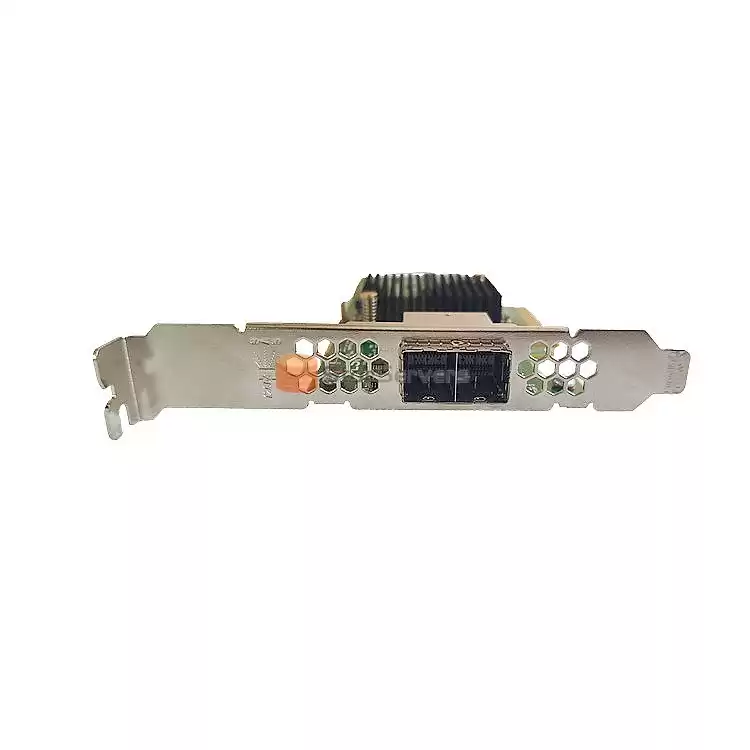

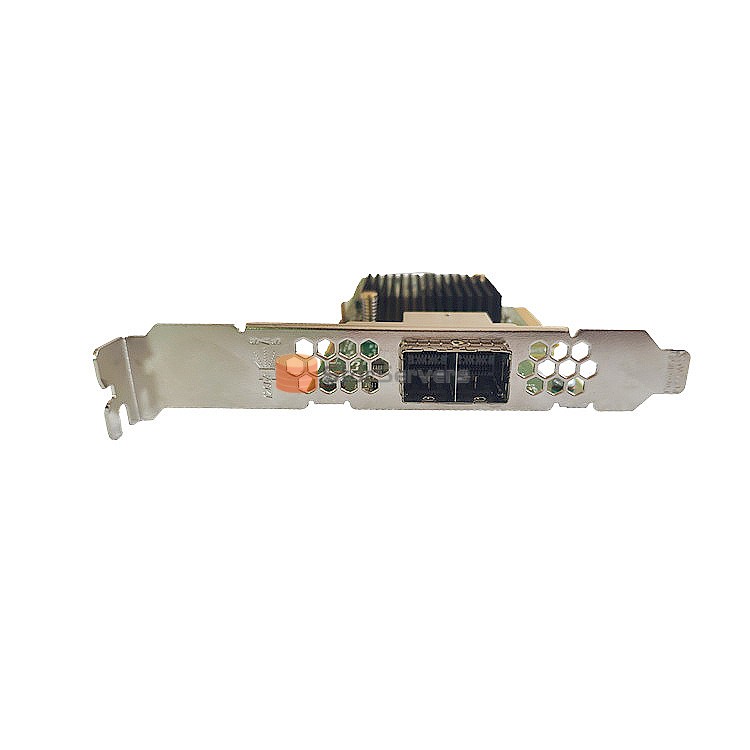

■ Two external x4 mini-SAS HD connectors (SFF-8644)
■ Non-RAID SAS HBAs that support connectivity to the storage systems and tape drives
■ High-performance IOPS LSI Fusion-MPT architecture
■ Advanced power management support
■ Support for SSP, SMP, STP, and SATA protocols
■ Support for narrow and wide ports
■ End-to-End CRC with Advanced Error Reporting
■ T-10 Protection Model for early detection of and recovery from data corruption
■ Spread Spectrum Clocking for EMI reductions
Key Advantages
The N2225 SAS/SATA HBAs provide high performance for storage connectivity for servers by integrating the latest enhancements in PCI Express and SAS technology, offering eight lanes of 12 Gbps SAS matched with eight lanes of PCIe 3.0 to eliminate performance bottlenecks and provide high data transfer rates for medium-to-large capacity server storage applications. The N2225 SAS/SATA HBAs support SAS data transfer rates of 3, 6, and 12 Gbps per lane and SATA transfer rates of 3 and 6 Gbps per lane, and they enable maximum connectivity and performance in a low-profile form factor. Rigorous testing of the N2225 SAS/SATA HBAs through the ServerProven® program ensures a high degree of confidence in storage subsystem compatibility and reliability. Providing an additional peace of mind, these controllers are covered under warranty.
Specification
| Model |
N2225 |
| Ports |
8 port ext |
| PN |
00AE912 |
| Connectors |
Mini SAS HD SFF8644 Two (x4) |
| Storage Connectivity Data Transfer Rates |
12Gb/s SAS 3.0 Compliant |
| I/O Controller |
SAS 3008 Fusion MPT 2.5 |
| Host Bus Type |
x8 lane, PCIe 3.0 |
| Form Factor |
Low Profile |
| Cable Support |
Passive Copper |
Availability
|
In Stock |
Warranty
|
3 Years |
