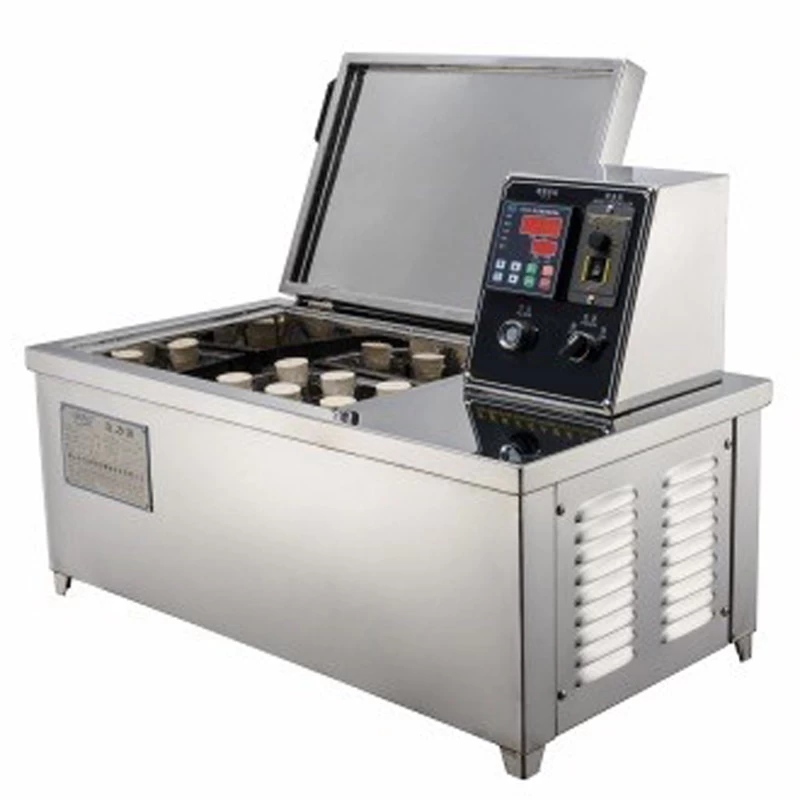

AC17-Oscilation Dyeing Machine
Application Of Oscilation Dyeing Machine
Oscilation Dyeing Machine is used to testing of dyeing formulations, washing, bleaching, fixing, dyeing and fastness of various natural fabrics, chemical fiber fabrics, cotton fabrics and blended fabrics at room temperature. AC17 Oscilation Dyeing Machine can accurately simulate the actual production conditions, thereby effectively improve the dyeing uniformity, accuracy and stability.
Features Of Oscilation Dyeing Machine
-
Cylinder block and surface are made of SUS304 mirror stainless steel.
-
High quality SUS304 stainless steel heating tube with long service life.
-
Crank connecting rod swivel mechanism lower the noise generated when the cup holder straight moving.
-
Can be programmed for heating rate, holding time, precision heating system.
-
PT100 temperature sensor makes high temperature measurement accuracy. The entire process can be fully automatic controlled.
Key Specification Of Oscilation Dyeing Machine
|
Model
|
AC17-12
|
AC17-24
|
|
Number of
dyed cups
|
12
|
24
|
|
Cup
capacity
|
250ml
|
|
Amplitude
|
38±2
|
|
Oscillation
frequency (times / min)
|
0-150
|
|
range of
working temperature
|
Room temperature to 99 ° C
|
|
Temperature
error °C
|
±0.5
|
|
Bath ratio
|
1：5-1：20
|
|
Oscillating
speed
|
50-200cpm
|
|
Oscillating
distance
|
36mm
|
|
Power
|
220V 50/60HZ
|
|
Heating
medium
|
Water
|
|
Dimension
|
90×52×52cm
|
100×52×52cm
|
|
Weight
|
35KG
|
49KG
|
