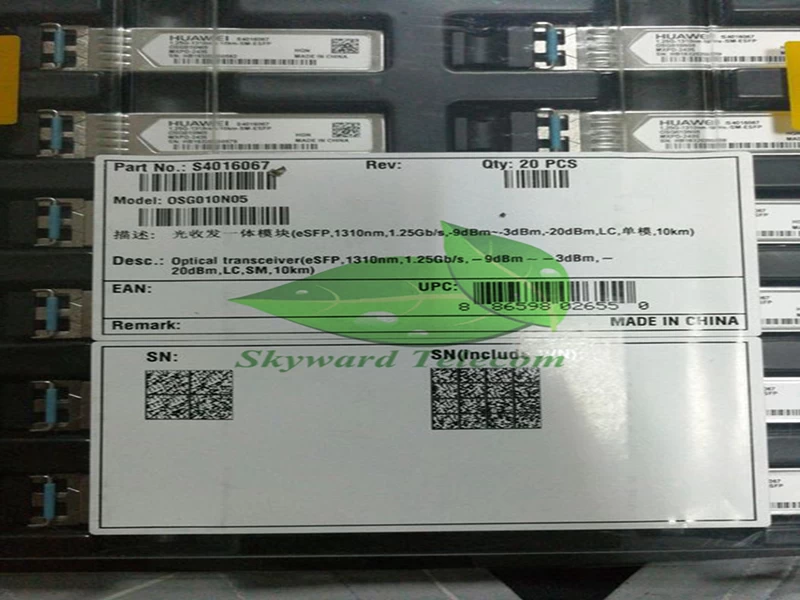

OSG010N05 Overview
Huawei OSG010N05 is SFP Double Fiber Transceiver
supporting 1.063-1.25Gbps data rate in 10 km distance over Single-Mode Fiber
(SMF).
Brand Name: Huawei
Product Number: OSG010N05
Discription: Optical
transceiver(eSFP,1310nm,1.25Gb/s,-9dBm~-3dBm,-20dBm,LC,SM,10km)
|
Media
Type:
|
Single-Mode Fiber (SMF)
|
|
TX Wavelength:
|
1310 nm.
|
|
RX Wavelenght:
|
1310 nm.
|
|
Minimum Optical Budget:
|
13 dB
|
|
Maximum Distance:
|
10km
|
|
Supported Data Rate:
|
1.063-1.25Gbps
|
|
Supported Applications:
|
Gigabit Ethernet (1.25 Gbps), 1G
Fiber Channel (1.0625 Gbps)
|
|
DDM/DOM:
|
Support
|
|
Temperature Range:
|
Standard 0°-70°C
|
|
Connectors:
|
Double LC
|
|
Tx Wavelength Bandwidth:
|
100 nm (1260-1360 nm)
|
|
Rx Wavelength Bandwidth:
|
100 nm (1260-1360 nm)
|
|
Minimum Transmitting Power:
|
-9 dB
|
|
Maximum Transmitting Power:
|
-3 dB
|
|
Receiver Sensitivity:
|
-22 dBm
|
|
Receiver Overload:
|
-3 dBm
|
|
Dispersion:
|
70-100 ps/nm
|
|
Transmitter Type:
|
FP Laser
|
|
Receiver Type:
|
PIN photodiode
|
|
Power:
|
+3.3V single power supply
|
|
Chipset:
|
MAXIM, MINDSPEED, SEMTECH
|
|
Compliance:
|
CE, Class 1 FDA and IEC60825-1 Laser
Safety Compliant, INF-8074i, RoHS, SFP MSA
|
|
Transceiver Type:
|
SFP
|
