LED Module
|
Pixel Pitch
|
P6/P8 /P10 mm
|
|
Pixel Configuration
|
SMD 3535
|
|
LED Lamp
|
King light /Nation Star
|
|
IC
|
5020 /5124 / 5153 /2037/ 2038 /2038S
|
|
LED Lamp
|
Cabinet size (W*H)
|
customized curve size
|
|
Cabinet material
|
Iron
|
|
Cabinet weight (KG)
|
40 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight /Huidu /Sheen color
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
5500-6500 cd/m²
|
|
Best viewing distance
|
6-100 m
|
|
Viewing angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
100,000 Hours
|
|
Working Voltage
|
Working Voltage
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
Back side
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|

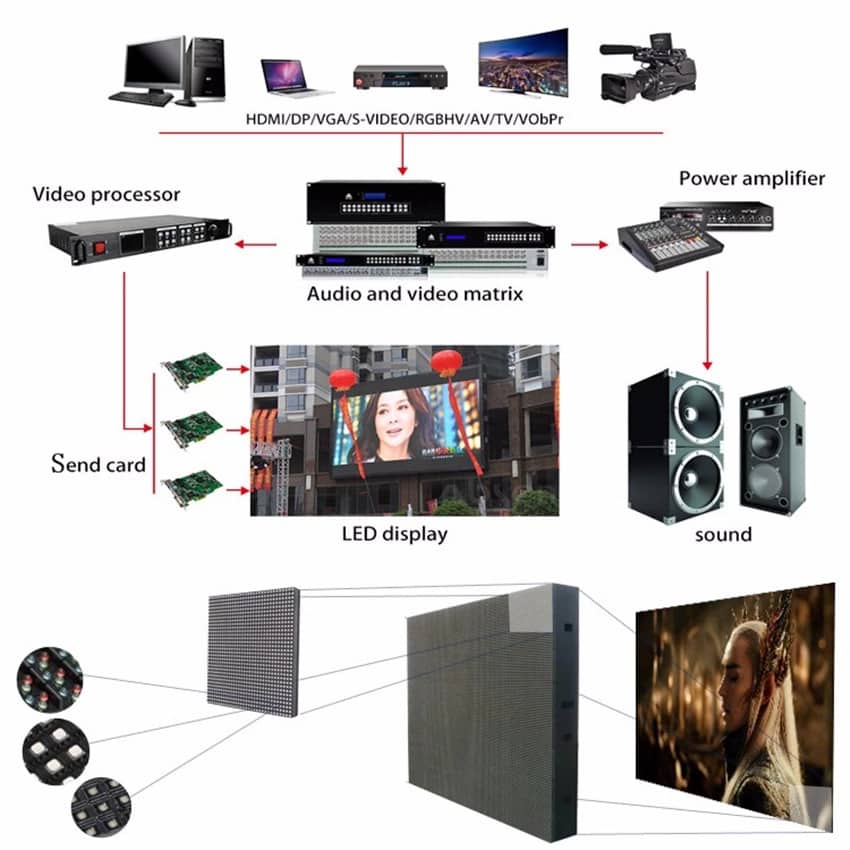

Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Cabinet Features:
1.LED gas price sign suits for strict weather conditions with IP65 rating
2.Seamless splicing LED counter display
3.LED marquee sign with scientific structure design and cooling system to ensure the stability and reliability, even long time continuous use
4.Quick installation and easy maintenance LED wall backdrop
5.Enery-saving outdoor electronic message boards and small LED screen
6.Large outdoor led displays with Easy installation outdoor LED sign for business
7.Environmental protection electronic display
8.Programmable LED message board with high brightness and 3840Hz refresh rate
9.LED window sign using high reflesh IC, better viewing effect
10.LED TV display and LED church signs passed highest /lowest temperature testing
11.LED sign supply with larger viewing angle: Horizontal angle 160 degree, Vertical angle 140 degree
12.Electronic sign board with multiplied file formats, such as AVI, MOV, MPG, DAT, VOB, also the LED display bases have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
13.4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
14.Outdoor digital display board Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC synchronously.
15.Exterior led screen Line-Double technology is adopted in outdoor electronic signs prices for the picture adjustment.
16.HONG HUI Large outdoor display Can be connected with PC and the web net to show the content, and also the LED screen can be controlled remotely via VPM+ADSL.
