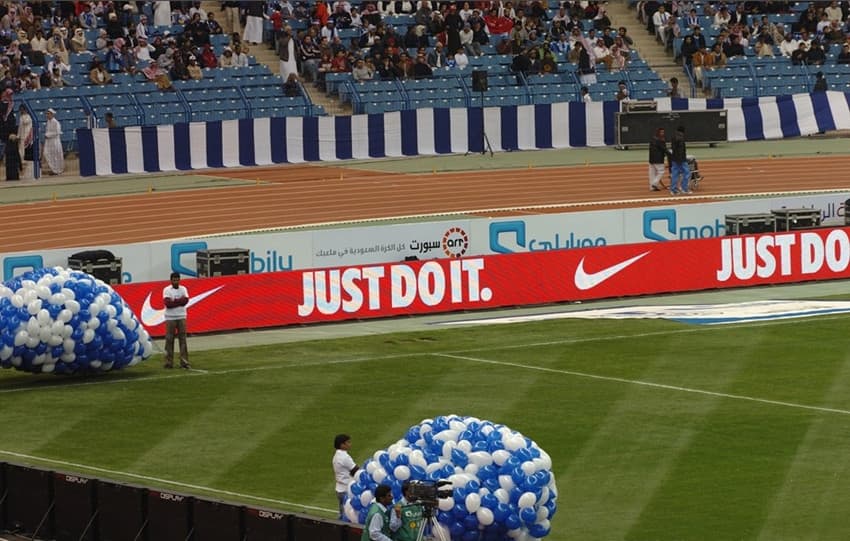

Outdoor Sports Stadium Large LED Displays and Programmable Scrolling Led Sign Specification
1.Outdoor LED billboard and outdoor programmable led signs have IP65 waterproof, anti-ultraviolet, wind resistance , vibration resistant
2.Base structure adjustable, full color led ensure better watch games from different viewing angle

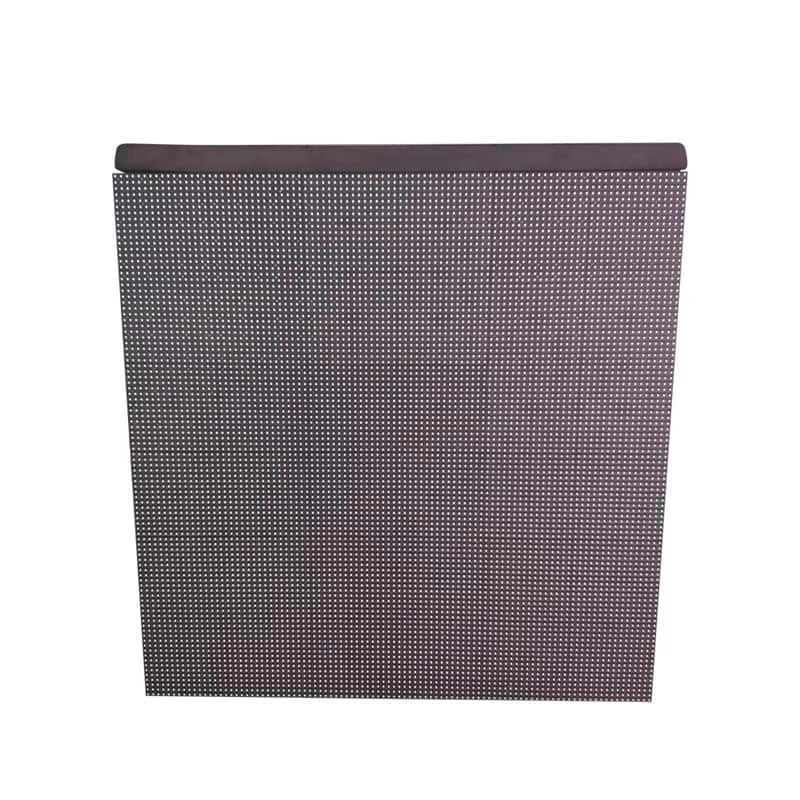

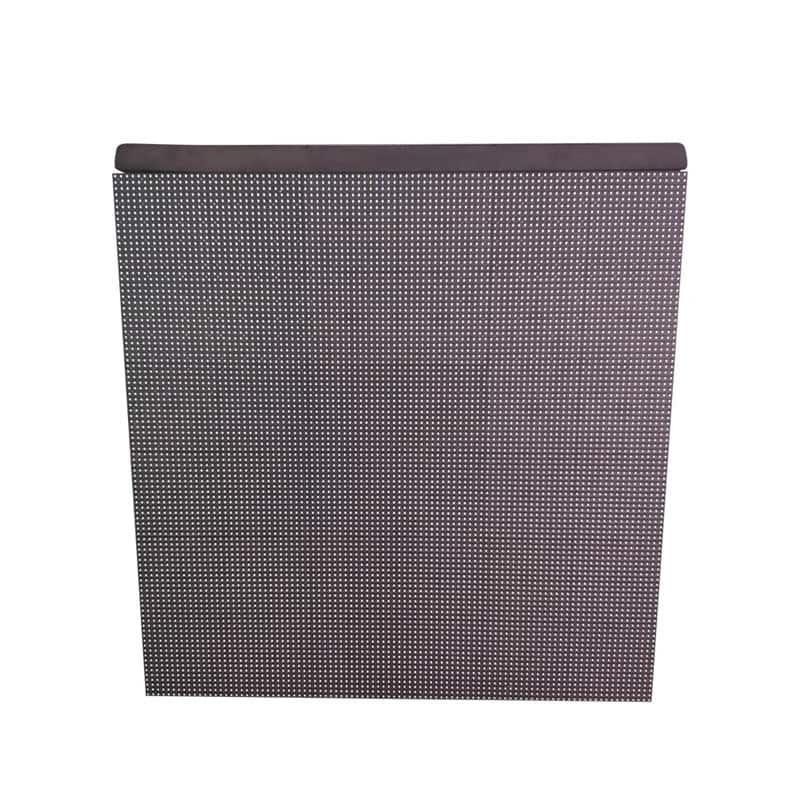

3.Die cast aluminum led cabinet, thin and light weight, foam removed, can use for rental (led stage panels)
4.LED pixel panels own soft led module mask, to protect athletes
5.Lightweight, commercial led display convenient in transporting and installing & saving labor cost, suitable for flow shows
6.Led window displays have nice appearance and simple structure
7.Jointed correctly, outdoor digital display can be installed & dismounted by one person without tool
8.Humanized operating interface with breakdown indicator lights, led dot matrix displays are easy to maintain
9.High debugging brightness and no damage to gray scale, led videowall and scrolling signs can achieve the debugging technology for nice image
|
LED Module
|
Pixel Pitch
|
P6/P8 /P10 mm
|
|
Pixel Configuration
|
SMD 3535
|
|
LED Lamp
|
King light /Nation Star
|
|
IC
|
5020 /5124 / 5153 /2037/ 2038 /2038S
|
|
LED Lamp
|
Cabinet size (W*H)
|

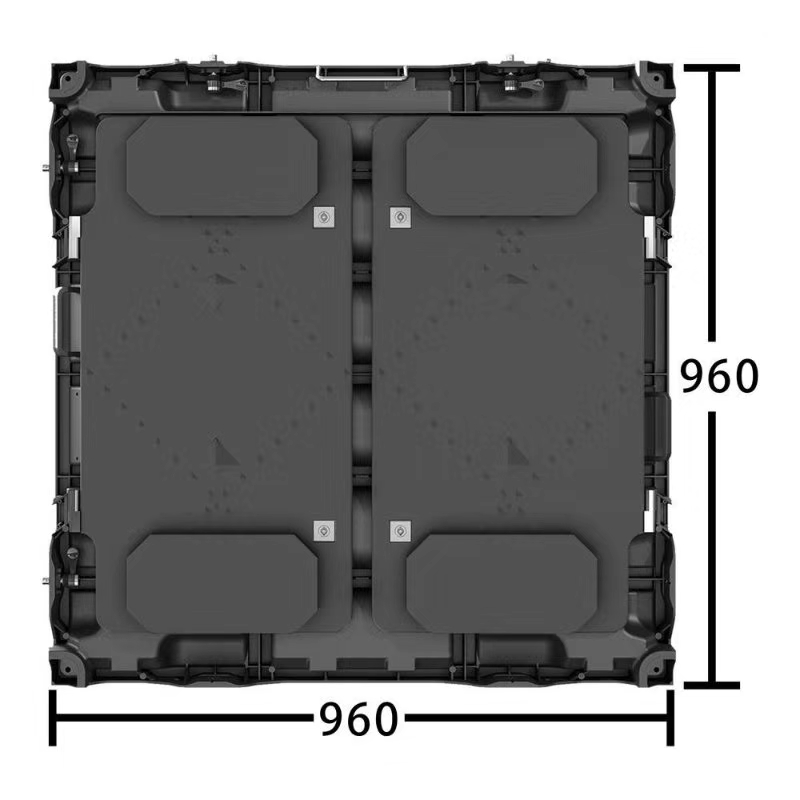

960MM*960MM
|
|
Cabinet material
|
Die-casting Aluminum
|
|
Cabinet weight (KG)
|
35 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight /Huidu /Sheen color
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
5500-6500 cd/m²
|
|
Best viewing distance
|
6-100 m
|
|
Viewing angle
|
Horizontal : 140 ° Vertical: 140 °
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
100,000 Hours
|
|
Working Voltage
|
Working Voltage
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
Back side
|
|
Maximum Power
|
800w/m²
|
|
Average Power
|
400w/m²
|
|
Input Voltage
|
220V/110V ±10%
|
|
Operation Environment
|
Temperature: -20°C~60°C; Humidity: 10%~95%
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m- 10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|

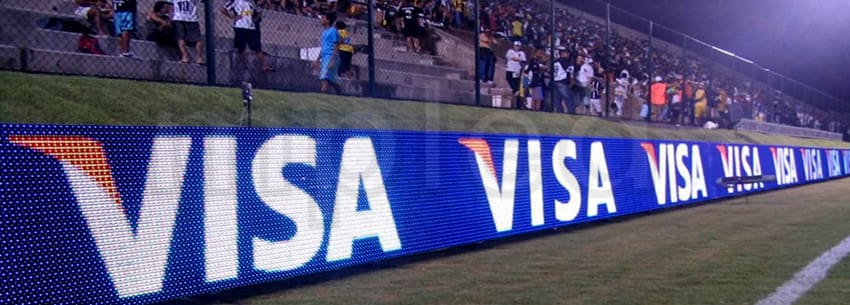

Why choose our( led sign panel supplier's) 960x960mm die casting light weight panel full color rgb SMD 3535 outdoor football sports perimeter led display :
1.Silicon rubber is chosen for waterproof protector. This material has high thermostability. We(disiplay screen manufacturers) design three-protectors structure for waterproof to protect exterior led signs.
2.The mask is designed with high capacity of impact resistence. Buffering arc-surface structure is applied for the mask shelter It can defuse the impact football, tennis ball and players.

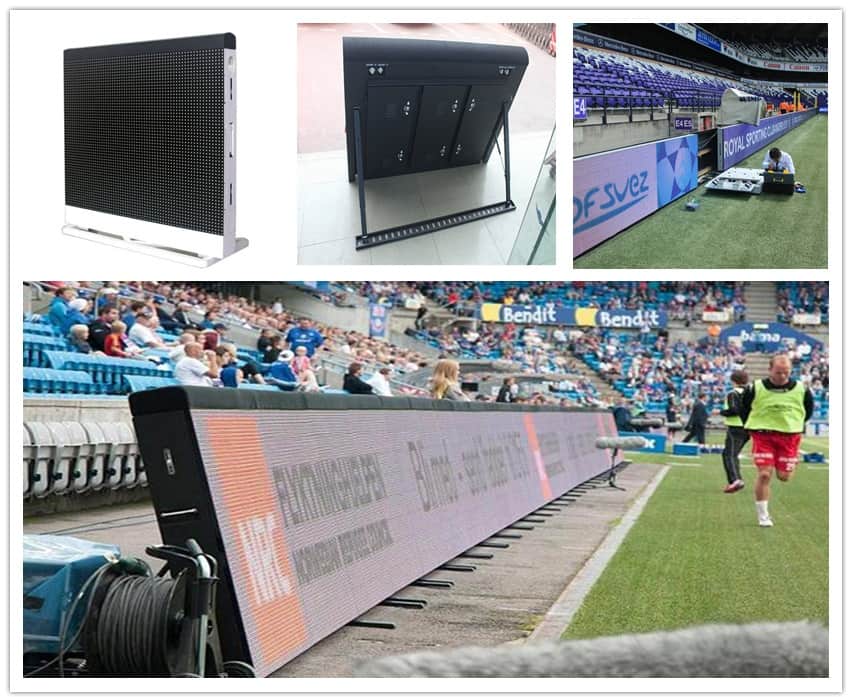

3.New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the electronic display board easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During signage led hanging.
4.New color collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screenand led panels for video wall much more elegant.

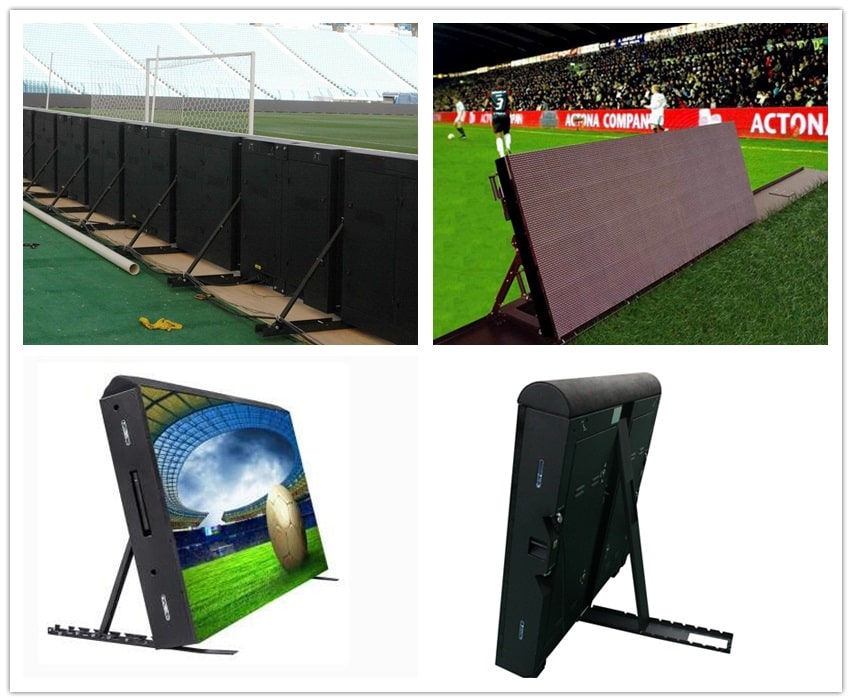

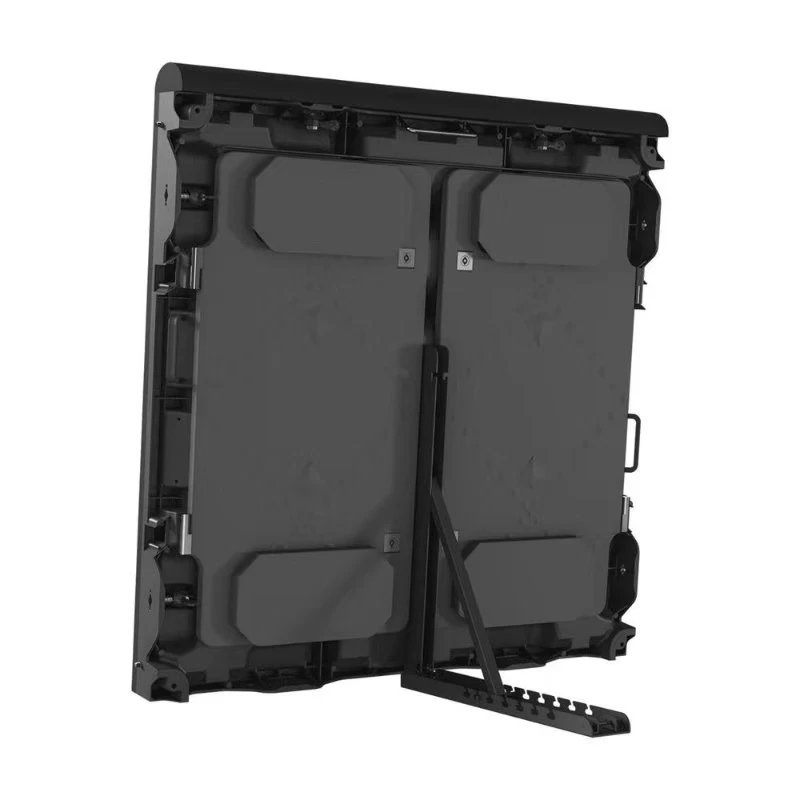

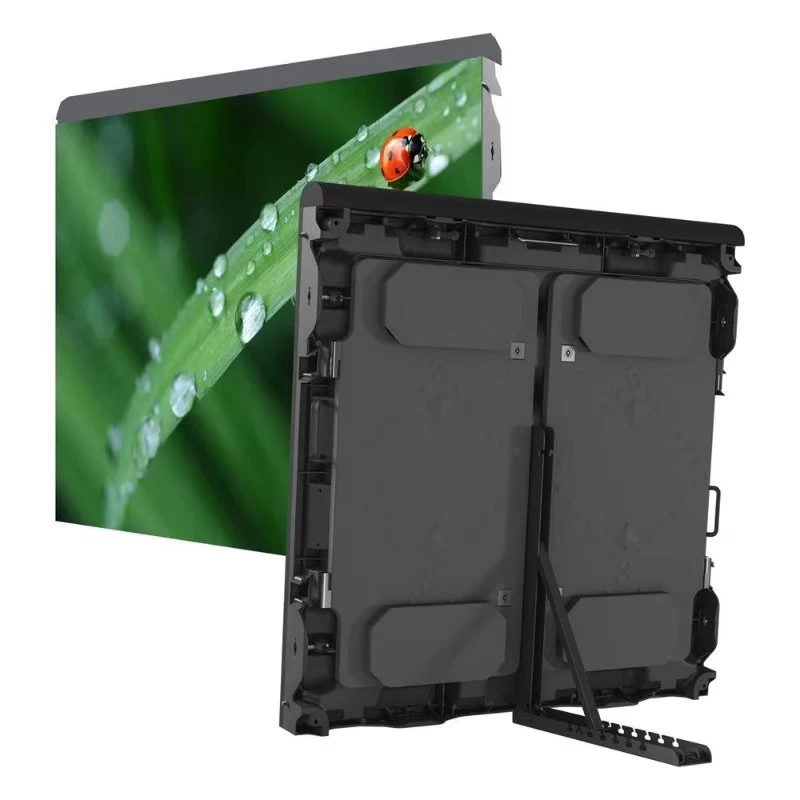

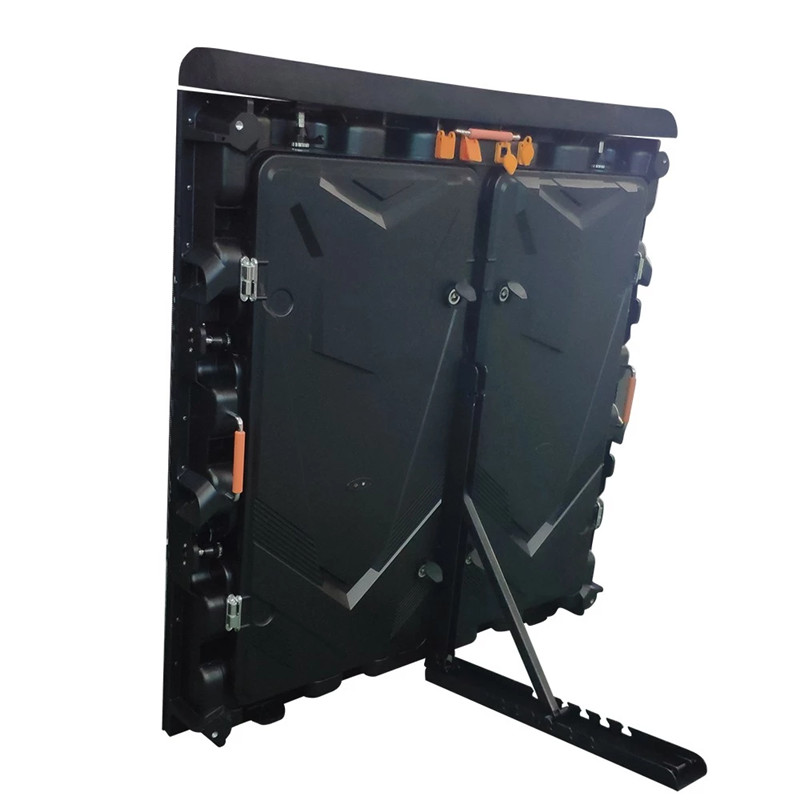

5.Angle adjustable back bracket. User can adjust outdoor led video's best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.
6.Outside led screen's rubber protector for top of cabinet to protect the player from injury.
7.Aluminum alloy is used for the cabinet by our led screen maker to reduce weight, led number displays are easy to move from this stadium to that stadium.
