Our Outdoor Full Color Wholesale LED Signs Product Features :

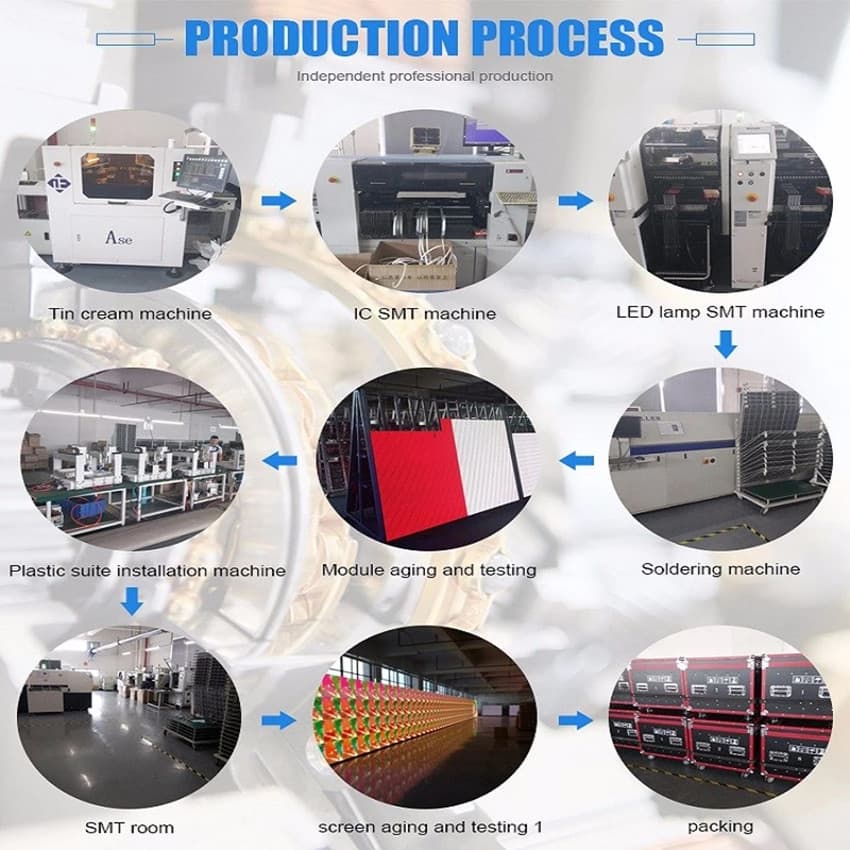

1.Goods will be examined by professional QC team before delivery
2.Variety of customized products to satisfy different requests of LED display buyers
3.LED display billboard with highest cost-effective price
4.Pure golden wire is used to connect outdoor LED display board
5.Price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality
6.All inquiry will be answered within 24 hours by well-trained and experienced staffs
7.Top Quality & Reasonable Price & Responsible After-sales Service from a LED panel producer
8.All your private information will be protected well
|

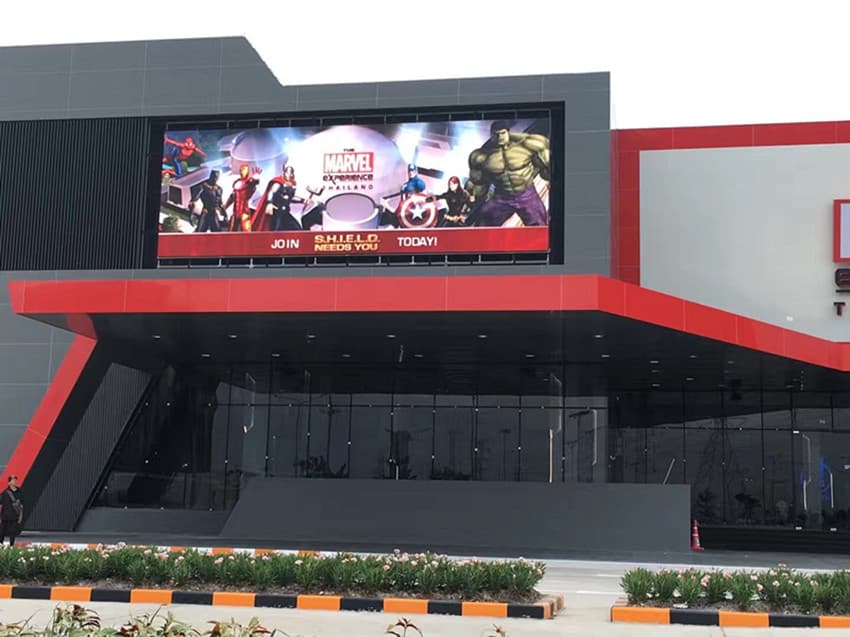

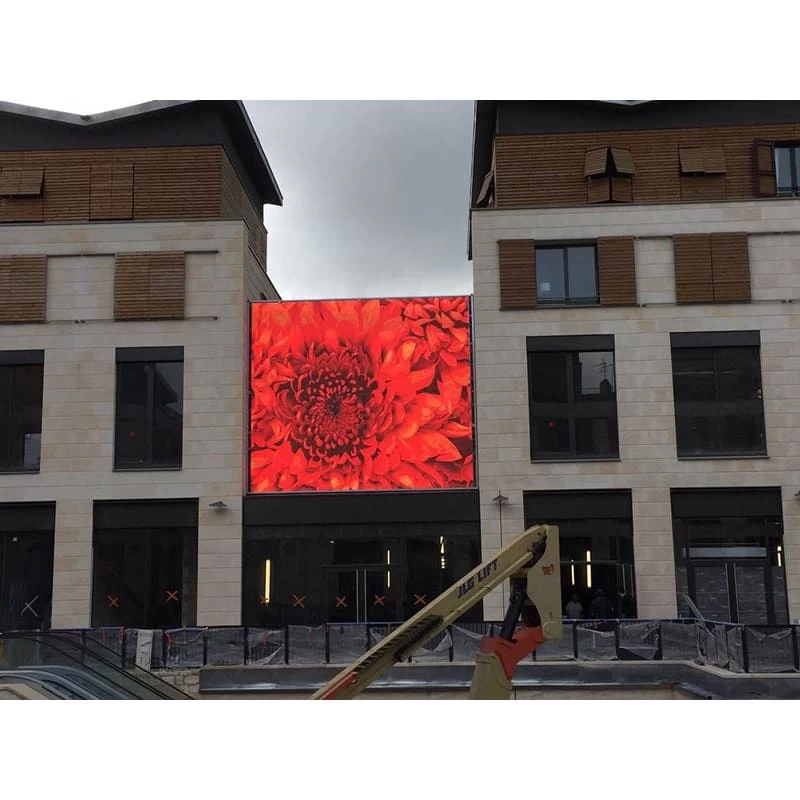

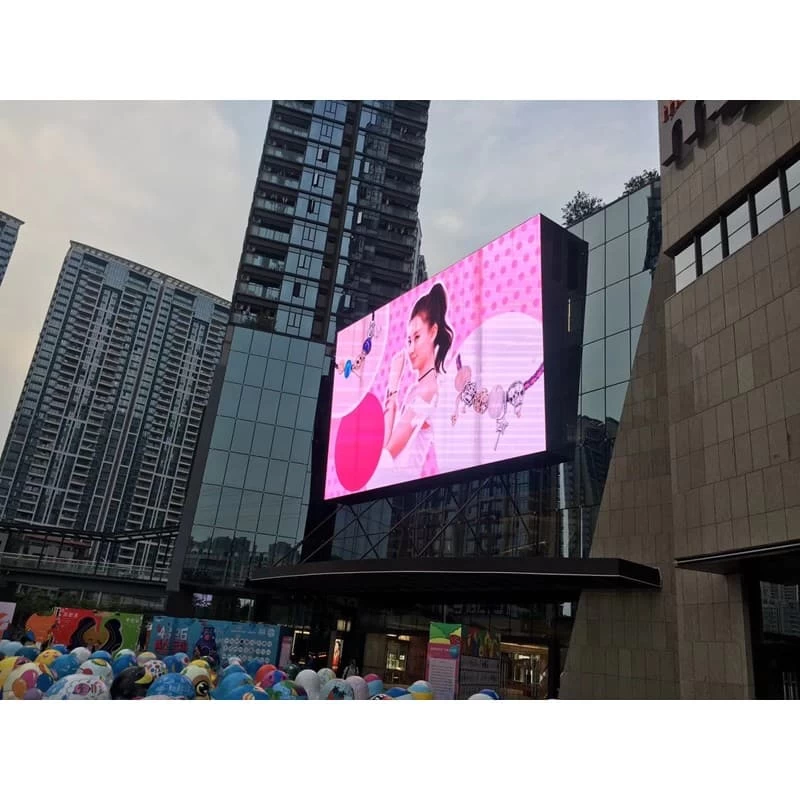

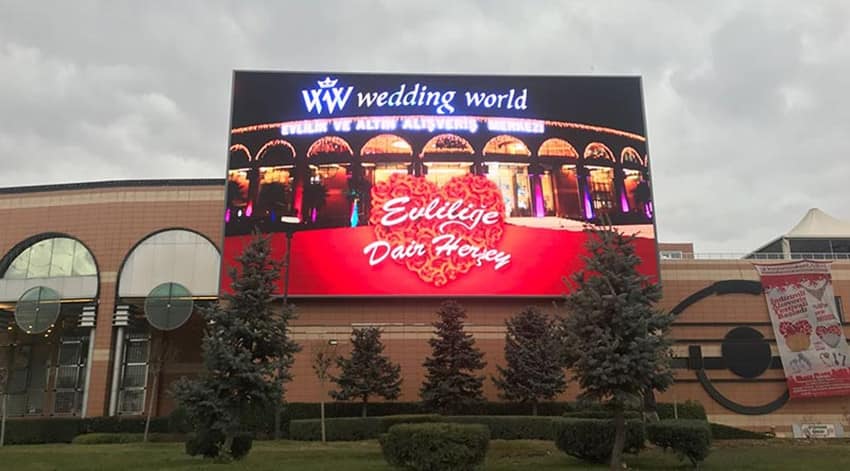

Outdoor Fixed
Installation LED Display Sign On
Building Wall
|
|
LED Module
|
Pixel Pitch (mm)
|
P4
|
P5
|
P6
|
P8
|
P10
|
|
Pixel configuration
|
SMD1921
|
SMD2727
|
SMD3535
|
SMD3535
|
SMD 3535
|
|
LED lamp
|
Nation Star /
Kinglight
|
|
IC
|
5020 /5124 /5153 /2037
/2038 /2038S /2053
|
|
Scan
|
1/8 S
|
1/8 S
|
1/8 S
|
1/4 S
|
1/2 S
|
|
Module size
|
256*128mm
|
160*160mm
|
192*192mm
|
256*128mm
|
320*160mm
|
|
Module resolution
(pixel）
|
64*32 pixel
|
32*32 pixel
|
32*32 pixel
|
32*16 pixel
|
32*16 pixel
|
|
Pixel
density (dots/m2)
|
62,500
|
40,000
|
27,777
|
15,625
|
10,000
|
|

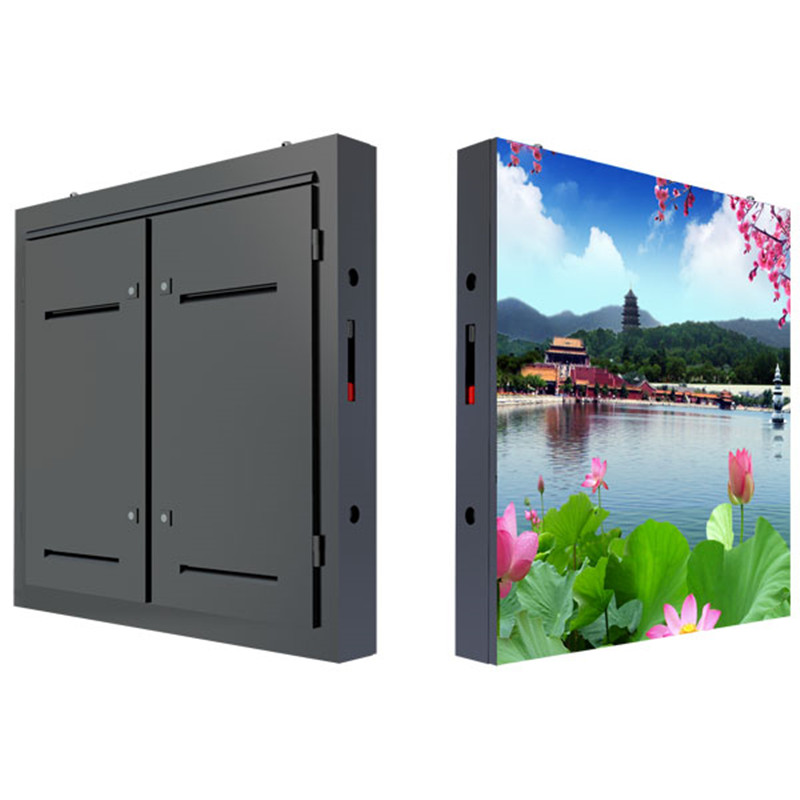

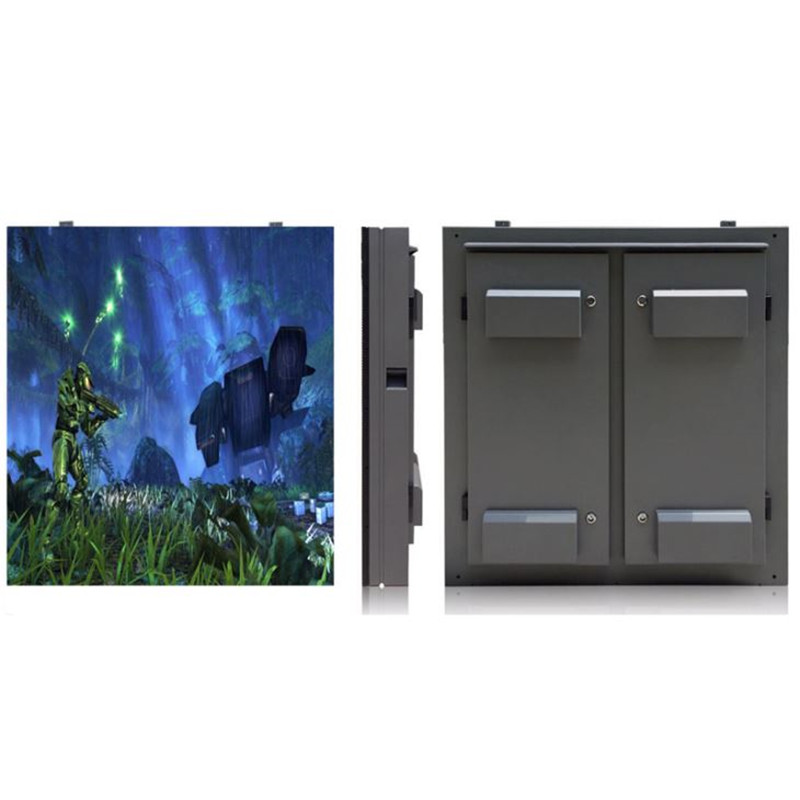

LED Cabinet
|
Cabinet size (W*H)
|
768*768mm /800*800mm
/960*800m /960*960mm /1024*768mm/ 1024*1024mm
|
|
Cabinet material
|
Iron /Aluminum
|
|
Cabinet weigt (KG)
|
Iron : 40kg/m2
Aluminum : 35 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn
/Colorlight
|
|
Control Method
|
Synchronization
/Asynchronous control
|
|
LED Screen
|
Normal Display Area
(W*H)
|
6*5 m
|
|
Normal Display Pixel
(W*H)
|
1536*1152
|
1152*960
|
960*800
|
768*640
|
576*480
|
|
Parameter
|
Brightness(cd/m2)
|
5500-7000cd/m2
|
|
Best viewing distance
|
4-50m
|
5-50m
|
6-50m
|
8-100m
|
8-100m
|
|
Viewing angle
|
140° W ; 140 °H
|
|
IP grade
|
front IP65 ,back IP 54
|
|
Life span
|
96,360 hours
|
|
Working Voltage
|
AC 220V/110V±10%
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|
Maintenance mode
|
back
|
|
Average power
consumption
|
400 W / m2
|
|
Max power consumption
|
800 W / m2
|
|
Operating Temperature
|
–30℃~+60℃10%~95%RH
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating);
Optical fiber transmission: 500m- 10km
|
|
Systems Operating
Platform
|
WINDOWS(WIN2000/
WINXP/WIN7/WIN8/WIN10)
|

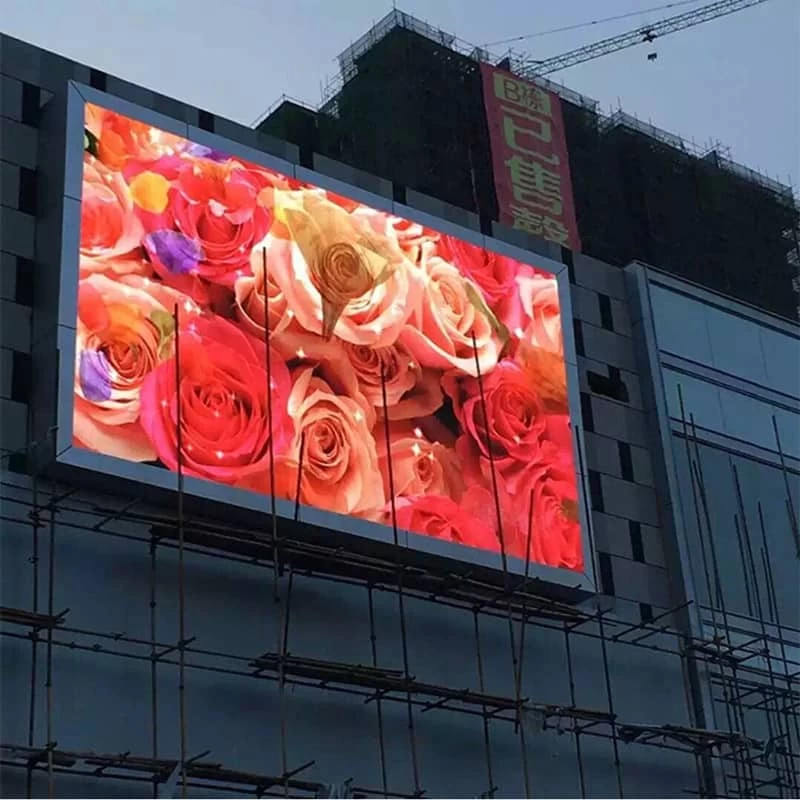

P4 P5 P6 P8 P10 outdoor fixed advertising led display :
LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.
Why choose us :
1.Classic module design, superior product performance, stability.
2.Uniform color, high contrast, beautiful natural picture.
3.New perspective optimization design, covering the mainstream audience.
4.Anti UV, anti deformation module suite to protect the screen body deformation.
5.Patent design with unique color mask processing, showing the industry leading ultra high contrast.

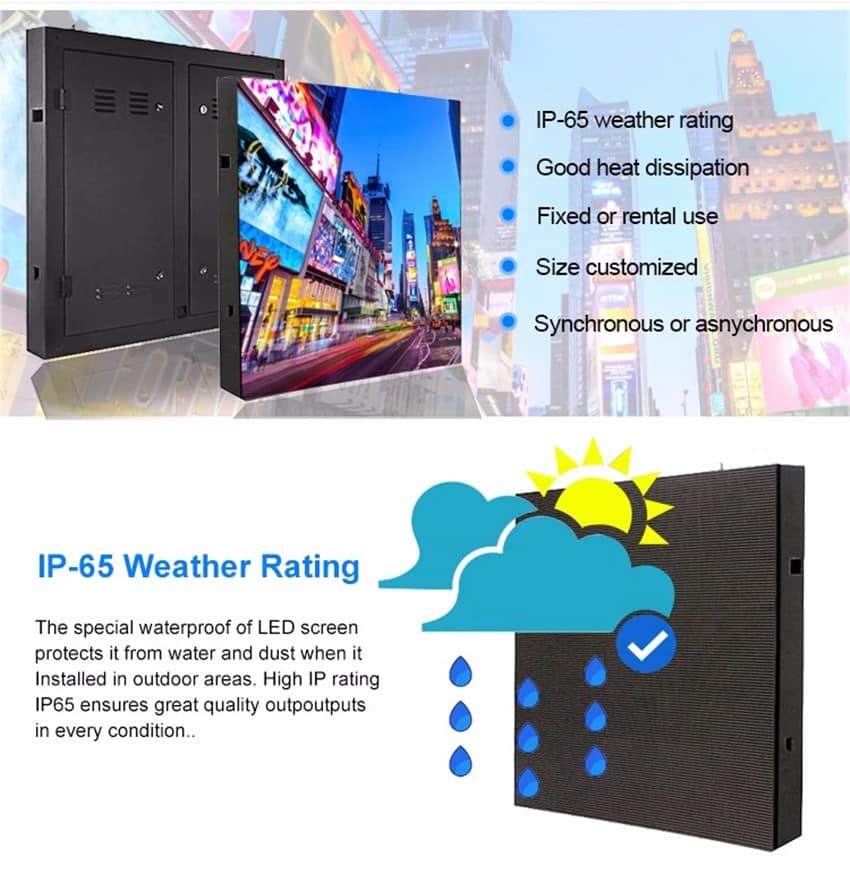

6.Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.
7.Patent design with unique color mask processing, showing the industry leading ultra high contrast.
8.Ultra low temperature free fan design, low temperature rise, small attenuation, long service life.
