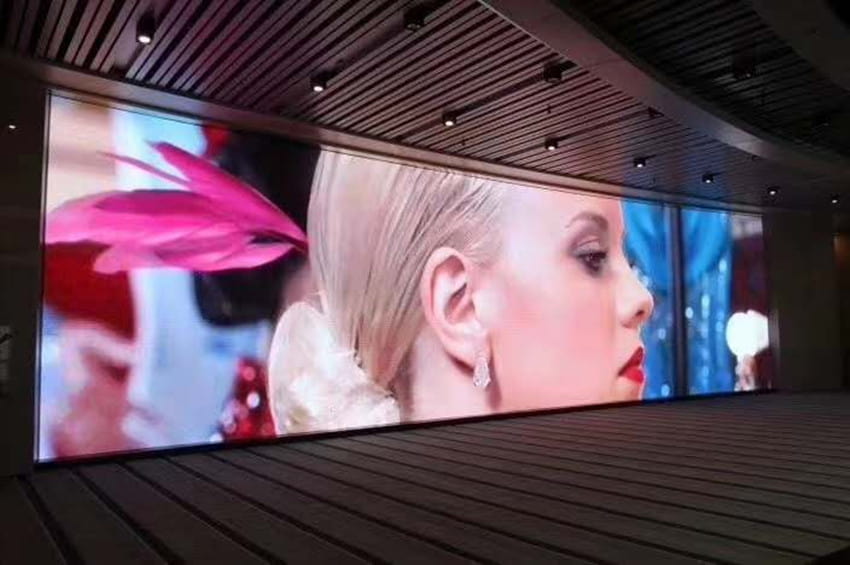

Indoor Fixed Installation Conference LED Display Video Wall
|
|
LED Module
|
Pixel Pitch (mm)
|
P2 Indoor
|
P2.5 Indoor
|
P3 Indoor
|
P4 Indoor
|
P5 Indoor
|
P6 Indoor
|
|
Pixel configuration
|
SMD 1515
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD2121
|
SMD3528
|
|
LED lamp
|
Nation Star / Kinglight
|
|
IC
|
MBI 5124 / ICN 2038S
|
|
Scan
|
1/32 S
|
1/32 S
|
1/32 S
|
1/16 S
|
1/16 S
|
1/16S
|
|
Module size
|
128*128mm
|
160*160mm
|
192*192mm
|
256*128mm
|
320*160mm
|
192*192mm
|
|
Module resolution (pixel）
|
64*64 pixel
|
64*64 pixel
|
64*64 pixel
|
64*32 pixel
|
64*32 pixel
|
32*32 pixel
|
|
Pixel density (dots/m2)
|
250,000
|
160,000
|
111,111
|
62,500
|
40,000
|
27,777
|
|
LED Cabinet
|
Cabinet size (W*H)
|
512*512mm
|
640*640mm
|
576*576mm
|
768*768mm
|
960*960mm
|
960*960mm
|
|
Cabinet resolution (W*H)
|
256*256
|
256*256
|
192*192
|
192*192
|
192*192
|
160*160
|
|
Cabinet material
|
Iron / Aluminum
|
|
Cabinet weigt (KG)
|
Iron : 35kg/m2
Aluminum : 30 kg/m2
|
|
Controller
|
Controller card
|
Nova Star /Linsn /Colorlight
|
|
Control Method
|
Synchronization /Asynchronization control
|
|
Parameter
|
Brightness(cd/m2)
|
800-1300cd/m2
|
|
Best viewing distance
|
2-20 m
|
3-20m
|
3-20m
|
4-50m
|
5-50m
|
6-50m
|
|
Viewing angle
|
140° W ; 140 °H
|
|
IP grade
|
IP43
|
|
Life span
|
96,360 hours
|
|
Working Voltage
|
AC 220V/110V±10%
|
|
Input Power Frequency
|
50/60Hz
|
|
Defect Rate
|
≤0.0001
|
|

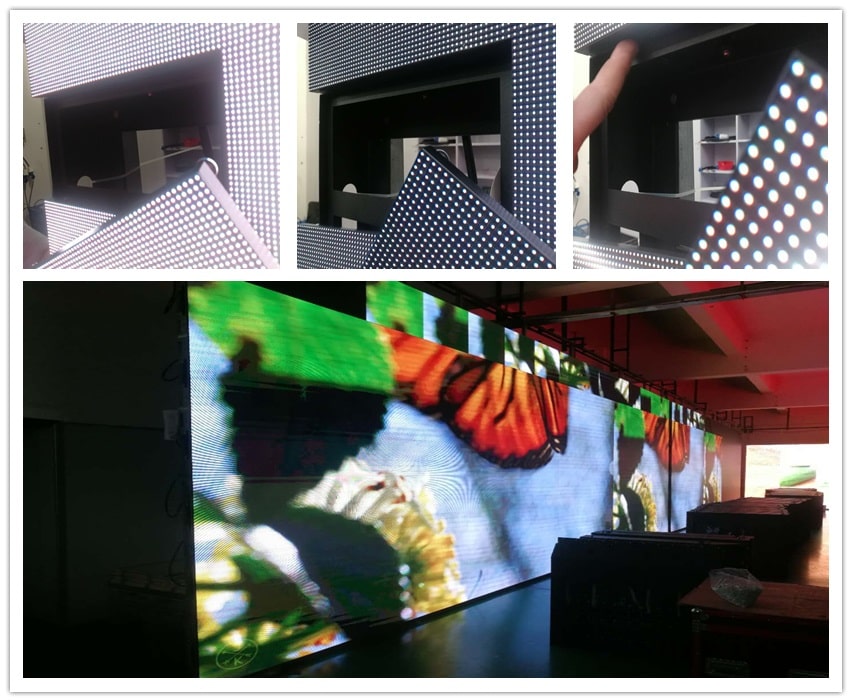

Maintenance mode
|
front/back
|
|
Average power consumption
|
300 W / m2
|
|
Max power consumption
|
600 W / m2
|
|
Operating Temperature
|
–30℃~+60℃ 10%~95%RH
|
|
Signal Input
|
HDMI, DVI, VGA, RF, S-Video, RGB, RGBHV, YUV, YC&Composition, etc.
|
|
Control Distance
|
120 m (no repeating); Optical fiber transmission: 500m-
10km
|
|
Systems Operating Platform
|
WINDOWS(WIN2000/ WINXP/WIN7/WIN8/WIN10)
|
Why Choose us :
1.Led wall sign First-class LED chip: Epistar from Taiwan
2. Led screen light With pure golden wire connection in LED
3. Grand A row material for module frame and mask
4. 4 layers PCB and copper plating thickness > 18mil
5. Ag alloy solder paster to ensure good soldering on PCB
6. Stainless steel screws when assembly
7. Long-term Brightness capacity throughout product lifetime
8. Large led advertising screens is Easy Installation & User-friendly software
9.Indoor led video wall is High resolution, can be used for high-end big screen TV, suitable for interio home theatre system
10.Compared with conventional TV, led wall panel system has a larger screen, more bright beautiful color and more shocking display effect
11.Large screen display acted as a high-end indoor screens at the same time, used in the various types of indoor places, such as high-end conference rooms, families, halls, cinemas, theatres, lounge, stations ,etc
13.P2 /P2.5/P3 /P4 /P5 P6 indoor SMD full color LED display use the latest generation of technology, the pixel dots to each square metres of 16 million points, can have reached or even exceeded the TV wall splicing of pixel, and rely on seamless mosaic of LED display screen, visually much more than the TV wall splicing.
14.The concert hall indoor pantalla LED display screen is easy to use, convenient installation, a new generation of P2.5 LED display, visual distance will be further enhanced, you completely can close viewing clarity.
15.China hotel fixed installation indoor LED display service life of more than 10 million hours is double the service life of splicing wall and unlike splicing wall that after aging replacement lamp backlight or replacement of lighting, even splicing wall to the latter part of the lifetime of plasma reached limit can only be scrapped, unable to repair the defects.
