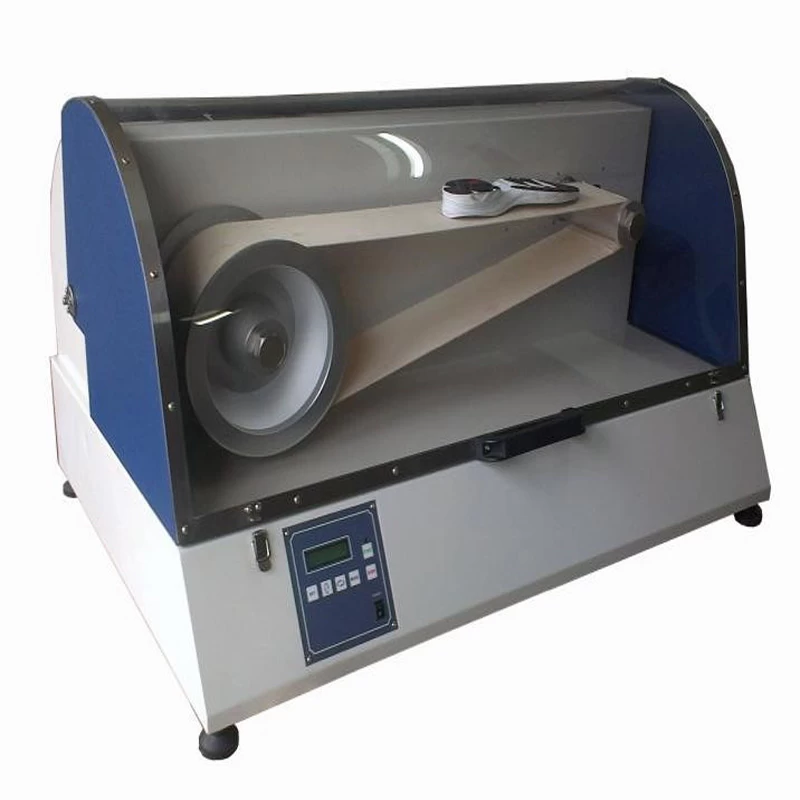

AF32-Outsole Belt Flexing Tester
Application Of Outsole Belt Flexing Tester
Outsole Belt Flexing Tester is used to determine the flexing resistance of Shoe’s outsole. Paste or sew the sample outsole on canvas belt surface, machine reel drive the belt, simulated people walking with shoes. After flexing a certain number of times, check the damage and fracture degree of the sample.
Standards Of Outsole Belt Flexing Tester
SATRA TM133
Key Specification Of Outsole Belt Flexing Tester
|
Model
|
AF32 Outsole Belt Flexing
Tester
|
|
Test
position
|
Can
test 6pc of sole at the same time
|
|
Cavas
belt size
|
Length
1930±50mm, width 140±5mm
|
|
Cavas
belt speed
|
90±8
cycles/min
|
|
Driven roller diameter
|
Center
diameter 225±5
mm, Ends diameter 170±20 mm
|
|
Driven
roller speed
|
247±20
cycles/min
|
|
Free
roller diameter
|
A.Center diameter 60±0.5 mm, Ends diameter 57±1 mm
B.Center
diameter 90±0.5
mm, Ends diameter 87±1 mm
C.Center
diameter 120±0.5
mm, Ends diameter 117±1 mm
|
|
Counter
|
LCD,
0~999，999
|
|
Power
supply
|
AC220V,
50/60HZ
|
|
Dimension
|
1290×750×700
mm
|
|
Weight
|
170kg
|
