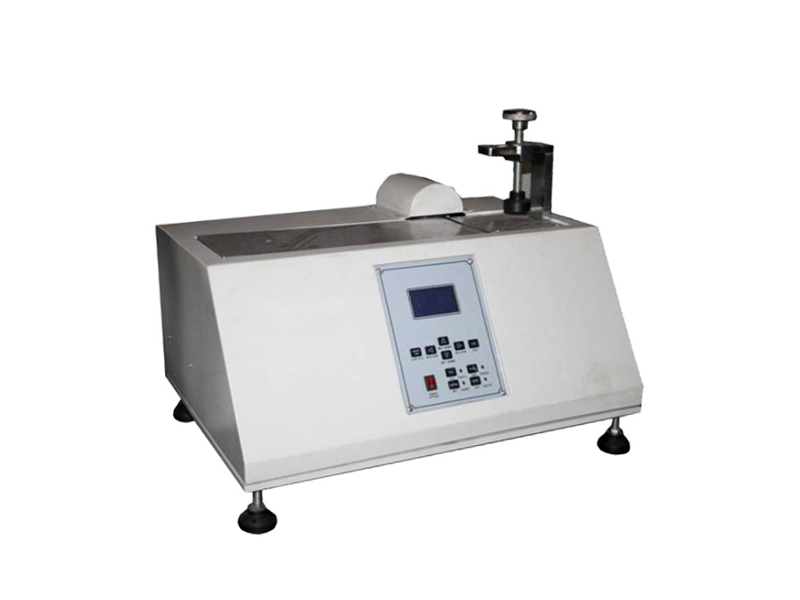

Outsole Flexing Rigidity Tester

Outsole Flexing Rigidity Tester is used to determine the rigidity of outsoles of French shoes in sizes 39 and 42 and British shoes in sizes 6 and 8.

Test Standards

GB/T 20991 section 8.4.1, ISO 20344-2011 section 8.4.1, AS/NZS 2210.2 section 8.4.1,

ISO 17707 section 4.2

Parameters

Model AT-F3044
Capacity 500N
Load resolution 1/50000
Bending speed 100mm/min (adjustable)
Specimen size French size: 39, 42
British size: 6, 8
Test load 30N
Bending position 1/3 of shoe from the toe
Angle resolution 0.1°
Measurement method Fixed forced/display angle
Fixed angle/display force
Power supply 1 Phase AC 220V or specified

If you are looking for more lab testing equipment, please feel free to contact .
